Webiny-js: Page Builder - image element rendered with incorrect dimensions

[doitadrian]

This is:

• Bug

Expected Behavior

Images should be the same size.

Actual Behavior

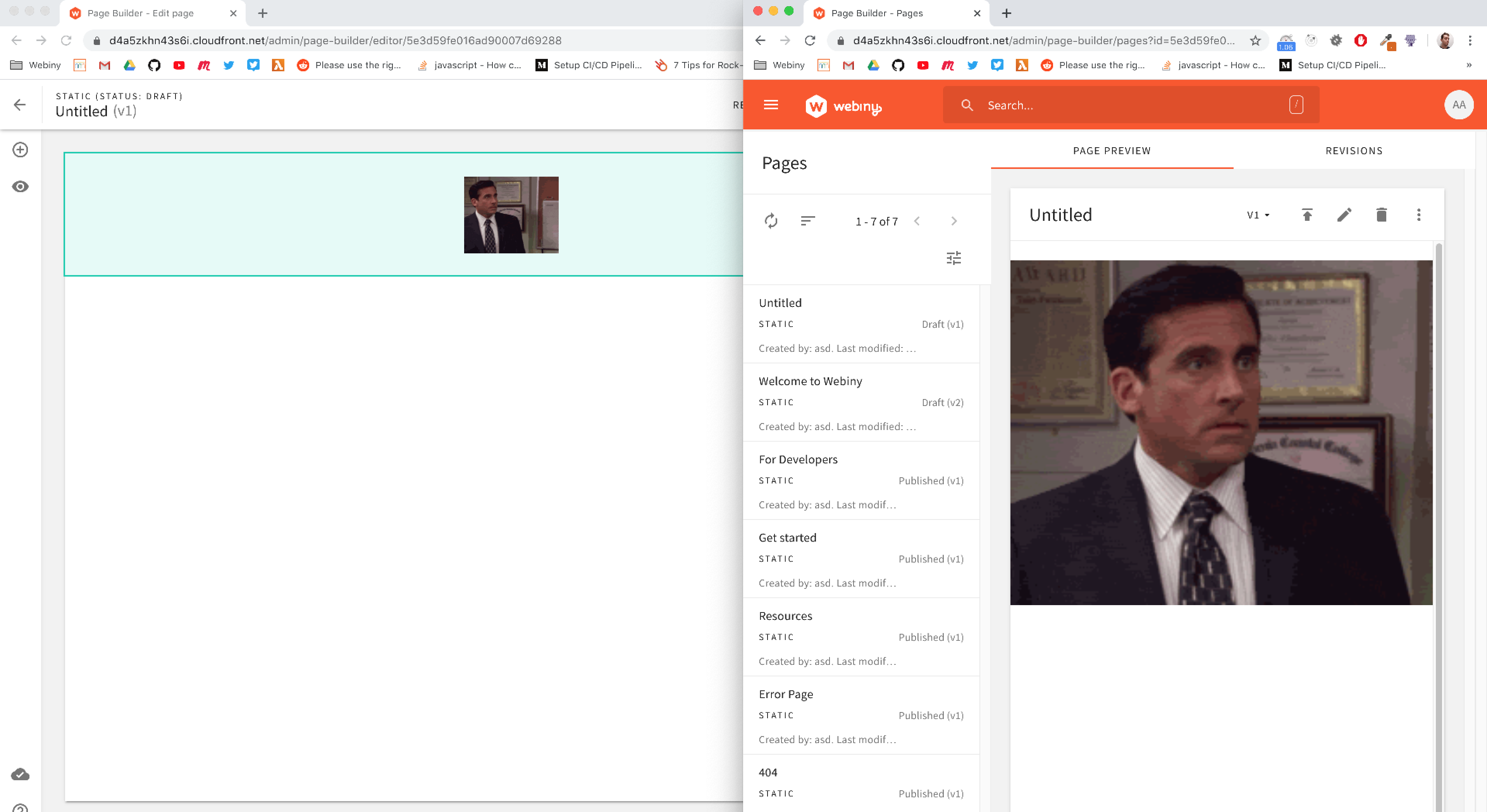

Image is large in preview, and small in the editor.

Steps to Reproduce the Problem

1. Add a new image element, and select an image (possibly small)
2. Compare its size with the one in the page preview mode

Possible Solution

Check render/editor plugins and determine which one is rendering the image incorrectly.

packages/app-page-builder/src/render/plugins/elements/image/Image.tsx
packages/app-page-builder/src/editor/plugins/elements/image/Image.tsx

[ganeshmani]

I would like to work on this issue

[TommyJackson85]

@ganeshmani are you still working on this issue?
If not, I will work on this issue if it is still relevant (after the recent changes to the project I mean).

[ganeshmani]

@TommyJackson85 feel free to take this issue..

[TommyJackson85]

@doitadrian is this issue still relevant with the recent changes to the application?

[Pavel910]

@TommyJackson85 I believe it's still relevant. If this was closed, it would be referenced by a PR. So feel free to jump on it. I'll assign you to this issue.

[TommyJackson85]

@Pavel910 Ok good to know, I will work on it next.

[TommyJackson85]

@Pavel910 @ganeshmani @doitadrian From uploading a small screenshot image, it appears stretched on both the Editor and Preview, although it is a bit smaller in the editor and its showing margins. Would I right in that the image should be displayed in its correct dimensions only upon upload? Or is an automatic image stretch going to be normal and the user is to decrease the size after the upload if it needs? :

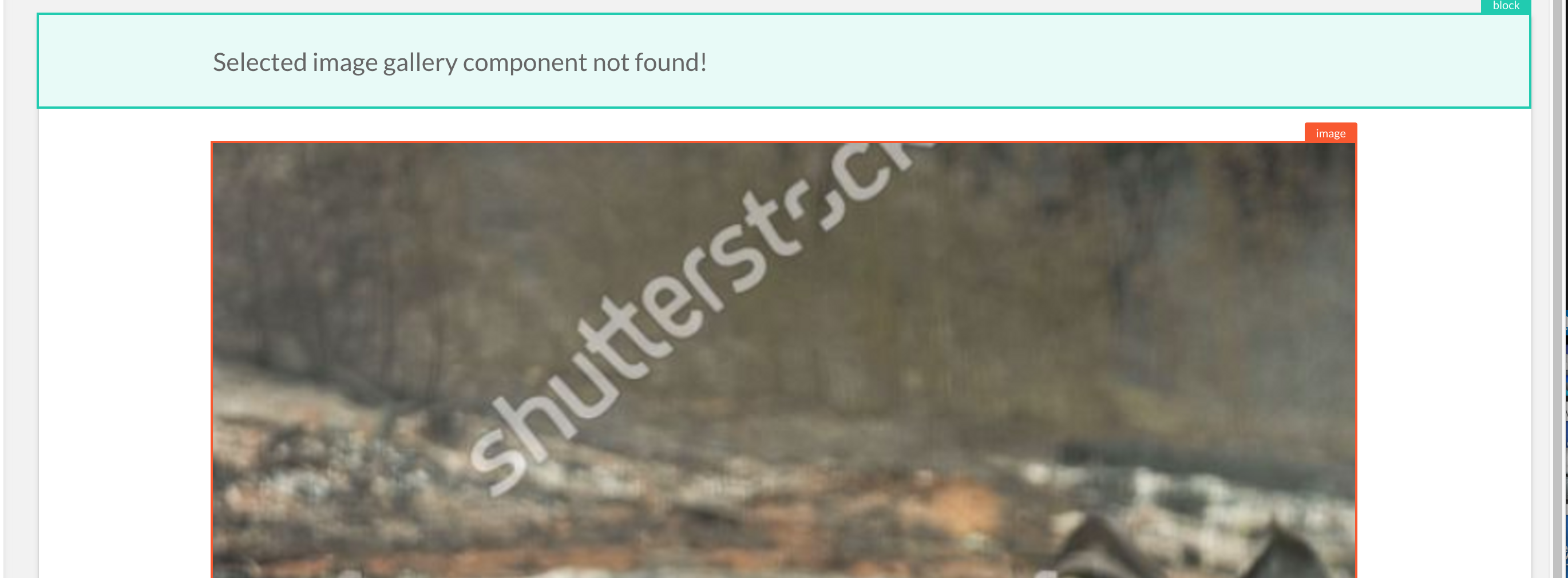

Image in Editor

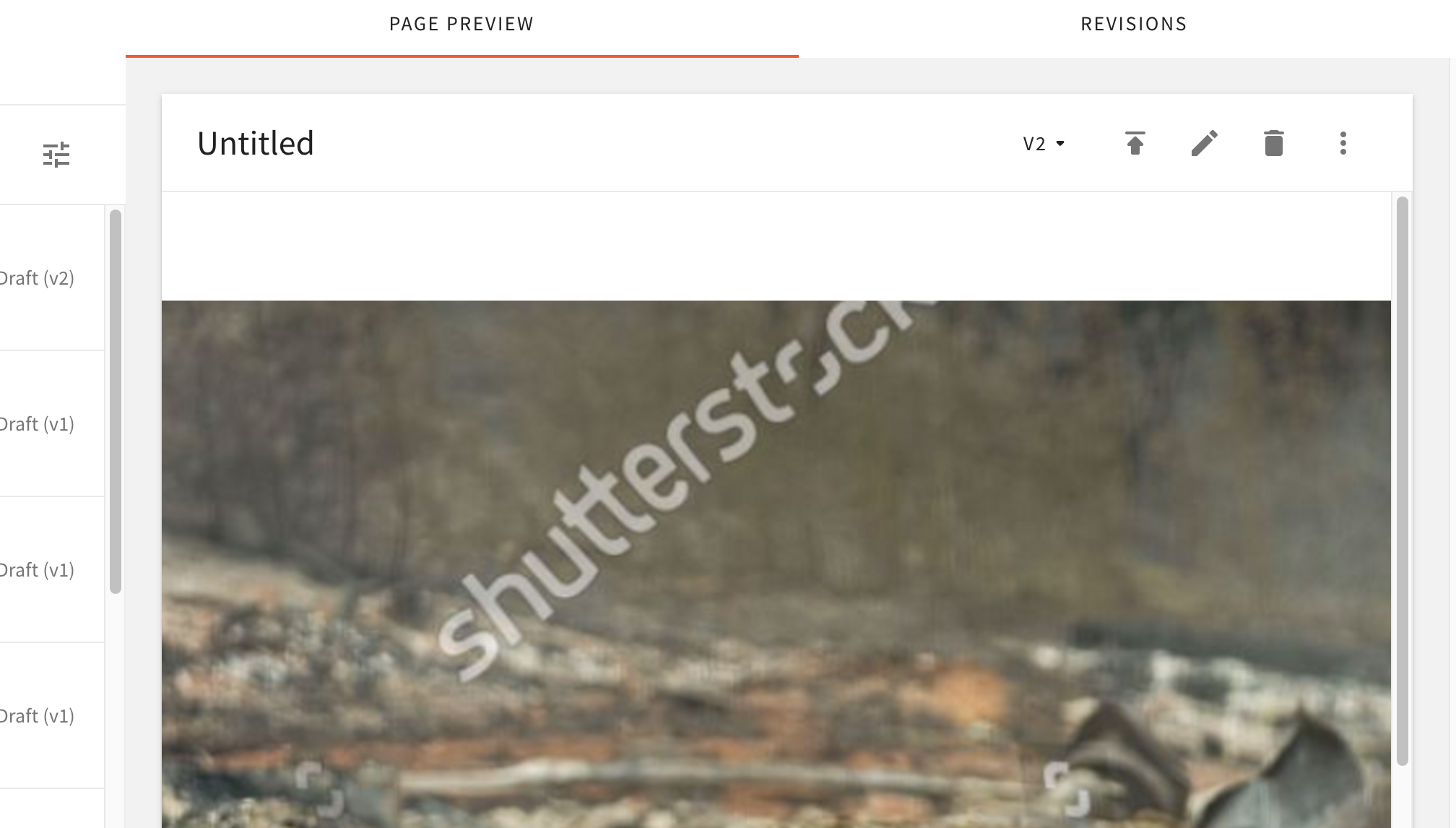

Image in Preview

[TommyJackson85]

@Pavel910 When putting loading images through render and not the images the width and height keys dont appear to be generated.
Maybe as a further enhancement, instead of changing the width/height to 100% (when width/height keys are not found) we could attempt to render the image src file in advance to find it's naturalHeight / naturalWidth dimensions.

const style = { width, height };
    if (!style.width) {
        style.width = "100%";
    } else {
        style.width += style.width.endsWith("px") ? "" : "px";
    }

Could create a separate issue on this if its not relevent.
We could also attempt to render them within the ImageContainer.tsx file in the editor route where it seems to first determine what the image.width and image.height are in the editor. From here we could pass on the width and height keys.

    if (image.width) {
        const { width } = image;
        imgStyle.width = isNumeric(width) ? parseInt(width) : width;
    }
    if (image.height) {
        const { height } = image;
        imgStyle.height = isNumeric(height) ? parseInt(height) : height;
    }

Am I right in saying that the images shouldn't be stretched in render or editor if they are small?

[TommyJackson85]

Continue this conversation in the new PR if you like.
