Polaris-react: [RangeSlider] SingleThumb doesn't extend to the limits of the track in MSEdge

[ruairiphackett]

Issue summary

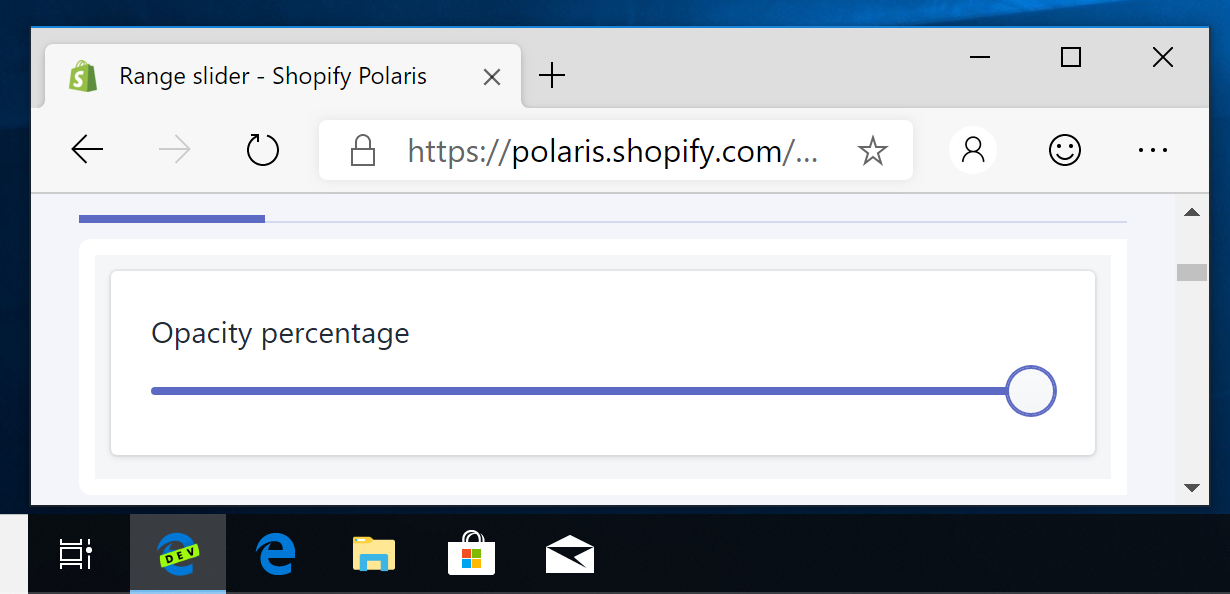

The single thumb element doesn't extend to the end/start when it is moved to the upper/lower limits of the track in Microsoft Edge (v18 on Win 10). This is shown below.

Note: This doesn't affect the dual thumb slider, only the single.

Expected behavior

The thumb should extend to the upper/lower limits of the track as shown here in the current version of Chrome on OSX:

Actual behavior

The single thumb only extends to a point close to the upper/lower limits of the track and as a result doesn't match up with the progress colours on the track.

This is best shown in this recording of the default slider in the Polaris storybook:

Also present in the styleguide:

Steps to reproduce the problem

1. Open the Polaris Storybook in MSEdge on a machine running Windows 10
2. Navigate to Range slider -> Default range slider

Reduced test case

The best way to get your bug fixed is to provide a reduced test case. This CodeSandbox template is a great starting point.

Specifications

• Are you using the React components? (Y/N): Y
• Polaris version number: v3.15.0
• Browser: Microsoft Edge v18
• Device: Windows 10 VM
• Operating System: Windows 10

[alex-page]

Hey @ruairiphackett thanks for opening this issue.

As this is an inconsistency in a legacy browser it we will not be addressing this. If you want to take a look yourself you are always welcome to open a pull request.

Are you able to confirm some things:

• Does this issue occur in the new chromium version of edge
• Does the native slider do the same thing? I think our styles are just minor enhancements. So if this is the default we probably wouldn't be making it consistent with the other browsers.

[tmlayton]

Does the native slider do the same thing?

@alex-page this issue is the native slider, not the custom slider which is only used for the dual range version.

[tmlayton]

Confirmed this is no longer an issue with Chromium-based Edge:

[tmlayton]

The ::-ms-thumb styles are there, too, so maybe this is a simple fix.

[ruairiphackett]

Thanks for taking a look at Chromium-based Edge @tmlayton 👍

@alex-page Is there a list of supported browsers available for Polaris? Apologies, I didn't realise Edge v18 was legacy, can this issue be closed so?

[alex-page]

@ruairiphackett edge is supported by Polaris. Whatever Shopify supports we support. The problem is due to this line:
https://github.com/Shopify/polaris-react/blob/18f1a6fcd3a614bd5b64002495fafdafbe843141/src/components/RangeSlider/components/SingleThumb/SingleThumb.scss#L112

The circle is actually touching the edges however it is being scaled down. This is making it appear that there is a gap on the left and right edges. The scale has been added because the rem value is not respecting the 10px on the html as there is a shadow dom created inside the range slider.

Removing the scale and changing the height and width causes other issues with hidden overlapping parents you cannot control:

However, everything outside of the parent slider’s content-box gets cut out in Edge. This is not equivalent to having overflow set to hidden on the actual input, which would cut out everything outside the padding-box, not content-box. Therefore, it cannot be fixed by setting overflow: visible on the slider.

src: https://css-tricks.com/sliding-nightmare-understanding-range-input/

I am going to quickly take a look into adding a negative margin in edge to see if I can pull the circle back out. If this doesn't work I think it would make sense to close this issue. The effort required to fix this is not worth it.

[probot-shopify[bot]]

This issue has been inactive for 180 days and labeled with Icebox. It will be closed in 7 days if there is no further activity.
