Kiali: Traces asks OpenShift Login

[hhovsepy]

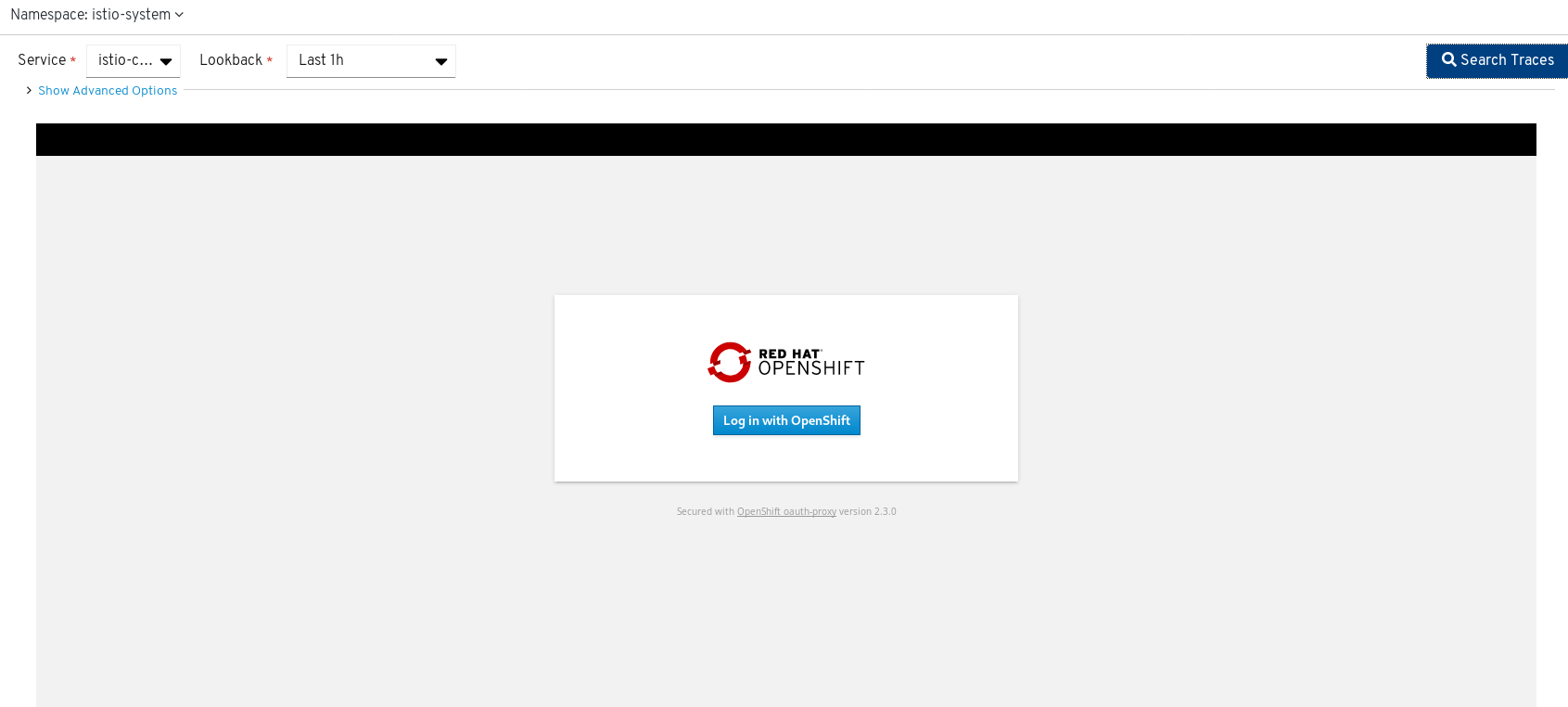

When opening Traces tab or Distributed Tracing menu item, it asks to accept the certificate.
After certificate acceptance, it asks OpenShift login.
Happens because traces in opened in an IFrame.

[aljesusg]

The yaml file is

kind: ConfigMap
apiVersion: v1
metadata:
  name: kiali
  namespace: istio-system
  selfLink: /api/v1/namespaces/istio-system/configmaps/kiali
  uid: f9821dda-ca48-11e9-b868-fa163e93986d
  resourceVersion: '2988464'
  creationTimestamp: '2019-08-29T10:37:18Z'
  labels:
    app: kiali
    version: 1.0.5
  ownerReferences:
    - apiVersion: kiali.io/v1alpha1
      kind: Kiali
      name: kiali
      uid: f47c7df7-ca48-11e9-b868-fa163e93986d
data:
  config.yaml: |
    api:
      namespaces:
        exclude:
        - istio-operator
        - kube.*
        - openshift.*
        - ibm.*
        - kiali-operator
        label_selector: kiali.io/member-of=istio-system
    auth:
      strategy: openshift
    deployment:
      accessible_namespaces:
      - istio-system
      image_name: quay.io/maistra/kiali-rhel7
      image_pull_policy: Always
      image_pull_secrets: []
      image_version: 1.0.5
      ingress_enabled: true
      namespace: istio-system
      secret_name: kiali
      service_type: NodePort
      verbose_mode: '3'
      version_label: 1.0.5
      view_only_mode: false
    external_services:
      grafana:
        auth:
          ca_file: /var/run/secrets/kubernetes.io/serviceaccount/service-ca.crt
          insecure_skip_verify: false
          password: 4NFifoigpzw5jC0v5UcXrXY5wMARjIg0aRfZRRQcK224ixIkkOWTvIjb1ll9IB67goACknIbEQqXA39qqfCzQg1aSIGV8Lyj/HgU3bDJX7aVGH5pXcFj5q+hWQ1JiRA6FNCZ1QZYbtZydlqG0VT9iykcEOrjvQ4mpIlPAzrU7QyhzgJF8FAMjQB+O22JbJ/csRkuGQQoB7ISDJ5wXERDWJNGCHJOvhw1MwqYIoDv/nkqD7WUcS5qXcYaRQKTzzJwI08u2FqTQAKxXH1iifiG/YMf6eeyakdRX8OKykgCCpHuToGmrLpwO6LUUxlRMuDwovjaVe14CUzy01DOCuNl
          token: ''
          type: basic
          use_kiali_token: false
          username: internal
        display_link: true
        enabled: true
        in_cluster_url: https://grafana.istio-system.svc:3000
        url: https://grafana-istio-system.apps.ocp4-kqe1.maistra.upshift.redhat.com
      istio:
        istio_identity_domain: svc.cluster.local
        istio_sidecar_annotation: sidecar.istio.io/status
        url_service_version: http://istio-pilot.istio-system:8080/version
      prometheus:
        auth:
          ca_file: /var/run/secrets/kubernetes.io/serviceaccount/service-ca.crt
          insecure_skip_verify: false
          password: 4NFifoigpzw5jC0v5UcXrXY5wMARjIg0aRfZRRQcK224ixIkkOWTvIjb1ll9IB67goACknIbEQqXA39qqfCzQg1aSIGV8Lyj/HgU3bDJX7aVGH5pXcFj5q+hWQ1JiRA6FNCZ1QZYbtZydlqG0VT9iykcEOrjvQ4mpIlPAzrU7QyhzgJF8FAMjQB+O22JbJ/csRkuGQQoB7ISDJ5wXERDWJNGCHJOvhw1MwqYIoDv/nkqD7WUcS5qXcYaRQKTzzJwI08u2FqTQAKxXH1iifiG/YMf6eeyakdRX8OKykgCCpHuToGmrLpwO6LUUxlRMuDwovjaVe14CUzy01DOCuNl
          token: ''
          type: basic
          use_kiali_token: false
          username: internal
        custom_metrics_url: https://prometheus.istio-system.svc:9090
        url: https://prometheus.istio-system.svc:9090
      tracing:
        auth:
          ca_file: /var/run/secrets/kubernetes.io/serviceaccount/service-ca.crt
          insecure_skip_verify: false
          password: 4NFifoigpzw5jC0v5UcXrXY5wMARjIg0aRfZRRQcK224ixIkkOWTvIjb1ll9IB67goACknIbEQqXA39qqfCzQg1aSIGV8Lyj/HgU3bDJX7aVGH5pXcFj5q+hWQ1JiRA6FNCZ1QZYbtZydlqG0VT9iykcEOrjvQ4mpIlPAzrU7QyhzgJF8FAMjQB+O22JbJ/csRkuGQQoB7ISDJ5wXERDWJNGCHJOvhw1MwqYIoDv/nkqD7WUcS5qXcYaRQKTzzJwI08u2FqTQAKxXH1iifiG/YMf6eeyakdRX8OKykgCCpHuToGmrLpwO6LUUxlRMuDwovjaVe14CUzy01DOCuNl
          token: ''
          type: basic
          use_kiali_token: false
          username: internal
        enabled: true
        namespace: istio-system
        port: 16686
        service: ''
        url: https://jaeger-istio-system.apps.ocp4-kqe1.maistra.upshift.redhat.com
    identity:
      cert_file: /kiali-cert/tls.crt
      private_key_file: /kiali-cert/tls.key
    installation_tag: Kiali [istio-system]
    istio_labels:
      app_label_name: app
      version_label_name: version
    istio_namespace: istio-system
    kubernetes_config:
      burst: 200
      cache_duration: 300000000
      cache_enabled: false
      qps: 175
    login_token:
      expiration_seconds: 86400
      signing_key: kiali
    server:
      address: ''
      audit_log: true
      cors_allow_all: false
      metrics_enabled: true
      metrics_port: 9090
      port: 20001
      web_root: /

Can you set use_kiali_token to true and check it ?

[lucasponce]

I've moved from "blocker" to "p1".
It's a serious issue but as it may have a documented workaround I think we can label it as "p1" instead.

[aljesusg]

Checking these changes https://github.com/Maistra/istio-operator/commit/9a4bdc8aaa3739f6522ad6f89513812ddeca97c7#diff-44c0797c92539240b8d53d3c8c4a5aeb

[aljesusg]

Jira opened in Maistra https://issues.jboss.org/browse/MAISTRA-873

[lucasponce]

This is a known issue.
To proper solve this the integration with jaeger will require a more complex SSO solution so we are considering to propose a Kiali component to visualize the traces in Kiali, and when clicking in the detail it can jump in a different tab/window delegating but removing the iframe integration that is not adding too much value but more complexity in the configuration than expected.
