Game-compatibility: Taz - Wanted [IG-013] [1.01]

Created on 15 Aug 2017 · 9Comments · Source: Cxbx-Reloaded/game-compatibility

Issues

Reaches the loading screen

_From @jarupxx on April 1, 2017 8:33_

This title will bootup with 796b06ebd09c79a02e5fe627840554411e51171e or old commits. Next commit 8640ad77ce232d66131a57e2243055374c7987e7 is won't boot.
I found a missing function D3DTexture_LockRect_3925, so we need to add it to D3D 8.1.0.4432.inl.
However, it seems that it will not boot for another reason.

Logs
796b06eb.txt (successful bootup)
8640ad77.txt (won't boot)
cf4ff0cc.txt (latest commit)
Xbe.txt

_Copied from original issue: Cxbx-Reloaded/Cxbx-Reloaded#313_

issue-audio issue-video region-japan region-other region-us-canada state-working type-retail xdk-4432

Source

PatrickvL

Most helpful comment

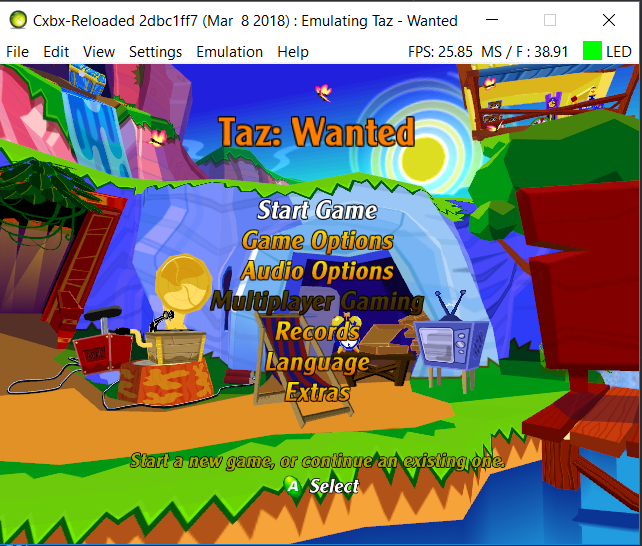

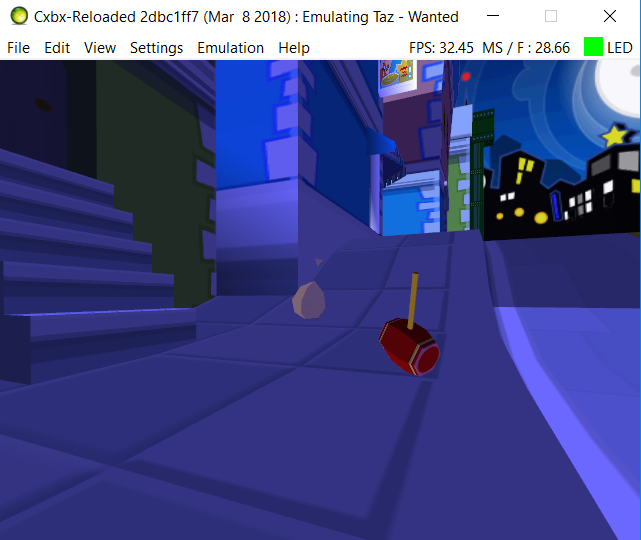

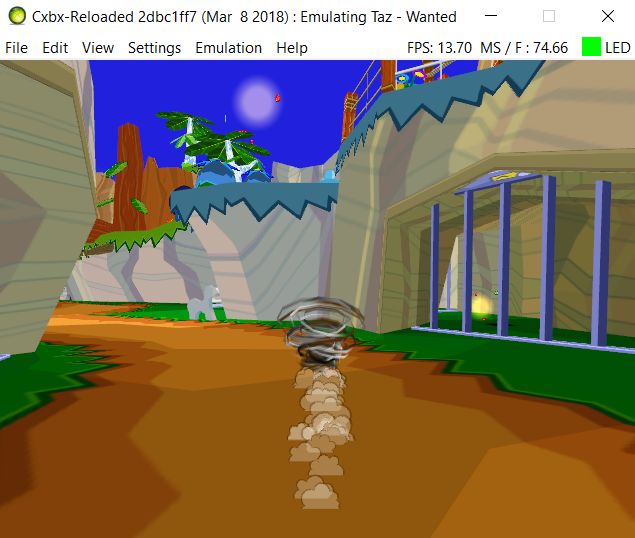

Taz now gets in-game! Though, the game is quite sluggish, and there are some missing models, but other than that, looks great! (EDIT: there's also a couple of broken SFX, and the background music in-game doesn't play either)

capture2
capture3
untitled

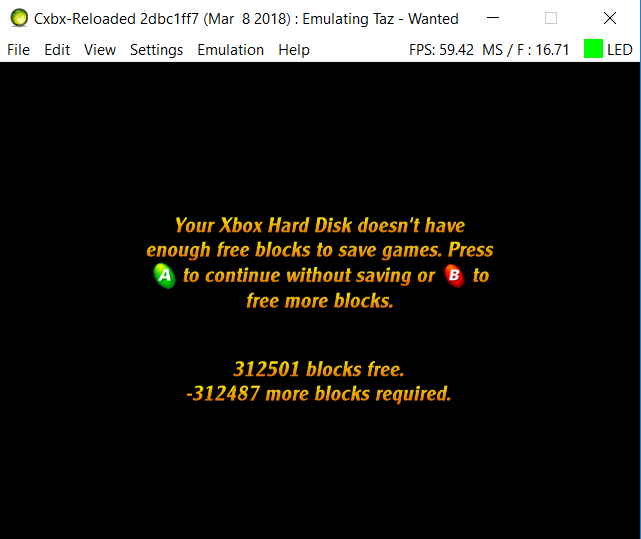

There also seems to be some kind of HDD issue preventing saving the game, that I should report here as well:
capture

Voxel9 on 8 Mar 2018

🎉3

All 9 comments

Please describe what happened during successful bootup

PatrickvL on 15 Aug 2017

_From @jarupxx on April 2, 2017 8:8_

@PatrickvL We look intro movie and loading screens.
taz1
taz2

PatrickvL on 15 Aug 2017

Commit 8640ad7 did contain a few EEPROM-related bugs that were later fixed.

However, looking at the differences between 796b06eb.txt and cf4ff0cc.txt these OOVPA detections are missing:

HLE: 0x0016F830 -> XTL::EmuIDirect3DDevice8_SetTextureState_BumpEnv
HLE: 0x0016F280 -> XTL::EmuIDirect3DDevice8_SetRenderState_CullMode
HLE: 0x0016F2F0 -> XTL::EmuIDirect3DDevice8_SetRenderState_FrontFace
HLE: 0x0016FFB0 -> XTL::EmuIDirect3DDevice8_SetRenderState_StencilCullEnable
HLE: 0x00171820 -> D3D_SetFence_1_0_4134 (XRef)
HLE: 0x00181412 -> CDirectSound_CreateSoundStream_1_0_4361 (XRef)
HLE: 0x00185AC7 -> CMcpxStream_Pause_1_0_4361 (XRef)
HLE: 0x00180475 -> XTL::EmuCDirectSoundStream_Pause
HLE: 0x0018114C -> CMcpxBuffer_SetBufferData_1_0_4361 (XRef)
HLE: 0x001811D8 -> CDirectSoundBuffer_SetBufferData_1_0_4361 (XRef)
HLE: 0x001813F2 -> XTL::EmuIDirectSoundBuffer8_SetBufferData
HLE: 0x001851A2 -> CMcpxBuffer_GetStatus_1_0_4627 (XRef)
HLE: 0x001800CB -> CDirectSoundBuffer_GetStatus_1_0_4627 (XRef)
HLE: 0x001851EB -> CMcpxBuffer_GetCurrentPosition_1_0_4361 (XRef)
HLE: 0x0018011C -> CDirectSoundBuffer_GetCurrentPosition_1_0_4361 (XRef)
HLE: 0x00180648 -> XTL::EmuIDirectSoundBuffer8_GetCurrentPosition
HLE: 0x00185645 -> CMcpxBuffer_Play_1_0_4361 (XRef)
HLE: 0x0018002B -> CDirectSoundBuffer_Play_1_0_4361 (XRef)
HLE: 0x001805F0 -> XTL::EmuIDirectSoundBuffer8_Play
HLE: 0x00180EFB -> CDirectSound_SetDistanceFactorA_1_0_4531 (XRef)
HLE: 0x001808BF -> CDirectSoundVoice_SetMaxDistance_1_0_4432 (XRef)
HLE: 0x00180A8D -> CDirectSoundBuffer_SetMaxDistance_1_0_4432 (XRef)
HLE: 0x001808F2 -> CDirectSoundVoice_SetMinDistance_1_0_4432 (XRef)
HLE: 0x00180AE3 -> CDirectSoundBuffer_SetMinDistance_1_0_4432 (XRef)
HLE: 0x00180B39 -> CDirectSoundBuffer_SetPosition_1_0_4627 (XRef)
HLE: 0x00180C83 -> XTL::EmuIDirectSoundBuffer8_SetPosition
HLE: 0x00180977 -> CDirectSoundVoice_SetVelocity_1_0_4627 (XRef)
HLE: 0x00180BA0 -> CDirectSoundBuffer_SetVelocity_1_0_4627 (XRef)
HLE: 0x00180CB8 -> XTL::EmuIDirectSoundBuffer8_SetVelocity
HLE: 0x00184354 -> DirectSound_CMcpxVoiceClient_SetFilter_1_0_4627 (XRef)
HLE: 0x00180925 -> CDirectSoundVoice_SetPosition_1_0_4432 (XRef)
HLE: 0x0020113C -> XID_fCloseDevice_1_0_4361 (XRef)
HLE: 0x0016F2F0 -> XTL::EmuIDirect3DDevice8_SetRenderState_FrontFace
HLE: 0x0016FFB0 -> XTL::EmuIDirect3DDevice8_SetRenderState_StencilCullEnable
HLE: 0x0016F280 -> XTL::EmuIDirect3DDevice8_SetRenderState_CullMode
HLE: 0x00171820 -> D3D_SetFence_1_0_4134 (XRef)
HLE: 0x00181651 -> CDirectSound_CreateSoundBuffer_1_0_4627 (XRef)
HLE: 0x00180F5D -> CDirectSound_SetI3DL2Listener_1_0_4432 (XRef)
HLE: 0x00180E13 -> DirectSound_CDirectSound_SetAllParameters_1_0_4928 (XRef)
HLE: 0x0017FD22 -> CDirectSoundVoiceSettings_SetMixBins_1_0_4432 (XRef)
HLE: 0x0018089B -> CDirectSoundVoice_SetFrequency_1_0_4627 (XRef)
HLE: 0x00180A3F -> CDirectSoundBuffer_SetFrequency_1_0_4627 (XRef)
HLE: 0x0018482D -> CMcpxVoiceClient_SetVolume_1_0_4627 (XRef)
HLE: 0x00180B39 -> CDirectSoundBuffer_SetPosition_1_0_4627 (XRef)
HLE: 0x00180C83 -> XTL::EmuIDirectSoundBuffer8_SetPosition
HLE: 0x00180925 -> CDirectSoundVoice_SetPosition_1_0_4432 (XRef)

PatrickvL on 15 Aug 2017

_From @furrya on May 4, 2017 6:23_

Cxbx-Reloaded Version 9173d4ab (May 3 2017) - the game boot'up again but crashes at loading screen

screenshot_1
screenshot_2
screenshot_3
screenshot_4
KrnlDebug.txt

PatrickvL on 15 Aug 2017

_From @jarupxx on May 4, 2017 8:3_

PR #434 boot'up again.
The game now crashes after get this logs.

[0x10DC] EmuD3D8: EmuIDirect3DResource8_Register
(
   pThis               : 0x829A22C0 (->Data : 0x00000100)
   pBase               : 0x829A2280
);
[0x10DC] EmuIDirect3DResource8_Register : Creating VertexBuffer...
[0x10DC] MemoryManager.cpp: QueryAllocationSize(
   addr                 : 829A2380
);
[0x10DC] MemoryManager.cpp: QueryAllocationSize returns 47185920
[0x10DC] EmuMain: Received Exception (Code := 0xC0000005)

 EIP := 0x6D624A50(=XID_fCloseDevice+0x6d423914)
 EFL := 0x00010206
 EAX := 0x00000000 EBX := 0x00000008 ECX := 0x00000000 EDX := 0x0002D447
 ESI := 0x84000000 EDI := 0x0BE1ECC0 ESP := 0x088FFB10 EBP := 0x088FFDA0
 CR2 := 0x00000000

  0:          0x6D624A50
  1:          0x00143C62

[0x10DC] EmuMain: Aborting Emulation

KrnlDebug.txt

PatrickvL on 15 Aug 2017

Results from my tests when looking for regressions:

Last working build (best results): https://github.com/Cxbx-Reloaded/Cxbx-Reloaded/commit/8617b2a9a37b1fa26cb6fd4af07c1dee3f22efa0

Behavior: game boot, reproduce the intro videos, and stop at the loading screen before the menus (the image in the background is shown as intended)

Build Showing regressions: https://github.com/Cxbx-Reloaded/Cxbx-Reloaded/commit/e4be8e8765a74c3b0866c24f2add1e1f7ee0e878

Behavior: game boot, reproduce the intro videos, and stop at the loading screen before the menus (the image in the background
seems very corrupted, as I've shown on https://github.com/Cxbx-Reloaded/Cxbx-Reloaded/pull/696#issuecomment-327104133 )

literalmente-game on 6 Sep 2017

The cause of the collapse of the background screen is caused by XGSetTextureHeader added in HLEDBv2.
We will get the correct background image if leave unpatched.
