Calcite-components: Bug: calcite-label and calcite-tooltip-manager cause a blank panel

[AdelheidF]

Summary

A calcite-label with a switch inside a calcite-block-section in a calcite-block within a calcite-panel and calcite -flow is causing this.
If I only change the calcite-label to a native label all is good.

I see the same thing happening under the Rotation block where calcite-label is used inside the calcite-radio-button-group. If I toggle on the calcite-block-section but remove the calcite-radio-button-group I also don't see this issue.

Locally I stripped it down to a calcite-flow, calcite-panel, clickable div, calcite-block, calcite-block-section and calcite-label and I can still reproduce this.

Reproduction Steps

1. https://devext.arcgis.com/apps/mapviewer/index.html?webmap=838bef37971f405b8c3c82be957f8918
   click Layers tool on left
   click layer name on left to make active
   click Styles tool on right
   Click on Type and Size tile
   Open Transparency block and notice the Include in legend toggle. This calcite-label is causing the issue.
   Now click on either Type or Size tile and you'll notice a blank panel.
   If you toggle off the Transparency calcite-block-section it's fine.
   If you toggle on the Rotation calcite-block-section you see the same issue because of the radio buttons.

Relevant Info

From Matt...

My guess is that if the component isn't using shadow: true and it has a default <slot /> then this error occurs.

[AdelheidF]

I see the same thing happening under the Rotation block where calcite-label is used inside the calcite-radio-button-group.

Any suggestions for a work-around? We have our release in a week.

[eriklharper]

I see the same thing happening under the Rotation block where calcite-label is used inside the calcite-radio-button-group.

Any suggestions for a work-around? We have our release in a week.

@AdelheidF @jcfranco

I'd suggest at this point using a plain <label> in place of calcite-label. I noticed that when I sub in a plain label, the styling looks good because there are already CSS styles applied to them.

So far what I've discovered is that when I put in a <slot> tag inside calcite-radio-button's render function, it causes the whole panel to error out just like this bug has described, with or without a calcite-label in there, so this doesn't appear to be directly related to the calcite-label element, ~but likely from a containing element,~ so my plan is to reconstruct the hierarchy in some way so that I can diagnose which component is causing the issue.

UPDATE: It appears to be a Stencil issue related to our legacy browser config opt-ins (not sure which ones) that are only enabled when running Calcite in production mode, which explains why this behavior does not occur in the calcite dev server. I'm going to explore repro'ing this issue to file a Stencil bug and will report back as details emerge.

Here is the related Stencil issue: https://github.com/ionic-team/stencil/issues/2758

[AdelheidF]

I'd suggest at this point using a plain in place of calcite-label.

I'm fine with this.

[AdelheidF]

re-opening. This is still happening with the latest 1.0.0-next.50 and 1.0.0-beta.48

[eriklharper]

New Stencil bug affecting this issue! https://github.com/ionic-team/stencil/issues/2801

[eriklharper]

Just verified latest Stencil release 2.4.0 is still causing this issue.

[AdelheidF]

This is a real problem in the map viewer. User get into a state where the panel is completely broken and they need to refresh the page.

I'd suggest at this point using a plain in place of calcite-label

Could we please change <calcite-radio-button-group>/<calcite-radio-button> to use only <label> instead of <calcite-label> until this is fixed? The Stencil fix doesn't seem to happen soon.

[eriklharper]

We're going to instead remove labels entirely from both checkbox and radio and leave it up to the user to provide these. This is more in keeping with native HTML form elements. https://github.com/Esri/calcite-components/issues/1740

[AdelheidF]

I came another case with the same issue. It worked with beta.54 and no longer works with beta.55 and later.

If I use calcite-tooltip-manager around a basic div I can already reproduce the same issue as above. calcite-tooltip-manager is used inside a calcite-block-section with a toggle switch, which is inside a calcite-block and that is inside a calcite-panel.

When clicking on a style tile to open the next panel the next panel is completely blank.

basic div test case

<calcite-block-section toggle-display="switch" ...>
  <div>
    <calcite-tooltip-manager>
      <div>Hi</div>
    </calcite-tooltip-manager>
  </div>
</calcite-block-section>

full panel before and after clicking the top tile.

If I remove just the calcite-tooltip-manager element from the code I do not run into this issue. I also don't get any tooltips in this case, of course.

[AdelheidF]

This is causing the issue too. If I don't use calcite-label it's OK.

       <calcite-radio-button-group
          name="rotationType"
          scale="s"
        >
         <calcite-label layout="inline">
            <calcite-radio-button
              checked={true}
              value="geographic"
            ></calcite-radio-button>
            {i18n.ui.geographic}
          </calcite-label>
          <calcite-label layout="inline">
            <calcite-radio-button
              checked={false}
              value="arithmetic"
            ></calcite-radio-button>
            {i18n.ui.arithmetic}
          </calcite-label>
        </calcite-radio-button-group>

[eriklharper]

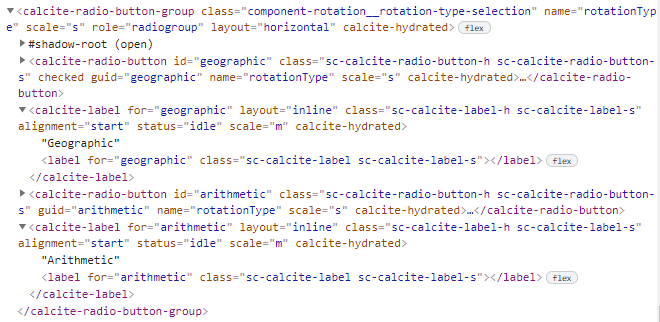

Interesting, I'm curious to see a screenshot of the Elements panel to see what the DOM structure looks like and if there is any improperly relocated slotted content anywhere. In regards to this repro, @AdelheidF, I'm wondering at any place in the tree that replicates that bug is a calcite-label or any other scoped: true component being used? (the only other scoped ones besides label that even exist are inline-editable, input and radio-button).

If not, then this is introduces another wrinkle in the story because so far I have understood the issue to be isolated to only Stencil components that use scoped: true and also have a default unnamed <slot /> tag (label and inline-editable are the only two components that satisfy this combination).

We're planning on dropping all scoped components eventually, but if this issue is happening outside of this known repro case, then this problem is bigger than I originally thought it was.

[AdelheidF]

Tried a new way (Erik suggested) for calcite-radio-button-group (https://github.com/Esri/calcite-components/issues/1317#issuecomment-868868393) but that caused a blank panel as well.
Side note: Should I be worried about the labels and radio buttons not being aligned properly?

[AdelheidF]

I looked more into the issue with calcite-tooltip-manager https://github.com/Esri/calcite-components/issues/1317#issuecomment-868862956. I reduced my panel contents to basically nothing except that it still contains calcite-tooltip-manager and I run into this issue. I do not create any tooltips, blocks, or toggles, only a basic div.

It worked with beta.54 and no longer works with beta.55 and later...

[AdelheidF]

This bug in in triage since mid Jan, could we get them to look at this faster? https://github.com/ionic-team/stencil/issues/2801

I can't use tooltips in those panels now. Or we go back to how things were with beta.54.

[driskull]

The bug has to do with textContent and that wouldn't apply to the calcite-tooltip-manager right @eriklharper ?

The tooltip manager isn't a scoped or shadow component so maybe that has to do with it?

We might want to have separate issues since they may not be related.

[driskull]

@AdelheidF regarding the tooltip one: Can you send the raw output HTML in the browser that is problematic?

[AdelheidF]

Can you send the raw output HTML in the browser that is problematic?

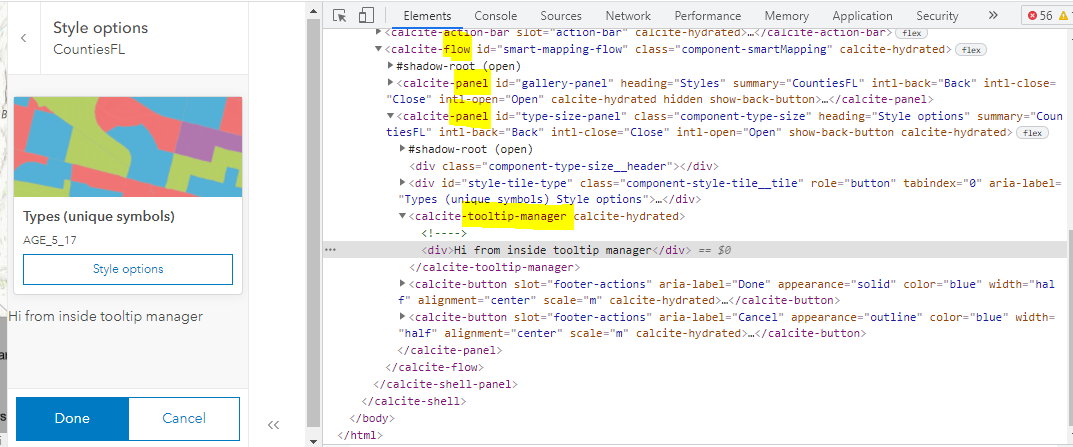

I removed all my content from inside tooltip-manager here to simplify.

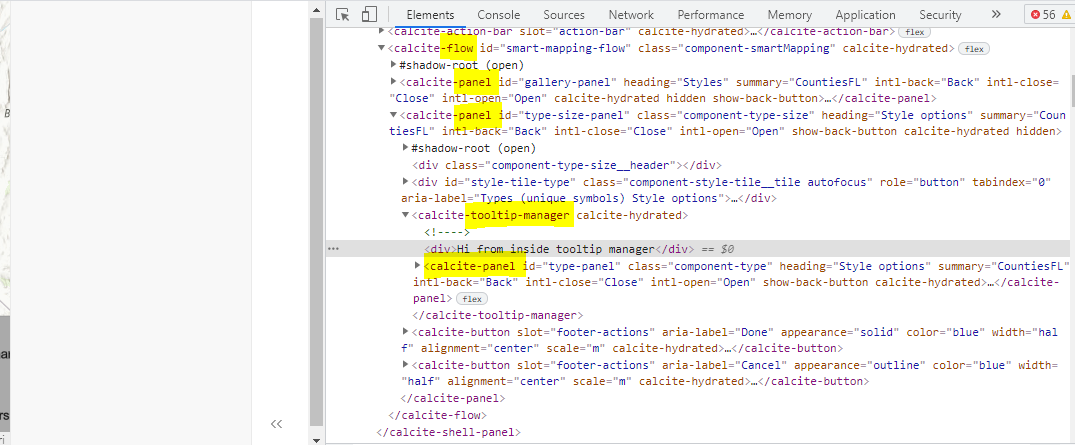

After the click on the Types tile you can see that the new panel is in the wrong place in the dom.

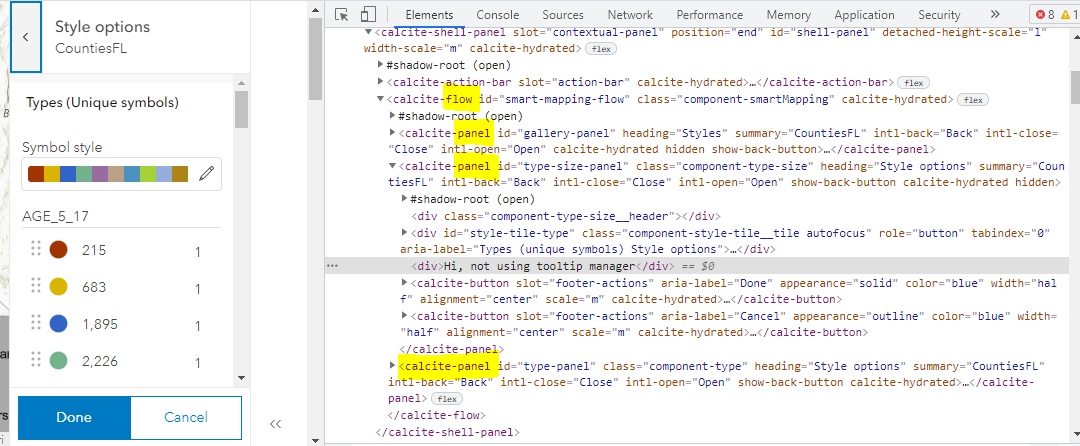

If I remove tooltip-manager, don't use it at all, it looks like this (all correct) after clicking on the Types tile.

[driskull]

So the panel is inside the tooltip manager inside the other panel? That seems very wrong.

[AdelheidF]

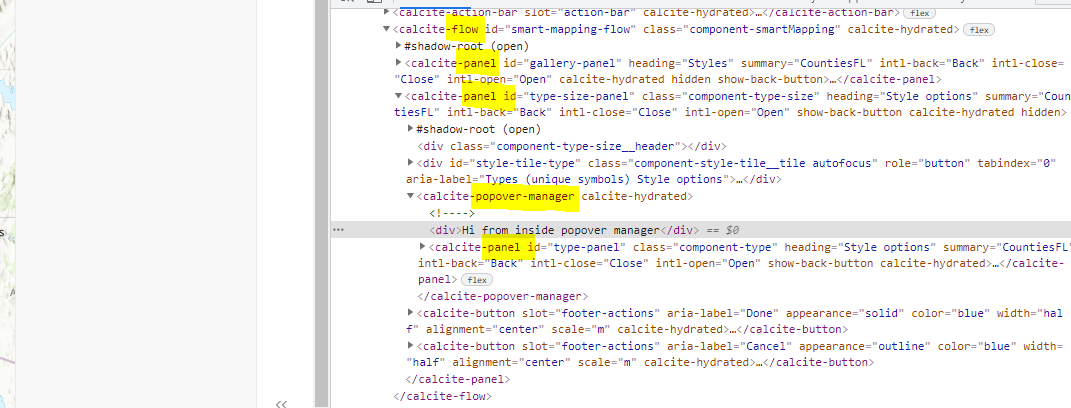

Same is happening with calcite-popover-manager.

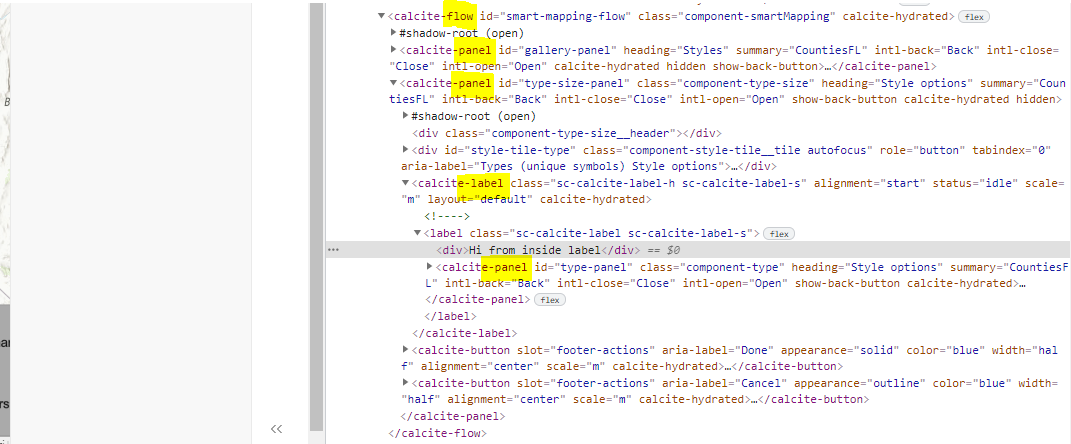

And same with calcite-label (as mentioned before)

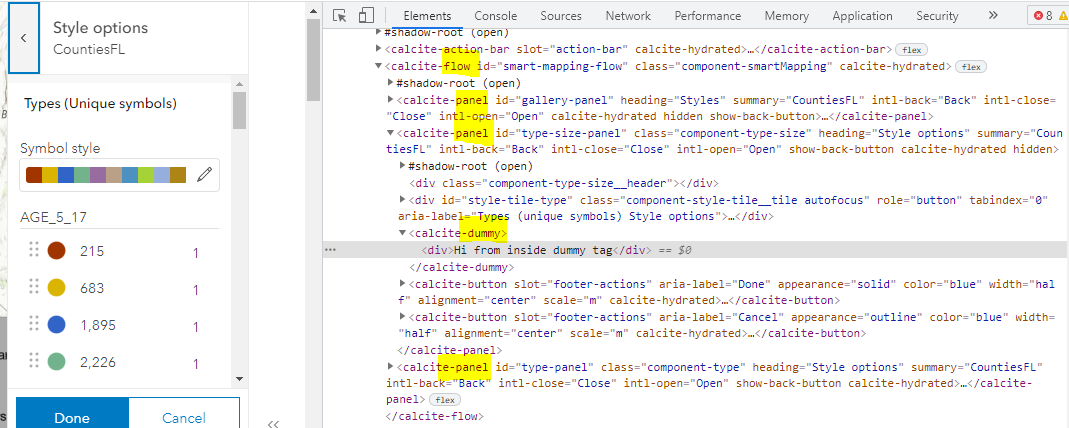

It works correctly when I use a non-existing dummy tag.

It also works correctly when I use calcite-block or calcite-block-section.

[driskull]

My guess is that if the component isn't using shadow: true and it has a default <slot /> then this error occurs.

We can probably verify by adding shadow: true to the calcite-tooltip-manager or removing the <slot /> from it.

What do you think @eriklharper?

[eriklharper]

The bug has to do with textContent and that wouldn't apply to the calcite-tooltip-manager right @eriklharper ?

I'm convinced more than ever that this is definitely a problem with the dom relocation logic that Stencil does to try and "polyfill" slot behavior without using shadow DOM. Even though calcite-tooltip-manager and calcite-popover-manager aren't scoped components, they're still not using shadow, so that tells me that the same logic Stencil applies to scoped components applies to these components as well. I can probably guarantee that if you convert tooltip-manager and popover-manager to be shadow: true this behavior will stop, which is why Adelheid is not seeing this same problem in block or block-section because both of those use shadow DOM.

Unless we're serious about ditching Maquette (although this could be a problem with other vdom libs too), we should definitely try to move away as quickly as possible from non-shadow Stencil components that render a default unnamed <slot />, because that is the common thread with all these problematic components. Because popover-manager and tooltip-manager just render a <slot /> without any wrapping tags, I wonder if just removing the render() method would fix this problem without having to convert it to shadow DOM. I'll try and build off this repro repo (lol) to see if I can both replicate the bug with these other components and see if removing the render method makes it go away.

[driskull]

Previously, i was just rendering <Host /> so I could go back to that as shown here: https://github.com/Esri/calcite-components/commit/5974e7359a4bb406bcc1a7a4337c235224faf6ba#diff-a2f85c5f1a5b52a5a99d59322f5e298c7bb507a724df36bb2ab7dc6235e63701

I guess an empty div would probably work too.

[eriklharper]

Previously, i was just rendering <Host /> so I could go back to that as shown here: 5974e73#diff-a2f85c5f1a5b52a5a99d59322f5e298c7bb507a724df36bb2ab7dc6235e63701

I guess an empty div would probably work too.

I would try <Host /> if Stencil requires you to have a render() method. My guess is that an empty <div> won't resolve it because Stencil still needs to relocate the slotted content you provide the component to be within the empty div.

[driskull]

Yeah try removing the render method first.

[driskull]

For the label, its a bit more complicated. You either have to use shadow or get stencil to fix it.

[eriklharper]

For the label, its a bit more complicated. You either have to use shadow or get stencil to fix it.

Exactly, label is the tricky one because we want the slotted content to be inside the actual <label> element that calcite-label renders. We're gonna have to convert it to shadow I think ultimately. This bug doesn't seem to affect any other Stencil customers for some reason which is why they've been dragging their feet on even providing an update or triaging it. It also could be maquette that is doing something odd to trigger this. The ultimate test to see if that's the case would be to try and replicate this in as many other vdom libs we can.

If we can rule out that the problem is not just with maquette which is a very obscure library, then that gives Ionic more incentive to fix this issue.

[AdelheidF]

This change happened for tooltip-manager between beta.54 and beta.55:
https://github.com/Esri/calcite-components/commit/f5ea968dc25b4700c2f08e528d7d5b3ee8f07768#diff-7c65d6e65fa48582a890403c6e1a4db9100c331566ef8aa034d2bd01e4717c1e

[driskull]

To me, it does seem like its maquette since the HTML that is in the DOM is incorrect. It's not like Stencil is rendering that part.

[driskull]

@AdelheidF are you sure that adding a vnode key doesn't solve this with maquette? https://maquettejs.org/typedoc/interfaces/vnodeproperties.html#key

[eriklharper]

To me, it does seem like its maquette since the HTML that is in the DOM is incorrect. It's not like Stencil is rendering that part.

One thing I haven't tried is reaching out to the maintainers of maquette to see what they think of this strange bug.

[driskull]

Looking at the calcite-panel example screenshot, the panel is going inside the other panel. Which leads me to beleive it can't distinguish between the two?

[driskull]

Maybe maquette just doesn't know how to deal with custom elements that don't have shadow dom?

The ordering problem is due to maquette though since it is placing the nodes, not Stencil.

[AdelheidF]

are you sure that adding a vnode key doesn't solve this with maquette?

I do. Each panel is its own component.

first panel:

      <calcite-panel
        key="gallery"
        id="gallery-panel"

second panel:

      <calcite-panel
        key="type-size"
        id="type-size-panel"

third panel:

      <calcite-panel
        key="type"
        id="type-panel"

[driskull]

For the tooltip-manager, the render method does need to be there. I'll just make it a shadowed component.

[eriklharper]

Just tooltip-manager and not popover-manager?

[driskull]

Same, they both need a render method

[driskull]

The PR above will make tooltip-manager and popover-manager shadowed components which should fix this.

@eriklharper maybe you can just do the same for the other components. Even if stencil fixes this, it seems like all our components should be shadowed.

[eriklharper]

Yes, that is definitely the plan. Might be a bit involved to convert radio to shadow since it relies so much on the native radio behavior, but should be worth it.

[jcfranco]

@AdelheidF @eriklharper Just curious, could you check if there's an error thrown in the console when this happens (including caught exceptions)? I wrote the this maquette (out-of-the-box) + scoped calcite-component repro case, but in this sample it doesn't re-render after throwing an exception. If there's no error thrown, can either of you walk me through it? There could be another issue going on.

Interestingly, this https://github.com/ionic-team/stencil/pull/2938 was submitted recently and references Erik's issue and would also fix my repro case above. @eriklharper could you help test the fix to make sure it addresses these issues?

This bug in in triage since mid Jan, could we get them to look at this faster? ionic-team/stencil#2801

I can ping them to escalate and to possibly look at the above PR.

One thing I haven't tried is reaching out to the maintainers of maquette to see what they think of this strange bug.

FWIW, this doesn't seem like a maquette issue since they're dealing with DOM APIs.

[eriklharper]

Trying to test the fix now with the author's temporary package, but I'm having install issues trying to pull it down. Hopefully he can remedy it so I can try soon.

[AdelheidF]

Using next.237, calcite-tooltip-manager no longer causes a blank panel. Thanks!

test case (once devext has latest calcite):
https://devext.arcgis.com/apps/mapviewer/index.html?webmap=e30a38146b7a4644bc4c699e6b2b1e01
