Armory: The problem with exporting to html5 (v0.5)

[kaiwas]

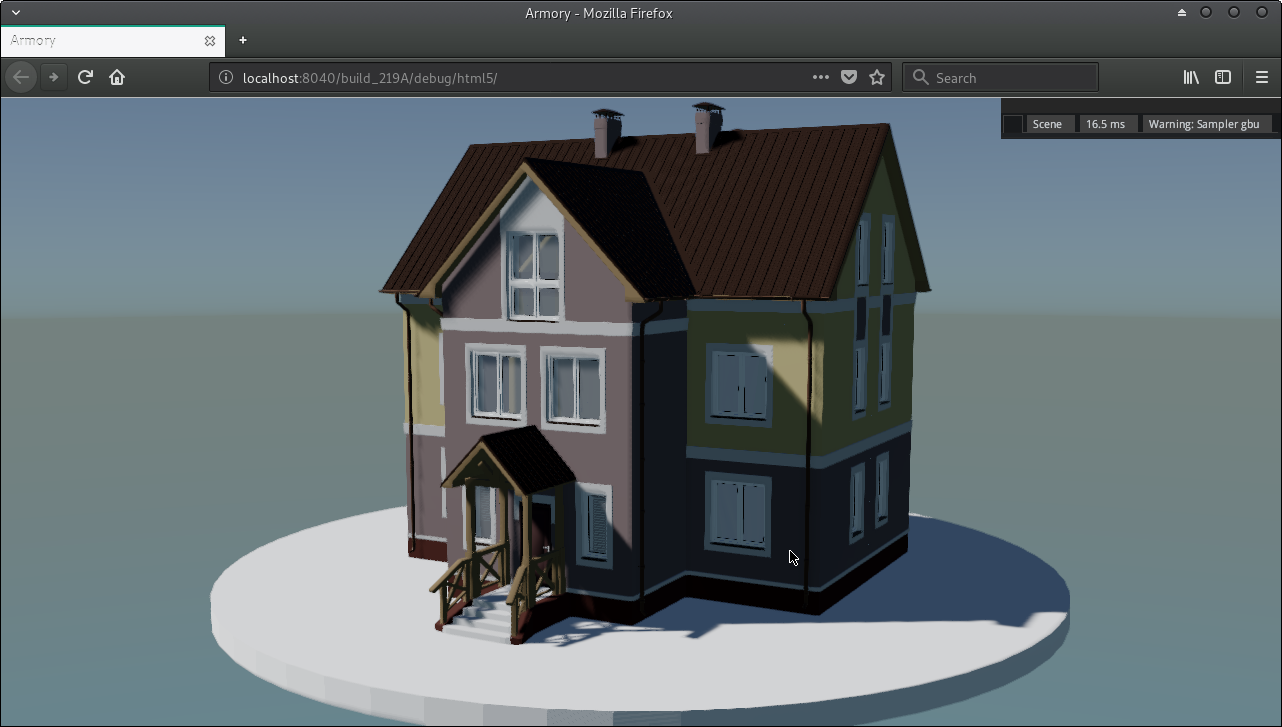

When exporting to xml5, it displays errors and displays a black screen:

Sampler gbufferD not found
Uniform textSize not found

in the Krom scene is displayed well
https://youtu.be/tRNq112GB3Q

219A.zip

[luboslenco]

Thanks for report. Hm, Chrome on Windows seems ok. What OS/browser are you on? Will try to reproduce there and fix.

Any more errors messages? Sampler/Uniform not found itself should not cause black screen.

[luboslenco]

Sorry I missed the video link, will check it out on Linux.

[kaiwas]

manjaro Linux
FireFox 61.0.2 (64-bit) & Chrome 67.0.3396.99 don`t work
Only 2 errors. others have not noticed or do not know how to look.

[kaiwas]

output from console
bug-1.zip

[kaiwas]

I'll take an opportunity to ask about the bump of procedural textures. is it possible? The pupil is interested in procedural brick in Armory)

[luboslenco]

Will give priority to further improve material nodes in 0.6. 🙂 (tag https://github.com/armory3d/armory/issues/284)

[kaiwas]

Thank you!!!

[kaiwas]

PS/ in the alpha version 0.5 everything worked fine

[luboslenco]

I tested on manjaro + firefox 61.0.2 (64bit) and it's ok here for some reason. Will try to test on another machine. Can you spot any errors in firefox menu - web developer - browser console?

[kaiwas]

Error: WebGL warning: texImage2D: Alpha-premult and y-flip are deprecated for non-DOM-Element uploads.
kha.js:1:519092
Error: WebGL warning: texImage2D: Alpha-premult and y-flip are deprecated for non-DOM-Element uploads.
kha.js:1:525863
Error: WebGL warning: texImage2D: Alpha-premult and y-flip are deprecated for non-DOM-Element uploads. kha.js:1:523469
TypeError: Argument 6 is not valid for any of the 6-argument overloads of WebGL2RenderingContext.texImage2D. kha.js:1:519731

TypeError: Argument 6 is not valid for any of the 6-argument overloads of WebGL2RenderingContext.texImage2D. kha.js:1:519731
createTexture
file:///run/media/kaiwas/Hdisk/Armory/build_219A/html5/kha.js:1:519731
kha_Image.fromBytes
file:///run/media/kaiwas/Hdisk/Armory/build_219A/html5/kha.js:1:447245
armory_renderpath_RenderPathDeferred.init
file:///run/media/kaiwas/Hdisk/Armory/build_219A/html5/kha.js:1:48062
armory_renderpath_RenderPathCreator.get
file:///run/media/kaiwas/Hdisk/Armory/build_219A/html5/kha.js:1:68759
start/</</<
file:///run/media/kaiwas/Hdisk/Armory/build_219A/html5/kha.js:1:70616
iron_Scene.setActive/</<
file:///run/media/kaiwas/Hdisk/Armory/build_219A/html5/kha.js:1:53153
iron_Scene.create/</<
file:///run/media/kaiwas/Hdisk/Armory/build_219A/html5/kha.js:1:52859
addScene/</</<
file:///run/media/kaiwas/Hdisk/Armory/build_219A/html5/kha.js:1:62129
traverseObjects/traverseObjects1</<
file:///run/media/kaiwas/Hdisk/Armory/build_219A/html5/kha.js:1:61883
returnObjectLoaded
file:///run/media/kaiwas/Hdisk/Armory/build_219A/html5/kha.js:1:67910
returnObject
file:///run/media/kaiwas/Hdisk/Armory/build_219A/html5/kha.js:1:67040
returnMeshObject/<
file:///run/media/kaiwas/Hdisk/Armory/build_219A/html5/kha.js:1:66450
iron_data_Data.getMesh/<
file:///run/media/kaiwas/Hdisk/Armory/build_219A/html5/kha.js:1:85943
iron_data_MeshData.parse/</<
file:///run/media/kaiwas/Hdisk/Armory/build_219A/html5/kha.js:1:204482
iron_data_MeshData
file:///run/media/kaiwas/Hdisk/Armory/build_219A/html5/kha.js:1:203656
iron_data_MeshData.parse/<
file:///run/media/kaiwas/Hdisk/Armory/build_219A/html5/kha.js:1:204097
iron_data_Data.returnSceneRaw
file:///run/media/kaiwas/Hdisk/Armory/build_219A/html5/kha.js:1:94150
iron_data_Data.getSceneRaw/<
file:///run/media/kaiwas/Hdisk/Armory/build_219A/html5/kha.js:1:93756
iron_data_Data.getBlob/<
file:///run/media/kaiwas/Hdisk/Armory/build_219A/html5/kha.js:1:96574
kha_LoaderImpl.loadRemote/request.onreadystatechange
file:///run/media/kaiwas/Hdisk/Armory/build_219A/html5/kha.js:1:463458

PipelineState.hx:92: Warning: Uniform texSize not found. kha.js:1:424525
PipelineState.hx:111: Warning: Sampler gbufferD not found.

Chrome - also does not work
I'll try to restart the computer)))
upd/ did not help

file attached
html5.zip

[kaiwas]

still there is a problem with the particles or so it should be.
Video
https://youtu.be/YJmhMAGOlsI
file
04-test2-4.zip

[kaiwas]

Checked on another system. Win7

Everything is working. I will look for the cause of the problem at home.

[kaiwas]

found the reason.
In the renderer settings, if the "deferred" button is active, it does not work.
If you put "forward" - it works
