Strapi: Content Manager cannot open created Content Types

[djbingham]

Informations

• Node.js version: 9.11.1
• npm version: 5.6.0
• Strapi version: 3.0.0-alpha.14

• Database: MongoDB 4.1
• Operating system: Alpine Linux (inside a Docker container using the strapi/strapi image)

What is the current behavior?
The Strapi admin UI crashes with the following console errors when opening a content type in the Content Manager.

Console log:

main.js:16 TypeError: Cannot read property 'getIn' of undefined
    at e.value (main.js:46)
    at main.js:46
    at We.__iterate (main.js:6)
    at We.forEach (main.js:6)
    at e.value (main.js:46)
    at new e (main.js:46)
    at main.js:40
    at Me (main.js:6)
    at Me (main.js:6)
    at Me (main.js:6)
Io @ main.js:16
Uo.o.callback @ main.js:16
to @ main.js:16
oo @ main.js:16
mn @ main.js:16
cn @ main.js:16
un @ main.js:16
ln @ main.js:16
bn @ main.js:16
We @ main.js:16
main.js:16 Uncaught TypeError: Cannot read property 'getIn' of undefined
    at e.value (main.js:46)
    at main.js:46
    at We.__iterate (main.js:6)
    at We.forEach (main.js:6)
    at e.value (main.js:46)
    at new e (main.js:46)
    at main.js:40
    at Me (main.js:6)
    at Me (main.js:6)
    at Me (main.js:6)

Steps to reproduce the problem

1. Create a new content type Article with string field title and text field content.
2. Wait for the UI to refresh and indicate that the update has been applied (Docker logs indicate the app restarted successfully).
3. Navigate to Content Manager and select Article.
4. See that settings for the Article type are displayed.
5. Return to the Content Type Editor and add a relation field author which related Article to User. The relation type User has many Articles.
6. Return to Content Manager and select Article again.
7. See the page flicker (presumably loading the intended page) and then go blank. Check the console log for errors.

What is the expected behavior?
Options to modify settings for the selected content type should be displayed.

Suggested solutions
In the reproduction steps, I describe exactly what I did to reproduce this error after seeing it the first time. I've experimented a bit and I believe the error does not occur unless a relation has been added to a user-defined content type. However, once a relation has been added to any one content type, it seems to cause this error for all other content types as well.

[hansemannn]

I'm running into a related issue, occurring when opening an existing content and also when trying to create a new one:

main.js:16 TypeError: Cannot read property 'type' of undefined
    at r.renderAttr (main.js:40)
    at Array.map (<anonymous>)
    at t.value (main.js:40)
    at Po (main.js:16)
    at Co (main.js:16)
    at Yo (main.js:16)
    at $o (main.js:16)
    at cn (main.js:16)
    at un (main.js:16)
    at ln (main.js:16)

main.js:56 uncaught at o TypeError: Cannot read property 'type' of undefined
    at r.renderAttr (https://appserver.herokuapp.com/dashboard/content-manager/main.js:40:393585)
    at Array.map (<anonymous>)
    at t.value (https://appserver.herokuapp.com/dashboard/content-manager/main.js:40:394501)
    at Po (https://appserver.herokuapp.com/dashboard/main.js:16:42275)
    at Co (https://appserver.herokuapp.com/dashboard/main.js:16:47849)
    at Yo (https://appserver.herokuapp.com/dashboard/main.js:16:56588)
    at $o (https://appserver.herokuapp.com/dashboard/main.js:16:56896)
    at cn (https://appserver.herokuapp.com/dashboard/main.js:16:60278)
    at un (https://appserver.herokuapp.com/dashboard/main.js:16:59787)
    at ln (https://appserver.herokuapp.com/dashboard/main.js:16:59613)

[lauriejim]

Can you guys test again with last version of Strapi please (just published new version and I think it's fixed)

[cliqer]

Still the same problem with 14.1.1

[hansemannn]

Same here, just a blank page and the errors above. Let me know if you need our app!

[cliqer]

That happens in a new 14.1.1 project.
Copied apis from previous one and only these give this error when I try to edit them in Content manager. Any newly created behave correctly.
Is there something else that should be created for content management to work?

[derrickmehaffy]

@hansemannn you can't create stuff on heroku because the storage isn't persistent. You will need to create new models locally then push to heroku.

[ChrisSargent]

I am also experiencing this issue - if I can provide any information to help with debugging, please let me know.

[hansemannn]

@derrickmehaffy That's a good point! But actually this happens with a locally-deployed instance where all content-types have been created earlier.

[cliqer]

Also to mention I can't edit at all these copied apis and can't add new fields any more. @lauriejim can you please give us any hints of where to look? This is urgent if it is a bug

[ChrisSargent]

I've been doing a little bit of debugging on this this morning. In the constructor of Manager.js in content-type-builder/utils, when it is throwing an error, the variable with name layout is coming through as undefined.

[ChrisSargent]

Okay.... I think this could be a casing issue, it only happens if you use some camel / pascal casing and it looks like it's down to the value that's being passed to state.getIn.

In plugins/content-manager/admin/src/containers/App/reducer.js at this case of the reducer switch:

case SET_LAYOUT: {
  let updatedList = List([]);
  const path = action.keys.split(".");
  const modelName = path.length > 2 ? path[2] : path[0];
  const layout = state.getIn([
    "modifiedSchema",
    "layout",
    modelName,
    "attributes"
  ]);

The modelName variable comes through in all lower case but in the reducer, the value is in the original case as defined when it was setup.

In my case, I had setup a model as appUser but the modelName was coming as appuser and the nested value was not being found (see screenshot).

I setup the same model using jjuser and it worked with no problems.

[hansemannn]

@ChrisSargent This is huge progress! Do you know a way to clean this up? I am searching through both the model settings and the MongoDB itself, but cannot find any old references to camel-cased fields, except Strapi's own ones (updatedAt, createdAt & resetPasswordToken).

[ChrisSargent]

@hansemannn, well when I first ran in to this problem I couldn't get back to a working / clean state either. So, I setup a new repo with these changes to that I could track exactly what was being changed in the code. I also committed a working .json file from the core_store collection that Strapi creates. There is an entry there with a key called plugin_content-manager_schema and it seems to control the menu items and available content types for editing. By committing it, I could also monitor the changes being made.

However, looking at the original issue it doesn't seem that they were using any casing in their models.

[cliqer]

After your reply @ChrisSargent looked into db's core_store and realised that is the root of these problems, at least in my case.

In the migration guide it does not mention anywhere that you need to copy core_store from previous db or nothing works. I assumed this entry gets automatically created when it reads what's inside the /api/ folder but it seems it doesn't. So the schema of the content-manager plugin does not have any info about these apis, thus the errors.

The question: Is there anyway to force core_store creation correctly from available apis?

[hansemannn]

Thanks to both of you! In my case, a field was appended twice in the core_store, resulting in the blank page. Cleaning it up manually fixed the issue.

[ChrisSargent]

I’m not sure. It seems that maybe this dB entry is created from scratch every time a model type is edited through the UI. Or maybe it updates it. Either way, it seems it would be better if it always recreated the entry based on data in the code.

Sent from my iPhone

On 16 Sep 2018, at 15:10, Protogon [e-mail] wrote:

After your reply @ChrisSargent looked into db's core_store and realised that is the root of these problems, at least in my case.

In the migration guide it does not mention anywhere that you need to copy core_store from previous db or nothing works. I assumed this entry gets automatically created when it reads what's inside the /api/ folder but it seems it doesn't. So the schema of the content-manager plugin does not have any info about these apis, thus the errors.

The question: Is there anyway to force core_store creation correctly from available apis?

—
You are receiving this because you were mentioned.
Reply to this email directly, view it on GitHub, or mute the thread.

[derrickmehaffy]

@lauriejim I think this is still an on-going issue. Had another user report something similar on slack. May want to keep this open to make sure there is no existing issue to be fixed.

[cliqer]

@lauriejim is this resolved? You guys just keep closing issues without fixing them. why? Strapi is a great idea but so unstable. I'm holding up a client's project because I can't trust strapi anymore. Keep loosing and redoing the work every time I do an upgrade and migration. If camel case is not allowed and creates all these problems you should add an error check on the fields and not just let us ruin the hard work of creating an api.

[derrickmehaffy]

@gianniskarmas the content manager plugin (customizing the look of the edit/list views) is very new.

The project as a whole is currently in alpha thus I would expect a lot of changes to happen, at this point everything is pretty much subject to change.

That being said the Strapi team is small, and they get a lot of duplicate tickets. I spoke with him on the slack and in this case the issue is with the core_store entry and you needed to delete the entry after the update due to a change in how the schema is created. I've spoken with @soupette on this issue and I'm not a huge fan of it is currently being stored.

[cliqer]

@derrickmehaffy Thank you for all the hard work all of you put on this project.
Unfortunately that is not the only problem but also a part of a bigger one .

It looses any access and track to the old apis and does not recreate the schema.

• Can't create any new fields in Content Type. When I try to I get the infinite spinning wheel.
• Can't edit with Content Manager. PUT http://localhost:1337/content-type-builder/models/materials 500 (Internal Server Error)
• Can't edit with Content Type Builder. TypeError: Cannot read property 'getIn' of undefined

The api and graphql works in all crud operations but the admin, which is the best part of strapi, becomes corrupted very easily.

The way I see it (and while I've had to learn these limitations after destroy days of work) this is a core problem and something to consider fixing urgently.

[derrickmehaffy]

@gianniskarmas yeah as I said it was related to how the content manager plugin (what changes those views on the admin panel) stores the data. Right now all that information is stored in one very deeply nested json on a single db entry (good luck breaking that down by hand).

There was a change in how that schema is built, thus it couldn't parse the json from the previous version, hence why it had to be deleted to get the content manager to work again.

Trust me I know it is frustrating for you, your talking to someone who has roughly 75 models that I had to rebuild one by one. But I expect this in an alpha project and I've been talking with the Strapi team to help them with some of these "quality of life" improvements, in this case it was a needed change. I won't lie and say who knows if something like this will be needed again, like I said before Alpha = everything is subject to change.

I understand that you are trying to use this and develop for a production application. I use strapi in production (or well getting close to) so trust me when I say I feel your pain, however the Strapi team right now are solely focused on getting a stable release out by the end of the year and aren't focused on those of us that are currently using it. In this case it was a bug with updating and not creating a new project.

I am not a Strapi team member, but I have been around here for some time now and am very focused on helping them where I can with the skills I have. I always suggest to everyone here that if there is something you don't like or something you think should change, fork the code, fix it, and submit a PR. :smile:

My javascript skills unfortunately are not very strong and I have basically zero frontend development skills, thus I usually try and poke around where I can. In this case, I recommend you backup your core_store table, delete it, and restart the server. That should get you access again to the adminUI

[signorekai]

For what it's worth, I've encountered this as well, and figured it's the content-manager plugin's config. I've basically just used https://jsonformatter.org/ to format the string @derrickmehaffy mentioned, inside core_store under plugin_content-manager__schema. The site lets me collapse nodes, and generally has good formatting (to me anyway).

Just keep a look out for duplicate keys and any keys that you may have removed. These will cause the content-manager page on your admin to not work properly.

[derrickmehaffy]

Good hint @signorekai I was trying to break it down manually. Exporting as CSV from MySQL and trying to manually modify the CSV. Most programs won't even open a CSV that big (a good 75 models worth) :laughing:

[signorekai]

Yeah was a massive pain to deal with. Hopefully this will get better in the
future. Until then!

On Tue, 18 Sep 2018, 12:39 AM DMehaffy, [e-mail] wrote:

Good hint @signorekai https://github.com/signorekai I was trying to
break it down manually. Exporting as CSV from MySQL and trying to manually
modify the CSV. Most programs won't even open a CSV that big (a good 75
models worth) 😆

—
You are receiving this because you were mentioned.
Reply to this email directly, view it on GitHub
https://github.com/strapi/strapi/issues/1912#issuecomment-422085797, or mute
the thread
https://github.com/notifications/unsubscribe-auth/ALms12KJuOrx2OXax-uKAh4uF54EfQW0ks5ub9BbgaJpZM4WdR7Z
.

[devaublanc]

Same problem here after migrate and deploy the 3.0.0-alpha.14.1.1 release

[mandaputtra]

3.0.0-alpha.14.2 still problem, if i can help, where I should start?

[lauriejim]

Warning to this migration https://github.com/strapi/strapi/wiki/migration-guide-alpha.13.1-to-alpha.14#reset-your-content-manager-settings

[john916zhang]

same problem here.

[derrickmehaffy]

@anderson916 see the comment above yours, there is an incompatibility from older strapi versions with the content manager plugin, you need to purge the content-manager schema entry from your DB in the core_store table (or collection in mongo)

[john916zhang]

Yes, it works.

When I use "straps generate:api" to create a model, one field has a name of "averageFrequency", the field will be changed to "average frequency" in the Admin UI. After I change the name back to "averageFrequency", the Content Manager doesn't work. But as you suggested to remove the content-manager schema entry from your DB in the core_store table (or collection in mongo), and restart Strapi manually, everything is working now.

Thanks. You save my time.

[derrickmehaffy]

No problem :wink:

[fsc7]

@anderson916 see the comment above yours, there is an incompatibility from older strapi versions with the content manager plugin, you need to purge the content-manager schema entry from your DB in the core_store table (or collection in mongo)

That did the trick. Thanks for the information.

[Matildahermansson]

Hi,

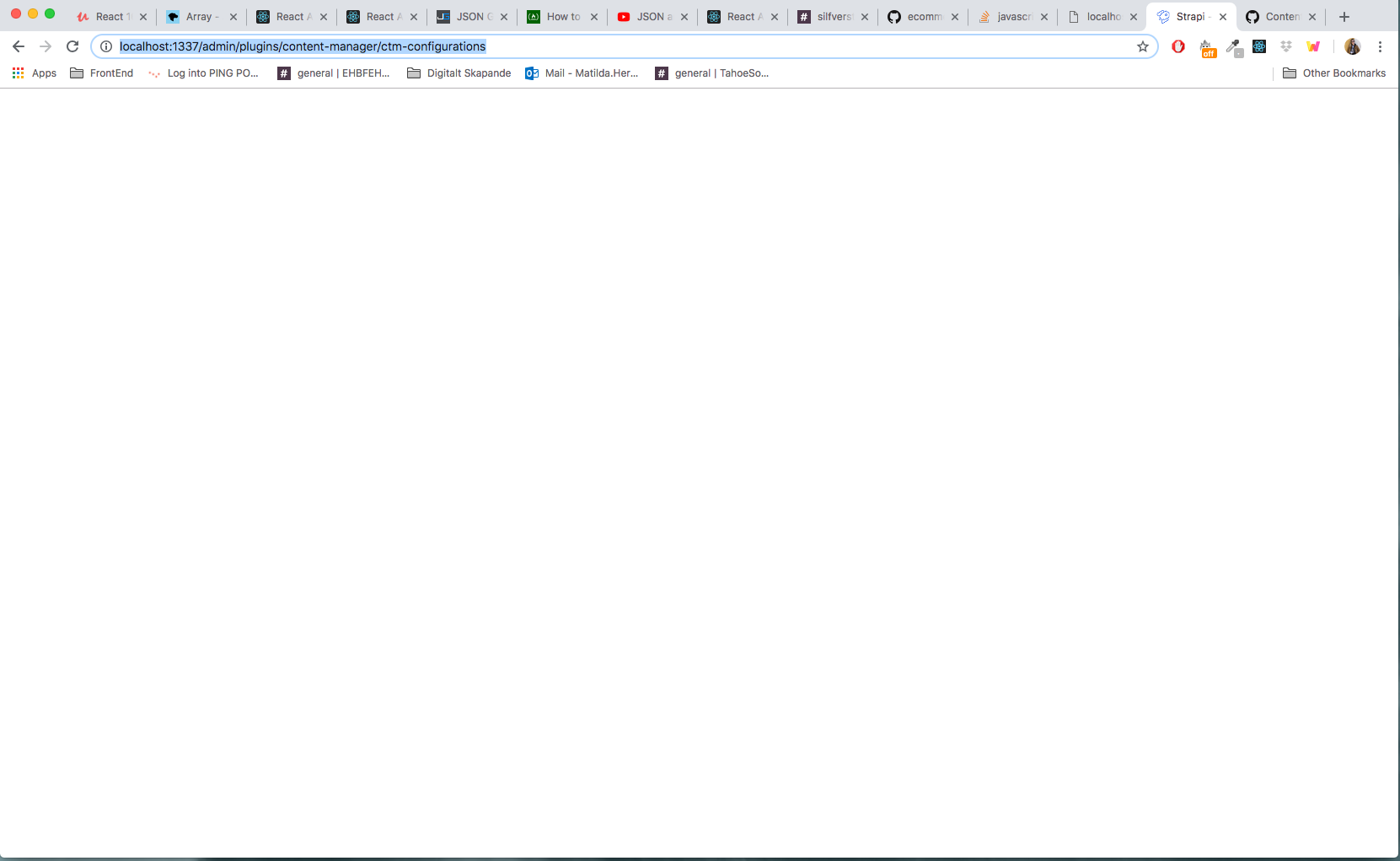

I'm working with a React + Strapi project and when I ran strapi start in my terminal I get to my admin page. However, when I press Content Manager I am met by Content Manager
Configure the default settings for all your Content types where I can either Save or Cancel. Whichever one I choose sends me to a blank page called http://localhost:1337/admin/plugins/content-manager/ctm-configurations
I cannot see any of my products or pics i uploaded a few weeks ago.
What can i do?

[derrickmehaffy]

@Matildahermansson see the comment above yours, more than likely your ctm view settings got borked, purge that entry from your core_store.

Also just a heads up in the future, might be worth include your f12 menu in your screenshot, a white page won't help us much :stuck_out_tongue:

[brandonin]

I just created a clean version with strapi version 3.0.0-alpha.14.4.0 and am still receiving the issue as stated above.

[kenn44]

I have the same problem in a fresh project

[avirankatzsofi]

I still experience this bug in alpha 14.5 - but only on my server (on my local machine everything is fine). On my server, this bug occurs on a fresh project as well.

[T-Zahil]

Same error here, only on my server too, and with a new empty project.

[kenn44]

@avirankatzsofi @T-Zahil I solved it by running

npm run setup

[rahimimo]

I have also this spinng wheel when I want to add a post and production but not development. Nothing seem to help.
