Pyvista: Is it possible to warp by vector?

Created on 23 Mar 2020 · 4Comments · Source: pyvista/pyvista

I'm working on mechanics and trying to visualize a simulated displacement field. In other words, I have a mesh and a transformed version of that mesh obtained by adding a vector field to each node.

In Paraview, I use a filter that is called warp-by-vector to do the vector addition. I have looked for this filter in pyvista but have been unable to find it, although I found warp by scalar.

Is it possible to warp by vector ? Is this part of the roadmap? Or should I do it manually by adding a vector to each point of my mesh?

Thank you for your very useful package.

Best regards,

Florian

enhancement 🍏 low-hanging-fruit

Source

flothesof

Most helpful comment

So it turns out that following the implementation logic of warp_by_scalar has worked for me.
I wrote the following function:

def warp_by_vector(dataset, scalars=None, factor=1.0):
    if scalars is None:
        field, scalars = dataset.active_scalars_info
    arr, field = get_array(dataset, scalars, preference='point', info=True)
    alg = vtk.vtkWarpVector()
    alg.SetInputDataObject(dataset)
    alg.SetInputArrayToProcess(0, 0, 0, field, scalars)
    alg.SetScaleFactor(factor)
    alg.Update()
    output = _get_output(alg)
    return output

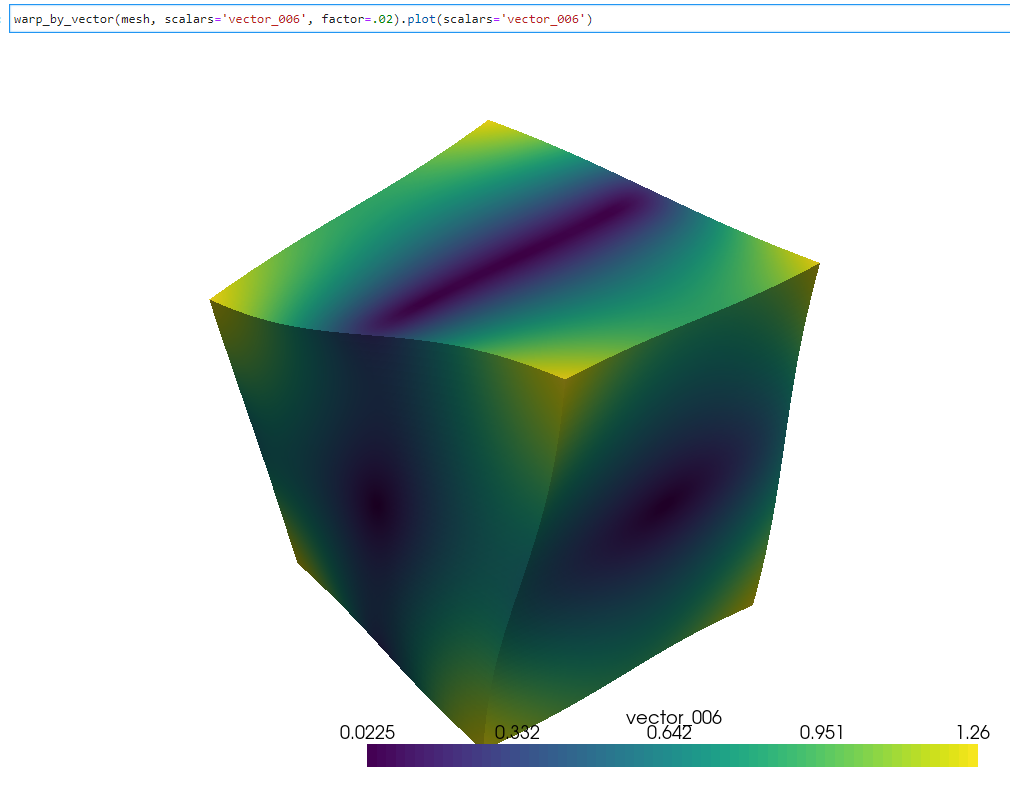

Which allowed to get this:

This could be worthwhile to be part of pyvista, but I sortof got lucky with the call to vtkWarpVector since I don't have the right background...

Thanks for this amazing library!

Florian

flothesof on 24 Mar 2020

👍4

All 4 comments

Hi and welcome! Thanks for posting your first issue in the PyVista project! Someone from @pyvista/developers will chime in before too long. If your question is support related, it may be automatically transferred to https://github.com/pyvista/pyvista-support

github-actions[bot] on 23 Mar 2020

So it turns out that following the implementation logic of warp_by_scalar has worked for me.
I wrote the following function:

def warp_by_vector(dataset, scalars=None, factor=1.0):
    if scalars is None:
        field, scalars = dataset.active_scalars_info
    arr, field = get_array(dataset, scalars, preference='point', info=True)
    alg = vtk.vtkWarpVector()
    alg.SetInputDataObject(dataset)
    alg.SetInputArrayToProcess(0, 0, 0, field, scalars)
    alg.SetScaleFactor(factor)
    alg.Update()
    output = _get_output(alg)
    return output

Which allowed to get this:

This could be worthwhile to be part of pyvista, but I sortof got lucky with the call to vtkWarpVector since I don't have the right background...

Thanks for this amazing library!

Florian

flothesof on 24 Mar 2020

👍4

Please open a PR - contributions like this are very worthwhile. The next user that would like to warp will certainly come along at some point (user demand is kind of how filters are added :) ). Don't worry about your background, if you managed to throw this together you will manage to get it into contribution shape (potentially with a bit of guidance/review) for sure. And even if you don't want to go through that, please still open the PR with the code you have so far so someone else could finalize it for merging.
