Prusa-firmware: Can't change language (previous firmware was single language)
My previous firmware was 3.7.1 single language build. Now I'm on official 3.7.2-rc1 from here (multi-language). When I go to menu to change language and select it I'm asked if I want to copy over the new language and no matter what I choose I'm brought back to language selection menu and language stays on English. I tried Polish at first, but all languages seem affected. I use English anyway, but the email ask to verify my language so that's where the issue is coming from.
I can send a video or terminal output if it's needed.
boraca
All 46 comments
You should try clearing all the settings from eeprom.
leptun
on 19 Jun 2019
I did that, and it didn't help, but now some messages are in Polish, with language set to English.
For example, with MMU disconnected, when filament sensor is triggered it says: "Load filament 4" in Polish, then some gibberish mixed with English. Rest of the interface is in English and works fine.
boraca
on 22 Jun 2019
Did you try reflashing the firmware? There was a similar issue and it was resolved by this. Maybe the fix also works on this version.
Issue: #1831
leptun
on 22 Jun 2019
OK, here's what I did:
- Flashed 3.7.2-RC1 again - problem persists
- Flashed 3.7.0 - language selection works fine
- Flashed 3.7.2-RC1 - it asks to select language on first boot, but the error is still there - can't select anything other than English.
If that's any help, here's startup messages from those firmwares:
Recv: boot_src_addr =0xc2400000
Recv: boot_dst_addr =0x11108d06
Recv: boot_copy_size =0xeda2
Recv: boot_reserved =0x70
Recv: boot_app_flags =0x80
Recv: boot_app_magic =0x55aa55aa
Recv: \x00echo: 3.7.0-2201
and 3.7.2-RC1:
Recv: boot_src_addr =0x00001044
Recv: boot_dst_addr =0x00002500
Recv: boot_copy_size =0x0000
Recv: boot_reserved =0x70
Recv: boot_app_flags =0x80
Recv: boot_app_magic =0x55aa55aa
Recv: \x00echo: 3.7.2-RC1-2359
3.7.0 has 2073 bytes free memory on startup, 3.7.2 2013 bytes.
boraca
on 27 Jun 2019
Yes, multilanguage support is broken for me also on two boards. Will try official fw soon
@DRracer Please look into this. I need to test some lcd translations but cannot because of this
leptun
on 15 Jul 2019
Just checked an MK3 with the stock FW and Czech and Polish language and found no problem. What is your machine?
DRracer
on 15 Jul 2019
I was trying on a compiled MK2 from MK3 branch since it was the latest, but without many features enabled. Just tried with MK2.5 definition and official fw from the site works, but self compiled firmware doesn't.
Here is compiled output:
FW372-RC1-Build2359-1_75mm_MK25-RAMBo13a-E3Dv6full.zip
It behaves exactly like @boraca said in initial post.
leptun
on 15 Jul 2019
@DRracer My printer is MK3S upgraded from MK3. Final 3.7.2 has the same problem.
boraca
on 15 Jul 2019
@leptun could you try to build from an older release (e.g. 3.7.2 or even older)? Just want make sure we fix all the build issue that come with the new board definition for the upcoming 3.8.
DRracer
on 16 Jul 2019
@DRracer Compiled 3.7.2 release and it works on multi-language. Wondering if some new change broke it or weather my local repo has some ignored files causing problems.
leptun
on 16 Jul 2019
@DRracer @boraca Fixed it for me. In my case it was the local repo that was broken in WSFL because of LFCR issues with the source files. After running dos2unix on all files of type "h" "c" "cpp" "txt" "*sh". The problem was fixed.
leptun
on 18 Jul 2019
@boraca Did you get it sorted out?
leptun
on 21 Jul 2019
the same problem with my original MK3S/MMU2S: change language from english to german works in original FW 3.7.0. and older.
3.7.1 and 3.7.2 are not working. I tried all: full factory reset several times, flashed with newest Prusa Slic3r 2.0.0. Tried to recompile FW with arduino (build.sh), multilanguage=on (1) after ran a dos2unix over all -c .ccp .h .txt .py and .sh.
Flashing, flashing again but language change does not work. LCD is blinking 3 times and fall back to the language menu.
As is said: 3.7.0 an older are working without any problems.
Checked all hardware components -> no broken wires, all ok!
kgolger
on 22 Jul 2019
@kgolger Did you also try a precompiled version from prusa, or you only tried versions compiled by you?
leptun
on 22 Jul 2019
@leptun precompiled versions of 3.7.2 and 3.7.1 have the exact same issue.
boraca
on 22 Jul 2019
I'm not sure what might cause that. Can you please send the log from the firmware updater utility and another one that contains the messages received from the printer over usb when changing the language.
leptun
on 22 Jul 2019
Sure, when I get home. Meanwhile I noticed that:
#define LANG_SIZE_RESERVED 0x2800 // reserved space for secondary language (10240 bytes)
was reduced from 12032 bytes between those releases in config.h. Perhaps one of the languages doesn't fit in the new reserved size?
boraca
on 22 Jul 2019
I'm not sure if that's what's happening since I was able to compile 3.7.2 and use precompiled 3.7.2 without issues.
leptun
on 22 Jul 2019
i tried the original unchanged download hex-files from prusa driver side for MK3S/MMU2S FW 3.7.2/1.05 and i also tried to compile the original source-files with build.sh on linux ubuntu 18.04 LT.
Here is the log-file from build.sh:
HEX-Dateien werden geschrieben -> /home/admin/Schreibtisch/MK3-Firmware/Prusa-Firmware-3.7.2/lang/
und (NAS-DISKSTATION) -> /run/user/1001/gvfs/smb-share:server=192.168.0.17,share=raspberry,user=admin/Prusa_Mk3_Firmware_Flashfiles/
Log-Datei -> /home/admin/Schreibtisch/build.log
kgolger - 08.07.2019
/home/admin/Schreibtisch/MK3-Firmware/Prusa-Firmware-3.7.2/build.sh gestartet:
Picked up JAVA_TOOL_OPTIONS:
Loading configuration...
Initializing packages...
Preparing boards...
Verifying...
Sketch uses 250326 bytes (98%) of program storage space. Maximum is 253952 bytes.
Global variables use 6142 bytes of dynamic memory.
lang-build.sh started
lang=en
count=311
offs=638
size=8838
lang=cz
ay definition on line 917
count=311
offs=638
size=8826
lang=de
ay definition on line 917
count=311
offs=638
size=9880
lang=es
ay definition on line 917
count=311
offs=638
size=9694
lang=fr
ay definition on line 917
count=311
offs=638
size=9865
lang=it
ay definition on line 917
count=311
offs=638
size=9811
lang=pl
ay definition on line 917
count=311
offs=638
size=9173
lang-build.sh finished with success
config.sh started
Arduino main folder: OK
Arduino builder: OK
AVR gcc tools:
objcopy OK
objdump OK
Output folder: OK
Objects folder: OK
Generated elf file: OK
Generated hex file: OK
config.sh finished with success
postbuild.sh started
checking files:
folder OK
elf OK
objects OK
running progmem.sh...OK
running textaddr.sh...OK
checking textaddr.txt...NG! - some texts not found in lang_en.txt!
missing text ignored!
extracting binary...OK
updating binary:
primary language ids...OK
primary language signature...OK
converting to hex...OK
secondary language data...Updating languages:
Czech : OK
German : OK
Italian: OK
Spanish: OK
French : OK
Polish : OK
converting to hex...OK
postbuild.sh finished with success
kgolger
on 22 Jul 2019
@kgolger I am more interested in the uploading and language changing than in compiling. One thing for sure is that the compiled output looks ok.
leptun
on 22 Jul 2019
here is the avrdude_output_log file when i flashed 3.7.2:
avrdude: Version 6.3-20160220-prusa3d, compiled on Feb 11 2019 at 18:25:11
Copyright (c) 2000-2005 Brian Dean, http://www.bdmicro.com/
Copyright (c) 2007-2014 Joerg Wunsch
System wide configuration file is "C:/PROGRA~1/Prusa3D/Slic3rPE/resources\avrdude\avrdude.conf"
Using Port : COM5
Using Programmer : wiring
Overriding Baud Rate : 115200
AVR Part : ATmega2560
Chip Erase delay : 9000 us
PAGEL : PD7
BS2 : PA0
RESET disposition : dedicated
RETRY pulse : SCK
serial program mode : yes
parallel program mode : yes
Timeout : 200
StabDelay : 100
CmdexeDelay : 25
SyncLoops : 32
ByteDelay : 0
PollIndex : 3
PollValue : 0x53
Memory Detail :
Block Poll Page Polled
Memory Type Mode Delay Size Indx Paged Size Size #Pages MinW MaxW ReadBack
----------- ---- ----- ----- ---- ------ ------ ---- ------ ----- ----- ---------
eeprom 65 10 8 0 no 4096 8 0 9000 9000 0x00 0x00
flash 65 10 256 0 yes 262144 256 1024 4500 4500 0x00 0x00
lfuse 0 0 0 0 no 1 0 0 9000 9000 0x00 0x00
hfuse 0 0 0 0 no 1 0 0 9000 9000 0x00 0x00
efuse 0 0 0 0 no 1 0 0 9000 9000 0x00 0x00
lock 0 0 0 0 no 1 0 0 9000 9000 0x00 0x00
calibration 0 0 0 0 no 1 0 0 0 0 0x00 0x00
signature 0 0 0 0 no 3 0 0 0 0 0x00 0x00
Programmer Type : Wiring
Description : Wiring
Programmer Model: AVRISP
Hardware Version: 15
Firmware Version Master : 2.10
Vtarget : 0.0 V
SCK period : 0.1 us
avrdude: AVR device initialized and ready to accept instructions
Reading | ################################################## | 100% 0.00s
avrdude: Device signature = 0x1e9801 (probably m2560)
avrdude: safemode: hfuse reads as D0
avrdude: safemode: efuse reads as FD
avrdude: reading input file "C:\Users\7800mbz\Desktop\firmware.hex"
avrdude: writing flash (250326 bytes):
Writing | ################################################## | 100% 43.99s
avrdude: 250326 bytes of flash written
avrdude: verifying flash memory against C:\Users\7800mbz\Desktop\firmware.hex:
avrdude: load data flash data from input file C:\Users\7800mbz\Desktop\firmware.hex:
avrdude: input file C:\Users\7800mbz\Desktop\firmware.hex contains 250326 bytes
avrdude: reading on-chip flash data:
Reading | ################################################## | 100% 32.06s
avrdude: verifying ...
avrdude: 250326 bytes of flash verified
avrdude: safemode: hfuse reads as D0
avrdude: safemode: efuse reads as FD
avrdude: safemode: Fuses OK (E:FD, H:D0, L:FF)
avrdude done. Thank you.
avrdude: Version 6.3-20160220-prusa3d, compiled on Feb 11 2019 at 18:25:11
Copyright (c) 2000-2005 Brian Dean, http://www.bdmicro.com/
Copyright (c) 2007-2014 Joerg Wunsch
System wide configuration file is "C:/PROGRA~1/Prusa3D/Slic3rPE/resources\avrdude\avrdude.conf"
Using Port : COM5
Using Programmer : arduino
Overriding Baud Rate : 115200
avrdude: prusa_init_external_flash(): MK3 printer did not boot up on time or serial communication failed
avrdude: arduino_open(): Failed to initialize MK3 external flash programming mode
avrdude done. Thank you.
avrdude.conf is untouched!
kgolger
on 22 Jul 2019
I think you just got the answer why multiple labguages don’t work:
avrdude: prusa_init_external_flash(): MK3 printer did not boot up on time or serial communication failed
avrdude: arduino_open(): Failed to initialize MK3 external flash programming mode
Please take a photo of the board. I want to know if you have the flash chip on the board. You might also have it on a daughterboard that shifts the lcd connectors.
If you look at the schematic it’s U13.
https://github.com/ultimachine/Einsy-Rambo/blob/1.1a/board/Project%20Outputs/Designators_Einsy%20Rambo_1.1a.PDF
leptun
on 22 Jul 2019
@kgolger

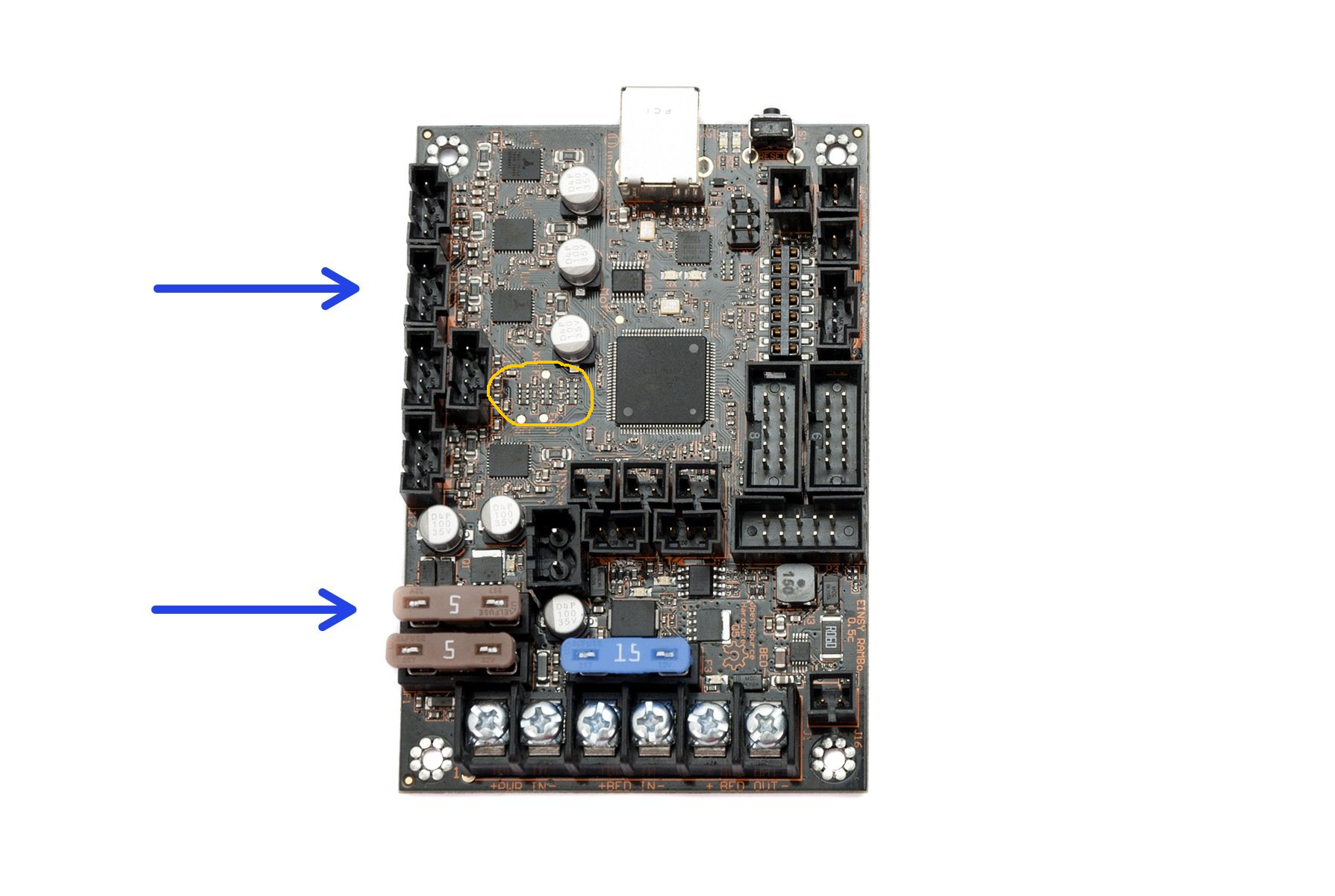

This is a board that doesn't have a SPI flash chip for languages:

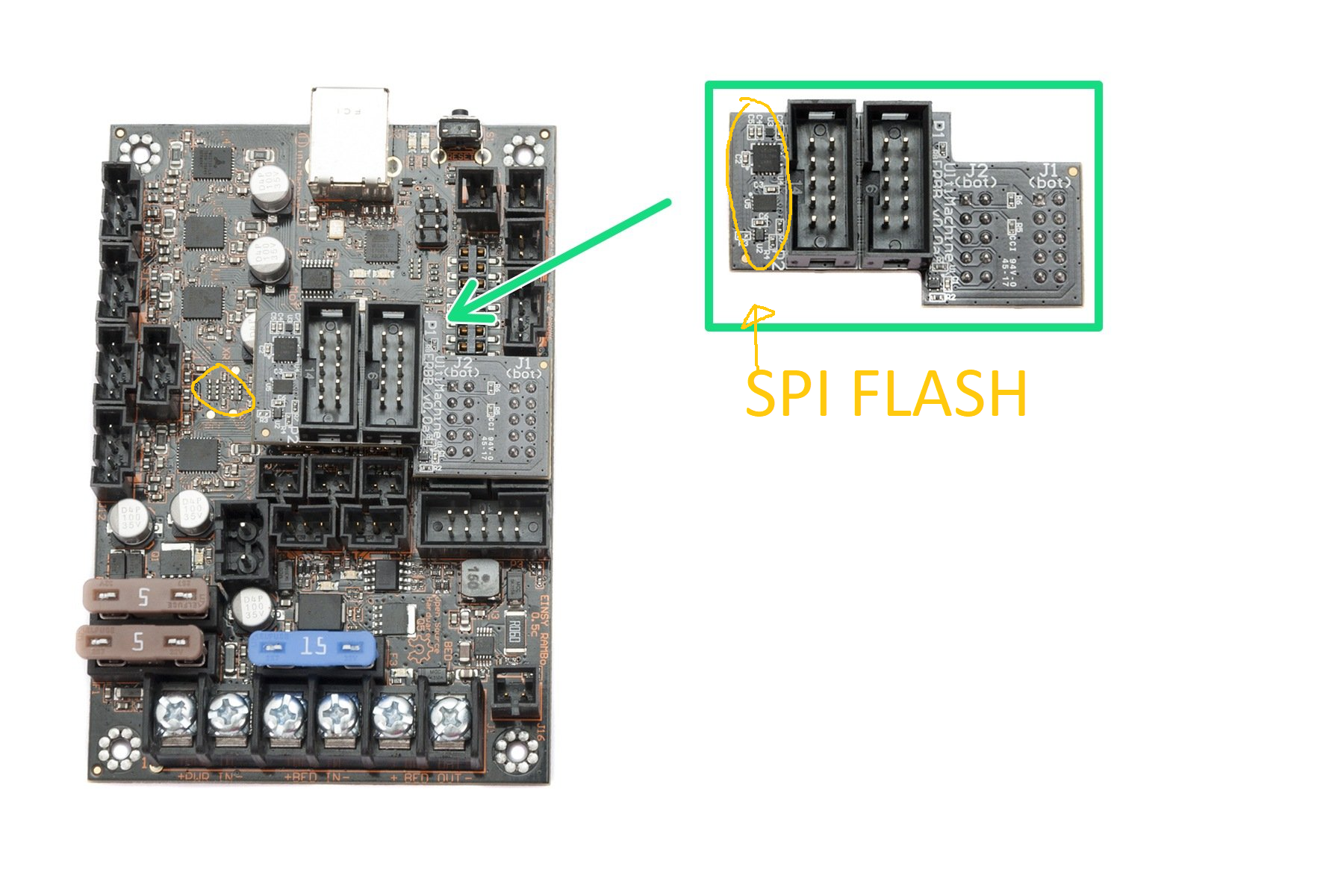

In that case Prusa ships the board with a daughterboard that contains the required chips:

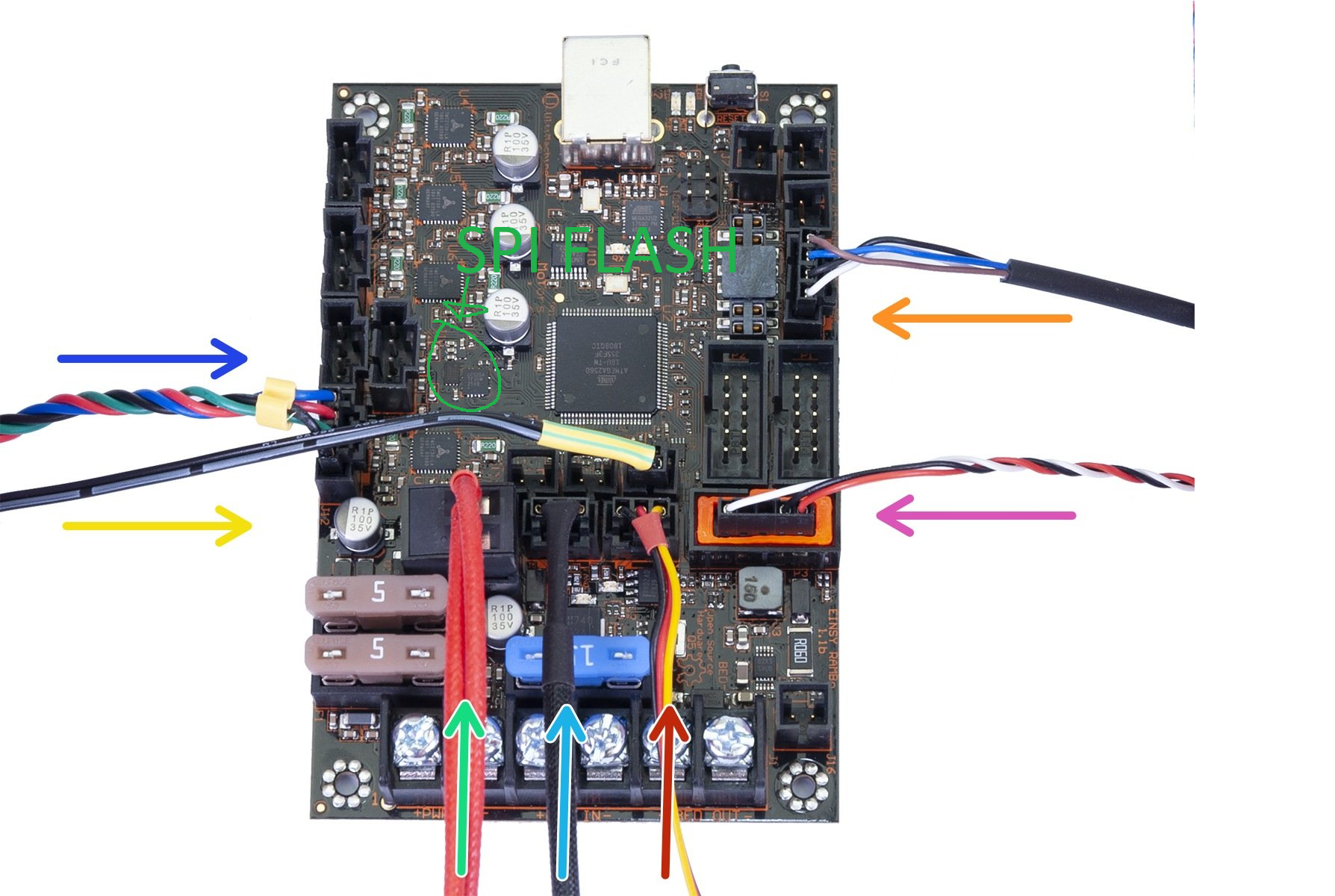

On newer boards the SPI flash is directly on the board, requiring no external chip:
Which of these is your case?
leptun
on 22 Jul 2019
Here's the flashing log: https://gist.github.com/boraca/800c9b82dfe6312f4b194db303e1b13a
My board doesn't have the daughterboard.
And here's output when switching to Czech:
Recv: boot_src_addr =0x01fe1efb
Recv: boot_dst_addr =0xc2400000
Recv: boot_copy_size =0x2189
Recv: boot_reserved =0x20
Recv: boot_app_flags =0x80
Recv: boot_app_magic =0x55aa55aa
Recv: \x00echo: 3.7.2-2363
and German:
Recv: boot_src_addr =0x00000e6a
Recv: boot_dst_addr =0x00002400
Recv: boot_copy_size =0x0000
Recv: boot_reserved =0x30
Recv: boot_app_flags =0x80
Recv: boot_app_magic =0x55aa55aa
Recv: \x00echo: 3.7.2-2363
Maybe stupid question, but where did you get the EINSY from? As Prusa has it own bootloader to squeeze some more bytes for the firmware it will not fit on an Ultimachine EINSY.
3d-gussner
on 22 Jul 2019

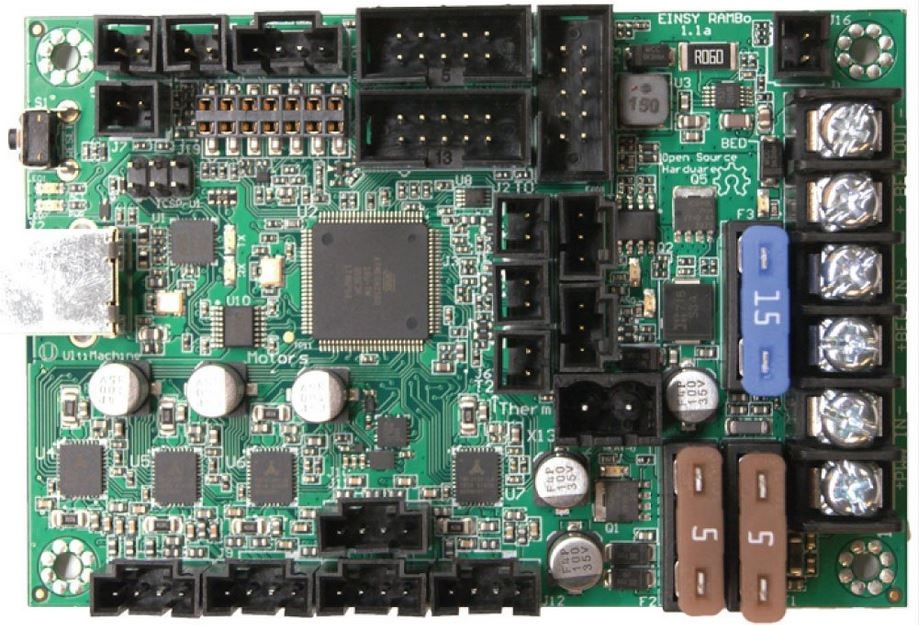

this is mine:
as i said: till 3.7.0 i had never problems with change language.
i think, if i would have no flash memory, the older versions would also not work, but they did.
kgolger
on 22 Jul 2019
@boraca In your case it appears that German is corrupted, but czech is not (look at the size). Is that correct? Is your upload successful?
@kgolger Please do exactly like boraca did and also confirm the spi flash type.
leptun
on 22 Jul 2019
@kgolger Another stupid question, what happens if you try to upload an official hex file?
3d-gussner
on 22 Jul 2019
@kgolger that is true.
@3d-gussner actually fair point (1st question).
leptun
on 22 Jul 2019
@3d-gussner he said he tried from the website.
leptun
on 22 Jul 2019
Full factory reset?
3d-gussner
on 22 Jul 2019
BTW. Github has some issues giving me and others 500 error but we can still work in this issue :-)
3d-gussner
on 22 Jul 2019
@3d-gussner Saw that too...🤷♂️
leptun
on 22 Jul 2019
Czech version doesn't work even if the flashing succeeded. Here's the video: https://www.youtube.com/watch?v=e-xVn8yHwrA
Only way to exit the menu is to select English.
boraca
on 22 Jul 2019
@kgolger Where did you get this board? It is green and if I am not wrong Prusa EINSy are black (maybe the 1st where green not sure about that)
@boraca Can you post a picture of your board? Is it a Original Prusa EINSy? And did you try factory reset?
https://help.prusa3d.com/article/SYvbQ66IXF-factory-reset "All data"
3d-gussner
on 22 Jul 2019
@3d-gussner Sure: https://imgur.com/a/TmH5eO5 It's an Original Prusa MK3, upgraded to MK3S, MMU2S is disconnected. I did a factory reset -> All data and nothing changed.
boraca
on 22 Jul 2019
@boraca Can you compile your own Firmware? If so please download https://github.com/prusa3d/Prusa-Firmware/archive/v3.7.2.zip and uncomment following lines in Firmware/variants/1_75mm_MK3S-EINSy10a-E3Dv6full.h
//#define DEBUG_SEC_LANG //secondary language debug output at startup
//#define DEBUG_W25X20CL //debug external spi flash
to
#define DEBUG_SEC_LANG //secondary language debug output at startup
#define DEBUG_W25X20CL //debug external spi flash
use build.sh or PF-build.sh to compile the firmware
open Pronterface and see what you get via serial while trying to change the language
3d-gussner
on 22 Jul 2019
@boraca Another stuipid question? How do you update the firmware? Do you use Prusa Slicer 2.x or do you use something else?
3d-gussner
on 22 Jul 2019
As far i know EINSy English_only firmware hex files can be uploaded via Prusa Slicer, Arduino IDE, OctoPrint Firmware updater plug in and many other.
Multiple languages miniRambo MK2.5 hex files can be updated the same, as the 2nd language is stored in the EEPROM.
Multiple languages EINSY hex files to my knowledge just works with Prusa Slicer Firmware uploader as additional languages are stored in external flash.
3d-gussner
on 22 Jul 2019
You are partially right. The second language on mk2.5(s) is stored in the internal flash alongside the firmware. The eeprom is only used for storing settings
leptun
on 22 Jul 2019
i bought my original Prusa MK3 in June 2018 and made no changes on board or otherwhere. i always have download the firmware from the original prusa driver download side. since june 2018 i have regulary updated the Prusa FW, till 3.7.0 and i had never problems with language select. mayby there is something with the board? but why does 3.7.0 work??
i have always updated the FW MK3/S und MMU2/S with the neweset Slic3r PE.
kgolger
on 22 Jul 2019
I get this error when compiling with those 2 lines uncommented (normally compiles fine):
In file included from sketch/language.c:2:0:
language.h:135: error: unknown type name 'FILE'
extern uint16_t lang_print_sec_lang(FILE* out);
^
sketch/language.c: In function 'lang_get_sec_lang_str_by_id':
sketch/language.c:234:2: warning: return makes pointer from integer without a cast
return ui + pgm_read_word(((uint16_t*)(ui + 16 + id * 2))); //read relative offset and return calculated pointer
^
exit status 1
I'm using Octoprint with FirmwareUpgrade plugin. I will try with PrusaSlicer.
boraca
on 22 Jul 2019
@boraca I’m not sure why you get the error. Did you set everything according to the instructions in readme.md?
Also, it might not matter after all since you said you uploaded with octoprint. That’s the problem. The firmware updater in prusaSlicer is a custom version of avrdude that has the support to also push to the external flash of the rambo. If you use regular avrdude you can only push the main program, which looks for the languages in the flash and finds they are wrong in some way since it’s from an older version.
Use PrusaSlicer to update and you should be good.
leptun
on 22 Jul 2019
Yeah I followed readme.md and compiled firmware before. The error happens if I uncomment those lines:
#define DEBUG_SEC_LANG //secondary language debug output at startup
#define DEBUG_W25X20CL //debug external spi flash
per @3d-gussner instructions.
Flashed with PrusaSlicer and it didn't work, but after flashing the second time all is fine.
boraca
on 22 Jul 2019
SOLVED!!!
I installed the newest Slic3r 2.0.0 on a Ubuntu 18.04 LT machine, started flashing with Slic3r and the result:
Bingo! No errors, switching to another language is no problem.
Here are the logs of 1.st working Ubuntu.log and 2.nd not working W7.log:
Ubuntu 18.04 LT working:
Prusa Slic3r (Ubuntu 18.04 LT) result:
avrdude-slic3r -v -p atmega2560 -c wiring -P /dev/ttyACM0 -b 115200 -D -U flash:w:0:/home/admin/Schreibtisch/MK3-Firmware/Prusa-Firmware-3.7.2/lang/firmware.hex:i
avrdude-slic3r: Version 6.3-20160220-prusa3d, compiled on May 20 2019 at 18:53:06
Copyright (c) 2000-2005 Brian Dean, http://www.bdmicro.com/
Copyright (c) 2007-2014 Joerg Wunsch
Using Port : /dev/ttyACM0
Using Programmer : wiring
Overriding Baud Rate : 115200
AVR Part : ATmega2560
Chip Erase delay : 9000 us
PAGEL : PD7
BS2 : PA0
RESET disposition : dedicated
RETRY pulse : SCK
serial program mode : yes
parallel program mode : yes
Timeout : 200
StabDelay : 100
CmdexeDelay : 25
SyncLoops : 32
ByteDelay : 0
PollIndex : 3
PollValue : 0x53
Memory Detail :
Block Poll Page Polled
Memory Type Mode Delay Size Indx Paged Size Size #Pages MinW MaxW ReadBack
----------- ---- ----- ----- ---- ------ ------ ---- ------ ----- ----- ---------
eeprom 65 10 8 0 no 4096 8 0 9000 9000 0x00 0x00
flash 65 10 256 0 yes 262144 256 1024 4500 4500 0x00 0x00
lfuse 0 0 0 0 no 1 0 0 9000 9000 0x00 0x00
hfuse 0 0 0 0 no 1 0 0 9000 9000 0x00 0x00
efuse 0 0 0 0 no 1 0 0 9000 9000 0x00 0x00
lock 0 0 0 0 no 1 0 0 9000 9000 0x00 0x00
calibration 0 0 0 0 no 1 0 0 0 0 0x00 0x00
signature 0 0 0 0 no 3 0 0 0 0 0x00 0x00
Programmer Type : Wiring
Description : Wiring
Programmer Model: AVRISP
Hardware Version: 15
Firmware Version Master : 2.10
Vtarget : 0.0 V
SCK period : 0.1 us
avrdude-slic3r: AVR device initialized and ready to accept instructions
Reading | ################################################## | 100% 0.02s
avrdude-slic3r: Device signature = 0x1e9801 (probably m2560)
avrdude-slic3r: safemode: hfuse reads as D0
avrdude-slic3r: safemode: efuse reads as FD
avrdude-slic3r: reading input file "/home/admin/Schreibtisch/MK3-Firmware/Prusa-Firmware-3.7.2/lang/firmware.hex"
avrdude-slic3r: writing flash (250326 bytes):
Writing | ################################################## | 100% 44.01s
avrdude-slic3r: 250326 bytes of flash written
avrdude-slic3r: verifying flash memory against /home/admin/Schreibtisch/MK3-Firmware/Prusa-Firmware-3.7.2/lang/firmware.hex:
avrdude-slic3r: load data flash data from input file /home/admin/Schreibtisch/MK3-Firmware/Prusa-Firmware-3.7.2/lang/firmware.hex:
avrdude-slic3r: input file /home/admin/Schreibtisch/MK3-Firmware/Prusa-Firmware-3.7.2/lang/firmware.hex contains 250326 bytes
avrdude-slic3r: reading on-chip flash data:
Reading | ################################################## | 100% 32.22s
avrdude-slic3r: verifying ...
avrdude-slic3r: 250326 bytes of flash verified
avrdude-slic3r: safemode: hfuse reads as D0
avrdude-slic3r: safemode: efuse reads as FD
avrdude-slic3r: safemode: Fuses OK (E:FD, H:D0, L:FF)
avrdude-slic3r done. Thank you.
avrdude-slic3r -v -p atmega2560 -c arduino -P /dev/ttyACM0 -b 115200 -D -u -U flash:w:1:/home/admin/Schreibtisch/MK3-Firmware/Prusa-Firmware-3.7.2/lang/firmware.hex:i
avrdude-slic3r: Version 6.3-20160220-prusa3d, compiled on May 20 2019 at 18:53:06
Copyright (c) 2000-2005 Brian Dean, http://www.bdmicro.com/
Copyright (c) 2007-2014 Joerg Wunsch
Using Port : /dev/ttyACM0
Using Programmer : arduino
Overriding Baud Rate : 115200
AVR Part : ATmega2560
Chip Erase delay : 9000 us
PAGEL : PD7
BS2 : PA0
RESET disposition : dedicated
RETRY pulse : SCK
serial program mode : yes
parallel program mode : yes
Timeout : 200
StabDelay : 100
CmdexeDelay : 25
SyncLoops : 32
ByteDelay : 0
PollIndex : 3
PollValue : 0x53
Memory Detail :
Block Poll Page Polled
Memory Type Mode Delay Size Indx Paged Size Size #Pages MinW MaxW ReadBack
----------- ---- ----- ----- ---- ------ ------ ---- ------ ----- ----- ---------
eeprom 65 10 8 0 no 4096 8 0 9000 9000 0x00 0x00
flash 65 10 256 0 yes 262144 256 1024 4500 4500 0x00 0x00
lfuse 0 0 0 0 no 1 0 0 9000 9000 0x00 0x00
hfuse 0 0 0 0 no 1 0 0 9000 9000 0x00 0x00
efuse 0 0 0 0 no 1 0 0 9000 9000 0x00 0x00
lock 0 0 0 0 no 1 0 0 9000 9000 0x00 0x00
calibration 0 0 0 0 no 1 0 0 0 0 0x00 0x00
signature 0 0 0 0 no 3 0 0 0 0 0x00 0x00
Programmer Type : Arduino
Description : Arduino
Hardware Version: 3
Firmware Version: 6.2
Vtarget : 0.3 V
Varef : 0.3 V
Oscillator : 28.800 kHz
SCK period : 3.3 us
avrdude-slic3r: AVR device initialized and ready to accept instructions
Reading | ################################################## | 100% 0.00s
avrdude-slic3r: Device signature = 0x1e9801 (probably m2560)
avrdude-slic3r: reading input file "/home/admin/Schreibtisch/MK3-Firmware/Prusa-Firmware-3.7.2/lang/firmware.hex"
avrdude-slic3r: writing flash (57250 bytes):
Writing | ################################################## | 100% 7.36s
avrdude-slic3r: 57250 bytes of flash written
avrdude-slic3r: verifying flash memory against /home/admin/Schreibtisch/MK3-Firmware/Prusa-Firmware-3.7.2/lang/firmware.hex:
avrdude-slic3r: load data flash data from input file /home/admin/Schreibtisch/MK3-Firmware/Prusa-Firmware-3.7.2/lang/firmware.hex:
avrdude-slic3r: input file /home/admin/Schreibtisch/MK3-Firmware/Prusa-Firmware-3.7.2/lang/firmware.hex contains 57250 bytes
avrdude-slic3r: reading on-chip flash data:
Reading | ################################################## | 100% 6.51s
avrdude-slic3r: verifying ...
avrdude-slic3r: 57250 bytes of flash verified
avrdude-slic3r done. Thank you.
W7 Enterprise not working:
avrdude: Version 6.3-20160220-prusa3d, compiled on Feb 11 2019 at 18:25:11
Copyright (c) 2000-2005 Brian Dean, http://www.bdmicro.com/
Copyright (c) 2007-2014 Joerg Wunsch
System wide configuration file is "C:/PROGRA~1/Prusa3D/Slic3rPE/resources\avrdude\avrdude.conf"
Using Port : COM5
Using Programmer : wiring
Overriding Baud Rate : 115200
AVR Part : ATmega2560
Chip Erase delay : 9000 us
PAGEL : PD7
BS2 : PA0
RESET disposition : dedicated
RETRY pulse : SCK
serial program mode : yes
parallel program mode : yes
Timeout : 200
StabDelay : 100
CmdexeDelay : 25
SyncLoops : 32
ByteDelay : 0
PollIndex : 3
PollValue : 0x53
Memory Detail :
Block Poll Page Polled
Memory Type Mode Delay Size Indx Paged Size Size #Pages MinW MaxW ReadBack
----------- ---- ----- ----- ---- ------ ------ ---- ------ ----- ----- ---------
eeprom 65 10 8 0 no 4096 8 0 9000 9000 0x00 0x00
flash 65 10 256 0 yes 262144 256 1024 4500 4500 0x00 0x00
lfuse 0 0 0 0 no 1 0 0 9000 9000 0x00 0x00
hfuse 0 0 0 0 no 1 0 0 9000 9000 0x00 0x00
efuse 0 0 0 0 no 1 0 0 9000 9000 0x00 0x00
lock 0 0 0 0 no 1 0 0 9000 9000 0x00 0x00
calibration 0 0 0 0 no 1 0 0 0 0 0x00 0x00
signature 0 0 0 0 no 3 0 0 0 0 0x00 0x00
Programmer Type : Wiring
Description : Wiring
Programmer Model: AVRISP
Hardware Version: 15
Firmware Version Master : 2.10
Vtarget : 0.0 V
SCK period : 0.1 us
avrdude: AVR device initialized and ready to accept instructions
Reading | ################################################## | 100% 0.00s
avrdude: Device signature = 0x1e9801 (probably m2560)
avrdude: safemode: hfuse reads as D0
avrdude: safemode: efuse reads as FD
avrdude: reading input file "C:\Users\7800mbz\Desktop\firmware.hex"
avrdude: writing flash (250326 bytes):
Writing | ################################################## | 100% 44.05s
avrdude: 250326 bytes of flash written
avrdude: verifying flash memory against C:\Users\7800mbz\Desktop\firmware.hex:
avrdude: load data flash data from input file C:\Users\7800mbz\Desktop\firmware.hex:
avrdude: input file C:\Users\7800mbz\Desktop\firmware.hex contains 250326 bytes
avrdude: reading on-chip flash data:
Reading | ################################################## | 100% 32.07s
avrdude: verifying ...
avrdude: 250326 bytes of flash verified
avrdude: safemode: hfuse reads as D0
avrdude: safemode: efuse reads as FD
avrdude: safemode: Fuses OK (E:FD, H:D0, L:FF)
avrdude done. Thank you.
avrdude: Version 6.3-20160220-prusa3d, compiled on Feb 11 2019 at 18:25:11
Copyright (c) 2000-2005 Brian Dean, http://www.bdmicro.com/
Copyright (c) 2007-2014 Joerg Wunsch
System wide configuration file is "C:/PROGRA~1/Prusa3D/Slic3rPE/resources\avrdude\avrdude.conf"
Using Port : COM5
Using Programmer : arduino
Overriding Baud Rate : 115200
avrdude: prusa_init_external_flash(): MK3 printer did not boot up on time or serial communication failed
avrdude: arduino_open(): Failed to initialize MK3 external flash programming mode
avrdude done. Thank you.
That's it!
Thanks to all for their time und tipps!
kgolger
on 23 Jul 2019
@kgolger Glad it works.
3d-gussner
on 23 Jul 2019
Related issues
sarf2k4
·
3Comments
gusdleon
·
5Comments
KarlZeilhofer
·
4Comments
Siwat2545
·
4Comments
Pace17881
·
3Comments
