Picongpu: time-resolved probing of a single location

[hightower8083]

Hi there,

For some plasma instability studies it would be really useful to have a way to probe the fields (including charge-densities) at a given location, and output it as a resolved time-series.

I imagine that one simple way to do this might be setting a single immobile probe particle and gather the fields on it. I've see that there is already a way to do the probes, so technically it should not be too complicated to implement such plug-in for a case of a single particle and arbitrary fields.. what you think ?

[ax3l]

Hi! Yes, the easiest way to achieve this is via probing, immobile particles.

Here is a workflow on it, also including which plugin (HDF5 or ADIOS) can create the output for you: https://picongpu.readthedocs.io/en/0.4.2/usage/workflows/probeParticles.html

In order to probe densities, one can use the same plugins and just needs to modify the attributes stored on the probe particles (speciesAttributes.param, speciesAttributes.unitless -> then put into speciesDefinition.param) and also the "pusher" that stores the fields on the particle attributes: include/picongpu/particles/pusher/particlePusherProbe.hpp

Alternatively, we also have a "slice field" plugin which also records locally fixed values over time. It desperately deserves some updates such as support for more fields and writing to HDF5.

[hightower8083]

OK, I'm trying the probe particle's method, but I don't get how to limit creation of these probes.
This is supposed to be controlled via EveryNthCellImpl, but whatever I put there (4 4 4 or 1000 1000 1000), it creates particles in all cells.

What could I be missing/should I check ? I followed more or less all the steps from the workflow, but don't see effect of EveryNthCellImpl

[sbastrakov]

@hightower8083 the issue you describe reminds of a rather recent issue #2763 , which has been fixed by #2768; this fix is part of 0.4.1 release. In case you are using a version earlier than 0.4.1 this might be it. However, in case you are using the latest release (or latest dev), this has to be smth else.

[hightower8083]

Hi @sbastrakov. Thank you for the prompt response!

I think this is actually the case for my problem -- i'm running tests on my desktop machine, where I've 0.4.0 installed. I'll check it on 0.4.2 asap.

By the way, do you have recommendations on a best way to update the spack installation?

[sbastrakov]

Yes, for 0.4.0 this has to be that bug. Sorry, I have no experience with spack.
cc @berceanu just in case you know and have time.

[PrometheusPi]

@hightower8083 Can you confirm that #2768 fixed your issue? I am surprised that issue #2763 occurred for your, since you used an equal number of particles per cell thus distributing the macro-particles should have worked. (The bug only occurred for non-equal spacing.)

[ax3l]

@hightower8083 go to ~/src/spack-repo and update it's sources. (git fetch --all; git pull --ff-only)

If you now spack install picongpu it will install the latest version alongside the 0.4.0 you have installed.

When loading, make sure to specify the PIConGPU version spack load [email protected] so it knows which version you want. (You can also spack uninstall [email protected] if it is no longer needed).

[hightower8083]

@ax3l thanx -- upgrade works with no problems

@PrometheusPi -- I've just redone the test and you are right, the issue is still there for 0.4.2.

To clarify

• I clone LWFA example
• do all the steps from
  https://picongpu.readthedocs.io/en/0.4.2/usage/workflows/probeParticles.html
• in etc/picongpu/1.cfg, I only change

TBG_steps="100"
[...]
 TBG_hdf5="--hdf5.period 1000  \
          --hdf5.file simData \
          --hdf5.source 'species_all'"
[...]
TBG_plugins="!TBG_hdf5"

• check the output (i'm using opmd_viewer)

from opmd_viewer import OpenPMDTimeSeries
ts = OpenPMDTimeSeries('./test_lwfa_01/simOutput/h5/',)

x, = ts.get_particle(species='probe', var_list=['x',])
print(x.shape)
x, = ts.get_particle(species='e', var_list=['x',])
print(x.shape)

and get 2359296 and 4497408. Factor ~2 difference here is from 1ppc for probes and 2ppc for eons -- should be factor 2x4x4x4=128.

Am I missing something or is a real issue?

[ax3l]

@hightower8083 can you please post your speciesInitialization.param?

For the first time step, this can be true since probes are everywhere and regular e- for the gas are just starting (vacuum then upramp in the first simulation steps until moving window starts.) Maybe you can plot each one's "density" for a quick check as well.

[hightower8083]

here's the speciesInitialization.param file. I'll add the data from simulation shortly

#pragma once

#include "picongpu/particles/InitFunctors.hpp"


namespace picongpu
{
namespace particles
{
    /** InitPipeline define in which order species are initialized
     *
     * the functors are called in order (from first to last functor)
     */
    using InitPipeline = bmpl::vector<
#if( PARAM_IONIZATION == 0 )
        CreateDensity<
            densityProfiles::Gaussian,
            startPosition::Random2ppc,
            PIC_Electrons
        >
#   if( PARAM_IONS == 1 )
        ,
        Derive<
            PIC_Electrons,
            PIC_Ions
        >
#   endif
#else

        CreateDensity<
            densityProfiles::Gaussian,
            startPosition::Random2ppc,
            PIC_Ions
        >,
        Manipulate<
            manipulators::SetBoundElectrons,
            PIC_Ions
        >
#endif
    ,
    CreateDensity<
        densityProfiles::ProbeEveryFourthCell,
        startPosition::OnePosition,
        Probes
    >
    >;

} // namespace particles
} // namespace picongpu

[hightower8083]

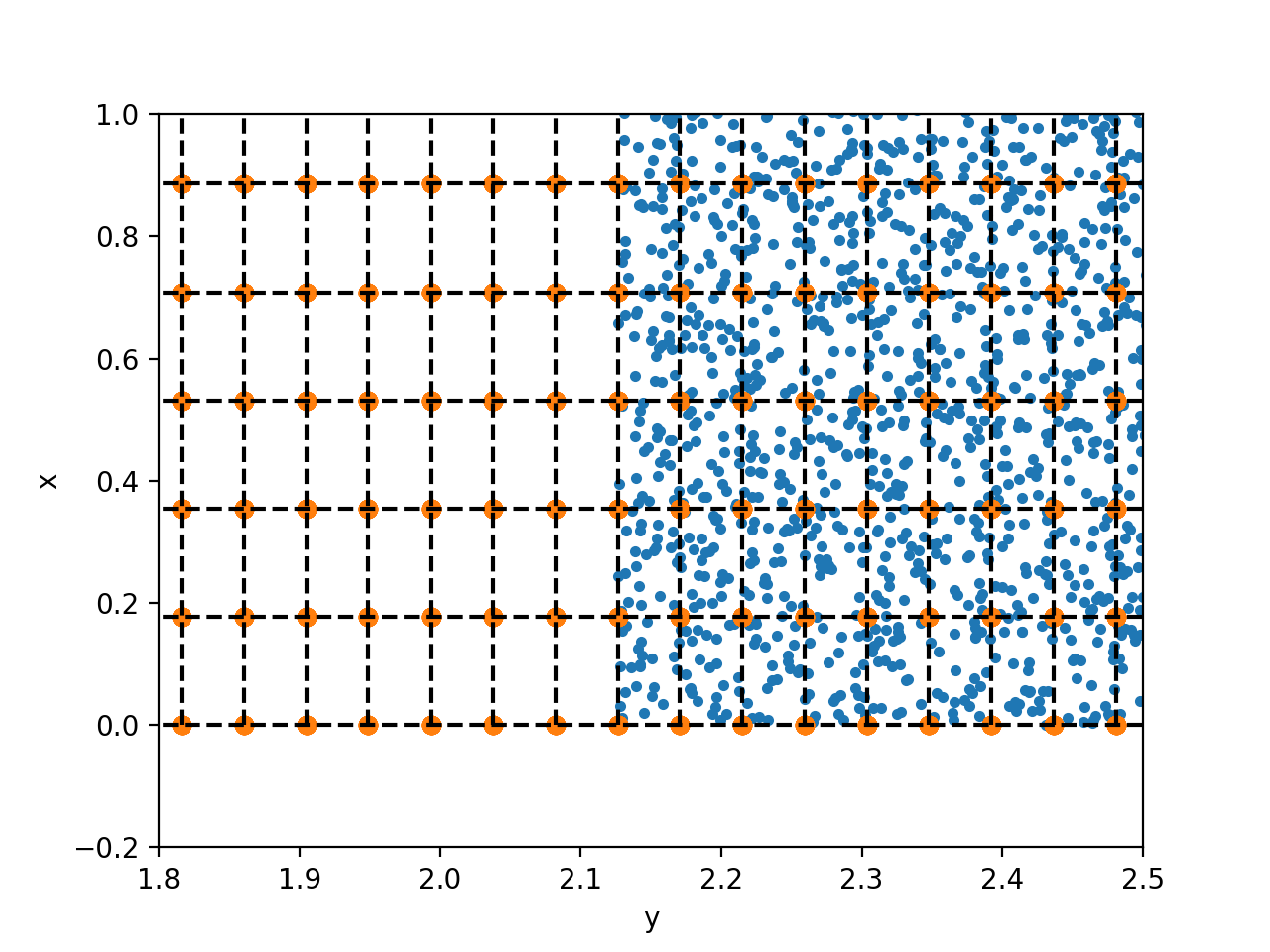

Well, looking at the particle's positions in the cells (z-integrated, probes - orange, eons blue, dashed lines are grid), I'd say that ProbeEveryFourthCell does not do what I though it should do -- it creates a particle at each cell

For me ideally would be a plugin which operates with individual locations, but with such numbers of probes, any frequent (e.g. stepwise) output would be enormous

[ax3l]

Thanks for checking this!
Can you post the snippets from density.param and particles.param where densityProfiles::ProbeEveryFourthCell and startPosition::OnePosition are defined?

Can you post the head output of your simOutput/output just to verify it's really v0.4.2 you are using?

From looking at https://github.com/ComputationalRadiationPhysics/picongpu/pull/2768, I can't see what might be off right away.

[ax3l]

For me ideally would be a plugin which operates with individual locations

Oh you can do this. E.g. by using a finely tailored "free density" profile (in density.param) instead of the pre-defined densityProfiles::ProbeEveryFourthCell and startPosition::OnePosition.

[hightower8083]

Sure, here they are (its really only a copy-paste):
simOutput/output

PIConGPU: 0.4.2
  Build-Type: Release

Third party:
  OS:         Linux-3.10.0-862.14.4.el7.x86_64
  arch:       x86_64
  CXX:        GNU (7.3.0)
  CMake:      3.12.3
  CUDA:       9.2.88
  mallocMC:   2.3.0
  Boost:      1.65.1
  MPI:
    standard: 3.1
    flavor:   OpenMPI (3.1.2)
  PNGwriter:  0.7.0
  libSplash:  1.7.0 (Format 4.0)
  ADIOS:      NOTFOUND

density.param

#pragma once

#include "picongpu/particles/densityProfiles/profiles.def"
/* preprocessor struct generator */
#include <pmacc/preprocessor/struct.hpp>

namespace picongpu
{
namespace SI
{
    /** Base density in particles per m^3 in the density profiles.
     *
     * This is often taken as reference maximum density in normalized profiles.
     * Individual particle species can define a `densityRatio` flag relative
     * to this value.
     *
     * unit: ELEMENTS/m^3
     */
#ifndef PARAM_BASE_DENSITY_SI
#   define PARAM_BASE_DENSITY_SI 1.e25
#endif
     constexpr float_64 BASE_DENSITY_SI = PARAM_BASE_DENSITY_SI;
}

namespace densityProfiles
{
    PMACC_STRUCT(GaussianParameter,
        /** Profile Formula:
         *   constexpr float_X exponent = abs((y - gasCenter_SI) / gasSigma_SI);
         *   constexpr float_X density = exp(gasFactor * pow(exponent, gasPower));
         *
         *   takes `gasCenterLeft_SI      for y < gasCenterLeft_SI`,
         *         `gasCenterRight_SI     for y > gasCenterRight_SI`,
         *   and exponent = 0.0  for gasCenterLeft_SI < y < gasCenterRight_SI
         */
        (PMACC_C_VALUE(float_X, gasFactor, -1.0))
        (PMACC_C_VALUE(float_X, gasPower, 4.0))

        /** height of vacuum area on top border
         *
         *  this vacuum is important because of the laser initialization,
         *  which is done in the first cells of the simulation and
         *  assumes a charge-free volume
         *  unit: cells
         */
        (PMACC_C_VALUE(uint32_t, vacuumCellsY, 50))

        /** The central position of the gas distribution
          *  unit: meter
          */
        (PMACC_C_VALUE(float_64, gasCenterLeft_SI, 8.0e-5))
        (PMACC_C_VALUE(float_64, gasCenterRight_SI, 10.0e-5))

        /** the distance from gasCenter_SI until the gas density decreases to its 1/e-th part
          *  unit: meter
          */
        (PMACC_C_VALUE(float_64, gasSigmaLeft_SI, 8.0e-5))
        (PMACC_C_VALUE(float_64, gasSigmaRight_SI, 8.0e-5))
    ); /* struct GaussianParam */

    /* definition of density with Gaussian profile */
    using Gaussian = GaussianImpl< GaussianParameter >;

    using ProbeEveryFourthCell = EveryNthCellImpl<
        mCT::UInt32<
            4,
            4,
            4
        >
    >;
}
}

particles.param

#pragma once

#include "picongpu/particles/startPosition/functors.def"
#include "picongpu/particles/manipulators/manipulators.def"

#include <pmacc/nvidia/functors/Assign.hpp>


namespace picongpu
{
namespace particles
{

    /** a particle with a weighting below MIN_WEIGHTING will not
     *      be created / will be deleted
     *  unit: none
     */
    constexpr float_X MIN_WEIGHTING = 10.0;

namespace startPosition
{

    struct RandomParameter2ppc
    {
        /** Count of particles per cell at initial state
         *  unit: none
         */
        static constexpr uint32_t numParticlesPerCell = 2u;
    };
    using Random2ppc = RandomImpl< RandomParameter2ppc >;


    CONST_VECTOR(
        float_X,
        3,
        InCellOffset,
        /* each x, y, z in-cell position component
         * in range [0.0, 1.0) */
        0.0,
        0.0,
        0.0
    );
    struct OnePositionParameter
    {
        static constexpr uint32_t numParticlesPerCell = 1u;
        const InCellOffset_t inCellOffset;
    };

    using OnePosition = OnePositionImpl< OnePositionParameter >;

} // namespace startPosition

    /** During unit normalization, we assume this is a typical
     *  number of particles per cell for normalization of weighted
     *  particle attributes.
     */
    constexpr uint32_t TYPICAL_PARTICLES_PER_CELL =
        startPosition::RandomParameter2ppc::numParticlesPerCell;

namespace manipulators
{

    struct SetIonToNeutral
    {
        template< typename T_Particle >
        DINLINE void operator()( T_Particle & particle )
        {
            using Particle = T_Particle;

            // number of bound electrons at initialization state of the neutral atom
            float_X const protonNumber = traits::GetAtomicNumbers< T_Particle >::type::numberOfProtons;

            particle[ boundElectrons_ ] = protonNumber;
        }
    };
    using SetBoundElectrons = generic::Free< SetIonToNeutral >;
} // namespace manipulators
} // namespace particles
} // namespace picongpu

[ax3l]

Can you please add the line in the first block that also contains the PIConGPU version number?

[ax3l]

cc @psychocoderHPC @sbastrakov @PrometheusPi @n01r do you have any idea what might cause this?
Can't see what's off right away.

[n01r]

I can confirm that I see this, too in my probes output.
At the time I was blaming it on the #2763 issue, though.

[n01r]

I just had an idea:
Could it actually be that returning a zero weighting doesn't do anything here?

https://github.com/ComputationalRadiationPhysics/picongpu/blob/dde9b40e30d00b0a7ae27906acc91abb13485553/include/picongpu/particles/densityProfiles/EveryNthCellImpl.hpp#L82

In our particle creation we reduce the number of macroparticles per cell based on the macroparticles' weighting, right?
I didn't follow it through to the end, yet but probes do not have a weighting.

In [15]: print(probes.vars.keys())
dict_keys(['position/x', 'position/y', 'position/z', 'probeB/x', 'probeB/y', 'probeB/z', 'probeE/x', 'probeE/y', 'probeE/z', 'positionOffset/x', 'positionOffset/y', 'positionOffset/z', 'particles_info'])

So even if we give the probes a weighting of 0 will they actually be removed or not initialized?

[n01r]

offline with @psychocoderHPC
That's what it was:
https://github.com/ComputationalRadiationPhysics/picongpu/blob/dde9b40e30d00b0a7ae27906acc91abb13485553/include/picongpu/particles/startPosition/OnePositionImpl.hpp#L116-L125

We set the numParticlesPerCell to 1u because that's the default in OnePosition but the check that realParticlesPerCell is larger than 0 is missing and it plays a role currently only after the check if the species has a weighting attribute, thus we skip that part and always initialize 1 macroparticle.

[n01r]

Thanks @hightower8083 for the detailed bug description!

[hightower8083]

Cool that you've found the reason so fast ! You are very welcome for the bug descriptions -- unfortunately can't really trace or fix those myself (need you guys to provide some training =) )

[psychocoderHPC]

I am currently writing the fix. The pull request will be open after lunch.

[psychocoderHPC]

@hightower8083 Update, the fix takes a little bit longer. My tests show something strange what I need to understand first before I can roll out a fix.

[ax3l]

From the quote above, the logic should probably just read

// include/picongpu/particles/startPosition/OnePositionImpl.hpp

// ...
if( hasWeighting )
    return startPosition::detail::WeightMacroParticles{}(
        realParticlesPerCell,
        T_ParamClass::numParticlesPerCell,
        m_weighting
    );
else
{
    float_X init_weighting = float_X( T_ParamClass::numParticlesPerCell );
    uint32_t const result = startPosition::detail::WeightMacroParticles{}(
        realParticlesPerCell,
        T_ParamClass::numParticlesPerCell,
        init_weighting
    );
    if( result > 0u )
        return T_ParamClass::numParticlesPerCell;
    else
        return 0u;
}

but it could be that we need to make the "MIN_WEIGHTING" constant a cleaner trait so we can ignore it for probes that have in most cases no weighting attribute... Otherwise we might end up with lacking probes where we would expect some.

[psychocoderHPC]

I opened a bugfix for this issue in #2831

[ax3l]

The issue should be fixed in PIConGPU 0.4.3
