Openshot-qt: Flickering on the right side of the video

[KidsDontPlay]

Describe the bug
A flickering appears on the right edge of the screen in the video preview and the rendered video.

System Details (please complete the following information):

• OpenShot 2.4.2
• Linux Mint (4.13.0-25-generic # 29~16.04.2-Ubuntu SMP Tue Jan 9 12:16:39 UTC 2018 x86_64 x86_64 x86_64 GNU/Linux)

To Reproduce
Steps to reproduce the behavior:

• open a new project with profile HDV 720 24p

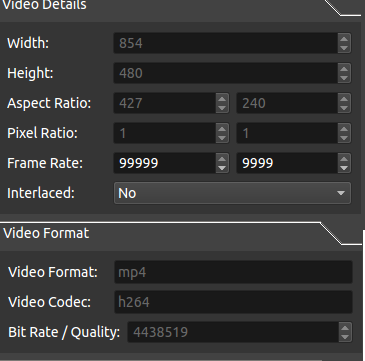

• add a video to the track (video details in screenshots)

Expected behavior
No flickering

Screenshots

• https://i.imgur.com/cul27M3.mp4
•

Additional context

• this is a duplicate to #2050. I decided to create a new one because the other one doesn't provide enough information
• said video file
• EDIT: here is the same video without any flickering problems

[DylanC]

@MrRiegel Try v2.4.3 and let us know if you still have a problem.

[KidsDontPlay]

the problem is still there

[peanutbutterandcrackers]

I'm going to close #2050 in favour of this. And I'm going add my own example file here. I ran into the same issue this morning while trying to reverse the attached webm (that I got from 9gag) for testing. I was using the default profile.

Issue #2053.zip

[julienaubert]

Thanks to everyone for this app. It is great!

I have this issue too. Tested in 2.4.3.

I tried just adding an image - then it works fine (no flicker on export). However, adding a video, with default settings, I get flicker or black on right side too.

Example video:
Untitled 5.mov.zip

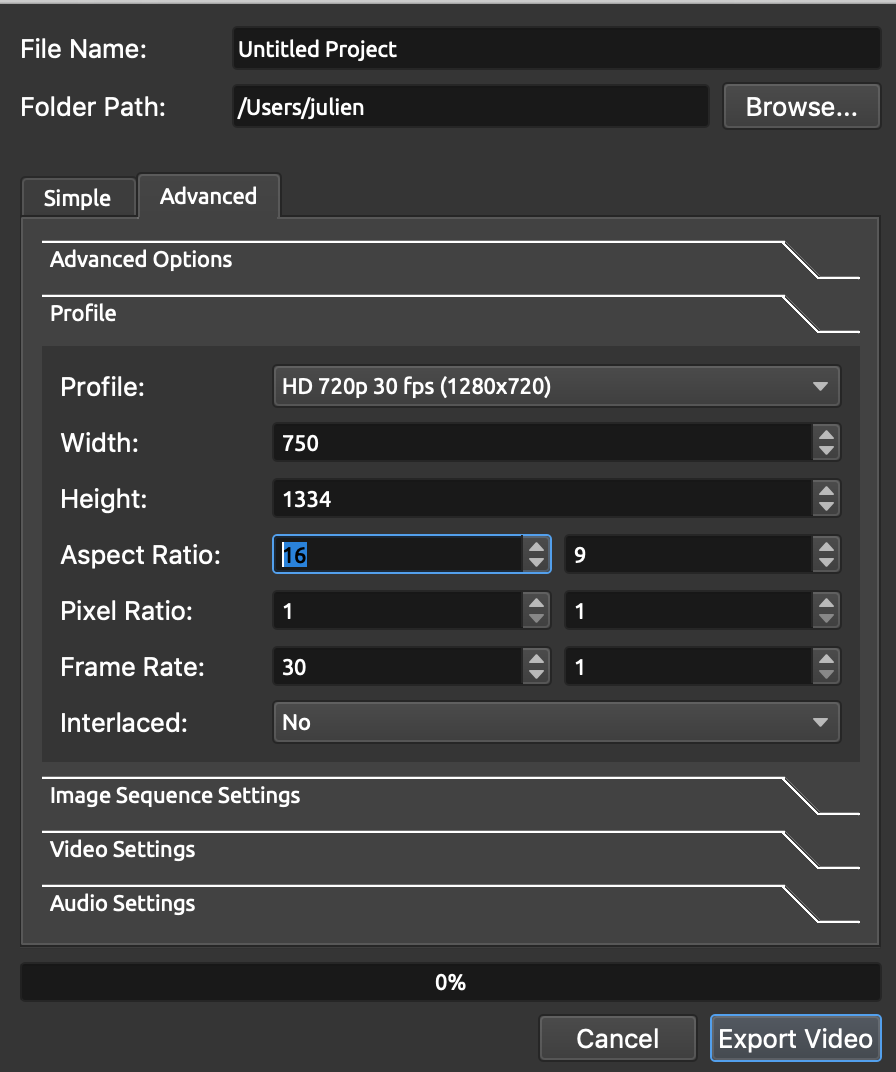

Export options are the default, except I have set w/h to same resolution as the above movie:

And the resulting export shows a black vertical line on the right. It is as if it is not writing the last pixels on each row from the source?
Untitled Project.mp4.zip

[schauveau]

I see it too and I think that this is a bug in the FFmpeg reader (or in libswscale) when the width of the video is not a multiple of 8. Here is a small program I made to test the behavior.
test1.cc.gz
You can change the values of NX (the image size) and STRIDE_OUT (a stride added to each output line) and see how the sws_scale function is behaving during a conversion from YUV420P to RGBA
What I am observing is that the pixels are always converted in batches of 8 pixels (probably because of vectorised code). Try for instance NX=21 and STRIDE_OUT=0. Only 16 pixels are converted per row.
In libopenshot, the output image RGBA has no stride which means that the incomplete batch of 8 pixels is not converted and since data allocated by av_malloc is not cleared, noise is produced.
Note: I think that FFMpegReader could allocate its image using av_image_alloc(...,8).

[schauveau]

The small test program in my previous comment should be compiled with something like
g++ test1.cc $(pkg-config --cflags --libs libswscale libavutil)

[StarDust19]

Please somebody comment how to actually solve it! The comments so far are either confusing or just simply like "yeah, it's a problem with me 2 lol".

[schauveau]

I do not know if my previous comment was confusing (yeah ... probably... that was more a comment for the openshot devs than for the users) but if I was right then a workaround could be to always use videos with a width that is a multiple of 8. For example, in the 2 screenshots posted previously, the videos have a width of 750 (=893+6) and 854 (=8106+6) thus causing the last 6 pixels to become random.
Ideally, the problem should be solved in libswscale (or in openshot?) but If you have ffmpeg installed then you could try one of the following commands to 'fix' the width of the problematic videos:

# use the pad filter to add borders on both sides to keep the video centered
ffmpeg -i  input.mp4 -vf "pad=w='8*ceil(iw/8)':x='(ow-iw)/2':color=black" output.mp4
# use the pad filter to add a single border on the right side
ffmpeg -i  input.mp4 -vf "pad=w='8*ceil(iw/8)':x='0':color=black" output.mp4
# use the crop filter to remove a few pixels on both sides.
ffmpeg -i input.mp4  -vf "crop=w='8*floor(iw/8)':x='(iw-ow)/2'" output.mp4

In the previous commands, iw and ow are respectively the input width and the output width of the video and you can of course replace black by your preferred border color (e.g. gray, #FF0000, ...)
PS: the documentation for the ffmpeg filters can be found in https://ffmpeg.org/ffmpeg-filters.html
PPS: you may also want to pass other options to ffmpeg for example to control the re-encoding quality.

[olissongs]

Tested it in OpenShot 2.4.4 Ubuntu 18.04

same Problem.

Tested the fmpeg commands, they have no effect.

any other Solutions?

Testing it in KDEenlive, it runs out of the box. thats my workaround. Not happy not using my prefered app openshot

[tomjridge]

Just to say that I also have this problem

[didnthodl]

Tested on version 2.5.0-dev1 and ffmpeg to version 3.4.6-0 on Ubuntu0.18.04.1.
I get this exporting a video with 1280x720, which is divisible by 8.
Still same problem with the flickering
Kdenlive works fine, though

[ferdnyc]

I get this exporting a video with 1280x720, which is divisible by 8.

That isn't really the involved factor, though, it's a question of your input video's properties (dimensions and aspect ratio, primarily), along with any scaling or transformations on the Timeline.

The video noise is "attached to" (for lack of a better term) the imported video clip. And it can usually be worked around in OpenShot by scaling the video clip slightly larger than the output profile, so that the corrupted pixels are pushed offscreen.

[didnthodl]

I get this exporting a video with 1280x720, which is divisible by 8.

That isn't really the involved factor, though, it's a question of your input video's properties (dimensions and aspect ratio, primarily), along with any scaling or transformations on the Timeline.

Wow, that was a quick solution. Thanks for the clarification! It works if the width of my input video is divisible by 8. That's actually a fairly easy thing for me to do. I was already reading tutorials on how to use Kdenlive...

Thanks so much!

[rarsa69]

Thank's for the explanation. I had found out that displacing the X location between 0.001 and 0.005 resolved the problem. I thought it was just a hacky way to solve it but with the explanation, it is clear that it's a good way to remove the noise.
