Microk8s: [dashboard] should be exposed via ingress

[grebennikov]

When running microk8s on the server, rather than doing port forwarding it should be possible to access the dashboard via ingress (similar to kubeflow dashboard)

[ktsakalozos]

Thank you for this request, it is brought up frequently. We need to address the need for easy access to the dashboard in a secure way. Until we do so, to access the dashboard have a look at the MicroK8s docs [1] and the dashboard upstream wiki [2]

[1] https://microk8s.io/docs/addon-dashboard
[2] https://github.com/kubernetes/dashboard/blob/master/docs/user/accessing-dashboard/1.7.x-and-above.md

[cedricdv]

So it's 2020 and this still hasn't been solved yet?

[tanzerm]

Enable the ingress addon:
microk8s enable ingress

and create an ingress ressource:

---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  annotations:
    kubernetes.io/ingress.class: nginx
    nginx.ingress.kubernetes.io/rewrite-target: /$1
    nginx.ingress.kubernetes.io/backend-protocol: "HTTPS"
  name: dashboard
  namespace: kube-system
spec:
  rules:
  - http:
      paths:
      - path: "/dashboard/?(.*)"
        pathType: Prefix
        backend:
          service:
            name: kubernetes-dashboard
            port:
              number: 443

Now you can access the dashboard with http://<Microk8s-IP>/dashboard/

[ishuah]

Enable the ingress addon:
microk8s enable ingress

and create an ingress ressource:

---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  annotations:
    kubernetes.io/ingress.class: nginx
    nginx.ingress.kubernetes.io/rewrite-target: /$1
    nginx.ingress.kubernetes.io/backend-protocol: "HTTPS"
  name: dashboard
  namespace: kube-system
spec:
  rules:
  - http:
      paths:
      - path: "/dashboard/?(.*)"
        pathType: Prefix
        backend:
          service:
            name: kubernetes-dashboard
            port:
              number: 443

Now you can access the dashboard with http://<Microk8s-IP>/dashboard/

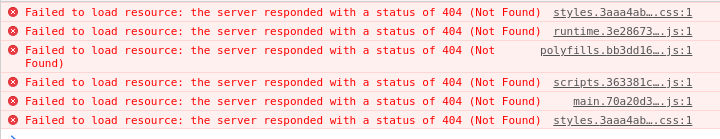

Following these instructions I can access http:///dashboard/ but the page doesn't load correctly because the assets (styling, js, images) cannot be resolved correctly (404).

Manually appending /dashboard/ to the asset path fixes this issue. Any workaround?

[Rom888]

This works for me (microk8s 1.19):

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: dashboard
  namespace: kube-system
  annotations:
    # use the shared ingress-nginx
    kubernetes.io/ingress.class: nginx
    nginx.ingress.kubernetes.io/backend-protocol: "HTTPS"
    nginx.ingress.kubernetes.io/rewrite-target: /$2
    nginx.ingress.kubernetes.io/configuration-snippet: |
      rewrite ^(/dashboard)$ $1/ redirect;
spec:
  # https://kubernetes.io/docs/concepts/services-networking/ingress/
  # https://kubernetes.github.io/ingress-nginx/user-guide/tls/
  rules:
  - http:
      paths:
      - path: /dashboard(/|$)(.*)
        pathType: ImplementationSpecific
        backend:
          service:
            name: kubernetes-dashboard
            port:
              number: 443

[wuzhuoqing]

Thanks Rom888, works for me too. Other than in my microk8s I need to use Ingress class: public

I1225 18:15:43.940765       6 flags.go:205] Watching for Ingress class: public
W1225 18:15:43.940833       6 flags.go:208] Only Ingresses with class "public" will be processed by this Ingress controller
