Mapbox-navigation-android: Footer informations are not correct for a long directions route

[P-Zenker]

Android API: 25 (Google Nexus 5), 27 (Samsung A6)
Mapbox Navigation SDK version: 0.20.0 & 0.21.0

Steps to trigger behavior

1. Calculate a long route, e.g:
   Point origin = Point.fromLngLat( 10.684159, 53.874427);
   Point destination = Point.fromLngLat(15.819441, 38.017852);
   ... which gives the following route:


For completeness, the code:

import android.os.Bundle;
import android.support.v7.app.AppCompatActivity;
import android.view.View;

import com.mapbox.api.directions.v5.DirectionsCriteria;
import com.mapbox.api.directions.v5.models.DirectionsResponse;
import com.mapbox.api.directions.v5.models.DirectionsRoute;
import com.mapbox.geojson.Point;
import com.mapbox.mapboxsdk.Mapbox;
import com.mapbox.mapboxsdk.camera.CameraUpdateFactory;
import com.mapbox.mapboxsdk.geometry.LatLng;
import com.mapbox.mapboxsdk.geometry.LatLngBounds;
import com.mapbox.mapboxsdk.maps.MapView;
import com.mapbox.services.android.navigation.ui.v5.NavigationLauncher;
import com.mapbox.services.android.navigation.ui.v5.NavigationLauncherOptions;
import com.mapbox.services.android.navigation.ui.v5.route.NavigationMapRoute;
import com.mapbox.services.android.navigation.v5.navigation.NavigationRoute;

import java.util.Locale;

import retrofit2.Call;
import retrofit2.Callback;
import retrofit2.Response;

public class MainActivity extends AppCompatActivity {

    private DirectionsRoute directionsRoute;
    private NavigationMapRoute navigationMapRoute;
    private MapView mapView;

    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        mapView = findViewById(R.id.mapView);
        mapView.onCreate(savedInstanceState);
        mapView.getMapAsync(mapboxMap -> {

            Point origin = Point.fromLngLat( 10.684159, 53.874427);
            Point destination = Point.fromLngLat(15.819441, 38.017852);

            NavigationRoute.builder(MainActivity.this)
                    .accessToken(Mapbox.getAccessToken())
                    .origin(origin)
                    .destination(destination)
                    .voiceUnits(DirectionsCriteria.METRIC)
                    .language(Locale.GERMAN)
                    .profile(DirectionsCriteria.PROFILE_DRIVING)
                    .build()
                    .getRoute(new Callback<DirectionsResponse>() {
                        @Override
                        public void onResponse(Call<DirectionsResponse> call, Response<DirectionsResponse> response) {
                            try {
                                directionsRoute = response.body().routes().get(0);

                                LatLngBounds latLngBounds = new LatLngBounds.Builder()
                                        .include(new LatLng(origin.latitude(), origin.longitude()))
                                        .include(new LatLng(destination.latitude(), destination.longitude()))
                                        .build();
                                mapboxMap.easeCamera(CameraUpdateFactory.newLatLngBounds(latLngBounds, 200), 5000);

                                if (directionsRoute != null) {
                                    /*ToastCompat.makeText(MainActivity.this, "hello", Toast.LENGTH_SHORT)
                                            .setBadTokenListener(toast -> {
                                                Timber.d("Bad Token");
                                            }).show();*/

                                    if (navigationMapRoute != null) {
                                        navigationMapRoute.removeRoute();
                                    } else {
                                        navigationMapRoute = new NavigationMapRoute(null, mapView, mapboxMap);
                                    }
                                    navigationMapRoute.addRoute(directionsRoute);
                                    findViewById(R.id.fab).setVisibility(View.VISIBLE);
                                }
                            } catch (Exception e) {
                                e.printStackTrace();
                            }
                        }

                        @Override
                        public void onFailure(Call<DirectionsResponse> call, Throwable t) {
                        }
                    });

        });

        findViewById(R.id.fab).setOnClickListener(view -> {
            NavigationLauncherOptions.Builder optionsBuilder = NavigationLauncherOptions.builder()
                    .shouldSimulateRoute(false)
                    .directionsProfile(DirectionsCriteria.PROFILE_DRIVING);

            optionsBuilder.directionsRoute(directionsRoute);

            NavigationLauncher.startNavigation(MainActivity.this, optionsBuilder.build());
        });
    }

    @Override
    public void onResume() {
        super.onResume();
        if (mapView != null) {
            mapView.onResume();
        }
    }

    @Override
    protected void onStart() {
        super.onStart();
        if (mapView != null) {
            mapView.onStart();
        }
    }

    @Override
    protected void onStop() {
        super.onStop();
        mapView.onStop();
    }

    @Override
    public void onPause() {
        super.onPause();
        mapView.onPause();
    }

    @Override
    public void onLowMemory() {
        super.onLowMemory();
        mapView.onLowMemory();
    }

    @Override
    protected void onDestroy() {
        super.onDestroy();
        mapView.onDestroy();
    }

    @Override
    protected void onSaveInstanceState(Bundle outState) {
        super.onSaveInstanceState(outState);
        mapView.onSaveInstanceState(outState);
    }
}

<?xml version="1.0" encoding="utf-8"?>
<android.support.constraint.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">

    <com.mapbox.mapboxsdk.maps.MapView
        android:id="@+id/mapView"
        android:layout_width="match_parent"
        android:layout_height="match_parent" />

    <RelativeLayout
        android:layout_width="match_parent"
        android:layout_height="match_parent">

        <android.support.design.widget.FloatingActionButton
            android:id="@+id/fab"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_alignParentEnd="true"
            android:layout_alignParentBottom="true"
            android:layout_gravity="bottom|end"
            android:baselineAlignBottom="true"
            android:visibility="gone"
            app:srcCompat="@drawable/ic_circle" />
    </RelativeLayout>

</android.support.constraint.ConstraintLayout>

1. Start mapbox navigation ui

Expected behavior

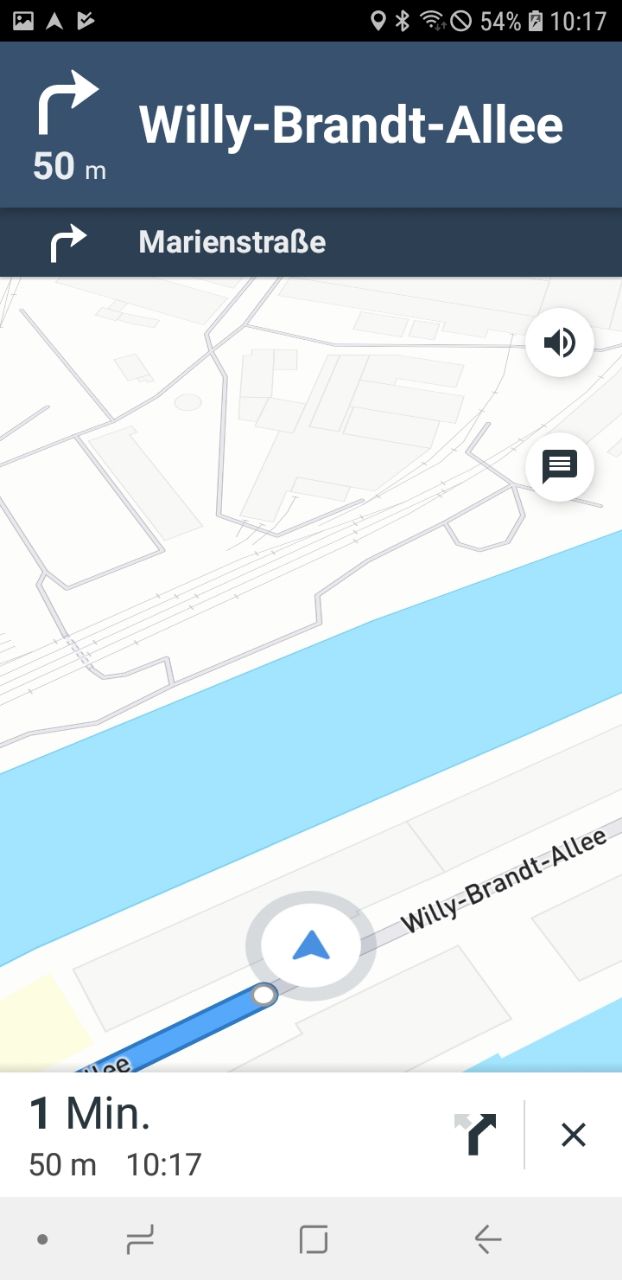

Correct footer informations (duration, distance, arrival), like in v0.19.0:

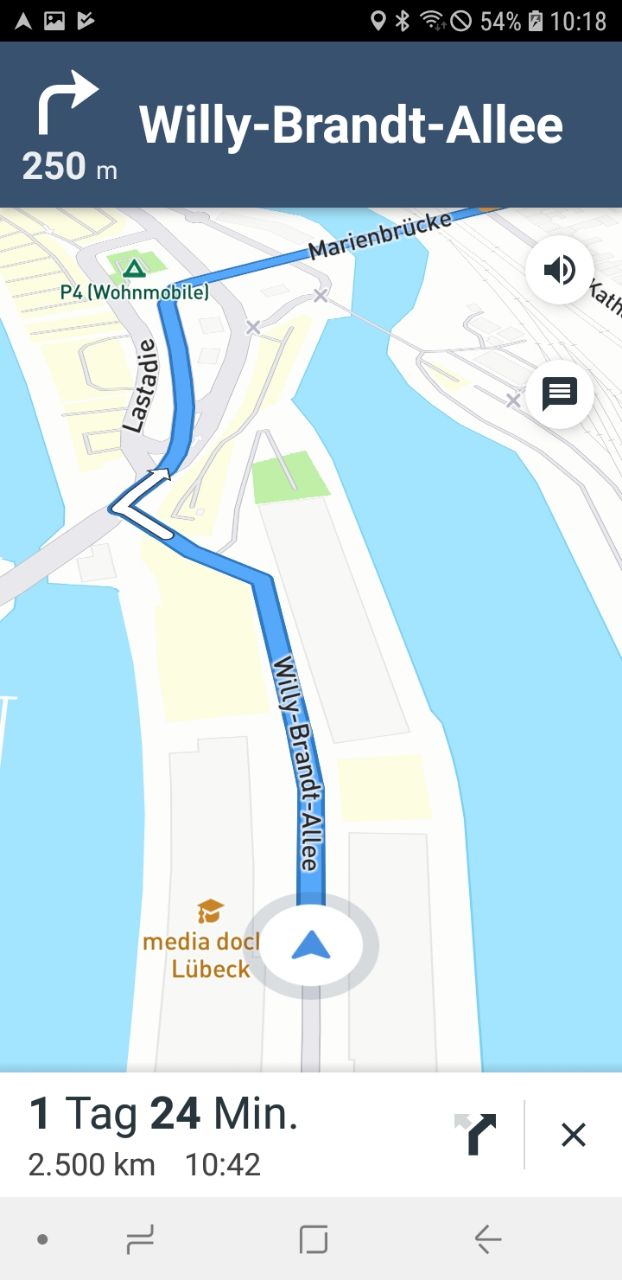

Actual behavior

[Guardiola31337]

Hey @P-Zenker 👋 Thanks for reaching out and report your issue.

This is the same issue as https://github.com/mapbox/mapbox-navigation-android/issues/1404

FYI #1437 landed fixing OP and it'll be available in the next release 0.22.0 🎉

In the meantime, you can test using the SNAPSHOT. Following you can find installation instructions for SNAPSHOTs:

repositories {
    jcenter()
    maven { url 'https://mapbox.bintray.com/mapbox' }
    maven { url "http://oss.sonatype.org/content/repositories/snapshots/" }
    // ...
}

dependencies {
    // ...
    implementation 'com.mapbox.mapboxsdk:mapbox-android-navigation:0.22.0-SNAPSHOT'
    implementation 'com.mapbox.mapboxsdk:mapbox-android-navigation-ui:0.22.0-SNAPSHOT'
    // ...
}

Thanks a lot!

Closing as it'll be fixed in the next release.

[Guardiola31337]

Hey @P-Zenker 👋 friendly reminder that 0.22.0 version of the SDK was released yesterday 🎉

Thanks for bringing this to us!
