Lottie-web: [QUESTION] How is gradient fill stored in lottie format?

[AnishGG]

After effects -
[A] First color stop location - 10%
[B] First color value - #FF0000
[C] Color mid point location - 47%
[D] Second color stop location - 100%
[E] Second color value - #00FF00
[F] First opacity location - 0% (value - 100%)
[G] Opacity mid point location - 53%
[H] Second opacity location - 100% (value - 100%)

Lottie file -
"g":{"p":3,"k":{"a":0,"k":[0.1,1,0,0,0.523,0.5,0.5,0,1,0,1,0],"ix":9}}

Can anyone clarify how is "k" calculated here. ^__^
I tried searching the documentation, but could not find anything.

My guess:
[{0.1 - A}, {1, 0, 0 - B}, {0.523 - somehow calculated from C}, {0.5, 0.5 - no idea}, {0, 1, 0 - E}, {1, 0 - no idea}]

This will be so much helpful in #1785
@bodymovin would you be able to help here?

[AnishGG]

gradient_fill.zip
I am attaching the used .zip file.

[saurabh-ramola]

@bodymovin can you please take a look at this? Any insight would greatly benefit us. :smiley:

[bodymovin]

Hi.
"p" is the number of "Stops" the gradient has. In this case 3.
Each point has 4 values (color stop location,red,green,blue)
Since you have only 12 elements in the array, it means it has no opacity information, meaning it is all opaque.
If you had opacity information, instead of 12 elements, you would see 18 (12 + 6).
The last 6 relate to the opacity stops that just needs a pair per point (opacity stop location, alpha)

The k value, is the number of keyframes. In your case, the gradient is not animated.
If you add keyframes to the property, you would see that "k" changes it's shape.
Let me know if you need more clarification.

[AnishGG]

Thanks a lot for clarifying this!
I am keeping this issue open until the implementation of this layer in Synfig.

Let me know if you need more clarification.

Sure!

[saurabh-ramola]

@bodymovin
I am almost done with the implementation of gradient layer export from Synfig to Lottie. One problem that I am facing is when I add opacity information to some files, the file is not rendered. But the same file without the opacity information works fine.

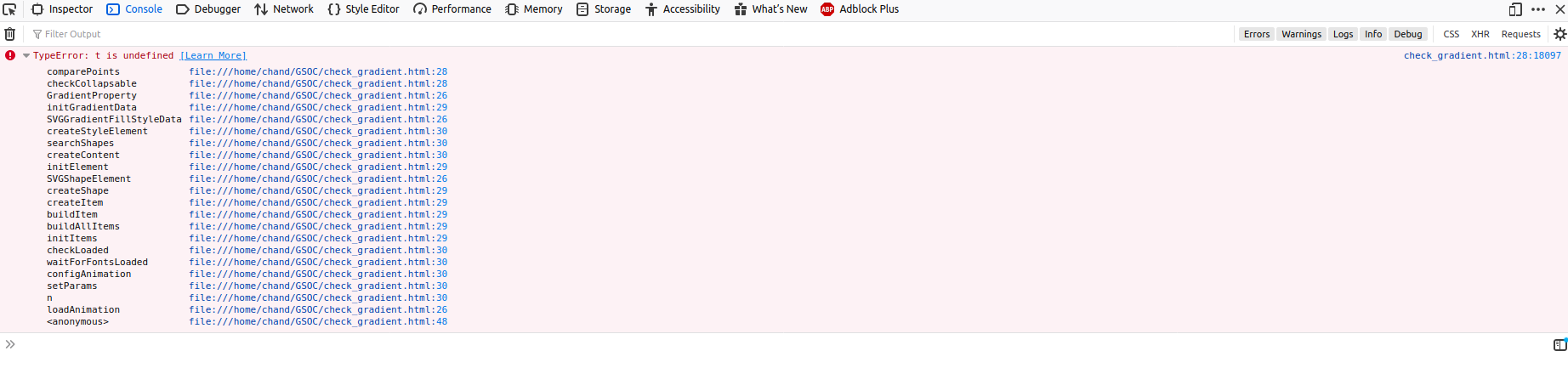

I am attaching the error here:

The json file used is this: https://gist.github.com/saurabh-ramola/353c184aa7941567be4a8d8687ab3d9e
And the comparison of the file after removing the opacity information is this: https://gist.github.com/saurabh-ramola/353c184aa7941567be4a8d8687ab3d9e/revisions

Can you confirm if this is a bug in Lottie rendering. ^__^
Thanks in advance!

[AnishGG]

I investigated into the files provided by you and found that, after changing this line to 0.99, the lottie file starts rendering.
@bodymovin is there some issue with the 1 position in the opacity information?

[bodymovin]

It seems you are using an old version of the format.
the "e" property has been deprecated for a long time in favor of having a "s" value on every keyframe, including the last one.

[saurabh-ramola]

@bodymovin
Is the change only present in the gradient fill property or are there new changes in other layers as well?

[bodymovin]

It's a change on all types of properties
