Expo: [standalone] Landscape Orientation Hides Footer

[TristanGodal]

Hi. First, sorry for my english.

I got a big problem, when I’m using expo start for develop my application, my differents screens are responsive (Especially footer bar, content and header…) but when I build the App using expo build:android or expo build:ios, it’s keeping responsive but I think the App is setting fixed values. For example, if I rotate the screen from Portrait to Landscape, the footer is going to disappear and I can’t scroll the content like in the “debug” mode.

Changing orientation in debug mode :

DebugMode

Changing orientation after build :

ReleaseMode

Code of a screen :

`
import React from "react";
import { Text, View, StyleSheet, ScrollView, FlatList, Alert, TouchableHighlight, Image } from "react-native";
import { Container, Header, Title, Left, Icon, Right, Button, Body, Content, Card, CardItem, Footer, FooterTab, Badge } from "native-base";
import LoginScreen from "../LoginScreen/LoginScreen.js";

import {BackHandler} from 'react-native';

var ls = require('react-native-local-storage');

export default class FileScreen extends React.Component {
  constructor(props) {
    super(props);

    this.state = {
      userGroupId: null,
      loaded: false,
      badgeCommande: 0
    };
  }


  componentWillMount = async() => {

    await ls.get('userGroupID').then((grpid) => {this.setState({userGroupId: grpid})}).then(async() => {
                                                                 const response = await fetch('https://koustapp.com/apex/rest/mobile/notif_commande?groupid='.concat(this.state.userGroupId));
                                                                 const json = await response.json().then((data) => {
                                                                   ls.save('badgeCommande', data.items[0].value);
                                                                   console.log(data.items[0].value);
                                                                 });
                                                               }).then(async() => {
                                                                  await ls.get('badgeCommande').then((data) => {
                                                                                                      this.setState({loaded: true,
                                                                                                                     badgeCommande: data});
                                                                                                    });
                                                               })

   }

   handleBackPress = () => {
    this.props.navigation.goBack();
    return true;
  }


   componentDidMount() {
     this.backHandler = BackHandler.addEventListener('hardwareBackPress', this.handleBackPress);
   }

   componentWillUnmount() {
    this.backHandler.remove();
  }


  render() {
    if (this.state.loaded === 'false') {
      return (
        <View style={{flex: 1, flexDirection: 'row',alignItems: 'center', justifyContent: 'center'}}>
          <Image
            source={require("./../../assets/logo_login.png")}
            style={[
              {
                resizeMode: "contain",
                width: 350,
                height: 162
              }
            ]}
          />
      </View>
      );
    }  else {

      let footerBadgeCommande;

      if(this.state.badgeCommande != 0){

        footerBadgeCommande = <Button badge vertical onPress={() => this.props.navigation.navigate('Commandes')}>
          <Badge style={{ backgroundColor: '#ff9500' }}><Text style={{ color: 'white', fontSize: 10 }}>{this.state.badgeCommande}</Text></Badge>
          <Icon name="cart" style={styles.footerIcon}/>
          <Text style={styles.footerText}>Commandes</Text>
        </Button>;
      } else {
        footerBadgeCommande = <Button vertical onPress={() => this.props.navigation.navigate('Commandes')}>
          <Icon name="cart" style={styles.footerIcon}/>
          <Text style={styles.footerText}>Commandes</Text>
        </Button>;
      }

        return (
          <Container>
          <React.Fragment>
            <Header style={styles.header}>
              <Left>
                <Button
                  transparent
                  onPress={() => this.props.navigation.openDrawer()}>
                  <Icon name="menu" style={{color:'white'}}/>
                </Button>
              </Left>
              <Body>
                <View>
                  <Button
                    transparent onPress={() => this.props.navigation.navigate('Accueil')}>
                    <Image
                      style={{resizeMode: 'contain', height: 35, width: 74, alignSelf: 'center' }}
                      source={require('../../assets/logo_sidebar.png')}
                    />
                  </Button>
                </View>
              </Body>
              <Right>
                <Button
                  transparent onPress={() => this.props.navigation.navigate('Settings')}>
                  <Icon name="settings" style={{color:'white'}}/>
                </Button>
              </Right>
            </Header>
            <ScrollView>
            <View style={styles.scrollContainer}>
                  <View style={styles.orderView}>
                    <Icon name="paper" style={styles.titleIcon}/>
                    <Text style={{fontSize:20, marginTop:15, marginLeft:13}}>Mes Recettes</Text>
                  </View>
            </View>
              </ScrollView>
              <Footer>
                <FooterTab style={styles.footerContainer}>
                  <Button vertical onPress={() => this.props.navigation.navigate('Recettes')}>
                    <Icon name="paper" style={styles.footerIcon}/>
                    <Text style={styles.footerText}>Fiches Techniques</Text>
                  </Button>
                  {footerBadgeCommande}
                  <Button vertical>
                    <Icon name="apps" style={styles.footerIcon}/>
                    <Text style={styles.footerText}>Plus..</Text>
                  </Button>
                </FooterTab>
              </Footer>
            </React.Fragment>
          </Container>
        );
      }
  }
}

const styles = StyleSheet.create({
  container: {
    backgroundColor: '#f8f8f8',
    flex:1
  },
  orderView: {
   flex:1,
   height: 60,
   marginRight:30,
   marginLeft:30,
   margin: 5,
   marginTop:10,
   flexDirection: 'row',
   backgroundColor: 'white',
   borderBottomColor: 'black',
   borderBottomWidth: 1
 },
  header:{
    backgroundColor: '#2578cf',
  },
 footerText: {
   fontSize: 10,
   textAlign: 'center',
   color: 'white'
 },
 footerContainer:{
   backgroundColor: '#2578cf',
 },
 footerIcon: {
   color: 'white',
 },
 titleIcon: {
   color: '#ff9500',
   fontSize:30,
   marginTop:12
 }
});

`
Someone got an idea from where it could come from ? Thanks!

[cruzach]

Hey @TristanGodal - could you create a snack or share a repo that reproduces the issue? I know you shared the code of one of your screens, but it's much more effective to share an minimal example, so using as little code as possible to replicate the issue. Also, make sure to include your SDK version

[TristanGodal]

Hi. Thanks for answering. I tried but I can't reproduce it, because it's only after building the app that the problem occur, when i'm in developping mode, if I change the screen orientation, the footer is keeping fixed at bottom and the ScrollView is working fine. But when I build, if I change orientation, the footer disappear and I'm not able to scroll anymore..

[cruzach]

That's not a problem, a repro that I can test via testflight is good enough!

[TristanGodal]

Thanks. There is GitHub repo : https://github.com/TristanGodal/ExpoKoust/

You can connect in the app using false values, I make an if(1 === 1) to allow you connection.

[TristanGodal]

Up. Somebody got an idea ? Thanks.

[powerpovar]

I have the same problem.
Any updates?

[TristanGodal]

Always trying to find a solution.. Will update if I found one..

[TristanGodal]

[UPDATE] After building to iOS and run it with TestFlight, this error seems not happening. So, the error only occur with Android Device. (Test it on a Note 9 and Galaxy Tab 4).

EDIT : Like I can see, all is affected, not only the footer. If you rotate, then only visible content could be interacted with. Very strange.

[martin-ecatch]

I just raised an issue that may be related to this one. https://github.com/expo/expo/issues/5285 If it is the same thing, feel free to merge these two together. There's super simple code to reproduce the problem.

[TristanGodal]

Hi. That's clearly the same problem. I'm going to test today, give some news before 17pm.

[TristanGodal]

So, I make change and I tried to downgrade my project to SDK32. But, when I try to gradle assembleRelease my ejected app (ExpoKIt), it's not upgrading version, looks like gradle is building anterior version. I use gradle clean, expo publish before but it's not changing result. You think it come from the downgrade ?

I moved to 32.0.0 in app.json and there is my package.json :

{

  "main": "node_modules/expo/AppEntry.js",
  "scripts": {
    "start": "expo start",
    "android": "expo start --android",
    "ios": "expo start --ios",
    "web": "expo start --web",
    "eject": "expo eject"
  },
  "dependencies": {
    "@expo/vector-icons": "^10.0.3",
    "check-node-version": "^4.0.1",
    "expo": "^32.0.0",
    "expokit": "^33.0.4",
    "intl": "^1.2.5",
    "md5": "^2.2.1",
    "native-base": "^2.12.1",
    "react": "16.5.0",
    "react-dom": "^16.8.6",
    "react-native": "https://github.com/expo/react-native/archive/sdk-32.0.0.tar.gz",
    "react-native-elements": "^1.1.0",
    "react-native-local-storage": "^1.5.2",
    "react-native-modalbox": "^1.7.1",
    "react-native-picker-select": "^6.3.0",
    "react-native-unimodules": "^0.4.2",
    "react-native-vector-icons": "^6.6.0",
    "react-native-web": "^0.11.4",
    "react-native-woodpicker": "0.0.16",
    "react-navigation": "^3.0.9",
    "request": "^2.88.0"
  },
  "devDependencies": {
    "babel-preset-expo": "^5.1.1"
  },
  "private": true
}

And idea maybe ? Thanks.

expo diagnostics :

`  Expo CLI 3.0.9 environment info:
    System:
      OS: macOS 10.14.6
      Shell: 3.2.57 - /bin/bash
    Binaries:
      Node: 12.7.0 - /usr/local/bin/node
      npm: 6.10.3 - /usr/local/bin/npm
    IDEs:
      Android Studio: 3.4 AI-183.6156.11.34.5692245
      Xcode: 10.3/10G8 - /usr/bin/xcodebuild
    npmPackages:
      expo: ^32.0.0 => 32.0.6
      react: 16.5.0 => 16.5.0
      react-native: https://github.com/expo/react-native/archive/sdk-32.0.0.tar.gz => 0.57.1
      react-navigation: ^3.0.9 => 3.11.1
    npmGlobalPackages:
      expo-cli: 3.0.9`

[martin-ecatch]

Is there a workaround for this? I tried a few things but no luck. This is a real issue, it is not possible to make an android app for both orientations. SDK32 is not an option, because that doesn't support 64bit.

[TristanGodal]

Ah ok, you answer my question cause my smartphone use 64bits. Yes so that's a big problem, maybe expo could patch it ? Waiting for some news, thanks.

[martin-ecatch]

Hi @cruzach , I see that you have put this issue in SDK 35. Do you have any info on when SDK35 could be available? (weeks? months?) Would it be possible to fix it on SDK34 as a patch update? Is there anything I can do to help? I suspect it might be just a matter of tweaking the "shell app"... or am completely off course? Sorry for so many questions, this is a blocking issue for us and I'm desperate to work out a solution.

[cruzach]

SDK 35 will be released in September, so we're looking at a couple weeks out

Would it be possible to fix it on SDK34 as a patch update?

Afaik, this is possible, and in regards to what you can do -> finding the root cause of the issue is a huge help in getting issues resolved. (No worries about asking questions, that's what this thread is for! So sorry this is a blocking issue for you 🙁 )

[TristanGodal]

That's a really weird problem. Looks like when you build the app, there's something that cares about layout is different from the development server, incompatible with native code of an Android Device, don't think that it could come from a sort of Authorization to re-layout the screen of an Android Device but maybe there is a deprecated function that it used ?

[martin-ecatch]

I've been trying to figure out where the main layout comes from... I thought it would be in host.exp.exponent.MainActivity, but it must be buried somewhere in expo itself. Or even inside RN. But it works fine in Expo app, so I suspect the problem is in the "shell app", not RN.

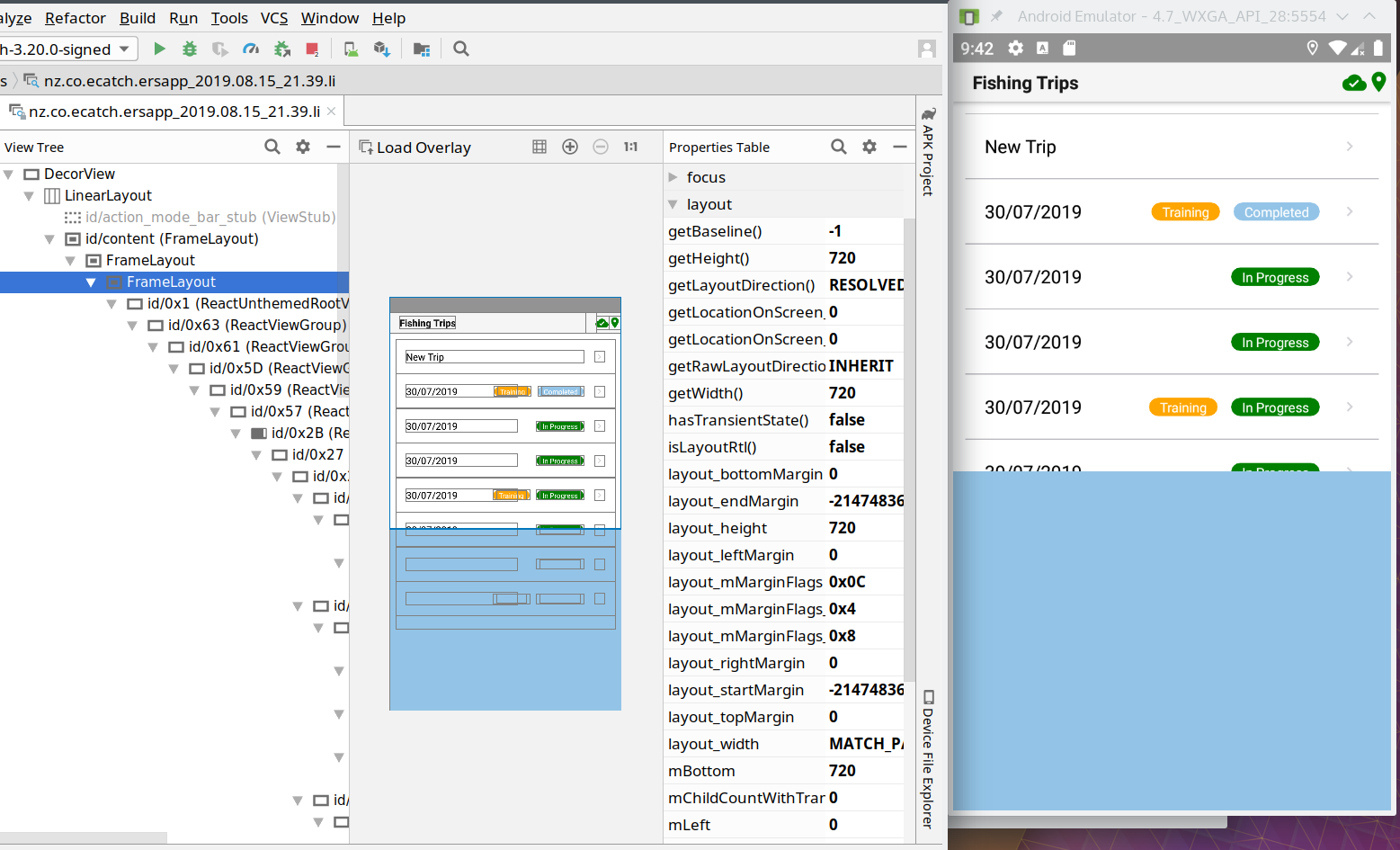

I'm attaching a screenshot of Layout Inspector. The app was started in landscape and then rotated to portrait (see it's using only half of the screen now).
The view that has incorrect dimensions is the one highlighted (the second FrameLayout, height 720 instead of 1280). The first FrameLayout is correct.

Can anybody point me to the code that is responsible for the offending FrameLayout? I'm hoping once that's located, it could be an easy fix (fingers crossed).

[TristanGodal]

Don't know if I'm going to tell something that is relevant but, when I use a full android project, to define a responsive height, i'm using RelativeLayout and by this way, I use something like this inside :

android:layout_width="fill_parent"
android:layout_height="wrap_content"

On yout screen, layout_width seems to be MATCH_PARENT, that's sounds like okay but, height is defined by an integer, maybe the problem could come from there ? Maybe no responsive function is used to define the height of the layout.
Really not sure.

[martin-ecatch]

Ok I might have a lead... ReactNativeActivity.java on line 252: layoutParams.height = mLayout.getHeight();
It sets the height of the container view when the splash screen is done. I suspect that the height then stays the same forever.
Could that be the problem? Also it seems like the container view doesn't have any layout attributes defined (Can't see anything relevant in Layouts.
I would like to confirm that, but I'm struggling to get a working setup to debug expo-based native app. Can anybody with more experience in Android native development help with this? I feel like I'm getting close, but not quite able to fix it by myself.

[martin-ecatch]

@cruzach I believe I have found and confirmed the root cause of the problem! It is in fact the line 252 in ReactNativeActivity.java (see my previous comment).
The whole block is only executed if SHOW_LOADING_VIEW_IN_SHELL_APP == true, so I changed that in my AppConstants to false (after ejecting to ExpoKit). Splash screen doesn't display (as expected), and the app is perfectly responsive to orientation changes. This would be a good workaround, but I'd like to avoid ejecting if the fix is not too far away. Is there a way to change this constant in Expo-built app? I'm happy to sacrifice splash screen over responsiveness, but I don't see a way to change this constant.
Should I attempt to fix it myself and provide a PR or is it better for somebody who knows the code to fix it? I'm worried that I'd cause unintended side effects if I hack it myself... also I can't find any instructions on how to setup environment for developing expo itself.

[cruzach]

Hey @martin-ecatch, there's no way to change that value in a managed Expo project (no access to native files in that workflow)

However, you should be able to provide a PR. We have a guide for getting your station up and running in the readme. Once you get the Android client running and make your changes to the native files, you can build a standalone app (directions also in the readme).

What makes you say you're happy to sacrifice splash screen over responsiveness? I don't think I'm clear on what the sacrifice is here, sorry 😅

[martin-ecatch]

Thanks, I'll have a crack at it.
What I don't see in the readme is how do I use my modified version of expo (not the expo client) and then use it to build my app. It just uses a specific version of expo that is downloaded by gradle/maven.
The "splash screen over responsiveness" - I was referring to a possible temporary workaround: if you disable splash screen, you get orientation change working. One or the other.

[martin-ecatch]

Yeah so I'm stuck. I installed all the required stuff and can build the Expo Client. But what I need is change expo code (in the expoview module) and build a separate standalone app using that code. How do I do that?

[martin-ecatch]

I don't think I'll be able to provide a PR without being able to run the code. I know how to fix it, but no luck building the modules and including them in my project. Is anybody able to help? Or pass this to somebody who can easily fix that? @cruzach ?

So how to fix it? Use setAlpha instead of changing height of the mContainer view to hide/show it for the splash screen.
It's just two changes in ReactNativeActivity.java:
Lines 167-169 change

      ViewGroup.LayoutParams layoutParams = mContainer.getLayoutParams();
      layoutParams.height = 0;
      mContainer.setLayoutParams(layoutParams);

to

      mContainer.setAlpha(0.0f);

And lines 251-253:

      ViewGroup.LayoutParams layoutParams = mContainer.getLayoutParams();
      layoutParams.height = mLayout.getHeight();
      mContainer.setLayoutParams(layoutParams);

to

      mContainer.setAlpha(1.0f);

This should do it. But as mentioned before, I'm not able to run it :-(.

[ide]

There isn't really a good way to test this right now outside of the Expo client. We'll need to extract ScreenOrientation from the expo package, which is on our 2019 roadmap.

Additionally we are planning some changes around how "safe areas" are handled, which includes the notch and also status bar. We'll have to see how all these interact with each other and with different OS versions.

[martin-ecatch]

Thanks for getting back to me @ide . Yeah I was worried that it might be quite tricky to test this :-(.
I understand that you want to fix this while dealing with ScreenOrientation module, that makes sense. However, this doesn't actually seem to be a problem with the ScreenOrientation module, rather with the way the splash screen is handled. Not sure if that's of any help.
For everybody who has this issue - the current workaround is eject to ExpoKit and set SHOW_LOADING_VIEW_IN_SHELL_APP = false in the constants. It means splash screen is off, but at least the app itself can function properly.
I'm surprised that nobody else is reporting this issue, maybe nobody noticed yet? I guess this bug was introduced just recently in SDK33. I find it quite serious to not have the ability to handle screen orientation on any android phone/tablet.
Anyway, thanks for trying, hopefully it'll be fixed at some stage soon.
I still like Expo! It makes my life so much easier :-).

[ide]

Ah, I see. @sjchmiela - looking at the Git history, you might be the most familiar with this code (although perhaps not that familiar). Do you think you could look into this or assign it to someone who'd be good at fixing this?

[JoynerPerez1987]

I have the same problem, I think I'll wait for it to be fixed in the next updates

[acsel1985]

I have the same problem too.

[SaravanakumarSubramanian]

@ide Any update about this issue

[ide]

@SaravanakumarSubramanian no updates, if there is one we will post it here.

[martin-ecatch]

I just noticed that SDK35 has been released... presumably this is not going to be fixed in SDK35 then? Is the plan to do it in SDK36?
@WoLewicki were any of my findings in previous comments useful?

[ide]

This is not on our roadmap but we are open to a PR if it identifies and addresses the root cause. We can't take PRs that cover up over issues, but fundamentally correct fixes are welcomed.

[martin-ecatch]

!!! OMG A SOLUTION !!!
How: in app.json change android->splash->resizeMode to "native" (instead of the default "contain).
What... why?: this option appeared in SDK34 and uses different way of displaying the splash screen, thus avoiding this whole issue.
Conclusion/suggestion: I suggest removing the default value of "contain" for resizeMode, because it doesn't do anything useful/different compared to "native". Also "contain" introduces this bug.

Yeah, expo apps are responsive again! :-)

[JoynerPerez1987]

you are a genius, 2 months I had that problem, I congratulate you and I thank you for finding the solution

[anniekvandijk]

@martin-ecatch Thanks for the workarround! This saves my app which was useless on Android.

[danhixon]

@martin-ecatch Thank you for posting this solution!!!

[SaravanakumarSubramanian]

@martin-ecatch I tried the workaround you provided I am not able to build my project now,expo throws error

Error: Problem validating fields in app.json. See https://docs.expo.io/versions/v34.0.0/workflow/configuration/
• Field: splash.resizeMode - should be equal to one of the allowed values.
Couldn't publish because errors were found. (See logs above.) Please fix the errors and try again

app.json

 "platforms": [
      "ios",
      "android"
    ],
    "version": "1.1.6",
    "orientation": "portrait",
    "icon": "./assets/images/app_logo.png",
    "notification": {
      "icon": "./assets/images/logo.png",
      "androidMode": "default",
      "color": "#FFF"
    },
    "splash": {
      "image": "./assets/images/splash.png",
      "resizeMode": "native",
      "backgroundColor": "#ffffff"
    },

Does this require to perform eject to expokit ???

[aav7fl]

@SaravanakumarSubramanian

You still need to have a base config for splash.resizeMode.

Example:

{
  "expo": {
    ...
    "splash": {
      "image": "./assets/example.png",
      "backgroundColor": "#ffffff",
      "resizeMode": "cover"
    },
    "android": {
      ...
      "splash": {
        "mdpi": "./assets/example.png",
        "backgroundColor": "#ffffff",
        "resizeMode": "native"
      }
    },
}

[SaravanakumarSubramanian]

@aav7fl thank you, this worked for me

[pwlmaciejewski]

@martin-ecatch Thanks, it worked for me as well

For ExpoKit users:

1) Change SHOW_LOADING_VIEW_IN_SHELL_APP to false in AppConstants.java
2) Add <bitmap /> item to app/src/main/res/drawable/splash_background.xml:

<?xml version="1.0" encoding="utf-8"?>
<layer-list xmlns:android="http://schemas.android.com/apk/res/android">

    <item android:drawable="@color/splashBackground"/>

    <item><bitmap android:gravity="center" android:src="@drawable/shell_launch_background_image" /></item>

</layer-list>

3) In case where the splash screen is cropped (or looks weird otherwise): make sure you have correct shell_launch_background_image.png generated in the right res folder (in my case in app/src/main/res/drawable-xxxhdpi)

[cyrieu]

Thanks so much for the solution!

[javigodoy]

Thanks to all!!!

[Mirkesx]

thanks very much for the solution... saved me a lot of time to figure it out :+1:

[IjzerenHein]

@TristanGodal Is this still an issue for you, or can we close this?

[TristanGodal]

Sorry,

I forgot to answer after this, that's resolve !

Thanks to all.

[lucianoacsilva]

@TristanGodal , did you solved your problem with the landscape orientation? Did not find any solution yet in this issue.

[TristanGodal]

@TristanGodal , did you solved your problem with the landscape orientation? Did not find any solution yet in this issue.

@martin-ecatch Thanks, it worked for me as well

For ExpoKit users:

1. Change SHOW_LOADING_VIEW_IN_SHELL_APP to false in AppConstants.java
2. Add <bitmap /> item to app/src/main/res/drawable/splash_background.xml:

<?xml version="1.0" encoding="utf-8"?>
<layer-list xmlns:android="http://schemas.android.com/apk/res/android">

    <item android:drawable="@color/splashBackground"/>

    <item><bitmap android:gravity="center" android:src="@drawable/shell_launch_background_image" /></item>

</layer-list>

1. In case where the splash screen is cropped (or looks weird otherwise): make sure you have correct shell_launch_background_image.png generated in the right res folder (in my case in app/src/main/res/drawable-xxxhdpi)

This one actually works for me.

[lucianoacsilva]

Understood, @TristanGodal . Where in the expo project can I find the file AppConstants.java?

[TristanGodal]

Understood, @TristanGodal . Where in the expo project can I find the file AppConstants.java?

You can find it there :

android/app/src/main/java/host/exp/exponent/generated

[lucianoacsilva]

I cannot find the android folder, @TristanGodal . Do I have to eject the project with expo eject first?

[TristanGodal]

My project was ejected yes.

This solution seems to be the good one for non ejected projects :

!!! OMG A SOLUTION !!!
How: in app.json change android->splash->resizeMode to "native" (instead of the default "contain).
What... why?: this option appeared in SDK34 and uses different way of displaying the splash screen, thus avoiding this whole issue.
Conclusion/suggestion: I suggest removing the default value of "contain" for resizeMode, because it doesn't do anything useful/different compared to "native". Also "contain" introduces this bug.

Yeah, expo apps are responsive again! :-)

[lucianoacsilva]

I see. But is this solution only for the splash screen? Or for any screen of the app? @martin-ecatch @TristanGodal

[TristanGodal]

Did you tried it ?

[lucianoacsilva]

Yes, it only changes the splash screen. I was trying to rotate not the splash screen, but another one (one which I use expo-camera to take photos).

[lucianoacsilva]

It only interfeers on the splash screen.

[martin-ecatch]

@lucianoacsilva The splash screen (the hiding of it) is what is causing the issue for the rest of the app. It is solved using the workarounds mentioned above. If you're just trying to set orientation for the whole app, that's a different setting and probably a different problem.

[JoseTeque]

Hi, I am presenting the same problems, I have made the configurations in the app.json placing the splash: "native", in the same way it continues to have the same problem

[brentvatne]

please post a new issue and fill out the template if you believe you are encountering this, thanks!
