Enterprise: Contextual Action Panel: Close button

Created on 24 Sep 2019 · 12Comments · Source: infor-design/enterprise

Describe the bug
A close button is added to the contextual action panel when showCloseButton is set. But the close button is added to the modal header and not the button set of the toolbar as in the demo used to test for issue #1943.
The close button actually wraps around and appears below the header. Also, the text 'Close' is partially visible.

To Reproduce
Steps to reproduce the behavior:
In any contextual action panel sample,
(1) set showCloseButton to true
(2) add four buttons so an overflow button is displayed in the toolbar
(3) Bring up the contextual action panel

Expected behavior
The close button is on the top right corner of the contextual action panel. It is just an icon button with no text.

Version

ids-enterprise: v4.22.0-dev

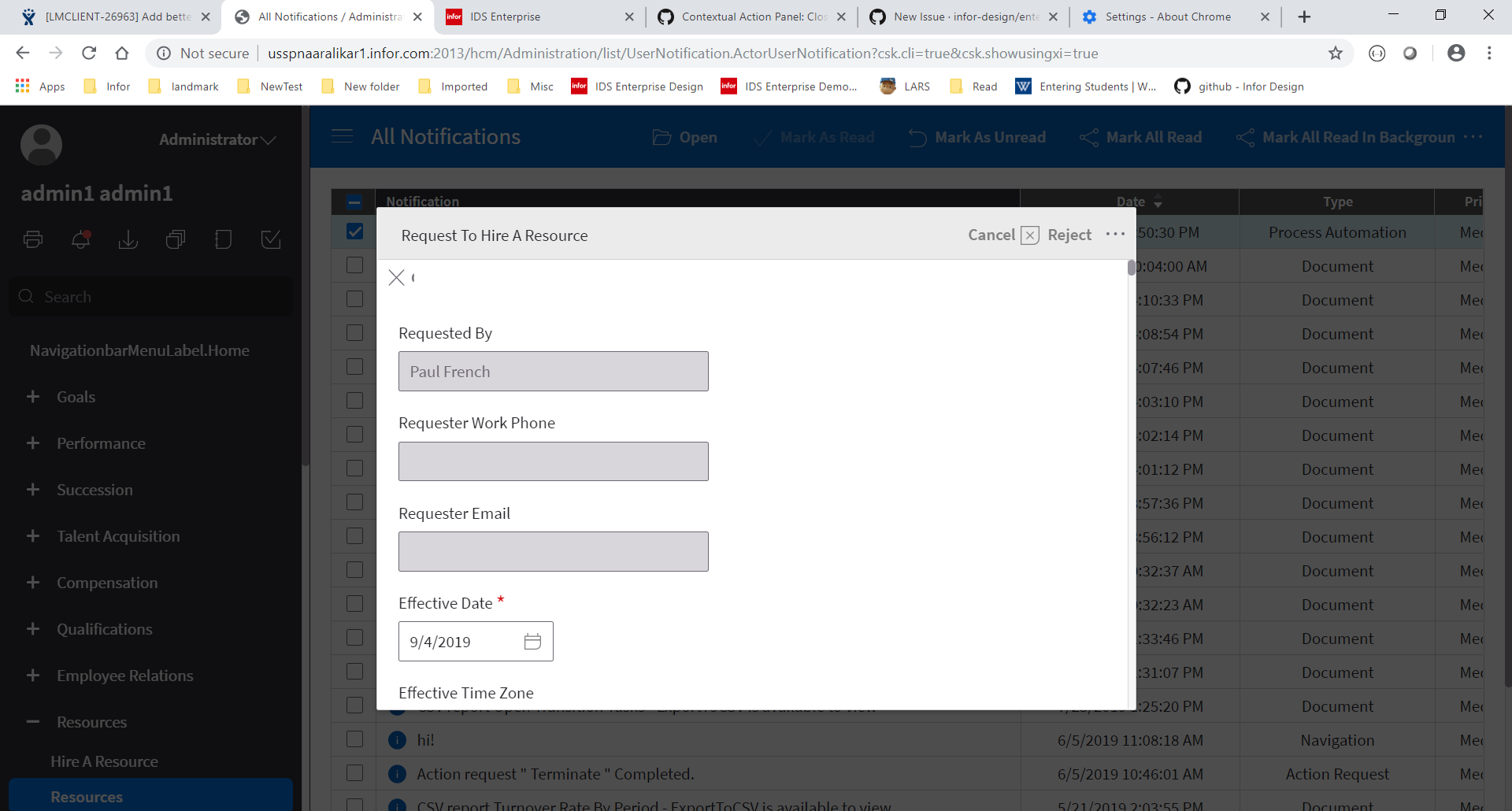

Screenshots
If applicable, add screenshots to help explain your problem.

Platform

OS Version: Windows 10
Browser Name Chrome
Browser Version Version 77.0.3865.90

Additional context
Add any other context about the problem here.

[3] landmark type

Source

aaralikar

All 12 comments

aaralikar on 24 Sep 2019

When @aaralikar and I were looking at this, we noticed that 'Close' was hard coded, instead of translated.

Sovia on 24 Sep 2019

👍1

@Sovia @aaralikar just making a note here that PR #2984 should address this. I had read the history on this a bit and noticed this comment in the original ticket #1943:

Expected behavior
The close button is on the top right. And the toolbar overflow button is to its left.

Just noting that the fact that the close button is not sitting to the right of the more button is due to the limitations of how the original standard Toolbar was built. We addressed this alignment issue with Flex Toolbar, which is fully implemented in the Contextual Action Panels, and allows separate toolbar section(s) to the right of the more menu. If you need to display the close button outside the overflow menu, I recommend switching to Flex Toolbar. PR #2984 has a couple tests demonstrating how it can be implemented.

EdwardCoyle on 15 Oct 2019

Test FAILED

Chrome, Safari, EDGE, Firefox

test-close-button-flex : responsive view 320x 568, 375 x 667
test-close-button-flex-from-settings : responsive view 320x 568, 375 x 667

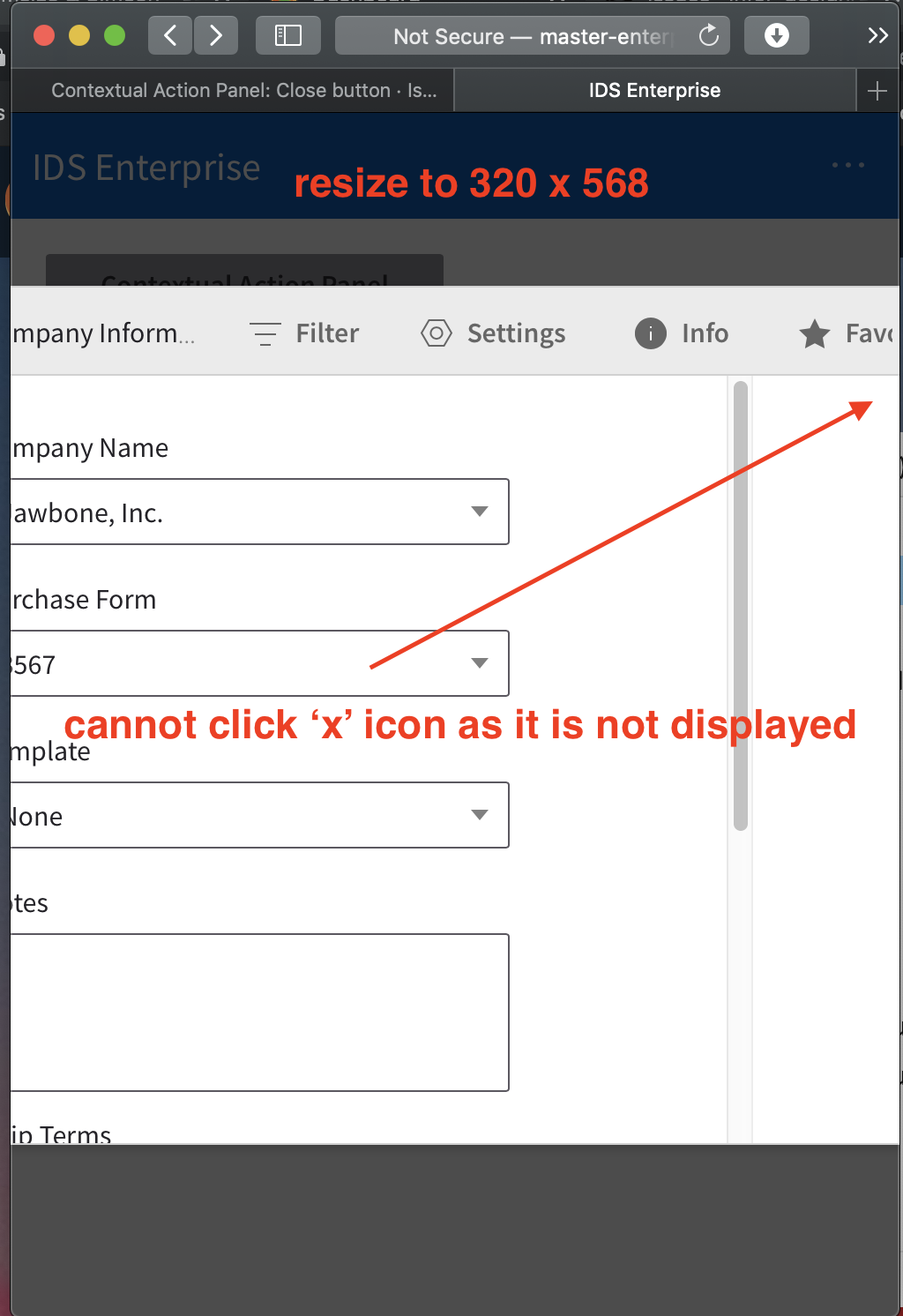

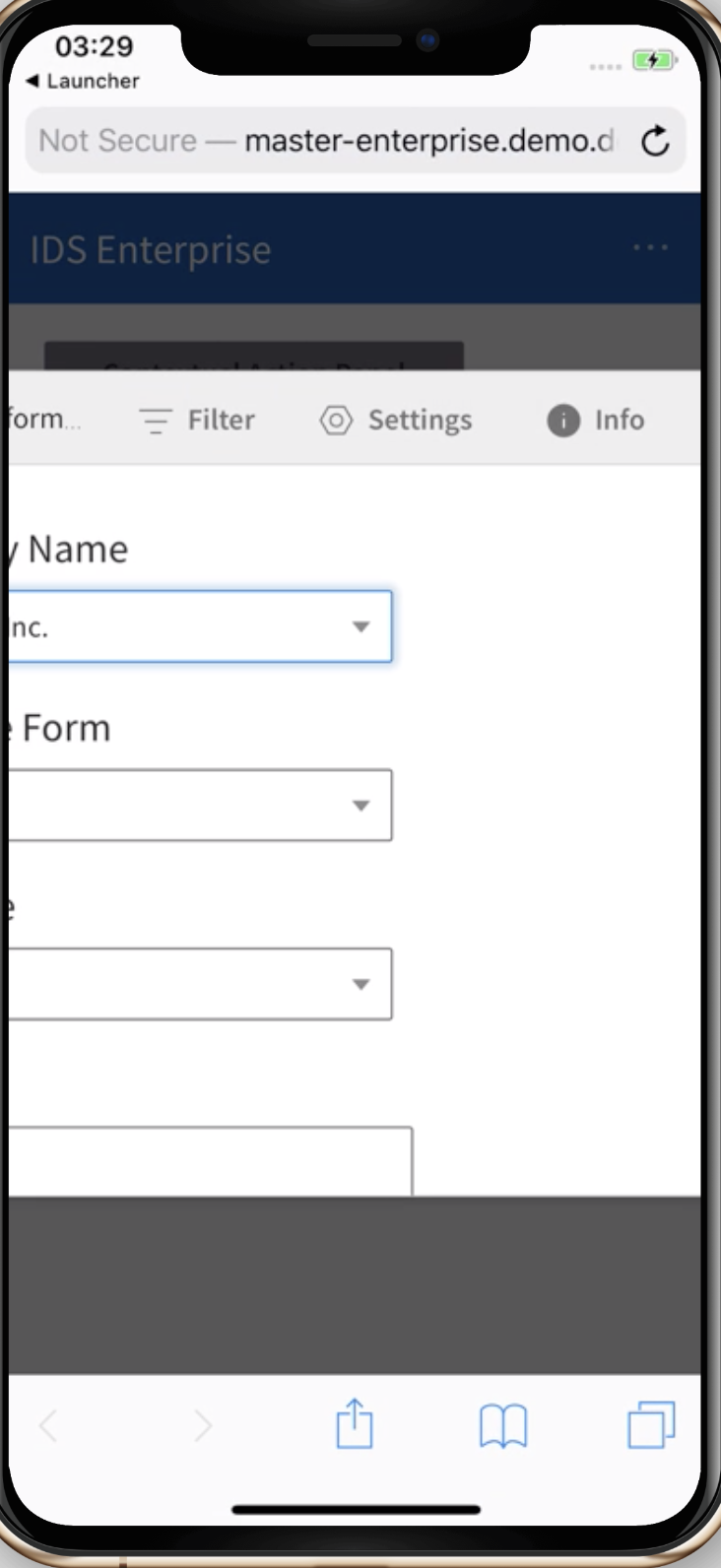

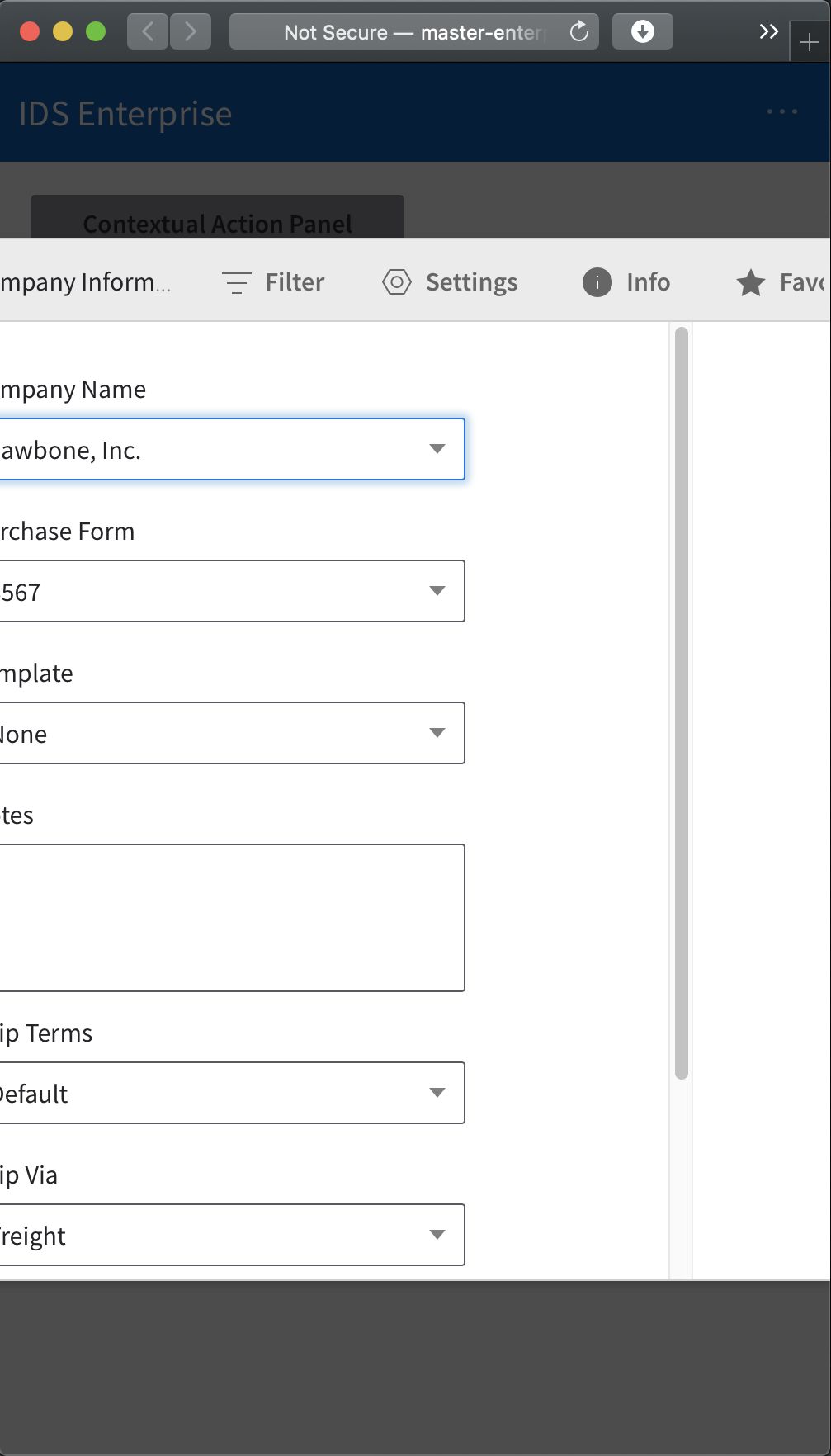

see screenshot below for reference

Other Context:
IE11 works perfectly fine

Also,

Modals should also be tested for accuracy:
modal/example-close-btn: the tooltip for close button/icon kind of like stays for almost to 1sec after clicking the ‘X’ icon

jbrcna on 23 Oct 2019

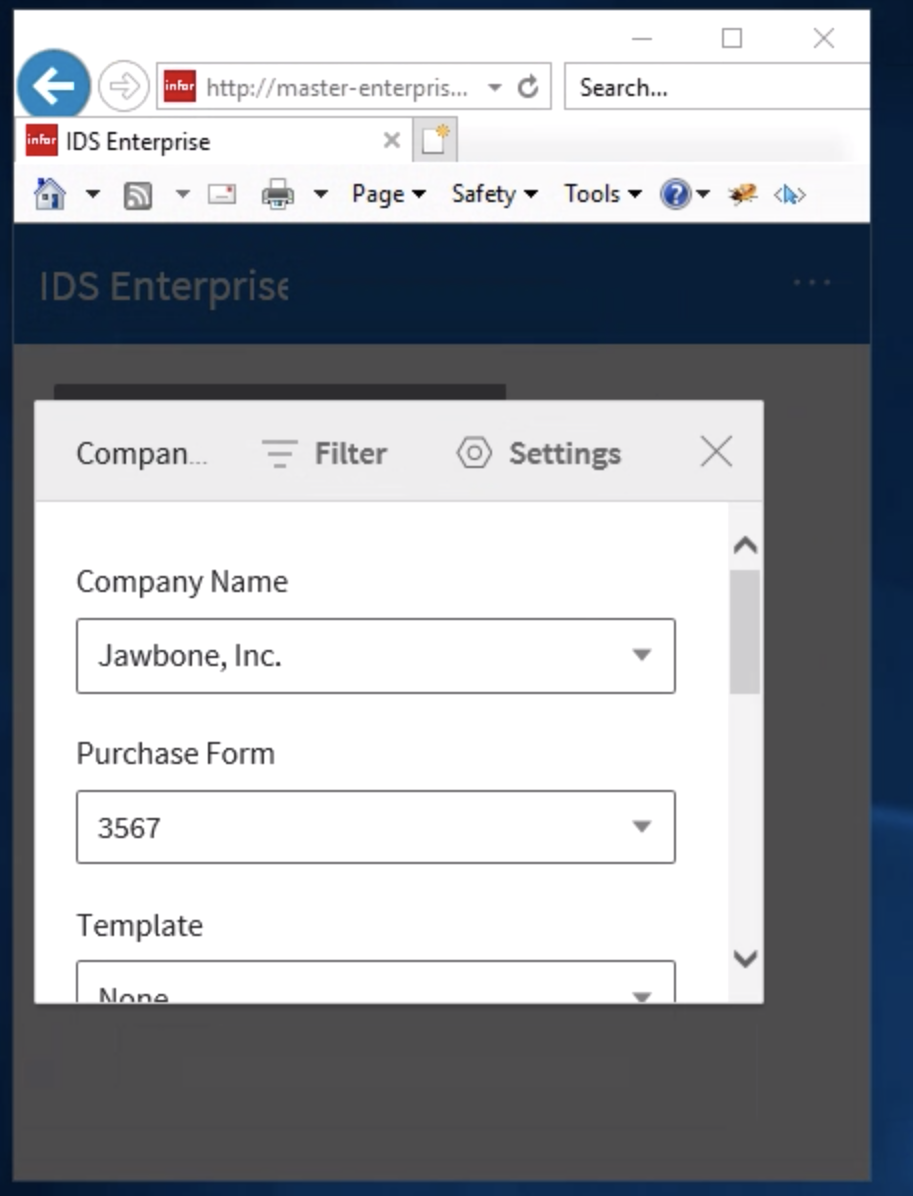

Here's a screenshot for IE11

jbrcna on 23 Oct 2019

@jbrcna Can you clarify the problem and steps to reproduce? The screen shots seem ok except maybe the misplaced scrollbar? Also the tooltip not closing is a non issue. So im not sure what the fail is here 100%

tmcconechy on 23 Oct 2019

I added a min-width on the CAPs in the new samples to address Eric's comment. I didn't make them responsive though, I think that's the complaint.

EdwardCoyle on 23 Oct 2019

OK im thinking we definitely punt on this then?

tmcconechy on 23 Oct 2019

It's a quick fix I could make during the beta. We can toss it into Q/A fixes for 4.23.0-beta/rc/etc

EdwardCoyle on 23 Oct 2019

👍1

@tmcconechy the second screenshot (which is IE11) works fine and that should be the expected result. whereas in the first screenshot, the 'X' icon is not appearing thus, you cannot close the contextual action panel.

Steps to replicate:
