Dxvk: Flower broken graphics

[mozo78]

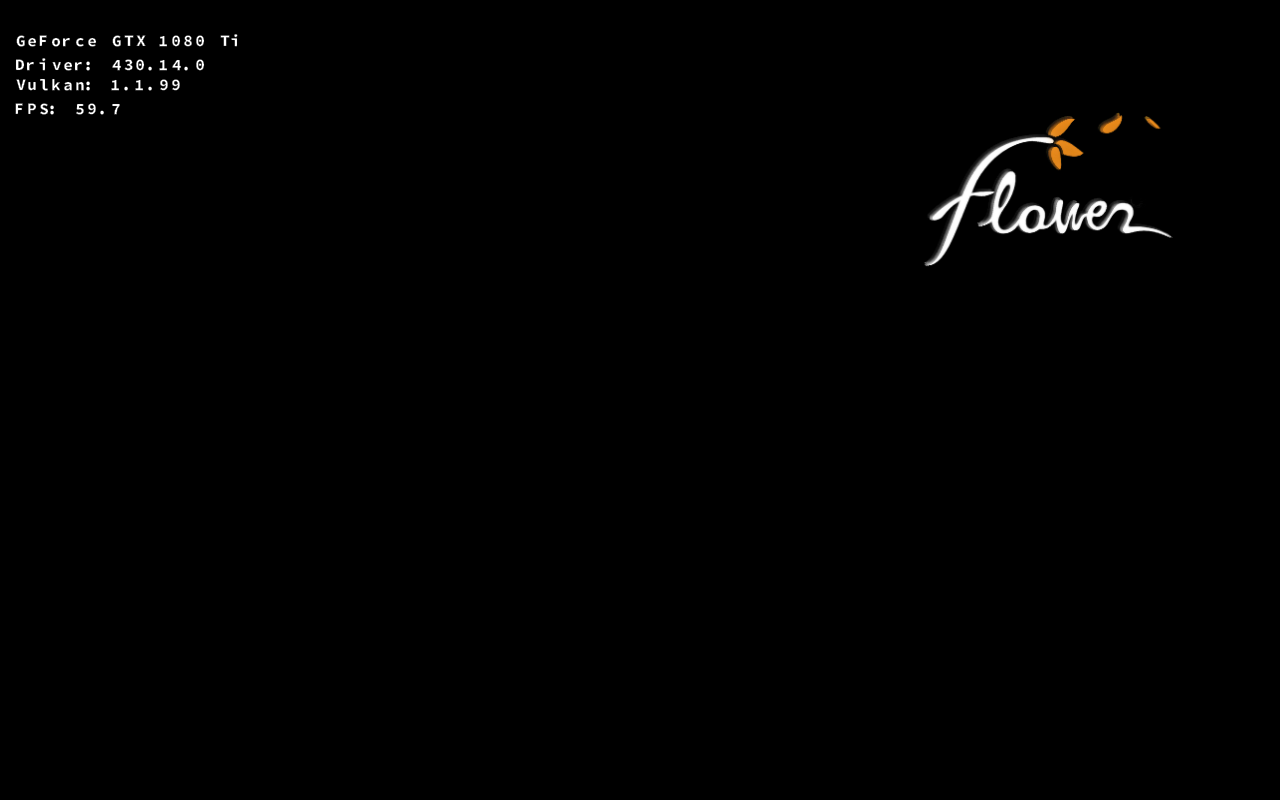

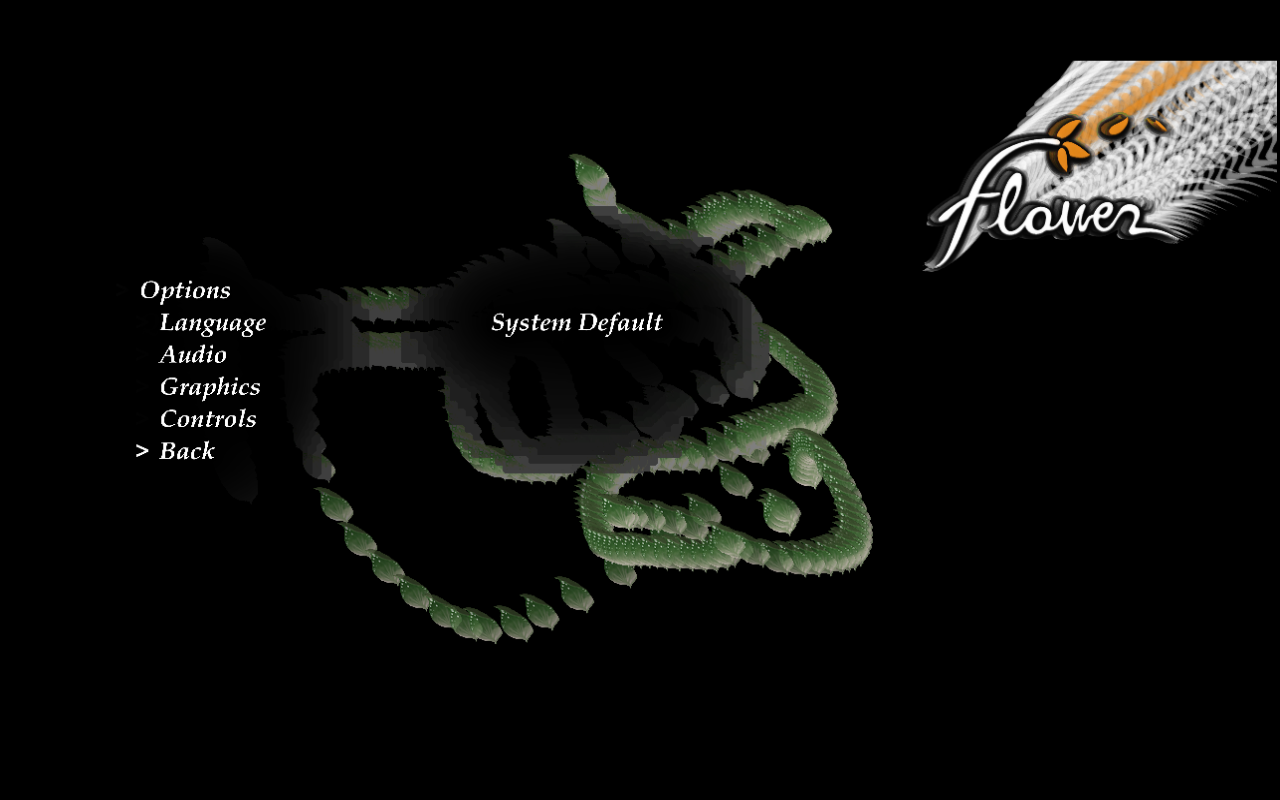

The game starts but the graphics are broken. The developer's logos at the start are displayed correctly. I can't get apitrace for the game starts only with DXVK. The trails on the screenshot are from the moving mouse cursor. There arent any other images. I saw the main menu on YouTube and there are window and a flower in a flowerpot.

Software information

Flower.exe

System information

• GPU: GTX 1080Ti
• Driver: 430.14
• Wine version: 4.8
• DXVK version: master

Apitrace file(s)

• Put a link here

Log files

• d3d11.log:
  https://pastebin.com/0JZju2sk
• dxgi.log:
  https://pastebin.com/MWvMhKwB
• Wine.log
  wine.log.zip

[doitsujin]

Can't debug without an apitrace. If it only starts with DXVK then use DXVK to record the trace, it's better than nothing.

[mozo78]

Yes I know but I can't get it :(
Ok I'll try with DXVK.

[mozo78]

Here you are:
https://my.pcloud.com/publink/show?code=XZg62I7ZiqDsF1ubNLJ6qDgTuKLIH7dHbqmy

[doitsujin]

Thanks; unfortunately that trace isn't very useful since it shows garbled graphics on Windows as well. :(

[mozo78]

I hope someone get an apitrace on Windows :)

[doitsujin]

Can you try winetricks d3dcompiler_47 and winetricks d3dcompiler_43 and see if that fixes anything?

[mozo78]

Unfortunately it doesn't change anything...

[K0bin]

Can you post the logs and Wine output of the game with Microsofts d3dcompiler?

[mozo78]

Sure:

• dxgi.log
  Flower_dxgi.log
• d3d11.log
  Flower_d3d11.log
• Wine.log
  wine.zip

[mozo78]

Here is a Windows trace:
https://my.pcloud.com/publink/show?code=XZg62I7ZiqDsF1ubNLJ6qDgTuKLIH7dHbqmy

[mozo78]

@doitsujin
Does the Windows apitrace help?

[doitsujin]

Do you really expect me to start working on this immediately on a Sunday morning at 6am?

Haven't looked yet, will do that tomorrow.

[K0bin]

Just for the record (already discussed this on Discord):
the issue is that the game uploads its textures by mapping all subresources at once.
This fails because DXVK currently only supports 1 mapped subresource at a time.

[mozo78]

Do you really expect me to start working on this immediately on a Sunday morning at 6am?

Haven't looked yet, will do that tomorrow.

Of course not, just asking. Excuse me but we are obviously in different time zones and I didn't knew that :)

Just for the record (already discussed this on Discord):
the issue is that the game uploads its textures by mapping all subresources at once.
This fails because DXVK currently only supports 1 mapped subresource at a time.

Is this a big problem or can be fixed?

[doitsujin]

Is this a big problem or can be fixed?

Can be fixed, although it's going to be quite a bit of work that might take a few days to fully stabilize. Thanks for posting the trace though, it is indeed helpful.

[mozo78]

Thank you :)

[doitsujin]

Can you test if this build fixes it:
dxvk-map-image-buffer-fix.tar.gz

Built from this branch.

[mozo78]

You are simply the best!!!
With vsync the game stutters on every second but when I turn it off, the game runs very smooth with ~150 FPS. Thank you!!!

[doitsujin]

Thanks for the quick feedback, I'll do some more testing and then merge the branch.

[mozo78]

I was at work otherwise my feedback It would have been much faster :)

[mozo78]

@doitsujin
Almost forgot. Here is your splendid work!
https://www.youtube.com/watch?v=VzvcLBj4NxM
