Cura: Outer wall feed rate ignores wall speed setting
Application version
4.2.1
Platform
Linux Ogre 5.0.0-25-generic #26~18.04.1-Ubuntu SMP Thu Aug 1 13:51:02 UTC 2019 x86_64 x86_64 x86_64 GNU/Linux
Printer
Ender 3
Reproduction steps
Print the attached cube, using a single wall thickness to calibrate flow rate
Zip file includes the GCode generated from that project
Actual results
Outer wall speed in single thickness layers is 10mm/s. GCode for each layer looks like this, so it's not a firmware or printer setting:
;LAYER:147
;MESH:Object 1
G0 F9000 X100.22 Y119.78 Z17.76
;TYPE:WALL-OUTER
G1 F600 X100.22 Y95.22 E537.26845
G1 X124.78 Y95.22 E537.80759
G1 X124.78 Y119.78 E538.34672
G1 X100.22 Y119.78 E538.88585
;TIME_ELAPSED:1903.444317
Expected results
Outer wall should be printing at 50mm/s as specified in the profile, so I'd expect the feed rate to be 3000 in the generated GCode
Additional information
tomoinn
All 3 comments

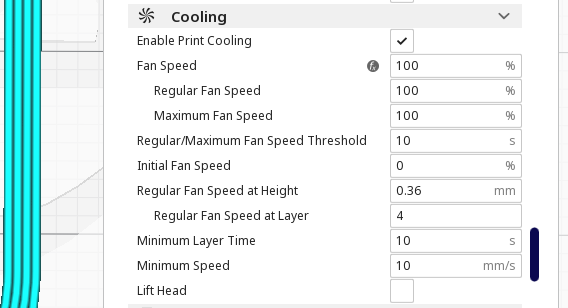

It's because you have a min layer time specified and so Cura has slowed the walls down to try and increase the layer time. Looking at your profile, the wall print speed is 25 not 50 so even if you reduce (or disable) the min layer time, it still won't use 50mm/s for the walls. Hope this helps.
smartavionics
on 31 Aug 2019
Ah, that makes perfect sense, thank you! I'll close this issue.
tomoinn
on 31 Aug 2019
Thx. Was thinking why it won鈥榯 print faster, too.
My Ender 3 is on klipper so i wanted to print a calibration tower for pressure advance.
thelastWallE
on 5 Oct 2019
