Cli-microsoft365: how to make 'spo connect' work with proxy

[akhileshnirapure]

Hi @waldekmastykarz ,
I'm trying to connect

spo connect https://[admin].sharepoint.com

but it errors out : connect ETIMEDOUT [ip address]

Note: node config has proxy setting set.

The same works when i use SharePoint Online Management Shell (Latest version)

Regards
Akhilesh

[waldekmastykarz]

I just had a quick look at the package we're using for issuing web requests and it seems like you need to specify the proxy as a separate option on the request. If this is indeed the case, then it would mean that at this moment using proxies is not supported and we'd have to extend the CLI to support them.

If you'd be willing to help us test it, I could put together a test version so that we can test the change on one or two commands. If it works, we would then consistently update the whole CLI. How does that sound @akhileshnirapure?

[waldekmastykarz]

Reading further through the request docs I've found this: https://github.com/request/request#controlling-proxy-behaviour-using-environment-variables. So theoretically, it should work the way it is. Could you double check if this is how you configured your proxy?

[VelinGeorgiev]

@waldekmastykarz , @akhileshnirapure I will also try to run it behind corporate proxy in the next few days to see what would happen on my end.

[waldekmastykarz]

Appreciate your help @VelinGeorgiev 👏

[VelinGeorgiev]

Seems to be working fine and as per the documents with one restriction, it is strictSSL all the time.
@akhileshnirapure here is how you can try and setup the proxy if you are using Windows OS.

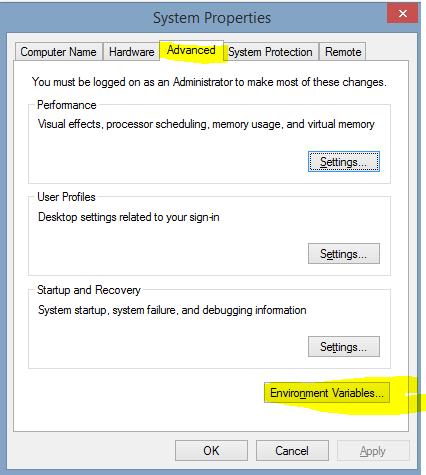

Open the Windows startup menu (windows button) -> Open "Run" prompt -> type "SystemPropertiesAdvanced" -> go to the "Environment Variables"

Add HTTP_PROXY and HTTPS_PROXY variables under User variables for XXX with the following values:

HTTP_PROXY=http://username:[email protected]:8080
HTTPS_PROXY=http://username:[email protected]:8080

or just

HTTP_PROXY=http://proxy.example.com:8080
HTTPS_PROXY=http://proxy.example.com:8080

if no authentication is needed.

Note, I couldn't fully test it with our proxies because I encountered different issue that says "Error: Self signed certificate in the chain" (I get that with the pnp powershell as well). I relate that to my organization proxy setup and the request strictSSL option, but would have to further investigate.

In general, the office365-cli picks up the proxy settings and I guess (@waldekmastykarz can say) the setup is similar with Unix based systems where you add the proxy as Env variable

[waldekmastykarz]

Thank you double checking and the detailed description @VelinGeorgiev 👏

[akhileshnirapure]

@VelinGeorgiev followed steps and o365 cli works :-) @waldekmastykarz great stuff

[waldekmastykarz]

Excellent! Thanks for confirming @akhileshnirapure and once again, thanks @VelinGeorgiev for the detailed walkthrough 👏
