Zephyr: stm32: serial: Data is not read properly at a certain baud rate
Describe the bug
UART data is not read properly at a certain baud rate.
To Reproduce
Board: stm32f4_disco
Barcode module: EM1399
I was conducting a test with EM1399 to read the barcode.
EM1399 is connected to UART1.
west init zephyrproject -m https://github.com/KwonTae-young/zephyr/ --mr code
cd zephyrproject/zephyr
source zephyr-env.sh
mkdir samples/barcode/build
cd samples/barcode/build/
cmake -DBOARD=stm32f4_disco ..
make -j8 flash
Expected behavior
I expected the scanned barcode information to be output.
Impact
At certain baud rate, barcode data is not read properly through UART.
Screenshots or console output
I have tested on a total of two boards.(stm32f4_disco, nrf52840_pca10056)
stm32f4_disco does not read the data properly.
nrf52840_pca10056 reads the data correctly.
- UART setup of EM1399
| | EM1399 |
| ------------ | ------ |
| baud rate | 9600 |
| stop bit | 1 |
| data bit | 8 |
| parity | none |
| flow control | none |
- stm32f4_disco
- pin connection
| EM1399 | stm32f4_disco |
| ------------ | ------------- |
| VDD(2) | 3V |
| GND(3) | GND |
| TX(5) | PB7(UART1_RX) |
| nTrig(12) | custom button |
- console
***** Booting Zephyr OS zephyr-v1.13.0-5106-g5d6c36b85f *****
Sample app running on: stm32f4_disco
uart_init() done
uart_config.baudrate=9600
uart_config.parity=0
uart_config.stop_bits=1
uart_config.data_bits=3
uart_config.flow_ctrl=0
uart_isr: 38 (1 bytes)
uart_isr: 38 (1 bytes)
uart_isr: 30 (1 bytes)
uart_isr: 30 (1 bytes)
uart_isr: 32 (1 bytes)
uart_isr: 37 (1 bytes)
uart_isr: 31 (1 bytes)
uart_isr: 36 (1 bytes)
uart_isr: 0a (1 bytes)
- nrf52840_pca10056
- pin connection
| EM1399 | nrf52840_pca10056 |
| ------------ | ----------------- |
| VDD(2) | 3V |
| GND(3) | GND |
| TX(5) | P0.27(UART1_RX) |
| nTrig(12) | custom button |
- console
***** Booting Zephyr OS zephyr-v1.13.0-5105-g7352d2b0c1 *****
Sample app running on: nrf52840_pca10056
uart_init() done
uart_config.baudrate=9600
uart_config.parity=0
uart_config.stop_bits=1
uart_config.data_bits=3
uart_config.flow_ctrl=0
uart_isr: 38 (1 bytes)
uart_isr: 38 (1 bytes)
uart_isr: 30 (1 bytes)
uart_isr: 39 (1 bytes)
uart_isr: 30 (1 bytes)
uart_isr: 39 (1 bytes)
uart_isr: 32 (1 bytes)
uart_isr: 38 (1 bytes)
uart_isr: 37 (1 bytes)
uart_isr: 34 (1 bytes)
uart_isr: 31 (1 bytes)
uart_isr: 34 (1 bytes)
uart_isr: 36 (1 bytes)
uart_isr: 0d (1 bytes)
Environment (please complete the following information):
- OS: Linux(Ubuntu 18.04)
- Toolchain: Zephyr SDK 0.9.5
- Commit SHA or Version used: 7352d2b0c1b912c4e95ef0977cc310f9f427d6ed.
Additional context
nrf52840_pca10056 is normal and only stm32f4_disco is read strangely.
So I think it is a bug.
The barcode data tested is shown below.
- Test program
It was created by modifying samples/nfc/nfc_hello.
/*
* Copyright (c) 2015 Intel Corporation
*
* SPDX-License-Identifier: Apache-2.0
*/
#include <zephyr.h>
#include <stdio.h>
#include <zephyr/types.h>
#include <string.h>
#include <uart.h>
#include <misc/byteorder.h>
#define BUF_MAXSIZE 256
#define SLEEP_TIME 500
static struct device *uart_dev;
static u8_t rx_buf[BUF_MAXSIZE];
static void msg_dump(const char *s, u8_t *data, unsigned len)
{
unsigned i;
printf("%s: ", s);
for (i = 0U; i < len; i++) {
printf("%02x ", data[i]);
}
printf("(%u bytes)\n", len);
}
static void uart_isr(struct device *x)
{
int len = uart_fifo_read(uart_dev, rx_buf, BUF_MAXSIZE);
ARG_UNUSED(x);
msg_dump(__func__, rx_buf, len);
}
static void uart_init(void)
{
uart_dev = device_get_binding("UART_1");
uart_irq_callback_set(uart_dev, uart_isr);
uart_irq_rx_enable(uart_dev);
printf("%s() done\n", __func__);
}
void main(void)
{
struct uart_config uart_cfg;
int ret;
printf("Sample app running on: %s\n", CONFIG_BOARD);
uart_init();
ret = uart_config_get(uart_dev, &uart_cfg);
if (ret == 0) {
printf("uart_config.baudrate=%d\n", uart_cfg.baudrate);
printf("uart_config.parity=%d\n", uart_cfg.parity);
printf("uart_config.stop_bits=%d\n", uart_cfg.stop_bits);
printf("uart_config.data_bits=%d\n", uart_cfg.data_bits);
printf("uart_config.flow_ctrl=%d\n", uart_cfg.flow_ctrl);
} else {
printf("uart_config_get() error\n");
}
while (1) {
k_sleep(SLEEP_TIME);
}
}
- baud rate
I tested it by changing the baud rate.
The baud rate of EM1399 and stm32f4_disco are set equal.
The test results show that the data was read correctly only on 2400 and 4800.
Below is the log by the baud rate I tested in stm32f4_disco.
- baud rate: 1200
***** Booting Zephyr OS zephyr-v1.13.0-5106-g34550e11e9 *****
Sample app running on: stm32f4_disco
uart_init() done
uart_config.baudrate=1200
uart_config.parity=0
uart_config.stop_bits=1
uart_config.data_bits=3
uart_config.flow_ctrl=0
uart_isr: 00 (1 bytes)
uart_isr: 00 (1 bytes)
uart_isr: 00 (1 bytes)
uart_isr: 00 (1 bytes)
uart_isr: 00 (1 bytes)
uart_isr: 00 (1 bytes)
uart_isr: 00 (1 bytes)
uart_isr: 00 (1 bytes)
uart_isr: 00 (1 bytes)
uart_isr: 00 (1 bytes)
uart_isr: 00 (1 bytes)
uart_isr: 00 (1 bytes)
uart_isr: 00 (1 bytes)
uart_isr: 00 (1 bytes)
uart_isr: 00 (1 bytes)
uart_isr: 00 (1 bytes)
uart_isr: 00 (1 bytes)
uart_isr: 00 (1 bytes)
uart_isr: 00 (1 bytes)
uart_isr: 00 (1 bytes)
uart_isr: 00 (1 bytes)
uart_isr: 00 (1 bytes)
uart_isr: 00 (1 bytes)
uart_isr: 00 (1 bytes)
uart_isr: 00 (1 bytes)
uart_isr: 00 (1 bytes)
uart_isr: 00 (1 bytes)
uart_isr: 00 (1 bytes)
uart_isr: 00 (1 bytes)
uart_isr: 00 (1 bytes)
uart_isr: 00 (1 bytes)
uart_isr: 00 (1 bytes)
uart_isr: 00 (1 bytes)
uart_isr: 00 (1 bytes)
uart_isr: 00 (1 bytes)
uart_isr: 00 (1 bytes)
uart_isr: 00 (1 bytes)
uart_isr: 00 (1 bytes)
uart_isr: 00 (1 bytes)
uart_isr: 00 (1 bytes)
- baud date: 2400
***** Booting Zephyr OS zephyr-v1.13.0-5106-g34550e11e9 *****
Sample app running on: stm32f4_disco
uart_init() done
uart_config.baudrate=2400
uart_config.parity=0
uart_config.stop_bits=1
uart_config.data_bits=3
uart_config.flow_ctrl=0
uart_isr: 38 (1 bytes)
uart_isr: 38 (1 bytes)
uart_isr: 30 (1 bytes)
uart_isr: 39 (1 bytes)
uart_isr: 30 (1 bytes)
uart_isr: 39 (1 bytes)
uart_isr: 32 (1 bytes)
uart_isr: 38 (1 bytes)
uart_isr: 37 (1 bytes)
uart_isr: 34 (1 bytes)
uart_isr: 31 (1 bytes)
uart_isr: 34 (1 bytes)
uart_isr: 36 (1 bytes)
uart_isr: 0d (1 bytes)
uart_isr: 0a (1 bytes)
- baud rate: 4800
***** Booting Zephyr OS zephyr-v1.13.0-5106-g34550e11e9 *****
Sample app running on: stm32f4_disco
uart_init() done
uart_config.baudrate=4800
uart_config.parity=0
uart_config.stop_bits=1
uart_config.data_bits=3
uart_config.flow_ctrl=0
uart_isr: 38 (1 bytes)
uart_isr: 38 (1 bytes)
uart_isr: 30 (1 bytes)
uart_isr: 39 (1 bytes)
uart_isr: 30 (1 bytes)
uart_isr: 39 (1 bytes)
uart_isr: 32 (1 bytes)
uart_isr: 38 (1 bytes)
uart_isr: 37 (1 bytes)
uart_isr: 34 (1 bytes)
uart_isr: 31 (1 bytes)
uart_isr: 34 (1 bytes)
uart_isr: 36 (1 bytes)
uart_isr: 0d (1 bytes)
uart_isr: 0a (1 bytes)
- baud rate: 9600
***** Booting Zephyr OS zephyr-v1.13.0-5106-g34550e11e9 *****
Sample app running on: stm32f4_disco
uart_init() done
uart_config.baudrate=9600
uart_config.parity=0
uart_config.stop_bits=1
uart_config.data_bits=3
uart_config.flow_ctrl=0
uart_isr: 38 (1 bytes)
uart_isr: 38 (1 bytes)
uart_isr: 30 (1 bytes)
uart_isr: 30 (1 bytes)
uart_isr: 32 (1 bytes)
uart_isr: 37 (1 bytes)
uart_isr: 31 (1 bytes)
uart_isr: 36 (1 bytes)
uart_isr: 0a (1 bytes)
- baud rate: 14400
***** Booting Zephyr OS zephyr-v1.13.0-5106-g34550e11e9 *****
Sample app running on: stm32f4_disco
uart_init() done
uart_config.baudrate=14400
uart_config.parity=0
uart_config.stop_bits=1
uart_config.data_bits=3
uart_config.flow_ctrl=0
uart_isr: 38 (1 bytes)
uart_isr: 38 (1 bytes)
uart_isr: 39 (1 bytes)
uart_isr: 32 (1 bytes)
uart_isr: 34 (1 bytes)
uart_isr: 36 (1 bytes)
- baud rate: 19200
***** Booting Zephyr OS zephyr-v1.13.0-5106-g34550e11e9 *****
Sample app running on: stm32f4_disco
uart_init() done
uart_config.baudrate=19200
uart_config.parity=0
uart_config.stop_bits=1
uart_config.data_bits=3
uart_config.flow_ctrl=0
uart_isr: 38 (1 bytes)
uart_isr: 38 (1 bytes)
uart_isr: 30 (1 bytes)
uart_isr: 37 (1 bytes)
uart_isr: 36 (1 bytes)
- baud rate: 38400
***** Booting Zephyr OS zephyr-v1.13.0-5106-g34550e11e9 *****
Sample app running on: stm32f4_disco
uart_init() done
uart_config.baudrate=38400
uart_config.parity=0
uart_config.stop_bits=1
uart_config.data_bits=3
uart_config.flow_ctrl=0
uart_isr: 38 (1 bytes)
uart_isr: 38 (1 bytes)
uart_isr: 37 (1 bytes)
- baud rate: 57600
***** Booting Zephyr OS zephyr-v1.13.0-5106-g34550e11e9 *****
Sample app running on: stm32f4_disco
uart_init() done
uart_config.baudrate=57600
uart_config.parity=0
uart_config.stop_bits=1
uart_config.data_bits=3
uart_config.flow_ctrl=0
uart_isr: 38 (1 bytes)
uart_isr: 38 (1 bytes)
uart_isr: 34 (1 bytes)
- baud rate: 115200
***** Booting Zephyr OS zephyr-v1.13.0-5106-g34550e11e9 *****
Sample app running on: stm32f4_disco
uart_init() done
uart_config.baudrate=115200
uart_config.parity=0
uart_config.stop_bits=1
uart_config.data_bits=3
uart_config.flow_ctrl=0
uart_isr: 38 (1 bytes)
uart_isr: 38 (1 bytes)
I'm sorry I do not have enough English.
Thank you.
KwonTae-young
All 15 comments
Can you try the following, in boards/arm/stm32f4_disco/pinmux.c:
#ifdef CONFIG_UART_1
{STM32_PIN_PB6, STM32F4_PINMUX_FUNC_PB6_USART1_TX},
- {STM32_PIN_PB7, STM32F4_PINMUX_FUNC_PB7_USART1_RX},
+ {STM32_PIN_PB7, STM32F4_PINMUX_FUNC_PB7_USART1_RX | STM32_OSPEEDR_VERY_HIGH_SPEED},
#endif /* CONFIG_UART_1 */
erwango
on 27 Feb 2019
Hi. @erwango
I applied and tested it.
But the result was the same.
***** Booting Zephyr OS zephyr-v1.13.0-5106-g34550e11e9 *****
Sample app running on: stm32f4_disco
uart_init() done
uart_config.baudrate=9600
uart_config.parity=0
uart_config.stop_bits=1
uart_config.data_bits=3
uart_config.flow_ctrl=0
uart_isr: 38 (1 bytes)
uart_isr: 38 (1 bytes)
uart_isr: 30 (1 bytes)
uart_isr: 30 (1 bytes)
uart_isr: 32 (1 bytes)
uart_isr: 37 (1 bytes)
uart_isr: 31 (1 bytes)
uart_isr: 36 (1 bytes)
uart_isr: 0a (1 bytes)
Additional testing

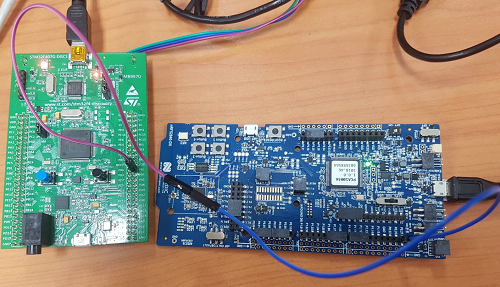

I have tested some more about stm32f4_disco and nrf52840_pca10056.
This test was done using samples/nfc/nfc-hello.
The baudrate was tested to 9600.
loopback test

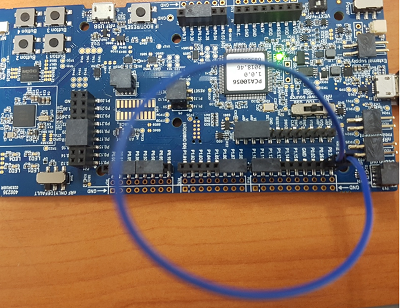

- nrf52840_pca10056(loopback)
Connect P0.26(Tx) and P0.27(Rx) to each other.
Below is the log of nrf52840_pca10056.
***** Booting Zephyr OS zephyr-v1.13.0-5106-g34550e11e9 *****
Sample app running on: arm
uart1_init() done
uart1_isr: 00 (1 bytes)
uart1_isr: 00 (1 bytes)
uart1_isr: 00 (1 bytes)
uart1_isr: 04 (1 bytes)
uart1_isr: 20 (1 bytes)
uart1_isr: 00 (1 bytes)
uart1_isr: 01 (1 bytes)
uart1_isr: 00 (1 bytes)

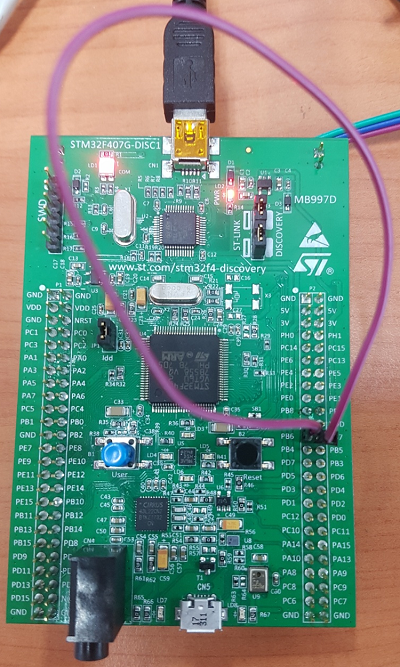

- stm32f4_disco(loopback)
Connect PB6(Tx) and PB7(Rx) to each other.
Below is the log of stm32f4_disco.
***** Booting Zephyr OS zephyr-v1.13.0-5106-g34550e11e9 *****
Sample app running on: arm
uart1_init() done
uart1_isr: 00 (1 bytes)

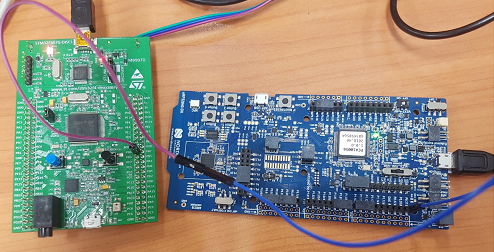

stm32f4_disco+ nrf52840_pca10056 test
- stm32f4_disco(Rx) + nrf52840_pca10056(Tx)
Connect PB7(Rx) and P0.26(Tx) to each other.
Below is the log of stm32f4_disco.
***** Booting Zephyr OS zephyr-v1.13.0-5106-g34550e11e9 *****
Sample app running on: arm
uart1_init() done
uart1_isr: 00 (1 bytes)
uart1_isr: 00 (1 bytes)
uart1_isr: 00 (1 bytes)
uart1_isr: 04 (1 bytes)
uart1_isr: 00 (1 bytes)
uart1_isr: 00 (1 bytes)
- stm32f4_disco(Tx) + nrf52840_pca10056(Rx)
Connect PB6(Tx) and P0.27(Rx) to each other.
Below is the log of nrf52840_pca10056.
***** Booting Zephyr OS zephyr-v1.13.0-5106-g34550e11e9 *****
Sample app running on: arm
uart1_init() done
uart1_isr: 00 (1 bytes)
I was not using Tx because it was a barcode scanner.
But from the above results, Tx also seems strange.
I added STM32_OSPEEDR_VERY_HIGH_SPEED but the result was the same.
KwonTae-young
on 28 Feb 2019
@KwonTae-young , can you provide test sample you're using for loopback test so I can test on my side?
EDIT: Btw, I've run basic uart tests (uart_basic_api, console, ...) at 115200 on stm32f4_disco and haven't seen issues so far.
EDIT2: A branch that includes all board related modifications would be ideal
erwango
on 28 Feb 2019
@erwango, I used samples/nfc/nfc-hello.
Pressing the reset button will output the defined reset command.
https://github.com/zephyrproject-rtos/zephyr/blob/master/samples/nfc/nfc_hello/src/main.c#L65-L69
/*
* Peer will receive: 0x00 0x00 0x00 0x04 0x20 0x00 0x01 0x00
* nci_reset size + nci_reset cmd
*/
uart_fifo_fill(uart1_dev, tx_buf, sizeof(u32_t) + sizeof(nci_reset));
I created a loopback branch that I tested.
loopback branch: https://github.com/KwonTae-young/zephyr/tree/loopback
west init zephyrproject_loopback -m https://github.com/KwonTae-young/zephyr/ --mr loopback
cd zephyrproject_loopback/zephyr
source zephyr-env.sh
mkdir samples/nfc/nfc_hello/build
cd samples/nfc/nfc_hello/build/
cmake -DBOARD=stm32f4_disco ..
make -j8 flash
Below is a test video.
- stm32f4_disco
https://youtu.be/J9NJ-enYM5I
- nrf52840_pca10056
https://youtu.be/9FMTosBAdEE
KwonTae-young
on 28 Feb 2019
There is at least an issue in fifo_fill.
I've proposed a fix: https://github.com/zephyrproject-rtos/zephyr/pull/13952, so the loopback mode is now working.
Then, about your use case, can you have a try to disable printf in uart1_isr and see what happens?
erwango
on 28 Feb 2019
@KwonTae-young , actually, it appears that uart_fifo_fill call in nfc_hello does not respect the API and behavior is undefined, cf:
https://github.com/zephyrproject-rtos/zephyr/blob/687e02de8451856ceb8bfb3c7737b12db0a63407/include/uart.h#L697-L698
erwango
on 28 Feb 2019
uart_fifo_read, uart_fifo_fill, etc. are internal APIs, deprecated for use by application. That's because it's very hard to use them correctly by an application.
Please use higher-level API, I suggest https://github.com/zephyrproject-rtos/zephyr/blob/master/include/tty.h
pfalcon
on 28 Feb 2019
@erwango, @pfalcon
I am on vacation until March 3rd.
I will test the following on Monday next week.
- Apply #13952 to read looback and barcode data.
- Use 'https://github.com/zephyrproject-rtos/zephyr/blob/master/include/tty.h' to read the barcode data.
I thought samples/nfc/nfc_hello was a simple example using uart.
I currently can not find an example using https://github.com/zephyrproject-rtos/zephyr/blob/master/include/tty.h.
So I will refer to https://github.com/zephyrproject-rtos/zephyr/blob/master/subsys/console/getchar.c.
KwonTae-young
on 1 Mar 2019
@erwango
I applied #13952.
And I modified samples/nfc/nfc-hello as follows.
diff --git a/samples/nfc/nfc_hello/src/main.c b/samples/nfc/nfc_hello/src/main.c
index 0f2f6fa358..926c9bb45c 100644
--- a/samples/nfc/nfc_hello/src/main.c
+++ b/samples/nfc/nfc_hello/src/main.c
@@ -19,6 +19,9 @@ static u8_t rx_buf[BUF_MAXSIZE];
static u8_t tx_buf[BUF_MAXSIZE];
static u8_t nci_reset[] = {0x20, 0x00, 0x01, 0x00};
+static u8_t save_buf[BUF_MAXSIZE];
+static int count = 0;
+
static void msg_dump(const char *s, u8_t *data, unsigned len)
{
unsigned i;
@@ -35,7 +38,17 @@ static void uart1_isr(struct device *x)
int len = uart_fifo_read(uart1_dev, rx_buf, BUF_MAXSIZE);
ARG_UNUSED(x);
- msg_dump(__func__, rx_buf, len);
+
+ // length is always 1
+ memcpy(save_buf + count++, rx_buf, 1);
+
+ // The reset command has a length of 8
+ if (count == 8) {
+ printf("[loopback test] save_buf: ");
+ for (int i = 0; i < count ; i++) {
+ printf("%02x ", save_buf[i]);
+ }
+ }
}
static void uart1_init(void)
Then the loopback test was good.
Works well on all baudrates.
***** Booting Zephyr OS zephyr-v1.13.0-5107-geded5c2720 *****
Sample app running on: arm
uart1_init() done
[loopback test] save_buf: 00 00 00 04 20 00 01 00
I tried to run a bardcode scanner in a similar way.
Barcode data is read normally.
***** Booting Zephyr OS zephyr-v1.13.0-5107-geded5c2720 *****
Sample app running on: arm
uart1_init() done
[loopback test] save_buf: 38 38 30 39 30 39 32 38 37 34 31 34 36 0d 0a
@pfalcon
I created the following program using the tty API.
#include <zephyr.h>
#include <stdio.h>
#include <uart.h>
#include <device.h>
#include <console.h>
#include <tty.h>
static struct device *uart_dev;
static struct tty_serial console_serial;
void main(void)
{
printf("Sample app running on: %s\n", CONFIG_BOARD);
uart_dev = device_get_binding("UART_1");
tty_init(&console_serial, uart_dev);
}
However, an error occurs during compilation.
What is my mistake?
I used tty.h.
I have uploaded the tested source to the tty_api_test branch.
[ 1%] Built target driver_validation_h_target
[ 4%] Built target syscall_list_h_target
[ 5%] Built target syscall_macros_h_target
[ 6%] Built target kobj_types_h_target
[ 7%] Built target offsets
[ 8%] Built target offsets_h
[ 9%] Built target linker_script_target
[ 19%] Built target lib__libc__minimal
[ 20%] Built target app
[ 22%] Built target arch__arm__core__cortex_m__mpu
[ 29%] Built target arch__arm__core__cortex_m
[ 42%] Built target arch__arm__core
[ 44%] Built target drivers__gpio
[ 63%] Built target kernel
[ 64%] Built target drivers__pwm
[ 67%] Built target boards__arm__stm32f4_disco
[ 91%] Built target zephyr
[ 93%] Built target drivers__serial
[ 94%] Linking C executable zephyr_prebuilt.elf
Memory region Used Size Region Size %age Used
FLASH: 16764 B 1 MB 1.60%
SRAM: 4460 B 192 KB 2.27%
IDT_LIST: 152 B 2 KB 7.42%
../app/libapp.a(main.c.obj): In function `main':
/work/zephyrproject_loopback/zephyr/samples/tty_api/src/main.c:22: undefined reference to `tty_init'
collect2: error: ld returned 1 exit status
zephyr/CMakeFiles/zephyr_prebuilt.dir/build.make:97: recipe for target 'zephyr/zephyr_prebuilt.elf' failed
make[2]: *** [zephyr/zephyr_prebuilt.elf] Error 1
CMakeFiles/Makefile2:458: recipe for target 'zephyr/CMakeFiles/zephyr_prebuilt.dir/all' failed
make[1]: *** [zephyr/CMakeFiles/zephyr_prebuilt.dir/all] Error 2
Makefile:83: recipe for target 'all' failed
make: *** [all] Error 2
@KwonTae-young You should add these in your proj.conf:
CONFIG_CONSOLE_SUBSYS=y
CONFIG_CONSOLE_GETCHAR=y
gon1332
on 4 Mar 2019
@gon1332
Thank you. After adding the setting, the error disappears. :smile:
KwonTae-young
on 4 Mar 2019
I created a program that reads the barcode using the tty API.
The source has been uploaded to the tty_api_test branch.
/*
* Copyright (c) 2015 Intel Corporation
*
* SPDX-License-Identifier: Apache-2.0
*/
#include <zephyr.h>
#include <stdio.h>
#include <uart.h>
#include <device.h>
#include <console.h>
#include <tty.h>
#include <string.h>
#define BARCODE_UART_PORT "UART_1"
static struct device *uart_dev;
static struct tty_serial console_serial;
static u8_t console_rxbuf[CONFIG_CONSOLE_GETCHAR_BUFSIZE];
static u8_t barcode_buf[64];
static u8_t length = 0;
int barcode_init()
{
struct uart_config uart_cfg;
int ret;
uart_dev = device_get_binding(BARCODE_UART_PORT);
if (uart_dev == NULL) {
printf("Failed to get %s\n", BARCODE_UART_PORT);
return -1;
}
ret = uart_config_get(uart_dev, &uart_cfg);
if (!ret) {
printf("\n======== [%s] ========\n", BARCODE_UART_PORT);
printf("[%s] uart_config.baudrate=%d\n", BARCODE_UART_PORT, uart_cfg.baudrate);
printf("[%s] uart_config.parity=%d\n", BARCODE_UART_PORT, uart_cfg.parity);
printf("[%s] uart_config.stop_bits=%d\n", BARCODE_UART_PORT, uart_cfg.stop_bits);
printf("[%s] uart_config.data_bits=%d\n", BARCODE_UART_PORT, uart_cfg.data_bits);
printf("[%s] uart_config.flow_ctrl=%d\n", BARCODE_UART_PORT, uart_cfg.flow_ctrl);
} else {
printf("uart_config_get() error\n");
return -1;
}
tty_init(&console_serial, uart_dev);
tty_set_rx_buf(&console_serial, console_rxbuf, sizeof(console_rxbuf));
return 0;
}
int get_barcode()
{
int size = 0;
size = tty_read(&console_serial, console_rxbuf, 1);
if (size > 0) {
barcode_buf[length++] = console_rxbuf[0];
if (console_rxbuf[0] == 0x0a) {
return 0;
}
}
return -1;
}
void main(void)
{
int i, ret;
printf("tty API sample app running on(for barcode): %s\n", CONFIG_BOARD);
ret = barcode_init();
if (ret) {
printf("barcode_init() error\n");
return;
}
while (1) {
if (!get_barcode()) {
printf("barcode data: ");
for (i = 0; i < length; i++) {
printf("%02x ", barcode_buf[i]);
}
printf("\n");
length = 0;
memset(console_rxbuf, 0x00, sizeof(console_rxbuf));
memset(barcode_buf, 0x00, sizeof(barcode_buf));
}
}
return;
}
I created two barcodes for testing.
It is read well using the tty API.
***** Booting Zephyr OS zephyr-v1.13.0-5108-gd6e60d5cb0 *****
tty API sample app running on(for barcode): stm32f4_disco
======== [UART_1] ========
[UART_1] uart_config.baudrate=9600
[UART_1] uart_config.parity=0
[UART_1] uart_config.stop_bits=1
[UART_1] uart_config.data_bits=3
[UART_1] uart_config.flow_ctrl=0
barcode data: 31 32 33 34 35 36 37 38 39 30 0d 0a
barcode data: 31 32 33 34 35 36 37 38 39 30 0d 0a
barcode data: 31 32 33 34 35 36 37 38 39 30 0d 0a
barcode data: 5a 65 70 68 79 72 0d 0a
barcode data: 5a 65 70 68 79 72 0d 0a
barcode data: 5a 65 70 68 79 72 0d 0a
@KwonTae-young:
It is read well using the tty API.
Glad to hear!
pfalcon
on 5 Mar 2019
Txs @pfalcon for help on this. @KwonTae-young, please close the issue when you think it is ok.
erwango
on 5 Mar 2019
Related issues
cfriedt
路
3Comments
ghost
路
4Comments
pdunaj
路
3Comments
JusbeR
路
5Comments
qianfan-Zhao
路
3Comments
