Wp-calypso: Layouts: Contact Form Previews are very poor in Layout Selector

[ianstewart]

Chrome and MacOS.

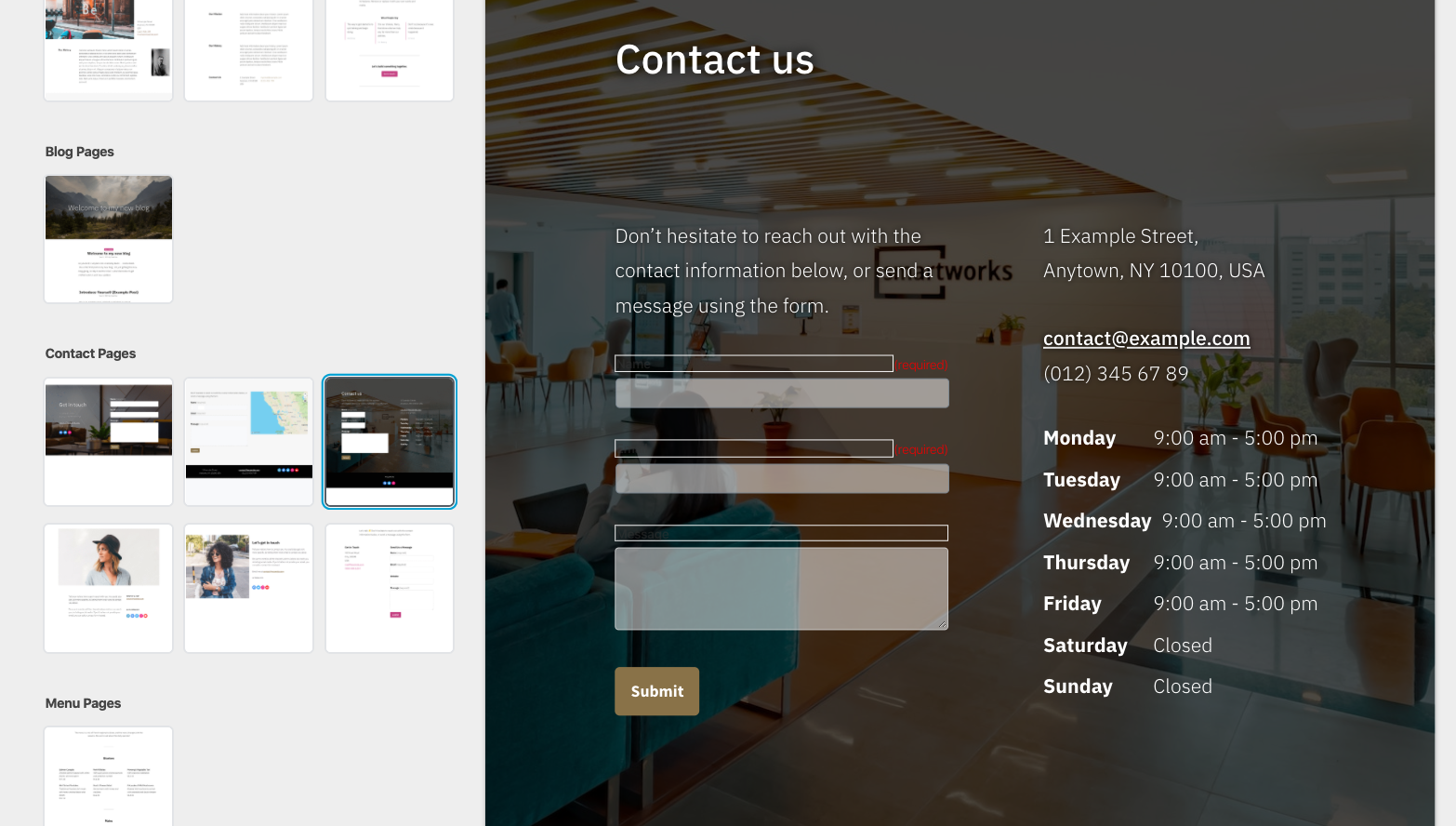

Strange borders and Hard-to-read text that don't appear in the Editor or on published pages.

@iamtakashi @alaczek

[ianstewart]

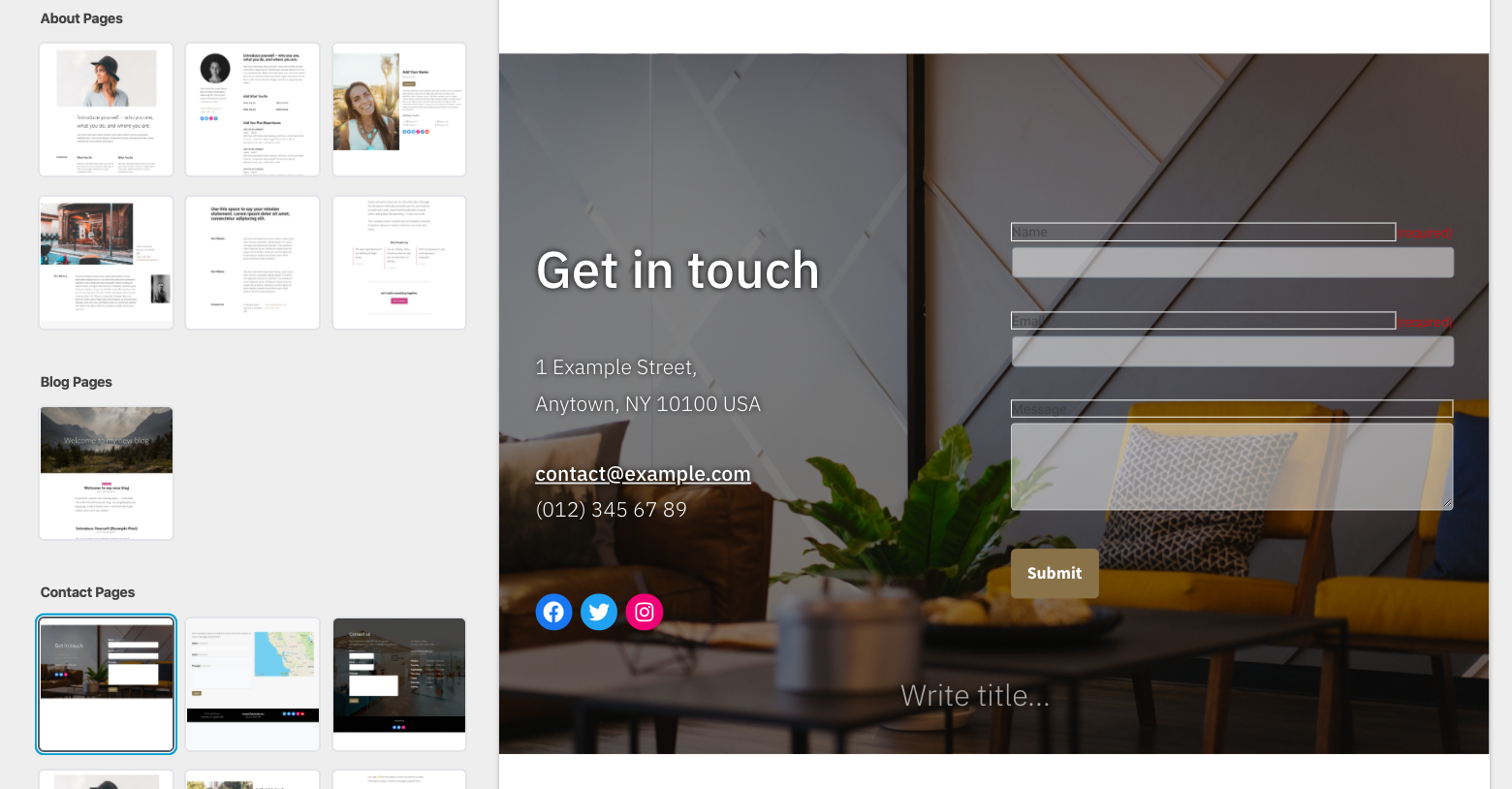

The placeholder for the contact form here in the Maywood layout could be seen as looking like it's broken in a different way …

… in that it's not providing a preview of the final result.

[marekhrabe]

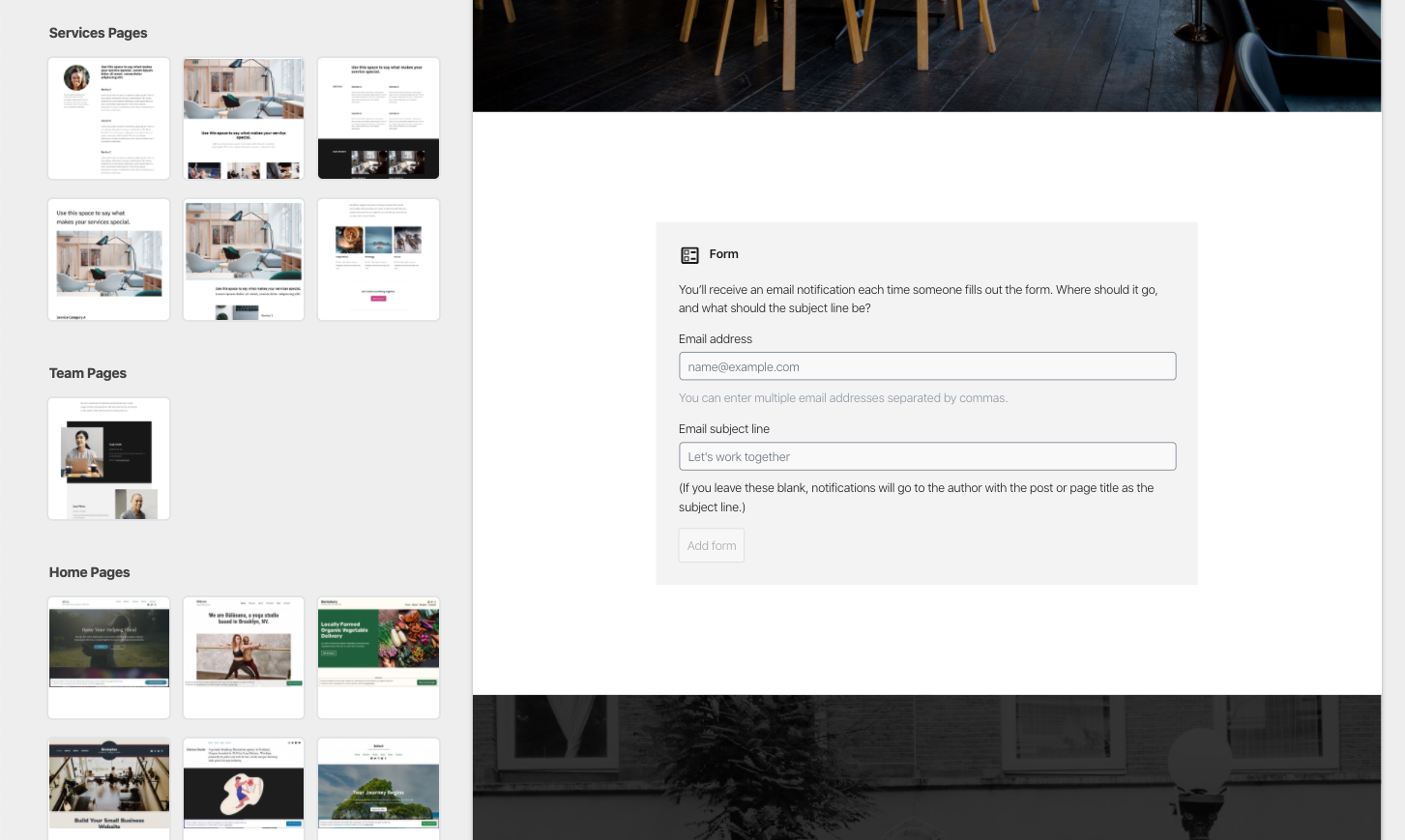

I think we've hit the problem with the intro screen of the form block before. I believe it was dismissed for the user by setting an attribute on the block. That way they immediately saw real form fields in both preview and editor. Disadvantage being they are not guided to set their email and subject and block will use some default ones

Edit: this is the attribute https://github.com/Automattic/jetpack/blob/026529c933acc84280214d91fb137941795ad004/extensions/blocks/contact-form/index.js#L86

[obenland]

The borders are caused by https://github.com/Automattic/jetpack/blob/ca039e9b2a22d183c0b98c0393edda6e2b2503e7/extensions/blocks/contact-form/editor.scss#L84-L105

[iamtakashi]

The borders are caused by...

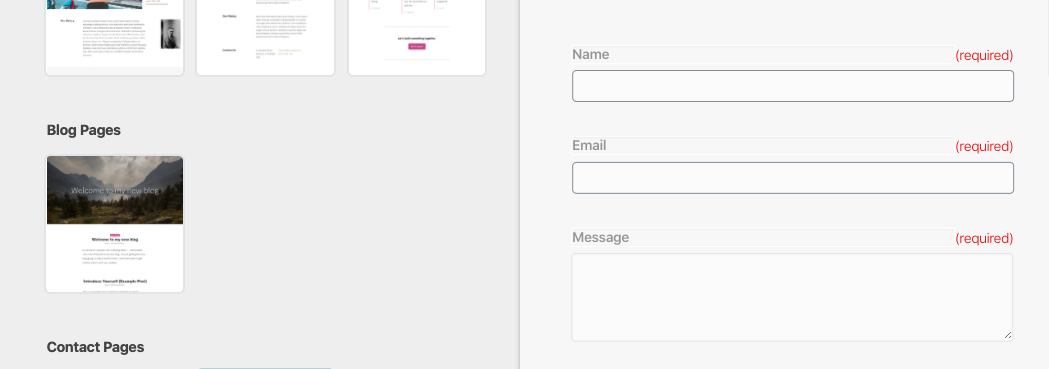

The same CSS is used in the editor too, but the form looks fine in the editor. Why do they appear differently between the editor and the preview then?

Some CSS from core Gutenberg that is loaded in the editor seems to be missing in the preview. block-editor/style.css

[getdave]

The placeholder for the contact form here in the Maywood layout could be seen as looking like it's broken in a different way …

@ianstewart This looks to be a separate issue to the "borders". Therefore I've split out to avoid confusion:

https://github.com/Automattic/wp-calypso/issues/39663

[getdave]

The borders are caused by https://github.com/Automattic/jetpack/blob/ca039e9b2a22d183c0b98c0393edda6e2b2503e7/extensions/blocks/contact-form/editor.scss#L84-L105

Some CSS from core Gutenberg that is loaded in the editor seems to be missing in the preview. block-editor/style.css

@obenland has correctly identified that the border _colors_ are added by Jetpack. However, the border's _appearance_ is actually caused by what @iamtakashi identified: the lack of the Core Gutenberg styles for .block-editor-plain-text being applied within the preview.

Specifically it is this missing border: none; rule that is _allowing_ the borders to appear on textareas:

.block-editor .block-editor-plain-text {
    box-shadow: none;
    font-family: inherit;
    font-size: inherit;
    color: inherit;
    line-height: inherit;
    border: none;
    padding: 0;
    margin: 0;
    width: 100%;
}

When the template has been inserted into the Post Block Editor the following CSS file seems to include the necessary rule:

/wp-content/plugins/gutenberg-core/7.3.0/build/block-editor/style.css

I'm not sure why the editor styles aren't being applied within the preview. However a quick fix is simply to add the necessary border:none in the Jetpack CSS ruleset and then re-apply it on :focus/:hover.

https://github.com/Automattic/jetpack/blob/ca039e9b2a22d183c0b98c0393edda6e2b2503e7/extensions/blocks/contact-form/editor.scss#L84-L105

[getdave]

I'm not sure why the editor styles aren't being applied within the preview.

I'm currently investigating this. I will update this comment with details.

Updates

It appears that the selector .block-editor .block-editor-plain-text is not matching the textarea element.

However, the selector .block-editor-plain-text does match!

~Therefore I suspect~ We _are_ missing the .block-editor class in the DOM hierarchy within the preview.

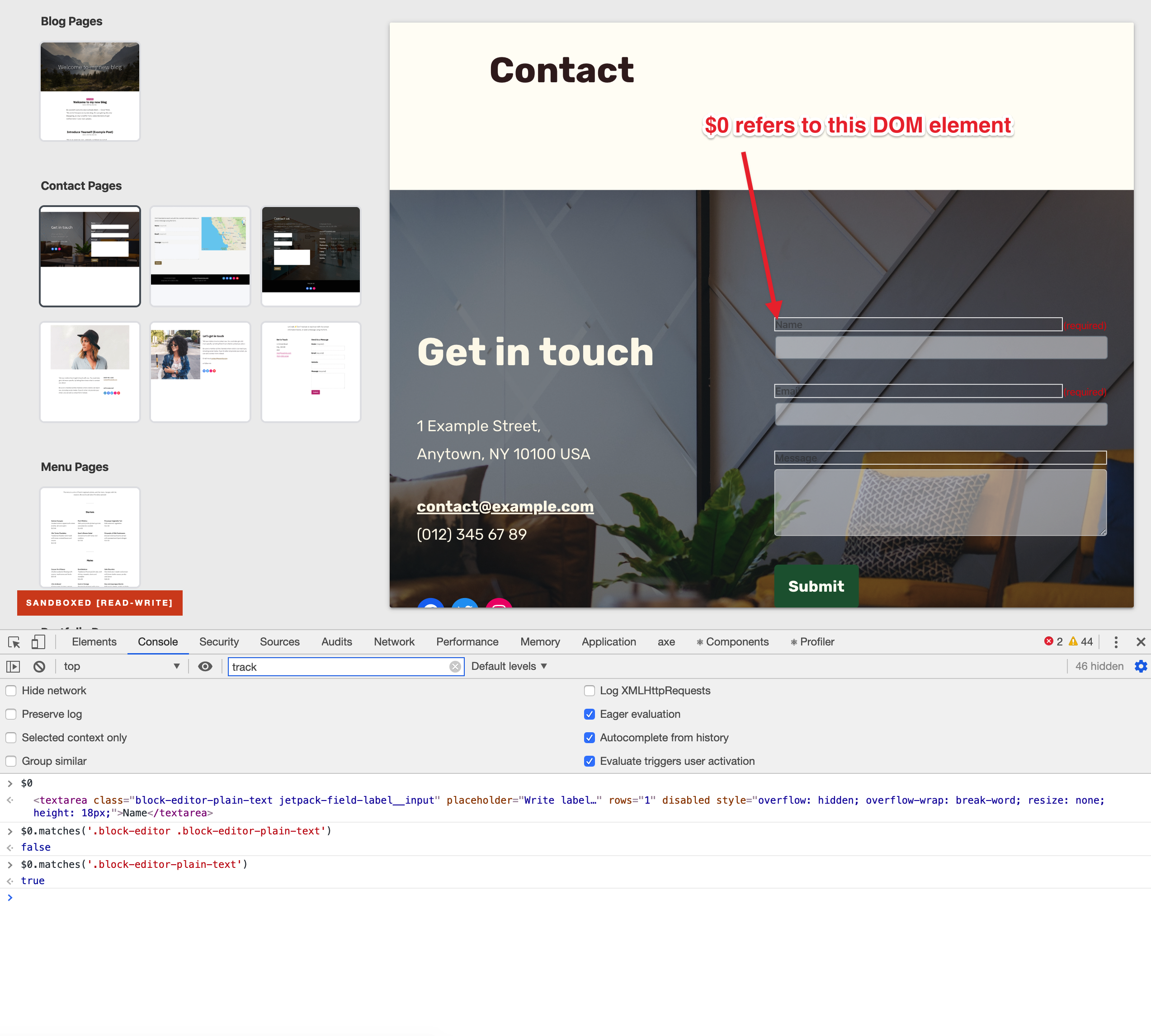

Note the output in Console below. The .matches method returns a Boolean depending on whether the given selector matches the element in question.

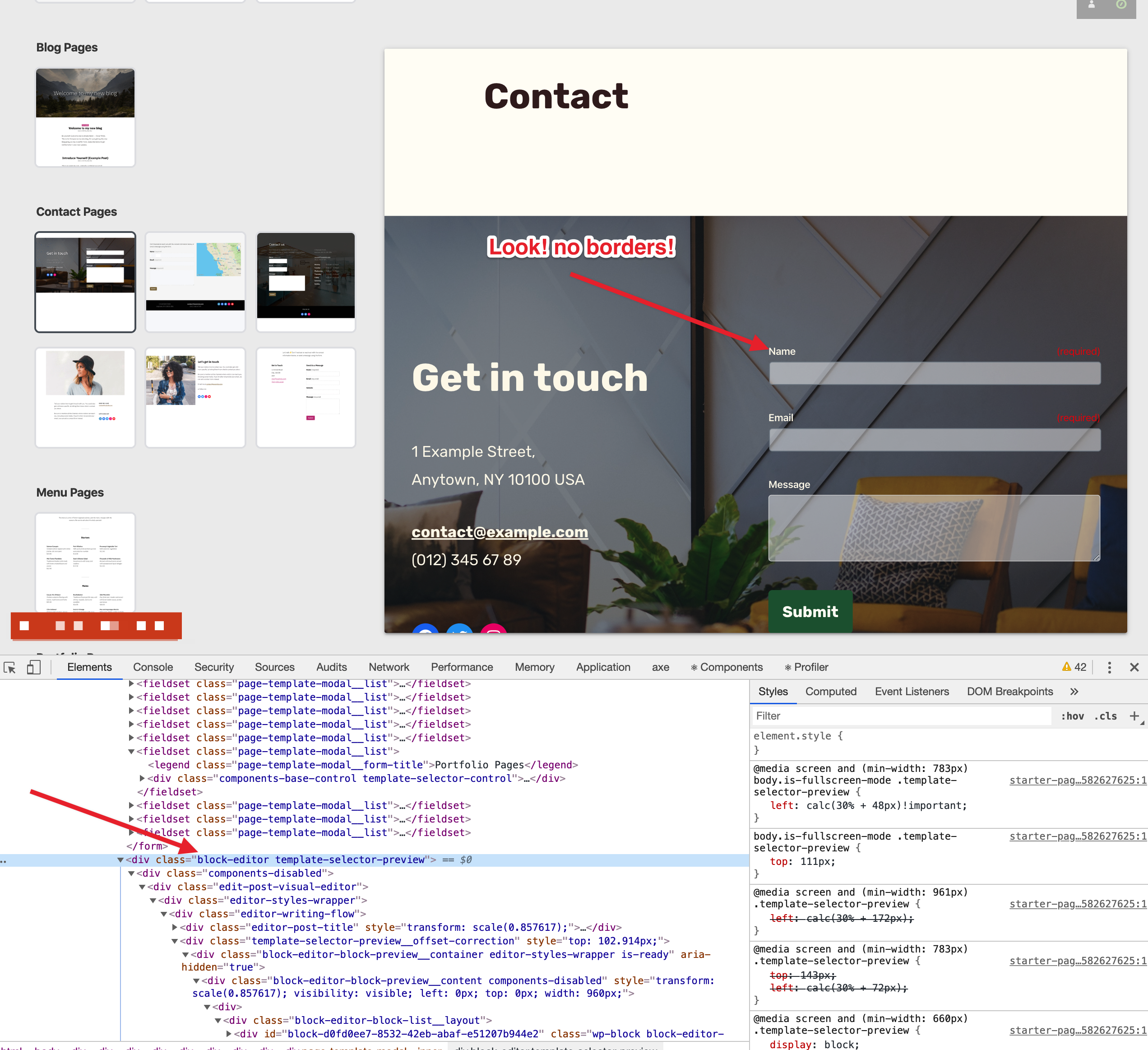

If we add the additional class .block-editor to the topmost <div class="block-editor template-selector-preview"> then the styles are correctly applied.

Debugging Resources

Use the following selector to search within devtools Elements panel to find the necessary elements:
block-editor-plain-text jetpack-field-label__input

[retrofox]

Therefore I suspect we are missing the .block-editor class in the DOM hierarchy within the preview.

This is a very good catch, Dave!
