Web-bugs: whoishorsejs.com - design is broken

[webcompat-bot]

URL: https://whoishorsejs.com/

Browser / Version: Firefox 63.0
Operating System: Mac OS X 10.14
Tested Another Browser: Yes

Problem type: Design is broken
Description: Elements are missing and the graphs are unreadable. Designed for Chrome 🙄
Steps to Reproduce:

Browser Configuration

• None

Reported by @magervalp

_From webcompat.com with ❤️_

[karlcow]

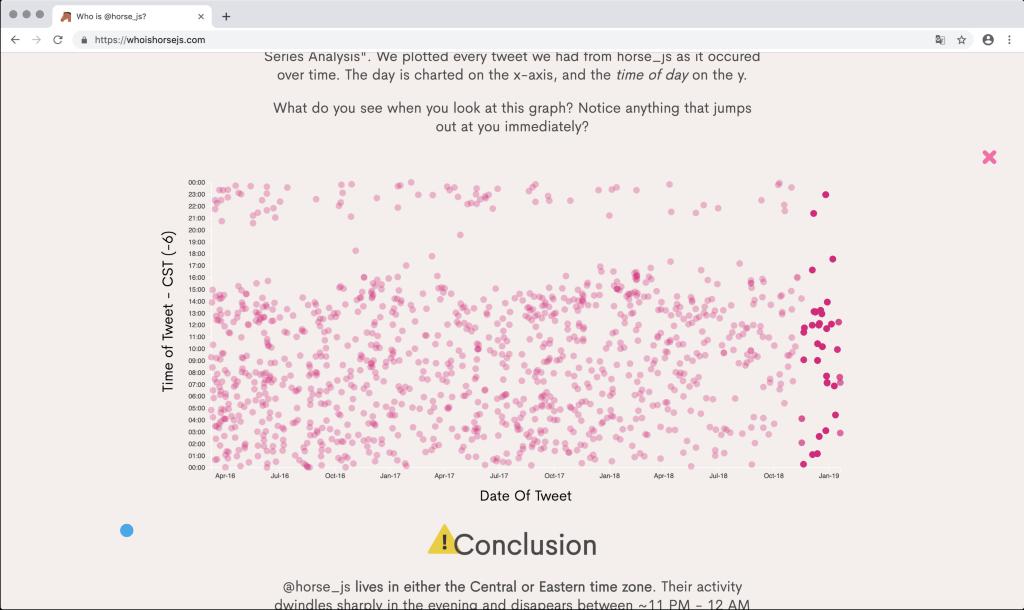

Firefox

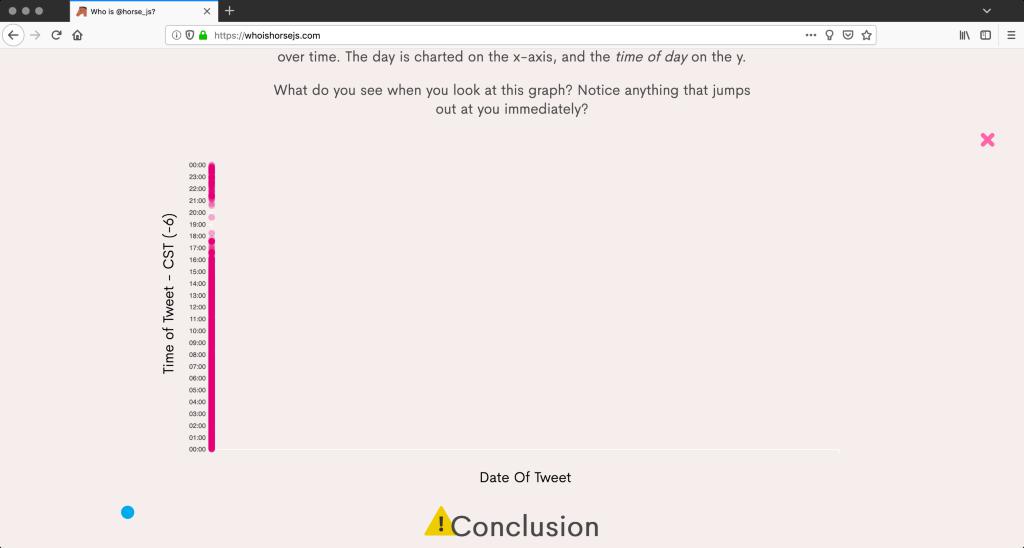

Chrome

[denschub]

Oh well, it's a Date.parse() issue. 🗑🔥

In Firefox, all the circles in those scatterplots look like this:

<circle class="horse-point" cx="NaN" cy="377.3946759259259" r="5"></circle>

Notice the NaN as the x coordinate here. The x coordinate is supposed to be calculated by a D3 scale function, but the used function has a range of [NaN, NaN], so something is broken here. Looking at the definition of said scale function, the problem becomes visible (from webpack:///./src/charts/scatterplot.js):

let x = d3Scale.scaleTime()
  .domain([d3.min(data, d => {
    return new Date(moment(d.created_at).format('MM-DD-YYYY'));
  }), d3.max(data, d => {
    return new Date(moment(d.created_at).format('MM-DD-YYYY'));
  })])
  .range([0, width]);

Effectively, this ends up calling the Date constructor with a MM-DD-YYYY date, which is not supported by us. Therefore, D3 tries to scale the values between two invalid dates, which isn't going too well. Ultimately, this is bug 1235045.

Hey, @paladique! According to the credits on that page, you worked on it, so you might be able to help out here. Since you are already using Moment.js, I don't think there is reason to build a string to then construct a new Date object here. I did some tests, and it looks like you could simply re-write that x function as:

let x = d3Scale.scaleTime()
  .domain([d3.min(data, d => {
    return moment(d.created_at).toDate();
  }), d3.max(data, d => {
    return moment(d.created_at).toDate();
  })])
  .range([0, width]);

which seems to be working just fine, and it's not depending on Date.parse() implementations here. Let me know if this doesn't work for some reason!

Also, thank you very much for providing a sourcemap, because that made debugging this much, much easier. :)

[paladique]

@denschub thank you, @burkeholland and I will look into this!

[NickolasBoyer]

@paladique If you want a really easy fix you could also just replace the - with /'s

[denschub]

If you want a really easy fix you could also just replace the - with /'s

JFTR: Please don't. :) Although it would work in major browsers, Date.parse() is spe' ed to accept RFC2822 or ISO 8601 dates. MM/DD/YYYY is not covered by any of those specifications. If we have a solution that doesn't violate specs and depend on browser's implementations, let's use those, and not depend on weird hacks.

[burkeholland]

Here is a ❤ for everyone who took their time to help fix this issue. It puts a smile on my face! @denschub - thank you for actually diagnosing and providing the fix. I feel like we need to put your name on the site somewhere now too!

@paladique - thanks for tagging me here. I would have lost this in the deluge of Github emails if I had not seen your name.

An update has been pushed and there is no longer 5K errors in the console. 😉

🐴🐴🐴🐴🐴🐴

[MagerValp]

@burkeholland Thank you!

The twitter-widgets still don't render in Firefox though, should there be a separate issue for that?

[burkeholland]

Ah - I didn't realize that was the case. A separate issue for that would be awesome.

[denschub]

I can confirm that the charts work now, thanks for the update @burkeholland!

The twitter-widgets still don't render in Firefox though, should there be a separate issue for that?

This is because of Tracking Protection, and we have multiple bugs filed in Bugzilla for that already.

thank you for actually diagnosing and providing the fix. I feel like we need to put your name on the site somewhere now too!

Ah, y'know, just doing my job here. :)

As the issue with the charts is fixed, let's close this as fixed.
