Vscode-gitlens: Issues with "renderWhitespace" option

[aengl]

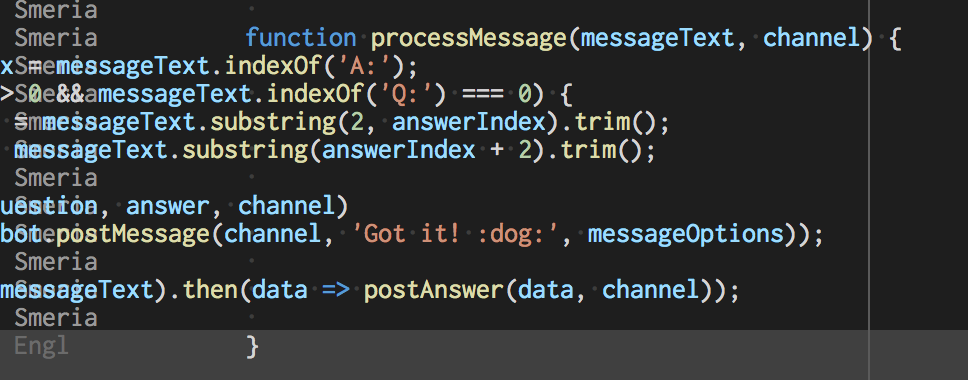

Setting editor.renderWhitespace to all or boundary causes the code to overlap the author/commit hash:

[aengl]

After some more testing it seems to be a bit more complicated than that. It's a combination of the font I'm using (Inconsolata) and renderWhitespace. Using VSCode 1.13.0 on MacOS.

[aengl]

Here's my settings.json for reference:

{
    "editor.rulers": [
        80,
        100
    ],
    "editor.lineHeight": 14,
    "editor.fontSize": 14,
    "editor.fontFamily": "Consolas, Inconsolata",
    "editor.renderControlCharacters": true,
    "editor.renderWhitespace": "all",
    "editor.autoClosingBrackets": false,
    "editor.formatOnPaste": false,
    "editor.formatOnSave": true,
    "editor.wordWrap": "bounded",
    "editor.wordWrapColumn": 100,
    "editor.minimap.enabled": false,
    "window.zoomLevel": 0,
    "window.nativeTabs": true,
    "prettier.singleQuote": true,
    "prettier.printWidth": 80,
    "prettier.trailingComma": "es5",
    "javascript.implicitProjectConfig.checkJs": true,
    "typescript.check.tscVersion": false,
    "typescript.implementationsCodeLens.enabled": true,
    "workbench.iconTheme": "vs-seti",
    "workbench.editor.swipeToNavigate": true,
    "files.trimTrailingWhitespace": true,
    "files.insertFinalNewline": true,
    "files.exclude": {
        "**/.git": true,
        "**/node_modules": true,
        "ios": true,
        "android": true
    }
}

[zmoazeni]

Wow I thought I was the only one. Yep also running Inconsolata and renderWhitespace and ran into this issue.

Talk about the timing.

[zmoazeni]

Looks like a problem with https://github.com/Microsoft/vscode/issues/11485

[eamodio]

Yeah -- to workaround it please set "gitlens.advanced.toggleWhitespace.enabled": true to render the GitLens blame annotations properly. This issue is noted in the README here: https://github.com/eamodio/vscode-gitlens#known-issues

[eamodio]

FYI - in v4 (coming shortly) I've re-enabled "gitlens.advanced.toggleWhitespace.enabled": true as the default so it will no longer need to be set manually
