VoodooI2C 🚀 - Touch display works for a few seconds then stops with GPIO pinning.

Debug build output doesn't seem to shed any additional light.

$ log show --last boot --predicate 'process == "kernel" AND (eventMessage CONTAINS "VoodooI2C" OR eventMessage CONTAINS "VoodooGPIO")' --style syslog --source
Filtering the log data using "process == "kernel" AND (composedMessage CONTAINS "VoodooI2C" OR composedMessage CONTAINS "VoodooGPIO")"
Skipping info and debug messages, pass --info and/or --debug to include.
Timestamp                       (process)[PID]
2020-05-21 14:55:23.227087-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::Loading GPIO Data for CannonLake-LP
2020-05-21 14:55:23.227096-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Init!
2020-05-21 14:55:23.227099-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Initializing Community 0
2020-05-21 14:55:23.227138-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Initializing Community 1
2020-05-21 14:55:23.227172-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Initializing Community 2
2020-05-21 14:55:29.040108-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CTouchscreenHIDEventDriver::Got active display
2020-05-21 14:55:29.040119-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CTouchscreenHIDEventDriver::Got active framebuffer
2020-05-21 14:55:35.546799-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CTouchscreenHIDEventDriver::setProperties USBMouseStopsTrackpad = 0
2020-05-21 14:55:35.546922-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::setProperties USBMouseStopsTrackpad = 0
2020-05-21 14:55:48.658532-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::keyPressed = 27083490764
2020-05-21 14:55:48.761732-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::keyPressed = 27186693144
2020-05-21 14:55:48.883080-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::keyPressed = 27308038148
2020-05-21 14:55:48.970061-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::keyPressed = 27395013320
2020-05-21 14:55:49.000024-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::keyPressed = 27424980825
2020-05-21 14:55:49.077275-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::keyPressed = 27502232567
2020-05-21 14:55:49.159003-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::keyPressed = 27583955005
2020-05-21 14:55:49.210455-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::keyPressed = 27635412985
2020-05-21 14:55:49.255236-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::keyPressed = 27680191834
2020-05-21 14:55:49.264888-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::keyPressed = 27689834436
2020-05-21 14:55:49.304708-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::keyPressed = 27729664805
2020-05-21 14:55:49.338760-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::keyPressed = 27763700598
2020-05-21 14:55:49.448435-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::keyPressed = 27873396383
2020-05-21 14:55:49.527781-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::keyPressed = 27952734528
2020-05-21 14:55:55.959018-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::keyPressed = 34383983530
2020-05-21 14:55:56.066352-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::keyPressed = 34491312851
2020-05-21 14:55:56.183680-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::keyPressed = 34608638534
2020-05-21 14:55:56.267419-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::keyPressed = 34692349831
2020-05-21 14:55:56.381075-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::keyPressed = 34806035229
2020-05-21 14:55:56.486314-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::keyPressed = 34911268685
2020-05-21 14:55:56.972668-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::keyPressed = 35397613199
2020-05-21 14:55:57.087575-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::keyPressed = 35512530512
2020-05-21 14:55:58.934550-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::keyPressed = 37359508566
2020-05-21 14:55:59.005985-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::keyPressed = 37430936668
2020-05-21 14:56:06.666526-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::keyPressed = 45091456190
2020-05-21 14:56:06.740805-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::keyPressed = 45165767186
2020-05-21 14:56:07.017884-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::keyPressed = 45442834871
2020-05-21 14:56:07.081749-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::keyPressed = 45506695299
2020-05-21 14:56:21.029518-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::keyPressed = 59454477455
2020-05-21 14:56:21.152433-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::keyPressed = 59577396763
2020-05-21 14:56:21.492406-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::keyPressed = 59917326048
2020-05-21 14:56:21.630793-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::keyPressed = 60055758160
2020-05-21 14:56:23.102066-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::keyPressed = 61527021830
2020-05-21 14:56:23.215195-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::keyPressed = 61640125199
2020-05-21 14:56:23.402960-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::keyPressed = 61827876295

fewtarius on 21 May 2020

@fewtarius have you built with the latest VoodooGPIO? You will need to first update the submodule to its upstream master manually.

Goshin on 21 May 2020

git pull --recursive won't grab it? Did not know that, let me test.

fewtarius on 21 May 2020

Well this is interesting, updated the submodules from upstream master and on reboot I don't have any input at all from the touchpad or display.

$ log show --last boot --predicate 'process == "kernel" AND (eventMessage CONTAINS "VoodooI2C" OR eventMessage CONTAINS "VoodooGPIO")' --style syslog --source
Filtering the log data using "process == "kernel" AND (composedMessage CONTAINS "VoodooI2C" OR composedMessage CONTAINS "VoodooGPIO")"
Skipping info and debug messages, pass --info and/or --debug to include.
Timestamp                       (process)[PID]
2020-05-21 15:19:50.707188-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::Loading GPIO Data for CannonLake-LP
2020-05-21 15:19:50.707195-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Init!
2020-05-21 15:19:50.707197-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Initializing Community 0
2020-05-21 15:19:50.707235-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Initializing Community 1
2020-05-21 15:19:50.707265-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Initializing Community 2
2020-05-21 15:19:56.379252-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CHIDDevice::MSFT0001 Timeout waiting for device to complete host initiated reset
2020-05-21 15:19:57.109074-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::MSFT0001 Putting device into Precision Touchpad Mode
2020-05-21 15:19:57.119865-0400  localhost kernel[0]: (VoodooPS2Controller) ApplePS2Controller: Notification consumer published: VoodooI2CPrecisionTouchpadHIDEventDriver
2020-05-21 15:19:58.194860-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CTouchscreenHIDEventDriver::Got active display
2020-05-21 15:19:58.194871-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CTouchscreenHIDEventDriver::Got active framebuffer
2020-05-21 15:20:04.799570-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::setProperties USBMouseStopsTrackpad = 0
2020-05-21 15:20:04.801376-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CTouchscreenHIDEventDriver::setProperties USBMouseStopsTrackpad = 0
2020-05-21 15:20:29.046632-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::keyPressed = 39785349023
2020-05-21 15:20:29.121329-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::keyPressed = 39860206672
2020-05-21 15:20:29.451682-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::keyPressed = 40190556593
2020-05-21 15:20:29.565729-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::keyPressed = 40304572473
2020-05-21 15:20:31.370575-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::keyPressed = 42109445219

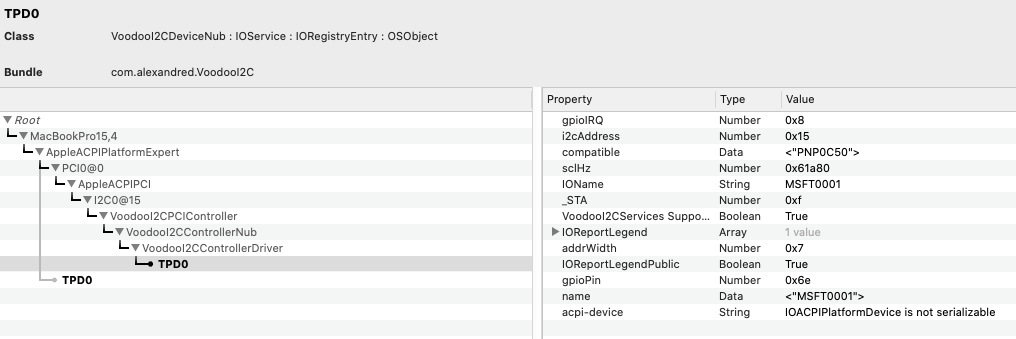

Screen Shot 2020-05-21 at 3 22 11 PM

fewtarius on 21 May 2020

@fewtarius can you confirm with this build?
Archive.zip

Goshin on 21 May 2020

Confirmed, my touchpad and touch display do not work with that build. I also had a couple of KPs starting up. I'm not keeping debug symbols at the moment, I'll fix that and see if I can get more data.

panic(cpu 0 caller 0xffffff800e64c33a): Kernel trap at 0xffffff7f9274e496, type 14=page fault, registers:
CR0: 0x000000008001003b, CR2: 0x0000000000000000, CR3: 0x0000000024a14000, CR4: 0x00000000003626e0
RAX: 0x0000000000000000, RBX: 0xffffff803370fe00, RCX: 0xffffff800f088138, RDX: 0x0000000000000001
RSP: 0xffffff812d0fbd10, RBP: 0xffffff812d0fbd30, RSI: 0xffffff800f0232b8, RDI: 0x0000000000000000
R8:  0x0000000000000001, R9:  0x0000000000000004, R10: 0x0000000000000001, R11: 0x0000000000000000
R12: 0xffffff7f927553eb, R13: 0xffffff812d0fbd48, R14: 0x00000001edbcb1e3, R15: 0x0000000000010101
RFL: 0x0000000000010246, RIP: 0xffffff7f9274e496, CS:  0x0000000000000008, SS:  0x0000000000000000
Fault CR2: 0x0000000000000000, Error code: 0x0000000000000000, Fault CPU: 0x0, PL: 0, VF: 1

Backtrace (CPU 0), Frame : Return Address
0xffffff812d0fb770 : 0xffffff800e5215cd
0xffffff812d0fb7c0 : 0xffffff800e65a405
0xffffff812d0fb800 : 0xffffff800e64bf8e
0xffffff812d0fb850 : 0xffffff800e4c7a40
0xffffff812d0fb870 : 0xffffff800e520c97
0xffffff812d0fb970 : 0xffffff800e521087
0xffffff812d0fb9c0 : 0xffffff800ecc2d8c
0xffffff812d0fba30 : 0xffffff800e64c33a
0xffffff812d0fbbb0 : 0xffffff800e64c038
0xffffff812d0fbc00 : 0xffffff800e4c7a40
0xffffff812d0fbc20 : 0xffffff7f9274e496
0xffffff812d0fbd30 : 0xffffff7f9274f600
0xffffff812d0fbd80 : 0xffffff7f8f2eb5a0
0xffffff812d0fbe10 : 0xffffff7f8f2ea3ad
0xffffff812d0fbe50 : 0xffffff7f92752dc2
0xffffff812d0fbe80 : 0xffffff800ec303a5
0xffffff812d0fbee0 : 0xffffff800ec2ec7d
0xffffff812d0fbf30 : 0xffffff800ec2d54e
0xffffff812d0fbf70 : 0xffffff800ec2cb46
0xffffff812d0fbfa0 : 0xffffff800e4c713e
      Kernel Extensions in backtrace:
         com.apple.iokit.IOHIDFamily(2.0)[F3387125-6876-392D-9FE9-A973FD9763A0]@0xffffff7f8f2da000->0xffffff7f8f379fff
            dependency: com.apple.iokit.IOReportFamily(47)[28F06131-E9AB-3980-9175-6B4EAB4326EE]@0xffffff7f8f2d3000
         com.alexandred.VoodooI2CHID(1.0)[26ED2D8B-D846-38F9-BC08-C402D658D57E]@0xffffff7f9274c000->0xffffff7f9275efff
            dependency: com.alexandred.VoodooI2C(2.4.2)[A186B93A-7992-3199-9CD8-7EBAB462C9D6]@0xffffff7f92710000
            dependency: com.apple.iokit.IOACPIFamily(1.4)[2F2C33C8-2BFA-3490-9ACC-1C41AC87BC9A]@0xffffff7f8f64c000
            dependency: com.apple.iokit.IOHIDFamily(2.0.0)[F3387125-6876-392D-9FE9-A973FD9763A0]@0xffffff7f8f2da000

BSD process name corresponding to current thread: kernel_task

Mac OS version:
19E2269

Kernel version:
Darwin Kernel Version 19.4.0: Wed Mar  4 22:47:48 PST 2020; root:xnu-6153.101.6~16/RELEASE_X86_64
Kernel UUID: 7559A1A8-B300-3BC5-900F-5ED91F3197C7
Kernel slide:     0x000000000e200000
Kernel text base: 0xffffff800e400000
__HIB  text base: 0xffffff800e300000
System model name: MacBookPro15,4 (Mac-53FDB3D8DB8CA971)
System shutdown begun: NO
Panic diags file available: YES (0x0)

System uptime in nanoseconds: 8283727068

Logs:

$ !log
log show --last boot --predicate 'process == "kernel" AND (eventMessage CONTAINS "VoodooI2C" OR eventMessage CONTAINS "VoodooGPIO")' --style syslog --source
Filtering the log data using "process == "kernel" AND (composedMessage CONTAINS "VoodooI2C" OR composedMessage CONTAINS "VoodooGPIO")"
Skipping info and debug messages, pass --info and/or --debug to include.
Timestamp                       (process)[PID]
2020-05-21 15:39:20.655672-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::Loading GPIO Data for CannonLake-LP
2020-05-21 15:39:20.655680-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Init!
2020-05-21 15:39:20.655684-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Initializing Community 0
2020-05-21 15:39:20.655751-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Initializing Community 1
2020-05-21 15:39:20.655779-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Initializing Community 2
2020-05-21 15:39:26.494055-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CHIDDevice::MSFT0001 Timeout waiting for device to complete host initiated reset
2020-05-21 15:39:26.646307-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::MSFT0001 Putting device into Precision Touchpad Mode
2020-05-21 15:39:26.657383-0400  localhost kernel[0]: (VoodooPS2Controller) ApplePS2Controller: Notification consumer published: VoodooI2CPrecisionTouchpadHIDEventDriver
2020-05-21 15:39:27.012515-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CTouchscreenHIDEventDriver::Got active display
2020-05-21 15:39:27.012523-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CTouchscreenHIDEventDriver::Got active framebuffer
2020-05-21 15:39:33.689443-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CTouchscreenHIDEventDriver::setProperties USBMouseStopsTrackpad = 0
2020-05-21 15:39:33.689553-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::setProperties USBMouseStopsTrackpad = 0

fewtarius on 21 May 2020

@fewtarius can you provide your current ioreg?

Goshin on 21 May 2020

Attached.

slartibartfast.zip

fewtarius on 21 May 2020

Cannot seem to recreate that panic, but I'll leave keepsyms=1 until I can.

fewtarius on 21 May 2020

Here's an IOReg from the display being in polling mode. Interestingly your kexts work fine if the touchpad is in GPIO mode, and the display is in polling mode.

slartibartfast.zip

fewtarius on 21 May 2020

@fewtarius can you provide the log of loading kext with kextload? The logs above are incomplete.

Goshin on 21 May 2020

Display not pinned.

slartibartfast:Archive # kextutil VoodooI2C.kext/
Kext with invalid signature (-67050) allowed: <OSKext 0x7f903d430f60 [0x7fff8c4978c0]> { URL = "file:///Users/fewtarius/Downloads/Archive/VoodooI2C.kext/", ID = "com.alexandred.VoodooI2C" }
Kext with invalid signature (-67050) allowed: <OSKext 0x7f903d605c80 [0x7fff8c4978c0]> { URL = "file:///Users/fewtarius/Downloads/Archive/VoodooI2C.kext/Contents/PlugIns/VoodooI2CServices.kext/", ID = "com.alexandred.VoodooI2CServices" }
Kext with invalid signature (-67050) allowed: <OSKext 0x7f903d508520 [0x7fff8c4978c0]> { URL = "file:///Users/fewtarius/Downloads/Archive/VoodooI2C.kext/Contents/PlugIns/VoodooGPIO.kext/", ID = "org.coolstar.VoodooGPIO" }
Code Signing Failure: code signature is invalid
Warnings:
    Personality CFBundleIdentifier differs from containing kext's (not necessarily a mistake, but rarely done):
        Custom MT2 Personality

Warnings:
    Personality CFBundleIdentifier differs from containing kext's (not necessarily a mistake, but rarely done):
        Custom MT2 Personality

Disabling KextAudit: SIP is off
Invalid signature -67050 for kext <OSKext 0x7f903d430f60 [0x7fff8c4978c0]> { URL = "file:///Users/fewtarius/Downloads/Archive/VoodooI2C.kext/", ID = "com.alexandred.VoodooI2C" }
slartibartfast:Archive # kextutil VoodooI2CHID.kext
Kext with invalid signature (-67050) allowed: <OSKext 0x7fb6d8c30f60 [0x7fff8c4978c0]> { URL = "file:///Users/fewtarius/Downloads/Archive/VoodooI2CHID.kext/", ID = "com.alexandred.VoodooI2CHID" }
/Users/fewtarius/Downloads/Archive/VoodooI2CHID.kext - dependency 'com.alexandred.VoodooI2C' not found.
/Users/fewtarius/Downloads/Archive/VoodooI2CHID.kext - dependency 'com.alexandred.VoodooI2C' not found.
/Users/fewtarius/Downloads/Archive/VoodooI2CHID.kext - dependency 'com.alexandred.VoodooI2C' not found.
Code Signing Failure: code signature is invalid
Dependency Resolution Failures:
    No kexts found for these libraries:
        com.alexandred.VoodooI2C

Diagnostics for /Users/fewtarius/Downloads/Archive/VoodooI2CHID.kext:
Dependency Resolution Failures:
    No kexts found for these libraries:
        com.alexandred.VoodooI2C

slartibartfast:Archive #

slartibartfast:Archive # !log
log show --last boot --predicate 'process == "kernel" AND (eventMessage CONTAINS "VoodooI2C" OR eventMessage CONTAINS "VoodooGPIO")' --style syslog --source
Filtering the log data using "process == "kernel" AND (composedMessage CONTAINS "VoodooI2C" OR composedMessage CONTAINS "VoodooGPIO")"
Skipping info and debug messages, pass --info and/or --debug to include.
Timestamp                       (process)[PID]
2020-05-21 16:22:54.549094-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::Loading GPIO Data for CannonLake-LP
2020-05-21 16:22:54.549108-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Init!
2020-05-21 16:22:54.549111-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Initializing Community 0
2020-05-21 16:22:54.549177-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Initializing Community 1
2020-05-21 16:22:54.549228-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Initializing Community 2
2020-05-21 16:22:54.549696-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e9 Starting I2C controller
2020-05-21 16:22:54.549762-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e8 Starting I2C controller
2020-05-21 16:22:54.549940-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e8 Set PCI power state D0
2020-05-21 16:22:54.549942-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e9 Set PCI power state D0
2020-05-21 16:22:54.549947-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e9 Current CPU is Comet Lake, patching...
2020-05-21 16:22:54.549949-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e8 Current CPU is Comet Lake, patching...
2020-05-21 16:22:54.549961-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e8 Successfully patched!
2020-05-21 16:22:54.549963-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e9 Successfully patched!
2020-05-21 16:22:54.549992-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::GPIO Controller is already awake! Not reinitializing.
2020-05-21 16:22:54.549994-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e8 Publishing nub
2020-05-21 16:22:54.550011-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e9 Publishing nub
2020-05-21 16:22:54.550706-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e9 Probing controller
2020-05-21 16:22:54.550713-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e9 Found valid Synopsys component, continuing with initialisation
2020-05-21 16:22:54.550872-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e8 Probing controller
2020-05-21 16:22:54.550880-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e8 Found valid Synopsys component, continuing with initialisation
2020-05-21 16:22:54.551308-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e9 Got bus configuration values
2020-05-21 16:22:54.551312-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e8 Got bus configuration values
2020-05-21 16:22:54.551328-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e8 Publishing device nubs
2020-05-21 16:22:54.551335-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e8 Found I2C device: MSFT0001
2020-05-21 16:22:54.551341-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e9 Publishing device nubs
2020-05-21 16:22:54.551348-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e9 Found I2C device: WCOM51EF
2020-05-21 16:22:54.551440-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CDeviceNub::Got GPIO Controller! VoodooGPIOCannonLakeLP
2020-05-21 16:22:54.551588-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::VoodooI2CDeviceNub Warning: Incompatible APIC interrupt pin (0x70 > 0x2f) and no GPIO interrupts found; if your chosen satellite implements polling then VoodooI2CDeviceNub will run in polling mode.

Will reboot now with it pinned (have two).

fewtarius on 21 May 2020

sudo kextload -d VoodooI2C.kext VoodooI2CHID.kext

Goshin on 21 May 2020

oof, thanks. With pinning:

lartibartfast:Archive $ sudo kextload -d VoodooI2C.kext VoodooI2CHID.kext
Password:
slartibartfast:Archive $ !log
log show --last boot --predicate 'process == "kernel" AND (eventMessage CONTAINS "VoodooI2C" OR eventMessage CONTAINS "VoodooGPIO")' --style syslog --source
Filtering the log data using "process == "kernel" AND (composedMessage CONTAINS "VoodooI2C" OR composedMessage CONTAINS "VoodooGPIO")"
Skipping info and debug messages, pass --info and/or --debug to include.
Timestamp                       (process)[PID]
2020-05-21 16:32:12.784120-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::Loading GPIO Data for CannonLake-LP
2020-05-21 16:32:12.784150-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Init!
2020-05-21 16:32:12.784159-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Initializing Community 0
2020-05-21 16:32:12.784263-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Initializing Community 1
2020-05-21 16:32:12.784334-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Initializing Community 2
2020-05-21 16:32:12.785733-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e8 Starting I2C controller
2020-05-21 16:32:12.785735-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e9 Starting I2C controller
2020-05-21 16:32:12.786265-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e8 Set PCI power state D0
2020-05-21 16:32:12.786276-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e9 Set PCI power state D0
2020-05-21 16:32:12.786277-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e8 Current CPU is Comet Lake, patching...
2020-05-21 16:32:12.786291-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e9 Current CPU is Comet Lake, patching...
2020-05-21 16:32:12.786294-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e8 Successfully patched!
2020-05-21 16:32:12.786309-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e9 Successfully patched!
2020-05-21 16:32:12.786344-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e8 Publishing nub
2020-05-21 16:32:12.786378-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e9 Publishing nub
2020-05-21 16:32:12.786442-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::GPIO Controller is already awake! Not reinitializing.
2020-05-21 16:32:12.787461-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e9 Probing controller
2020-05-21 16:32:12.787475-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e9 Found valid Synopsys component, continuing with initialisation
2020-05-21 16:32:12.788142-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e9 Got bus configuration values
2020-05-21 16:32:12.788314-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e9 Publishing device nubs
2020-05-21 16:32:12.788331-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e9 Found I2C device: WCOM51EF
2020-05-21 16:32:12.788422-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e8 Probing controller
2020-05-21 16:32:12.788435-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e8 Found valid Synopsys component, continuing with initialisation
2020-05-21 16:32:12.789447-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CDeviceNub::Got GPIO Controller! VoodooGPIOCannonLakeLP
2020-05-21 16:32:12.789449-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e8 Got bus configuration values
2020-05-21 16:32:12.789486-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e8 Publishing device nubs
2020-05-21 16:32:12.789498-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e8 Found I2C device: MSFT0001
2020-05-21 16:32:12.789841-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CDeviceNub::Got GPIO Controller! VoodooGPIOCannonLakeLP
2020-05-21 16:32:13.292112-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::Registering hardware pin 0x52 for GPIO IRQ pin 0x6E
2020-05-21 16:32:13.292120-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::Successfully registered hardware pin 0x52 for GPIO IRQ pin 0x6E
2020-05-21 16:32:13.292143-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::Registering hardware pin 0x54 for GPIO IRQ pin 0x70
2020-05-21 16:32:13.292154-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::Successfully registered hardware pin 0x54 for GPIO IRQ pin 0x70
2020-05-21 16:32:13.397296-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CHIDDevice::WCOM51EF Device initiated reset accomplished
2020-05-21 16:32:13.561443-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CTouchscreenHIDEventDriver::Got active display
2020-05-21 16:32:13.561453-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CTouchscreenHIDEventDriver::Got active framebuffer
2020-05-21 16:32:13.574138-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CTouchscreenHIDEventDriver::setProperties USBMouseStopsTrackpad = 0
slartibartfast:Archive $

fewtarius on 21 May 2020

With the alternate display pin:

slartibartfast:Archive $ sudo kextload -d VoodooI2C.kext VoodooI2CHID.kext
Password:
slartibartfast:Archive $ log show --last boot --predicate 'process == "kernel" AND (eventMessage CONTAINS "VoodooI2C" OR eventMessage CONTAINS "VoodooGPIO")' --style syslog --source
Filtering the log data using "process == "kernel" AND (composedMessage CONTAINS "VoodooI2C" OR composedMessage CONTAINS "VoodooGPIO")"
Skipping info and debug messages, pass --info and/or --debug to include.
Timestamp                       (process)[PID]
2020-05-21 16:40:25.396260-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::Loading GPIO Data for CannonLake-LP
2020-05-21 16:40:25.396290-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Init!
2020-05-21 16:40:25.396298-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Initializing Community 0
2020-05-21 16:40:25.396396-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Initializing Community 1
2020-05-21 16:40:25.396458-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Initializing Community 2
2020-05-21 16:40:25.397857-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e9 Starting I2C controller
2020-05-21 16:40:25.397859-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e8 Starting I2C controller
2020-05-21 16:40:25.398336-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e9 Set PCI power state D0
2020-05-21 16:40:25.398355-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e9 Current CPU is Comet Lake, patching...
2020-05-21 16:40:25.398373-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e9 Successfully patched!
2020-05-21 16:40:25.398396-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e8 Set PCI power state D0
2020-05-21 16:40:25.398407-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e8 Current CPU is Comet Lake, patching...
2020-05-21 16:40:25.398422-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e9 Publishing nub
2020-05-21 16:40:25.398424-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e8 Successfully patched!
2020-05-21 16:40:25.398479-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e8 Publishing nub
2020-05-21 16:40:25.398630-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::GPIO Controller is already awake! Not reinitializing.
2020-05-21 16:40:25.399555-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e9 Probing controller
2020-05-21 16:40:25.399568-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e9 Found valid Synopsys component, continuing with initialisation
2020-05-21 16:40:25.399701-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e8 Probing controller
2020-05-21 16:40:25.399715-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e8 Found valid Synopsys component, continuing with initialisation
2020-05-21 16:40:25.400649-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e9 Got bus configuration values
2020-05-21 16:40:25.400766-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e9 Publishing device nubs
2020-05-21 16:40:25.400784-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e9 Found I2C device: WCOM51EF
2020-05-21 16:40:25.400943-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e8 Got bus configuration values
2020-05-21 16:40:25.400991-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e8 Publishing device nubs
2020-05-21 16:40:25.401007-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e8 Found I2C device: MSFT0001
2020-05-21 16:40:25.401830-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CDeviceNub::Got GPIO Controller! VoodooGPIOCannonLakeLP
2020-05-21 16:40:25.401841-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CDeviceNub::Got GPIO Controller! VoodooGPIOCannonLakeLP
2020-05-21 16:40:25.904363-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::Registering hardware pin 0x54 for GPIO IRQ pin 0x70
2020-05-21 16:40:25.904375-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::Successfully registered hardware pin 0x54 for GPIO IRQ pin 0x70
2020-05-21 16:40:25.904433-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::Registering hardware pin 0x52 for GPIO IRQ pin 0x6E
2020-05-21 16:40:25.904445-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::Successfully registered hardware pin 0x52 for GPIO IRQ pin 0x6E
2020-05-21 16:40:26.009733-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CHIDDevice::WCOM51EF Device initiated reset accomplished
2020-05-21 16:40:26.173500-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CTouchscreenHIDEventDriver::Got active display
2020-05-21 16:40:26.173522-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CTouchscreenHIDEventDriver::Got active framebuffer
2020-05-21 16:40:26.191099-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CTouchscreenHIDEventDriver::setProperties USBMouseStopsTrackpad = 0
2020-05-21 16:40:32.006278-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CHIDDevice::MSFT0001 Timeout waiting for device to complete host initiated reset
2020-05-21 16:40:32.156121-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::MSFT0001 Putting device into Precision Touchpad Mode
2020-05-21 16:40:32.168155-0400  localhost kernel[0]: (VoodooPS2Controller) ApplePS2Controller: Notification consumer published: VoodooI2CPrecisionTouchpadHIDEventDriver
2020-05-21 16:40:32.170965-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::setProperties USBMouseStopsTrackpad = 0
slartibartfast:Archive $

fewtarius on 21 May 2020

Hmm, it doesn't look like it's using the alternate pin.

            Name (SBFG, ResourceTemplate ()
            {
                GpioInt (Level, ActiveLow, Exclusive, PullDefault, 0x0000,
                    "\\_SB.PCI0.GPI0", 0x00, ResourceConsumer, ,
                    )
                    {   // Pin list
                        0x8600
                    }
            })

fewtarius on 21 May 2020

@fewtarius so you got the problem since v2.4.2? I am not 100% sure about the cause. Plz try this one.
Archive.zip

Goshin on 21 May 2020

I'm pretty sure it was working fine on 2.4.2 but it's possible that it wasn't using GPIO on the display. After I get these logs, I'll go test that.

I got a KP as soon as I loaded the kexts:

panic(cpu 0 caller 0xffffff800ec4c33a): Kernel trap at 0xffffff800f22f3bd, type 14=page fault, registers:
CR0: 0x000000008001003b, CR2: 0x0000000000000000, CR3: 0x0000000024f2d000, CR4: 0x00000000003626e0
RAX: 0xffffff804767c030, RBX: 0xffffff803c238300, RCX: 0xffffff803bf9ac00, RDX: 0x0000000000000000
RSP: 0xffffff8102635e50, RBP: 0xffffff8102635e60, RSI: 0x0000000000000000, RDI: 0x0000000000000000
R8:  0x0000000000000120, R9:  0xffffff7f92cba600, R10: 0x0000000000000088, R11: 0x0000000000000001
R12: 0xffffff9144c46000, R13: 0x0000000000004000, R14: 0x0000000000000000, R15: 0x000000000000000e
RFL: 0x0000000000010002, RIP: 0xffffff800f22f3bd, CS:  0x0000000000000008, SS:  0x0000000000000000
Fault CR2: 0x0000000000000000, Error code: 0x0000000000000000, Fault CPU: 0x0, PL: 1, VF: 5

Backtrace (CPU 0), Frame : Return Address
0xffffff81026358b0 : 0xffffff800eb215cd mach_kernel : _handle_debugger_trap + 0x49d
0xffffff8102635900 : 0xffffff800ec5a405 mach_kernel : _kdp_i386_trap + 0x155
0xffffff8102635940 : 0xffffff800ec4bf8e mach_kernel : _kernel_trap + 0x4ee
0xffffff8102635990 : 0xffffff800eac7a40 mach_kernel : _return_from_trap + 0xe0
0xffffff81026359b0 : 0xffffff800eb20c97 mach_kernel : _DebuggerTrapWithState + 0x17
0xffffff8102635ab0 : 0xffffff800eb21087 mach_kernel : _panic_trap_to_debugger + 0x227
0xffffff8102635b00 : 0xffffff800f2c2d8c mach_kernel : _panic + 0x54
0xffffff8102635b70 : 0xffffff800ec4c33a mach_kernel : _sync_iss_to_iks + 0x2aa
0xffffff8102635cf0 : 0xffffff800ec4c038 mach_kernel : _kernel_trap + 0x598
0xffffff8102635d40 : 0xffffff800eac7a40 mach_kernel : _return_from_trap + 0xe0
0xffffff8102635d60 : 0xffffff800f22f3bd mach_kernel : __ZN22IOInterruptEventSource24disableInterruptOccurredEPvP9IOServicei + 0x7d
0xffffff8102635e60 : 0xffffff7f92cb13fe org.coolstar.VoodooGPIO : __ZN10VoodooGPIO26intel_gpio_pin_irq_handlerEj + 0x96
0xffffff8102635ea0 : 0xffffff7f92cb16bb org.coolstar.VoodooGPIO : __ZN10VoodooGPIO17InterruptOccurredEPvP9IOServicei + 0x65
0xffffff8102635ed0 : 0xffffff800f251ea3 mach_kernel : __ZN27IOSharedInterruptController15handleInterruptEPvP9IOServicei + 0x153
0xffffff8102635f10 : 0xffffff7f9281da9d com.apple.driver.AppleAPIC : __ZN28AppleAPICInterruptController15handleInterruptEPvP9IOServicei + 0x11b
0xffffff8102635f50 : 0xffffff7f9181888c com.apple.driver.AppleACPIPlatform : __ZN23AppleACPIPlatformExpert23dispatchGlobalInterruptEi + 0x2e
0xffffff8102635f60 : 0xffffff7f91821547 com.apple.driver.AppleACPIPlatform : __ZN31AppleACPICPUInterruptController15handleInterruptEPvP9IOServicei + 0x6b
0xffffff8102635f80 : 0xffffff800ec4b7dd mach_kernel : _interrupt + 0x17d
0xffffff8102635fd0 : 0xffffff800eac7bed mach_kernel : _hndl_allintrs + 0x11d
0xffffff81228d39a0 : 0xffffff800eb78de1 mach_kernel : _zalloc_async + 0x5f1
0xffffff81228d3ad0 : 0xffffff800eb2e4b4 mach_kernel : _kalloc_canblock + 0xa4
0xffffff81228d3b40 : 0xffffff800f197757 mach_kernel : __ZN8OSObjectnwEm + 0x27
0xffffff81228d3b70 : 0xffffff800f1b5a5a mach_kernel : __ZN8OSNumber10withNumberEyj + 0x1a
0xffffff81228d3ba0 : 0xffffff800f269220 mach_kernel : __ZN10IOReporter18handleCreateLegendEv + 0x50
0xffffff81228d3bd0 : 0xffffff800f26dc88 mach_kernel : __ZN14IOReportLegend17addReporterLegendEP10IOReporterPKcS3_ + 0x38
0xffffff81228d3c10 : 0xffffff800f210ff6 mach_kernel : __ZN9IOService22addInterruptStatisticsEP25IOInterruptAccountingDatai + 0x2e6
0xffffff81228d3cb0 : 0xffffff800f22f13c mach_kernel : __ZN22IOInterruptEventSource4initEP8OSObjectPFvS1_PS_iEP9IOServicei + 0x14c
0xffffff81228d3cf0 : 0xffffff800f22fb94 mach_kernel : __ZN22IOInterruptEventSource20interruptEventSourceEP8OSObjectPFvS1_PS_iEP9IOServicei + 0x74
0xffffff81228d3d30 : 0xffffff7f92cf585c com.alexandred.VoodooI2CHID : __ZN18VoodooI2CHIDDevice11handleStartEP9IOService + 0x112
0xffffff81228d3d50 : 0xffffff7f8f8e794d com.apple.iokit.IOHIDFamily : __ZN11IOHIDDevice5startEP9IOService + 0x16d
0xffffff81228d3dc0 : 0xffffff7f92cf5a48 com.alexandred.VoodooI2CHID : __ZN18VoodooI2CHIDDevice5startEP9IOService + 0x16
0xffffff81228d3de0 : 0xffffff800f208d16 mach_kernel : __ZN9IOService14startCandidateEPS_ + 0xf6
0xffffff81228d3e40 : 0xffffff800f208851 mach_kernel : __ZN9IOService15probeCandidatesEP12OSOrderedSet + 0xad1
0xffffff81228d3ef0 : 0xffffff800f207bee mach_kernel : __ZN9IOService14doServiceMatchEj + 0x2de
0xffffff81228d3f50 : 0xffffff800f20a3a6 mach_kernel : __ZN15_IOConfigThread4mainEPvi + 0x186
0xffffff81228d3fa0 : 0xffffff800eac713e mach_kernel : _call_continuation + 0x2e
      Kernel Extensions in backtrace:
         com.apple.driver.AppleACPIPlatform(6.1)[46E73EAB-914F-37FF-9DBF-AD27EF57CDEE]@0xffffff7f91811000->0xffffff7f918abfff
            dependency: com.apple.iokit.IOACPIFamily(1.4)[2F2C33C8-2BFA-3490-9ACC-1C41AC87BC9A]@0xffffff7f8fc4c000
            dependency: com.apple.iokit.IOPCIFamily(2.9)[6F96761B-C218-30A8-BECC-1EAD32E53D47]@0xffffff7f8f531000
            dependency: com.apple.driver.AppleSMC(3.1.9)[08211E73-BC69-3541-8240-AD3FADB3A982]@0xffffff7f8fc5e000
         com.apple.driver.AppleAPIC(1.7)[DDAEF045-01A0-3B1E-99E7-F5B883F92B0A]@0xffffff7f9281c000->0xffffff7f92820fff
            dependency: com.apple.iokit.IOPCIFamily(2.9)[6F96761B-C218-30A8-BECC-1EAD32E53D47]@0xffffff7f8f531000
         com.apple.iokit.IOHIDFamily(2.0)[F3387125-6876-392D-9FE9-A973FD9763A0]@0xffffff7f8f8da000->0xffffff7f8f979fff
            dependency: com.apple.iokit.IOReportFamily(47)[28F06131-E9AB-3980-9175-6B4EAB4326EE]@0xffffff7f8f8d3000
         org.coolstar.VoodooGPIO(1.1)[C7E5EEBA-B988-3726-ADBC-21B673E84670]@0xffffff7f92cae000->0xffffff7f92cc4fff
            dependency: com.apple.iokit.IOACPIFamily(1.4)[2F2C33C8-2BFA-3490-9ACC-1C41AC87BC9A]@0xffffff7f8fc4c000
         com.alexandred.VoodooI2CHID(1.0)[4424DD39-BE91-38A5-A30F-8068754C971D]@0xffffff7f92cee000->0xffffff7f92d11fff
            dependency: com.apple.iokit.IOHIDFamily(2.0.0)[F3387125-6876-392D-9FE9-A973FD9763A0]@0xffffff7f8f8da000
            dependency: com.alexandred.VoodooI2C(2.4.2)[A186B93A-7992-3199-9CD8-7EBAB462C9D6]@0xffffff7f92cc5000
            dependency: com.apple.iokit.IOACPIFamily(1.4)[2F2C33C8-2BFA-3490-9ACC-1C41AC87BC9A]@0xffffff7f8fc4c000

BSD process name corresponding to current thread: kernel_task
Boot args: keepsyms=1

Mac OS version:
19E2269

Kernel version:
Darwin Kernel Version 19.4.0: Wed Mar  4 22:47:48 PST 2020; root:xnu-6153.101.6~16/RELEASE_X86_64
Kernel UUID: 7559A1A8-B300-3BC5-900F-5ED91F3197C7
Kernel slide:     0x000000000e800000
Kernel text base: 0xffffff800ea00000
__HIB  text base: 0xffffff800e900000
System model name: MacBookPro15,4 (Mac-53FDB3D8DB8CA971)
System shutdown begun: NO
Panic diags file available: YES (0x0)

System uptime in nanoseconds: 67895365058

fewtarius on 21 May 2020

After the panic reboot the kexts loaded ok:

slartibartfast:Archive-2 $ sudo kextload -d VoodooI2C.kext VoodooI2CHID.kext
Password:
slartibartfast:Archive-2 $ log show --last boot --predicate 'process == "kernel" AND (eventMessage CONTAINS "VoodooI2C" OR eventMessage CONTAINS "VoodooGPIO")' --style syslog --source
Filtering the log data using "process == "kernel" AND (composedMessage CONTAINS "VoodooI2C" OR composedMessage CONTAINS "VoodooGPIO")"
Skipping info and debug messages, pass --info and/or --debug to include.
Timestamp                       (process)[PID]
2020-05-21 16:54:32.042310-0400  localhost kernel[0]: (VoodooGPIO) <VoodooGPIO`VoodooGPIOCannonLakeLP::start(IOService*)> VoodooGPIOCannonLakeLP::Loading GPIO Data for CannonLake-LP
2020-05-21 16:54:32.042325-0400  localhost kernel[0]: (VoodooGPIO) <VoodooGPIO`VoodooGPIO::start(IOService*)> VoodooGPIOCannonLakeLP::VoodooGPIO Init!
2020-05-21 16:54:32.042328-0400  localhost kernel[0]: (VoodooGPIO) <VoodooGPIO`VoodooGPIO::start(IOService*)> VoodooGPIOCannonLakeLP::VoodooGPIO Initializing Community 0
2020-05-21 16:54:32.042407-0400  localhost kernel[0]: (VoodooGPIO) <VoodooGPIO`VoodooGPIO::start(IOService*)> VoodooGPIOCannonLakeLP::VoodooGPIO Initializing Community 1
2020-05-21 16:54:32.042457-0400  localhost kernel[0]: (VoodooGPIO) <VoodooGPIO`VoodooGPIO::start(IOService*)> VoodooGPIOCannonLakeLP::VoodooGPIO Initializing Community 2
2020-05-21 16:54:32.042928-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e8 Starting I2C controller
2020-05-21 16:54:32.042981-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e9 Starting I2C controller
2020-05-21 16:54:32.043222-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e9 Set PCI power state D0
2020-05-21 16:54:32.043227-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e8 Set PCI power state D0
2020-05-21 16:54:32.043228-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e9 Current CPU is Comet Lake, patching...
2020-05-21 16:54:32.043232-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e8 Current CPU is Comet Lake, patching...
2020-05-21 16:54:32.043239-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e9 Successfully patched!
2020-05-21 16:54:32.043239-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e8 Successfully patched!
2020-05-21 16:54:32.043261-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e8 Publishing nub
2020-05-21 16:54:32.043273-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e9 Publishing nub
2020-05-21 16:54:32.043410-0400  localhost kernel[0]: (VoodooGPIO) <VoodooGPIO`VoodooGPIO::setPowerState(unsigned long, IOService*)> VoodooGPIOCannonLakeLP::GPIO Controller is already awake! Not reinitializing.
2020-05-21 16:54:32.043868-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e9 Probing controller
2020-05-21 16:54:32.043875-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e9 Found valid Synopsys component, continuing with initialisation
2020-05-21 16:54:32.043923-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e8 Probing controller
2020-05-21 16:54:32.043930-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e8 Found valid Synopsys component, continuing with initialisation
2020-05-21 16:54:32.044416-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e9 Got bus configuration values
2020-05-21 16:54:32.044430-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e8 Got bus configuration values
2020-05-21 16:54:32.044446-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e8 Publishing device nubs
2020-05-21 16:54:32.044448-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e9 Publishing device nubs
2020-05-21 16:54:32.044454-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e9 Found I2C device: WCOM51EF
2020-05-21 16:54:32.044456-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e8 Found I2C device: MSFT0001
2020-05-21 16:54:32.044858-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CDeviceNub::Got GPIO Controller! VoodooGPIOCannonLakeLP
2020-05-21 16:54:32.044863-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CDeviceNub::Got GPIO Controller! VoodooGPIOCannonLakeLP
2020-05-21 16:54:32.548439-0400  localhost kernel[0]: (VoodooGPIO) <VoodooGPIO`VoodooGPIO::registerInterrupt(int, OSObject*, void (*)(OSObject*, void*, IOService*, int), void*)> VoodooGPIOCannonLakeLP::Registering hardware pin 0x54 for GPIO IRQ pin 0x70
2020-05-21 16:54:32.548456-0400  localhost kernel[0]: (VoodooGPIO) <VoodooGPIO`VoodooGPIO::registerInterrupt(int, OSObject*, void (*)(OSObject*, void*, IOService*, int), void*)> VoodooGPIOCannonLakeLP::Successfully registered hardware pin 0x54 for GPIO IRQ pin 0x70
2020-05-21 16:54:32.548838-0400  localhost kernel[0]: (VoodooGPIO) <VoodooGPIO`VoodooGPIO::registerInterrupt(int, OSObject*, void (*)(OSObject*, void*, IOService*, int), void*)> VoodooGPIOCannonLakeLP::Registering hardware pin 0x52 for GPIO IRQ pin 0x6E
2020-05-21 16:54:32.548855-0400  localhost kernel[0]: (VoodooGPIO) <VoodooGPIO`VoodooGPIO::registerInterrupt(int, OSObject*, void (*)(OSObject*, void*, IOService*, int), void*)> VoodooGPIOCannonLakeLP::Successfully registered hardware pin 0x52 for GPIO IRQ pin 0x6E
2020-05-21 16:54:32.651388-0400  localhost kernel[0]: (VoodooI2CHID) <VoodooI2CHID`VoodooI2CHIDDevice::getInputReport()> VoodooI2CHIDDevice::MSFT0001 Device sent a 0-length report
2020-05-21 16:54:32.652511-0400  localhost kernel[0]: (VoodooI2CHID) <VoodooI2CHID`VoodooI2CHIDDevice::resetHIDDeviceGated()> VoodooI2CHIDDevice::MSFT0001 Device initiated reset accomplished
2020-05-21 16:54:32.652948-0400  localhost kernel[0]: (VoodooI2CHID) <VoodooI2CHID`VoodooI2CHIDDevice::getInputReport()> VoodooI2CHIDDevice::WCOM51EF Device sent a 0-length report
2020-05-21 16:54:32.654371-0400  localhost kernel[0]: (VoodooI2CHID) <VoodooI2CHID`VoodooI2CHIDDevice::resetHIDDeviceGated()> VoodooI2CHIDDevice::WCOM51EF Device initiated reset accomplished
2020-05-21 16:54:32.803387-0400  localhost kernel[0]: (VoodooI2CHID) <VoodooI2CHID`VoodooI2CPrecisionTouchpadHIDEventDriver::handleStart(IOService*)> VoodooI2CPrecisionTouchpadHIDEventDriver::MSFT0001 Putting device into Precision Touchpad Mode
2020-05-21 16:54:32.815435-0400  localhost kernel[0]: (VoodooPS2Controller) ApplePS2Controller: Notification consumer published: VoodooI2CPrecisionTouchpadHIDEventDriver
2020-05-21 16:54:32.817979-0400  localhost kernel[0]: (VoodooI2CHID) <VoodooI2CHID`VoodooI2CMultitouchHIDEventDriver::setProperties(OSObject*)> VoodooI2CPrecisionTouchpadHIDEventDriver::setProperties USBMouseStopsTrackpad = 0
2020-05-21 16:54:32.823277-0400  localhost kernel[0]: (VoodooI2CHID) <VoodooI2CHID`VoodooI2CTouchscreenHIDEventDriver::getFramebuffer()> VoodooI2CTouchscreenHIDEventDriver::Got active display
2020-05-21 16:54:32.823283-0400  localhost kernel[0]: (VoodooI2CHID) <VoodooI2CHID`VoodooI2CTouchscreenHIDEventDriver::getFramebuffer()> VoodooI2CTouchscreenHIDEventDriver::Got active framebuffer
2020-05-21 16:54:32.831715-0400  localhost kernel[0]: (VoodooI2CHID) <VoodooI2CHID`VoodooI2CMultitouchHIDEventDriver::setProperties(OSObject*)> VoodooI2CTouchscreenHIDEventDriver::setProperties USBMouseStopsTrackpad = 0
slartibartfast:Archive-2 $

No touchpad or touch display at any point while I've been loading these though.

fewtarius on 21 May 2020

Yeah, it's working just fine on the release version with the default pinning, except I have the problem where if I click it takes a minute to get the touch input back which is why I went to grab from master in the first place.

fewtarius on 21 May 2020

The latest log shows everything is ok now. Can you try to put the kexts in your EFI and reboot to see if they work?

Goshin on 21 May 2020

Nothing when they're in the EFI. Here's the log:

slartibartfast:~ $ !log
log show --last boot --predicate 'process == "kernel" AND (eventMessage CONTAINS "VoodooI2C" OR eventMessage CONTAINS "VoodooGPIO")' --style syslog --source
Filtering the log data using "process == "kernel" AND (composedMessage CONTAINS "VoodooI2C" OR composedMessage CONTAINS "VoodooGPIO")"
Skipping info and debug messages, pass --info and/or --debug to include.
Timestamp                       (process)[PID]
2020-05-21 17:07:16.711494-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::Loading GPIO Data for CannonLake-LP
2020-05-21 17:07:16.711502-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Init!
2020-05-21 17:07:16.711505-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Initializing Community 0
2020-05-21 17:07:16.711567-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Initializing Community 1
2020-05-21 17:07:16.711601-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Initializing Community 2
2020-05-21 17:07:22.511964-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CHIDDevice::MSFT0001 Timeout waiting for device to complete host initiated reset
2020-05-21 17:07:22.914473-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::MSFT0001 Putting device into Precision Touchpad Mode
2020-05-21 17:07:22.925435-0400  localhost kernel[0]: (VoodooPS2Controller) ApplePS2Controller: Notification consumer published: VoodooI2CPrecisionTouchpadHIDEventDriver
2020-05-21 17:07:24.097453-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CTouchscreenHIDEventDriver::Got active display
2020-05-21 17:07:24.097462-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CTouchscreenHIDEventDriver::Got active framebuffer
2020-05-21 17:07:30.745774-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CTouchscreenHIDEventDriver::setProperties USBMouseStopsTrackpad = 0
2020-05-21 17:07:30.750051-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::setProperties USBMouseStopsTrackpad = 0
slartibartfast:~ $

fewtarius on 21 May 2020

@fewtarius I just revert the workloop related commit. You can see if it helps.
Archive.zip

Goshin on 21 May 2020

Hmm, no it does not. There's less in the log than before as well. Were there other changes between 2.4.2 and now? I didn't lose the touchpad until I pulled down the changes from GPIO master, what if we reverted that?

slartibartfast:~ $ kextstat | grep -i voodooi2c
   53    1 0xffffff7f84412000 0x10000    0x10000    com.alexandred.VoodooI2CServices (1) E1E325A5-365B-3FF0-96A8-CF330377D2BE <5 3>
   74    1 0xffffff7f84510000 0x2e000    0x2e000    com.alexandred.VoodooI2C (2.4.2) 8E03A734-00FE-33CC-B741-9BA8CC5332A1 <72 66 53 13 12 6 5 3 1>
  118    0 0xffffff7f8454c000 0x13000    0x13000    com.alexandred.VoodooI2CHID (1) 4424DD39-BE91-38A5-A30F-8068754C971D <74 66 12 6 5 3>
slartibartfast:~ $ log show --last boot --predicate 'process == "kernel" AND (eventMessage CONTAINS "VoodooI2C" OR eventMessage CONTAINS "VoodooGPIO")' --style syslog --source
Filtering the log data using "process == "kernel" AND (composedMessage CONTAINS "VoodooI2C" OR composedMessage CONTAINS "VoodooGPIO")"
Skipping info and debug messages, pass --info and/or --debug to include.
Timestamp                       (process)[PID]
2020-05-21 17:34:40.546002-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CTouchscreenHIDEventDriver::Got active display
2020-05-21 17:34:40.546014-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CTouchscreenHIDEventDriver::Got active framebuffer
2020-05-21 17:34:47.083692-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CTouchscreenHIDEventDriver::setProperties USBMouseStopsTrackpad = 0
2020-05-21 17:34:47.083906-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::setProperties USBMouseStopsTrackpad = 0

fewtarius on 21 May 2020

If I revert VoodooGPIO 8e77a296cf205a7111dc29a499c3471ae8250aa9 back to e1728148549eb6cdc9fa90e774c193ea484793f0 my touchpad works fine, but my touch display does not.

fewtarius on 22 May 2020

@fewtarius which version works all well for both TP and TS in the gpio mode?

Goshin on 22 May 2020

@fewtarius maybe this one will help.
Archive.zip

Goshin on 22 May 2020

Touchpad works, but no display input with this one. I'll try and load them in the OS next to get data. With 2.4.2, the touch display works ok but there's that click lag with the touchpad. Prior to 2.4.2 I didn't have the device pinned, but I did test 2.4.1 and there's no input when in GPIO mode.

fewtarius on 22 May 2020

Loading the kexts from within macOS, there's no input on either device. Here are the logs.

slartibartfast:Archive $ sudo kextload -d VoodooI2C.kext VoodooI2CHID.kext
slartibartfast:Archive $ !log
log show --last boot --predicate 'process == "kernel" AND (eventMessage CONTAINS "VoodooI2C" OR eventMessage CONTAINS "VoodooGPIO")' --style syslog --source
Filtering the log data using "process == "kernel" AND (composedMessage CONTAINS "VoodooI2C" OR composedMessage CONTAINS "VoodooGPIO")"
Skipping info and debug messages, pass --info and/or --debug to include.
Timestamp                       (process)[PID]
2020-05-22 07:34:42.192722-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::Loading GPIO Data for CannonLake-LP
2020-05-22 07:34:42.192739-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Init!
2020-05-22 07:34:42.192743-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Initializing Community 0
2020-05-22 07:34:42.192823-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Initializing Community 1
2020-05-22 07:34:42.192867-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Initializing Community 2
2020-05-22 07:34:42.193363-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e9 Starting I2C controller
2020-05-22 07:34:42.193363-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e8 Starting I2C controller
2020-05-22 07:34:42.193651-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e8 Set PCI power state D0
2020-05-22 07:34:42.193652-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e9 Set PCI power state D0
2020-05-22 07:34:42.193654-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e8 Current CPU is Comet Lake, patching...
2020-05-22 07:34:42.193658-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e9 Current CPU is Comet Lake, patching...
2020-05-22 07:34:42.193665-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e8 Successfully patched!
2020-05-22 07:34:42.193666-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e9 Successfully patched!
2020-05-22 07:34:42.193683-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e8 Publishing nub
2020-05-22 07:34:42.193695-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e9 Publishing nub
2020-05-22 07:34:42.193762-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::GPIO Controller is already awake! Not reinitializing.
2020-05-22 07:34:42.194137-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e9 Probing controller
2020-05-22 07:34:42.194145-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e9 Found valid Synopsys component, continuing with initialisation
2020-05-22 07:34:42.194437-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e9 Got bus configuration values
2020-05-22 07:34:42.194513-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e9 Publishing device nubs
2020-05-22 07:34:42.194521-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e9 Found I2C device: WCOM51EF
2020-05-22 07:34:42.194731-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CDeviceNub::Got GPIO Controller! VoodooGPIOCannonLakeLP
2020-05-22 07:34:42.194826-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e8 Probing controller
2020-05-22 07:34:42.194832-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e8 Found valid Synopsys component, continuing with initialisation
2020-05-22 07:34:42.195026-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e8 Got bus configuration values
2020-05-22 07:34:42.195043-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e8 Publishing device nubs
2020-05-22 07:34:42.195047-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e8 Found I2C device: MSFT0001
2020-05-22 07:34:42.195205-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CDeviceNub::Got GPIO Controller! VoodooGPIOCannonLakeLP
2020-05-22 07:34:42.697262-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::Registering hardware pin 0x52 for GPIO IRQ pin 0x6E
2020-05-22 07:34:42.697266-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::Successfully registered hardware pin 0x52 for GPIO IRQ pin 0x6E
2020-05-22 07:34:42.697486-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::Registering hardware pin 0x54 for GPIO IRQ pin 0x70
2020-05-22 07:34:42.697489-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::Successfully registered hardware pin 0x54 for GPIO IRQ pin 0x70
2020-05-22 07:34:42.801175-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CHIDDevice::WCOM51EF Device sent a 0-length report
2020-05-22 07:34:42.802326-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CHIDDevice::WCOM51EF Device initiated reset accomplished
2020-05-22 07:34:42.802905-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CHIDDevice::MSFT0001 Device sent a 0-length report
2020-05-22 07:34:42.803948-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CHIDDevice::MSFT0001 Device initiated reset accomplished
2020-05-22 07:34:42.948583-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::MSFT0001 Putting device into Precision Touchpad Mode
2020-05-22 07:34:42.959218-0400  localhost kernel[0]: (VoodooPS2Controller) ApplePS2Controller: Notification consumer published: VoodooI2CPrecisionTouchpadHIDEventDriver
2020-05-22 07:34:42.960857-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::setProperties USBMouseStopsTrackpad = 0
2020-05-22 07:34:44.953800-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CTouchscreenHIDEventDriver::Got active display
2020-05-22 07:34:44.953806-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CTouchscreenHIDEventDriver::Got active framebuffer
2020-05-22 07:34:44.965265-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CTouchscreenHIDEventDriver::setProperties USBMouseStopsTrackpad = 0

fewtarius on 22 May 2020

@fewtarius I don't see anything strange in the log. Can you provide the log of loading v2.4.2 release?

Goshin on 22 May 2020

Logs from 2.4.2. Loading the 2.4.2 kexts from the OS, my touchpad does not work...but my touch display does.

slartibartfast:VoodooI2C-2 $ sudo chown -R root:wheel *
Password:
slartibartfast:VoodooI2C-2 $ sudo chmod -R 755 *
slartibartfast:VoodooI2C-2 $ !450
sudo kextload -d VoodooI2C.kext VoodooI2CHID.kext
slartibartfast:VoodooI2C-2 $ !log
log show --last boot --predicate 'process == "kernel" AND (eventMessage CONTAINS "VoodooI2C" OR eventMessage CONTAINS "VoodooGPIO")' --style syslog --source
Filtering the log data using "process == "kernel" AND (composedMessage CONTAINS "VoodooI2C" OR composedMessage CONTAINS "VoodooGPIO")"
Skipping info and debug messages, pass --info and/or --debug to include.
Timestamp                       (process)[PID]
2020-05-22 07:40:19.337355-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::Loading GPIO Data for CannonLake-LP
2020-05-22 07:40:19.337426-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Init!
2020-05-22 07:40:19.337428-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Initializing Community 0
2020-05-22 07:40:19.337508-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Initializing Community 1
2020-05-22 07:40:19.337557-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Initializing Community 2
2020-05-22 07:40:19.338071-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e8 Starting I2C controller
2020-05-22 07:40:19.338076-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e9 Starting I2C controller
2020-05-22 07:40:19.338344-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e9 Set PCI power state D0
2020-05-22 07:40:19.338349-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e9 Current CPU is Comet Lake, patching...
2020-05-22 07:40:19.338360-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e9 Successfully patched!
2020-05-22 07:40:19.338383-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e9 Publishing nub
2020-05-22 07:40:19.338408-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e8 Set PCI power state D0
2020-05-22 07:40:19.338413-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e8 Current CPU is Comet Lake, patching...
2020-05-22 07:40:19.338414-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::GPIO Controller is already awake! Not reinitializing.
2020-05-22 07:40:19.338424-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e8 Successfully patched!
2020-05-22 07:40:19.338448-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e8 Publishing nub
2020-05-22 07:40:19.338975-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e9 Probing controller
2020-05-22 07:40:19.338982-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e9 Found valid Synopsys component, continuing with initialisation
2020-05-22 07:40:19.339186-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e8 Probing controller
2020-05-22 07:40:19.339193-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e8 Found valid Synopsys component, continuing with initialisation
2020-05-22 07:40:19.339526-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e9 Got bus configuration values
2020-05-22 07:40:19.339575-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e9 Publishing device nubs
2020-05-22 07:40:19.339580-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e9 Found I2C device: WCOM51EF
2020-05-22 07:40:19.339591-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e8 Got bus configuration values
2020-05-22 07:40:19.339721-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CDeviceNub::Got GPIO Controller! VoodooGPIOCannonLakeLP
2020-05-22 07:40:19.339728-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e8 Publishing device nubs
2020-05-22 07:40:19.339734-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e8 Found I2C device: MSFT0001
2020-05-22 07:40:19.339894-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CDeviceNub::Got GPIO Controller! VoodooGPIOCannonLakeLP
2020-05-22 07:40:19.844814-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::Registering hardware pin 0x54 for GPIO IRQ pin 0x70
2020-05-22 07:40:19.844825-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::Registering hardware pin 0x52 for GPIO IRQ pin 0x6E
2020-05-22 07:40:20.249571-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CHIDDevice::MSFT0001 Timeout waiting for device to complete host initiated reset
2020-05-22 07:40:20.251956-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CHIDDevice::WCOM51EF Timeout waiting for device to complete host initiated reset
2020-05-22 07:40:20.659926-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::MSFT0001 Putting device into Precision Touchpad Mode
2020-05-22 07:40:20.667422-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CTouchscreenHIDEventDriver::Got active display
2020-05-22 07:40:20.667431-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CTouchscreenHIDEventDriver::Got active framebuffer
2020-05-22 07:40:20.674075-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CTouchscreenHIDEventDriver::setProperties USBMouseStopsTrackpad = 0
2020-05-22 07:40:20.677299-0400  localhost kernel[0]: (VoodooPS2Controller) ApplePS2Controller: Notification consumer published: VoodooI2CPrecisionTouchpadHIDEventDriver
2020-05-22 07:40:20.688194-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::setProperties USBMouseStopsTrackpad = 0

fewtarius on 22 May 2020

@fewtarius but you said the touchpad and touchscreen are ok with v2.4.2, besides the click issue?

Goshin on 22 May 2020

I rebooted with your Archive.zip kexts still in my EFI and the touch display did actually accept input for about 2 seconds.

Yes, that's correct, 2.4.2 works fine from the EFI except for the click issue.

fewtarius on 22 May 2020

I rebooted with your Archive.zip kexts still in my EFI and the touch display did actually accept input for about 2 seconds.

Yes, that's correct, 2.4.2 works fine from the EFI except for the click issue.

I too have an MSFT0001 trackpad on my Lenovo Ideapad. Although I don't have a touchscreen, my trackpad is working for about a second immediately after getting to login screen, but then it stops until reboot, almost like your touchscreen does. I think we might be looking at related issues.

CC @kprinssu @hasodikis

marianopela on 22 May 2020

👍1

@fewtarius Do you get the pin error in the log with v2.4.2?

Goshin on 22 May 2020

I do not see any pin errors in the logs unless the display is in polling mode. Everything that gets logged by 2.4.2 is what's shown here. An interesting observation though, when the touchscreen does work for a second it doesn't matter how much time passes before the touch event. I just touched the display after rebooting 15 minutes ago, and it worked for a second and then quit.

fewtarius on 22 May 2020

Here is the log from 2.4.2 with the display in polling mode.

slartibartfast:VoodooI2C-2 $ !470
sudo kextload -d VoodooI2C.kext VoodooI2CHID.kext
Password:
slartibartfast:VoodooI2C-2 $ !log
log show --last boot --predicate 'process == "kernel" AND (eventMessage CONTAINS "VoodooI2C" OR eventMessage CONTAINS "VoodooGPIO")' --style syslog --source
Filtering the log data using "process == "kernel" AND (composedMessage CONTAINS "VoodooI2C" OR composedMessage CONTAINS "VoodooGPIO")"
Skipping info and debug messages, pass --info and/or --debug to include.
Timestamp                       (process)[PID]
2020-05-22 08:21:23.857133-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::Loading GPIO Data for CannonLake-LP
2020-05-22 08:21:23.857301-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Init!
2020-05-22 08:21:23.857309-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Initializing Community 0
2020-05-22 08:21:23.857395-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Initializing Community 1
2020-05-22 08:21:23.857493-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Initializing Community 2
2020-05-22 08:21:23.858790-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e8 Starting I2C controller
2020-05-22 08:21:23.858801-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e9 Starting I2C controller
2020-05-22 08:21:23.859283-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e9 Set PCI power state D0
2020-05-22 08:21:23.859295-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e9 Current CPU is Comet Lake, patching...
2020-05-22 08:21:23.859317-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e9 Successfully patched!
2020-05-22 08:21:23.859366-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e9 Publishing nub
2020-05-22 08:21:23.859384-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::GPIO Controller is already awake! Not reinitializing.
2020-05-22 08:21:23.859470-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e8 Set PCI power state D0
2020-05-22 08:21:23.859480-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e8 Current CPU is Comet Lake, patching...
2020-05-22 08:21:23.859493-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e8 Successfully patched!
2020-05-22 08:21:23.859528-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CPCIController::pci8086,2e8 Publishing nub
2020-05-22 08:21:23.860641-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e8 Probing controller
2020-05-22 08:21:23.860654-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e8 Found valid Synopsys component, continuing with initialisation
2020-05-22 08:21:23.861308-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e8 Got bus configuration values
2020-05-22 08:21:23.861552-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e8 Publishing device nubs
2020-05-22 08:21:23.861571-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e8 Found I2C device: MSFT0001
2020-05-22 08:21:23.861659-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e9 Probing controller
2020-05-22 08:21:23.861673-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e9 Found valid Synopsys component, continuing with initialisation
2020-05-22 08:21:23.862367-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CDeviceNub::Got GPIO Controller! VoodooGPIOCannonLakeLP
2020-05-22 08:21:23.862561-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e9 Got bus configuration values
2020-05-22 08:21:23.862593-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e9 Publishing device nubs
2020-05-22 08:21:23.862604-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::pci8086,2e9 Found I2C device: WCOM51EF
2020-05-22 08:21:23.862982-0400  localhost kernel[0]: (VoodooI2C) VoodooI2CControllerDriver::VoodooI2CDeviceNub Warning: Incompatible APIC interrupt pin (0x70 > 0x2f) and no GPIO interrupts found; if your chosen satellite implements polling then VoodooI2CDeviceNub will run in polling mode.
2020-05-22 08:21:23.864838-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CHIDDevice::WCOM51EF Warning: Could not get interrupt event source, using polling instead
2020-05-22 08:21:24.069425-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CHIDDevice::WCOM51EF Timeout waiting for device to complete host initiated reset
2020-05-22 08:21:24.228382-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CTouchscreenHIDEventDriver::Got active display
2020-05-22 08:21:24.228391-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CTouchscreenHIDEventDriver::Got active framebuffer
2020-05-22 08:21:24.231437-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CTouchscreenHIDEventDriver::setProperties USBMouseStopsTrackpad = 0
2020-05-22 08:21:24.367730-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::Registering hardware pin 0x52 for GPIO IRQ pin 0x6E
2020-05-22 08:21:24.573421-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CHIDDevice::MSFT0001 Timeout waiting for device to complete host initiated reset
2020-05-22 08:21:24.726779-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::MSFT0001 Putting device into Precision Touchpad Mode
2020-05-22 08:21:24.738835-0400  localhost kernel[0]: (VoodooPS2Controller) ApplePS2Controller: Notification consumer published: VoodooI2CPrecisionTouchpadHIDEventDriver
2020-05-22 08:21:24.741873-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::setProperties USBMouseStopsTrackpad = 0
slartibartfast:VoodooI2C-2 $

fewtarius on 22 May 2020

@fewtarius no idea for now, the log in https://github.com/VoodooI2C/VoodooI2C/issues/325#issuecomment-632646841 shows everything is fine. In v2.4.2 release, there are some bugs of interrupt toggling and device resetting, as you can see the timeout error in the log. I suggest you use the touchscreen in polling mode with the latest version.

Goshin on 22 May 2020

Alright, will do for now. Thanks for looking into it.

fewtarius on 22 May 2020

@fewtarius Can you test the touchscreen in GPIO mode and touchpad in polling mode?

Goshin on 24 May 2020

@Goshin - Unfortunately, the behavior doesn't seem to change. Touchpad is working in polling mode, the touch display is not working at all.

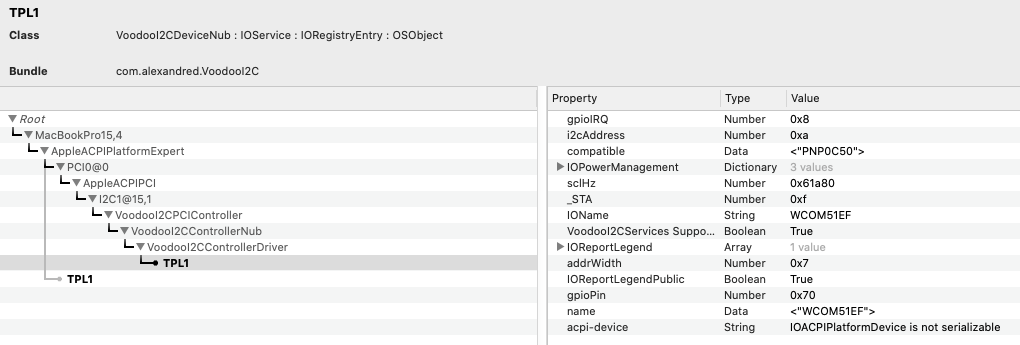

Screen Shot 2020-05-25 at 7 17 16 AM

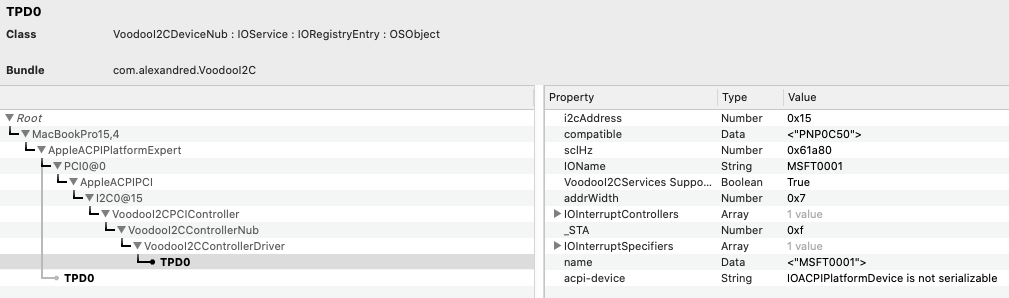

Screen Shot 2020-05-25 at 7 17 29 AM

fewtarius on 25 May 2020

So it could be a hardware-specific issue. Does it work normally on Linux?

Goshin on 25 May 2020

@Goshin yes, it works perfectly in Windows and in Linux. Also works with VoodooI2C 2.4.2 as I had mentioned before. I'll re-test the above scenario using 2.4.2 when I have the chance, today if possible. In the interim, I've had it disabled via _STA which has significantly improved battery life.

fewtarius on 25 May 2020

@fewtarius Is your trackpad working in GPIO interrupts mode?

marianopela on 27 May 2020

@marianopela it does, yes.

fewtarius on 27 May 2020

@marianopela it does, yes.

That's sick strange. Same trackpad device, same CPU, similar hardware (same Lenovo manufacturer), yet I can't figure out why it's not working for me. Are you using 0x70 pin?

I've been wanting to open an issue for some time, but our problems seem related.

My trackpad is working with interrupts only for about two seconds after I touch it, then it stops until reboot/wake. The funny thing is it doesn't work at all with official release kexts (from like 2.3 onwards), but it happens with these https://github.com/VoodooI2C/VoodooI2C/issues/323#issuecomment-632115743, so it might have something to do with VoodooGPIO bugs @Goshin was mentioning a few days ago
I don't know what @tiger511 did with them, but maybe he can help us understand

@kprinssu Do you think I should open an issue with my tests and logs?

marianopela on 27 May 2020

@marianopela so your touchpad works well with the kexts in https://github.com/VoodooI2C/VoodooI2C/issues/323#issuecomment-632115743 ?

Goshin on 27 May 2020

@marianopela let's track down the issue here. @tiger511's changes do not have some of the upstream patches that were from @Goshin. Something that we merged in is causing the issue.

kprinssu on 27 May 2020

@marianopela so your touchpad works well with the kexts in #323 (comment) ?

Nope, unfortunately it doesn't. It works for 2 seconds after boot and 1 second after every sleep/wake though, which is very similar to what @fewtarius was describing in the title of this issue, so it seems the be just working until it hangs for some reason

marianopela on 27 May 2020

@marianopela let's track down the issue here. @tiger511's changes do not have some of the upstream patches that were from @Goshin. Something that we merged in is causing the issue.

Sure. Can you suggest a way to debug this? Maybe by loading VoodooGPIO with debug logs

marianopela on 27 May 2020

Easiest way, revert commits and build VoodooGPIO until it works. If it's not a VoodooGPIO, reset the project to master and then revert commits in VoodooI2CHID.

This is pretty much brute forcing will be extremely time consuming.

kprinssu on 27 May 2020

@fewtarius I suspect v2.4.2 just works by mistake. Try to revert https://github.com/VoodooI2C/VoodooGPIO/commit/e1728148549eb6cdc9fa90e774c193ea484793f0 only and keep the fix in https://github.com/VoodooI2C/VoodooGPIO/commit/8e77a296cf205a7111dc29a499c3471ae8250aa9 , and see if it works.

Goshin on 27 May 2020

I suspect v2.4.2 just works by mistake. Try to revert VoodooI2C/VoodooGPIO@e172814 only and keep the fix in VoodooI2C/VoodooGPIO@8e77a29 , and see if it works.

To be honest, 2.4.2 does not “work” with interrupts mode (referring to it not working even for a second)
I’ll try reverting with your suggestions in a few hours, tomorrow, as I had troubles setting up the building environment

marianopela on 27 May 2020

I suspect v2.4.2 just works by mistake. Try to revert VoodooI2C/VoodooGPIO@e172814 only and keep the fix in VoodooI2C/VoodooGPIO@8e77a29 , and see if it works.

To be honest, 2.4.2 does not “work” with interrupts mode (referring to it not working even for a second)
I’ll try reverting with your suggestions in a few hours, tomorrow, as I had troubles setting up the building environment

Sry I forgot to ping Fewtarius. He said 2.4.2 works for him.

Goshin on 28 May 2020

👍1

Thanks @Goshin haven't had much time the last two days, but I'll get at it as soon as I can.

fewtarius on 28 May 2020

@fewtarius Try this:
MultiGPIO_patch.zip

I modded this version to work with GPIO Trackpad+ GPIO Touchscreen.Make sure both of them are GPIO pinned.Otherwise you might encounter unknown behaviour. Please report back with your CPU usage while trackpad/touchscreen in use.If you encounter any problem,execute the following command attach the output & your processor model: log show --last=boot |grep Voodoo

tiger511 on 28 May 2020

@marianopela whats the output of this : log show --last=boot |grep Voodoo

Also share your Trackpad SSDT patch.Also share a screenshot of TPD0 from ioregistry

tiger511 on 28 May 2020

@marianopela whats the output of this : log show --last=boot |grep Voodoo

Also share your Trackpad SSDT patch.Also share a screenshot of TPD0 from ioregistry

SSDT-TPAD.aml.zip
log.txt this was after one boot and one sleep/wake

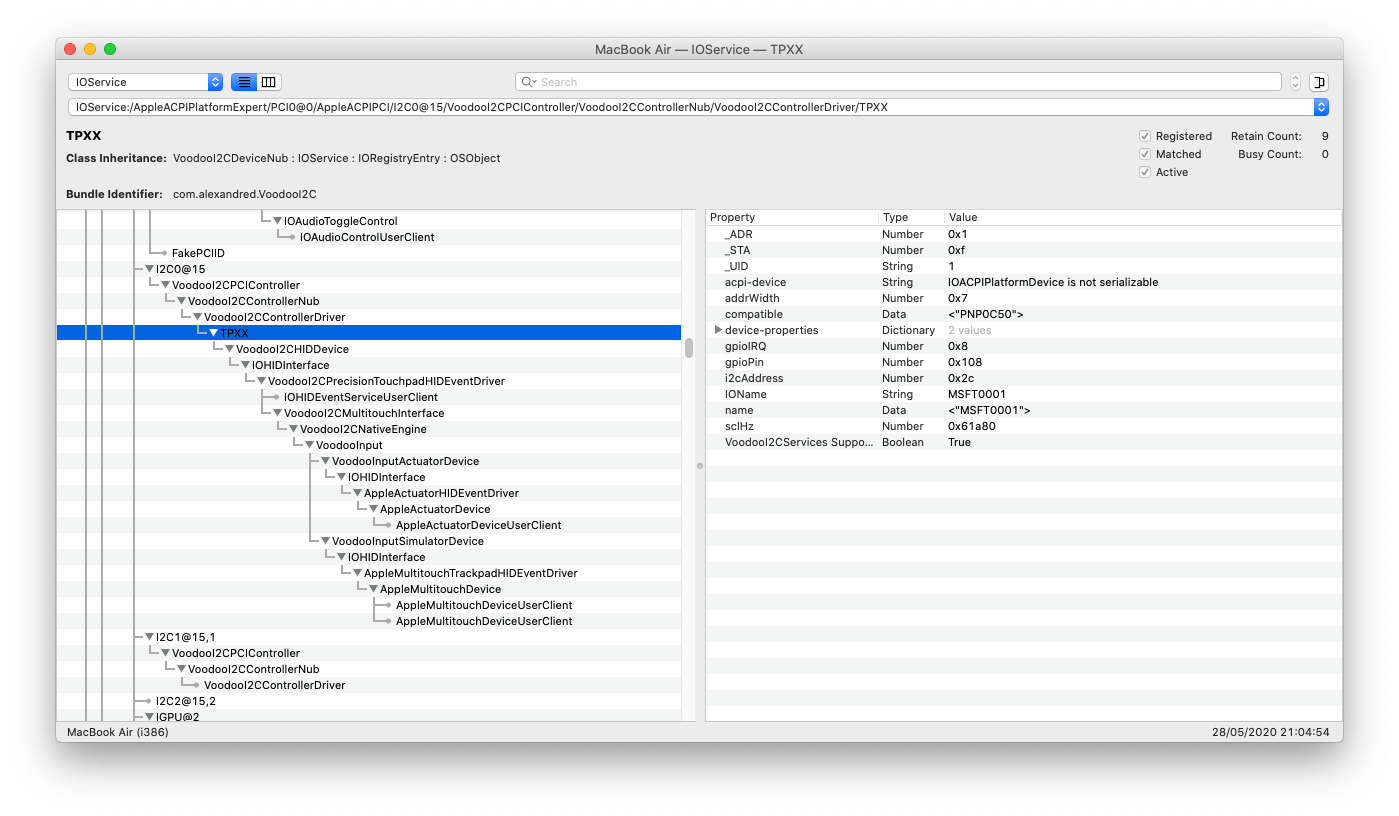

Screenshot 2020-05-28 at 21 04 56

marianopela on 28 May 2020

SSDT-TPAD.aml.zip

In _CRS, shoudn't it be Return (ConcatenateResTemplate (SBFB, SBFG)) ?

tiger511 on 28 May 2020

In _CRS, shoudn't it be Return (ConcatenateResTemplate (SBFB, SBFG)) ?

Sorry, I sent you the wrong one, because I was from my desktop.
It's the same apart from Return (ConcatenateResTemplate (SBFB, SBFG) and 0x108 pin. I change those when I'm trying to debug GPIO.
SSDT-TPAD.aml.zip

Btw I just woke it up from sleep and it worked for a full 3 seconds. I almost thought I was running in polling. Do you think there would be a way to debug where it hangs by adding logs to VoodooGPIO?

marianopela on 28 May 2020

Do you think there would be a way to debug where it hangs by adding logs to VoodooGPIO?

Yes you can try debugging with IOLog in VoodooGPIO.Unfortunately since i can't reproduce this issue,i can't do it.I think it has something to do with either your Trackpad Patch or that comet lake patch it applies. BTW, OP seems to have no problem with Trackpad , he only has issues with Touchscreen.Am i correct? If you have same device as OP,why not try his EFI?

tiger511 on 28 May 2020

Yes you can try debugging with IOLog in VoodooGPIO.Unfortunately since i can't reproduce this issue,i can't do it.I think it has something to do with either your Trackpad Patch or that comet lake patch it applies.

No problem, I’m always in for testing. Would you mind helping in the process of IOLogging VoodooGPIO code? Otherwise could you share the code of your modified kexts?

BTW, OP seems to have no problem with Trackpad , he only has issues with Touchscreen.Am i correct? If you have same device as OP,why not try his EFI?

Yep, we have the same MSFT0001 but unfortunately they are implemented differently in ACPIs. Finding bugs in VoodooGPIO seems to be my only hope

marianopela on 28 May 2020

@fewtarius Try this:
MultiGPIO_patch.zip

I modded this version to work with GPIO Trackpad+ GPIO Touchscreen.Make sure both of them are GPIO pinned.Otherwise you might encounter unknown behaviour. Please report back with your CPU usage while trackpad/touchscreen in use.If you encounter any problem,execute the following command attach the output & your processor model: log show --last=boot |grep Voodoo

Thanks, I'll give it a try shortly.

fewtarius on 28 May 2020

Yep, we have the same MSFT0001 but unfortunately they are implemented differently in ACPIs. Finding bugs in VoodooGPIO seems to be my only hope

You do not need to statically patch SSDT. Use dynamic patching.Share your full DSDT. @fewtarius can you share your Trackpad SSDT patch.

tiger511 on 28 May 2020

Yep, we have the same MSFT0001 but unfortunately they are implemented differently in ACPIs. Finding bugs in VoodooGPIO seems to be my only hope

You do not need to statically patch SSDT. Use dynamic patching.Share your full DSDT. @fewtarius can you share your Trackpad SSDT patch.

I'm afraid I'm not using an SSDT, I'm using renames in OC that are specific to my DSDT. They probably won't work for anyone else, but I'm happy to attach them.

Screen Shot 2020-05-28 at 4 29 37 PM

<dict>
        <key>Comment</key>
        <string>OSYS Patch (Trackpad)</string>
        <key>Enabled</key>
        <true/>
        <key>Find</key>
        <data>6ANPU1lT</data>
        <key>Replace</key>
        <data>3wdPU1lT</data>
</dict>
<dict>
        <key>Comment</key>
        <string>Fix TPL1 to return SBFG</string>
        <key>Enabled</key>
        <false/>
        <key>Find</key>
        <data>hEkyQ01JMkNYQkFEUlNQRURTQkZJAA==</data>
        <key>Replace</key>
        <data>hEkyQ01JMkNYQkFEUlNQRURTQkZHAA==</data>
</dict>
<dict>
        <key>Comment</key>
        <string>Disable TPL1</string>
        <key>Enabled</key>
        <true/>
        <key>Find</key>
        <data>EQMBABQJX1NUQQCkCg8UTARfQ1JTAA==</data>
        <key>Replace</key>
        <data>EQMBABQJX1NUQQCkCgAUTARfQ1JTAA==</data>
</dict>

fewtarius on 28 May 2020

Alright, so there is definitely a behavior change with these kexts. First, the log.

$ log show --last boot --predicate 'process == "kernel" AND (eventMessage CONTAINS "VoodooI2C" OR eventMessage CONTAINS "VoodooGPIO")' --style syslog --source
Filtering the log data using "process == "kernel" AND (composedMessage CONTAINS "VoodooI2C" OR composedMessage CONTAINS "VoodooGPIO")"
Skipping info and debug messages, pass --info and/or --debug to include.
Timestamp                       (process)[PID]
2020-05-28 16:41:27.237016-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::Loading GPIO Data for CannonLake-LP
2020-05-28 16:41:27.237020-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP:: ResponseLatency: 1000000
2020-05-28 16:41:27.237022-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP:: Creating new workloop
2020-05-28 16:41:27.237072-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Init!
2020-05-28 16:41:27.237074-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Initializing Community 0
2020-05-28 16:41:27.237134-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Initializing Community 1
2020-05-28 16:41:27.237168-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Initializing Community 2
2020-05-28 16:41:27.237240-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::GPIO Controller is already awake! Not reinitializing.
2020-05-28 16:41:31.595574-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP:: Returning existing workloop
2020-05-28 16:41:31.606904-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP:: Returning existing workloop
2020-05-28 16:41:34.766896-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CTouchscreenHIDEventDriver::Got active display
2020-05-28 16:41:34.766907-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CTouchscreenHIDEventDriver::Got active framebuffer
2020-05-28 16:41:40.597209-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::setProperties USBMouseStopsTrackpad = 0
2020-05-28 16:41:40.600887-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CTouchscreenHIDEventDriver::setProperties USBMouseStopsTrackpad = 0

Now the behavior. Touching the display, while you cannot move the cursor with your finger, there is an event being registered because after touching the display and then touching the trackpad, VoodooI2C believes there is still a press event occuring. If at the desktop, dragging the cursor with the touchpad after touching the display causes the cursor to jump around in the direction that the touch screen event occurred and then the drag selector in macOS will highlight as if you're pressing till you've clicked. I have tap to click turned off.

If I draw a figure eight on the display with my finger, the cursor doesn't move. If I touch the touchpad afterwards, a figure eight is drawn with the cursor very quickly and then text or whatever is on the screen is highlighted like a press event.

It's also continuous, every time I touch the display I can recreate it. Same behavior if I use the pen.

fewtarius on 28 May 2020

Screen Shot 2020-05-28 at 4 50 20 PM

Screen Shot 2020-05-28 at 4 50 29 PM

Screen Shot 2020-05-28 at 4 51 21 PM

fewtarius on 28 May 2020

Alright, so there is definitely a behavior change with these kexts. First, the log.
$ log show --last boot --predicate 'process == "kernel" AND (eventMessage CONTAINS "VoodooI2C" OR eventMessage CONTAINS "VoodooGPIO")' --style syslog --source
Filtering the log data using "process == "kernel" AND (composedMessage CONTAINS "VoodooI2C" OR composedMessage CONTAINS "VoodooGPIO")"
Skipping info and debug messages, pass --info and/or --debug to include.
Timestamp                       (process)[PID]
2020-05-28 16:41:27.237016-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::Loading GPIO Data for CannonLake-LP
2020-05-28 16:41:27.237020-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP:: ResponseLatency: 1000000
2020-05-28 16:41:27.237022-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP:: Creating new workloop
2020-05-28 16:41:27.237072-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Init!
2020-05-28 16:41:27.237074-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Initializing Community 0
2020-05-28 16:41:27.237134-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Initializing Community 1
2020-05-28 16:41:27.237168-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::VoodooGPIO Initializing Community 2
2020-05-28 16:41:27.237240-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP::GPIO Controller is already awake! Not reinitializing.
2020-05-28 16:41:31.595574-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP:: Returning existing workloop
2020-05-28 16:41:31.606904-0400  localhost kernel[0]: (VoodooGPIO) VoodooGPIOCannonLakeLP:: Returning existing workloop
2020-05-28 16:41:34.766896-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CTouchscreenHIDEventDriver::Got active display
2020-05-28 16:41:34.766907-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CTouchscreenHIDEventDriver::Got active framebuffer
2020-05-28 16:41:40.597209-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CPrecisionTouchpadHIDEventDriver::setProperties USBMouseStopsTrackpad = 0
2020-05-28 16:41:40.600887-0400  localhost kernel[0]: (VoodooI2CHID) VoodooI2CTouchscreenHIDEventDriver::setProperties USBMouseStopsTrackpad = 0
Now the behavior. Touching the display, while you cannot move the cursor with your finger, there is an event being registered because after touching the display and then touching the trackpad, VoodooI2C believes there is still a press event occuring. If at the desktop, dragging the cursor with the touchpad after touching the display causes the cursor to jump around in the direction that the touch screen event occurred and then the drag selector in macOS will highlight as if you're pressing till you've clicked. I have tap to click turned off.

If I draw a figure eight on the display with my finger, the cursor doesn't move. If I touch the touchpad afterwards, a figure eight is drawn with the cursor very quickly and then text or whatever is on the screen is highlighted like a press event.

It's also continuous, every time I touch the display I can recreate it. Same behavior if I use the pen.

Well i have the same issue after resuming from sleep.But after a cold boot, Touchscreen and Trackpad both works fine.My Touchscreen is WCOM488F. Also from your screenshot,I don't see any GPIO patch to touchscreen.I can only see trackpad.

tiger511 on 28 May 2020

TPD0 is the touchpad, TPL1 is the touch display. Both show GPIO pinned. TPD0 is 0x6E, TPL1 is 0x70.

fewtarius on 28 May 2020

You do not need to statically patch SSDT. Use dynamic patching.Share your full DSDT.

Here it is DSDT.aml.zip

marianopela on 28 May 2020

@marianopela Remove all Trackpad related reanmes and SSDT patches.Then try this:
SSDT-TPDX.aml.zip

Then try MultiGPIO_patch.zip.If it doesn't work,Try the kext from the other thread.

tiger511 on 28 May 2020

@marianopela Remove all Trackpad related reanmes and SSDT patches.Then try this:
SSDT-TPDX.aml.zip

I'm trying it right away, thanks. But my device is TPAD. Are you sure these values could be related?

Then try MultiGPIO_patch.zip.If it doesn't work,Try the kext from the other thread.

Also, could I ask you where to find MultiGPIO_patch.zip?

marianopela on 28 May 2020

@fewtarius Try this:
MultiGPIO_patch.zip

I modded this version to work with GPIO Trackpad+ GPIO Touchscreen.Make sure both of them are GPIO pinned.Otherwise you might encounter unknown behaviour. Please report back with your CPU usage while trackpad/touchscreen in use.If you encounter any problem,execute the following command attach the output & your processor model: log show --last=boot |grep Voodoo

Here it is.

tiger511 on 28 May 2020

Here it is.

Oh sorry, I'm kind of tired

Btw I just rebooted with only SSDT-TPDX. Trackpad is working in polling mode
log.txt

It's probably best to delete the polling returns I have in CRS method, and to change the GPIO pin from the root 0x38 (not valid) to 0x108 (the computed one)

marianopela on 28 May 2020

Here it is.

Oh sorry, I'm kind of tired

Btw I just rebooted with only SSDT-TPDX. Trackpad is working in polling mode
log.txt

It's probably best to delete the polling returns I have in CRS method, and to change the GPIO pin from the root 0x38 (not valid) to 0x108 (the computed one)

You do not have to change any pin number in SSDT.All you have to do is return Return (ConcatenateResTemplate (SBFB, SBFG)) which is done automatically when TPDM = Zero.Take a look at your DSDT If ((TPDM == Zero)) { Return (ConcatenateResTemplate (I2CM (I2CX, BADR, SPED), SBFG)) }. Are you sure you appliced my patch correctly? if you are using opencore,you need to add this filename to config.plist

tiger511 on 28 May 2020

@tiger511 I'm sorry again. I made a mistake and booted the wrong EFI before

Here's the real log.txt
And I think you were looking at the wrong device. Mine is TPAD, under I2C0

marianopela on 28 May 2020

@tiger511 I'm sorry again. I made a mistake and booted the wrong EFI before

Here's the real log.txt
And I think you were looking at the wrong device. Mine is TPAD, under I2C0

You are correct,i looked at the wrong device.Looks like your old patch was somewhat correct.i still would suggest you to try @fewtarius EFI.Since this is the closest one to your device with trackpad working.

tiger511 on 28 May 2020

You are correct,i looked at the wrong device.Looks like your old patch was somewhat correct.

Don't worry. My patch was just a redefinition of my original ACPIs, in order to be able to make changes to the entire scope of the device freely.

i still would suggest you to try @fewtarius EFI.Since this is the closest one to your device with trackpad working.

It is close but unfortunately I have already tried mixing configurations and ACPIs with his and some other similar devices without any luck. I also know about one ore two cases (found them in Gitter history) of similar laptops devices with identical trackpad devices and identical ACPIs, which were working with GPIO (same pin too). So I have hope it depends upon VoodooGPIO code itself. The only thing keeping me from trying older VoodooI2C releases is my 10th gen, which requires specific patches which I'm not sure I would be able to recreate on old code.

I've been fighting with this for months now and think the only way would be via IOLogs. If I were to open a new issue about this, would you participate? I think the current VoodooGPIO code you hold is key in this matter

marianopela on 29 May 2020

I've changed a lot of things also added a lot of alpha feature specific to my device. Thats why i will not be able to merge it to upstream. But I'll upload full source code of my mod in my repo soon.I'll let you know.

tiger511 on 29 May 2020

❤1

Easiest way, revert commits and build VoodooGPIO until it works. If it's not a VoodooGPIO, reset the project to master and then revert commits in VoodooI2CHID.

This is pretty much brute forcing will be extremely time consuming.

@kprinssu I'm going to get started on this today and I was thinking that it may be better to start from the release tagged commits and move forward through each commit until it breaks rather than working in reverse, that way I can set a baseline that I know works. Let me know if you think it would be a better approach to begin from master instead.

fewtarius on 29 May 2020

👍1

@fewtarius If you don’t mind sharing your findings step by step I’d like to follow you on this. If you keep every built kext we can compare the behavior of our devices and highlight similarities/differences.
(I tried reverting the last 4-5 commits on master two days ago but no build was working. I haven’t tried reverting VoodooGPIO only yet)

marianopela on 29 May 2020

@marianopela try removing "pci8086,2e9" from VoodooI2C.kext/info.plist

tiger511 on 29 May 2020

@marianopela try removing "pci8086,2e9" from VoodooI2C.kext/info.plist

Same behaviour, which is this Boot.mov.zip

It does work for less than a second after every wake, which is not much, but we could maybe IOLog around the waking process to try and discover something useful.

I can assume it wakes just fine by looking at the log.txt, but it's stopping after a bit

marianopela on 30 May 2020

Here are the results, I expect the formatting to be terrible so I'm also including a CSV.

There are two offending commits:

VoodooI2C: 54c7264e94d201da914bb324264c3e625753167b
VoodooGPIO: 8e77a296cf205a7111dc29a499c3471ae8250aa9

| VoodooI2C | VoodooGPIO | Result |
| -------------------------------------------- | -------------------------------------------- | ------------------------------------------------------------ |
| 803bcb94161ec2464c1491e4b5fb8fc1b30092ff | 8be86ccba3345d753aa7694d2b68792ccdf1416a | Functions like 2.4.2 (2.4.2 baseline) |
| c9aff4cd43de96eb4f9a5b9dda8126b4717070e7 | | Functions like 2.4.2 |
| 4f8462d58469cfec0222e59298f1a7000375ace1 | | FTE change, skipped |
| 815a35c03d3677a4f24a325d349166934f5ee4c7 | | FTE change, skipped |
| c3bf644abb510bcc96d553c625ce469e4a2d95aa | | Functions like 2.4.2 |
| 9afff08fd5a451efb6ee259fd5da1854d77ab968 | | Repo management changes, skipped |
| 052becfea187406748a4f2039b41c954726200b8 | | Repo management changes, skipped |
| 54c7264e94d201da914bb324264c3e625753167b | | Very slow boot (2-3 minutes), hang at reboot. Touchscreen and touchpad do not work, WIFI card not detected in OS for 3-4 minutes |
| c3bf644abb510bcc96d553c625ce469e4a2d95aa | e1728148549eb6cdc9fa90e774c193ea484793f0 | Corrects click issue in 2.4.2, touchpad and touch display work, no touchscreen gestures. Touch display stops working after a few press events. |
| 54c7264e94d201da914bb324264c3e625753167b | | Very slow boot (2-3 minutes), hang at reboot. Touchscreen and touchpad do not work, WIFI card not detected in OS for 3-4 minutes |
| c3bf644abb510bcc96d553c625ce469e4a2d95aa | 8e77a296cf205a7111dc29a499c3471ae8250aa9 | No touchpad or display functionality, they appear in IORegistryExplorer as gpiopinned. WIFI is back to normal, boot time is back to normal. |

VoodooI2C-Debug.csv.zip

fewtarius on 30 May 2020

I can assume it wakes just fine by looking at the log.txt, but it's stopping after a bit

Something is off though. The log lacks the usual
Successfully registered hardware pin X for GPIO IRQ pin Y

@tiger511 I IOLogged every function in the official RELEASE of VoodooGPIO code, and I'm starting to think VoodooI2CHID might be the cause. Did you heavily change its code too?

marianopela on 30 May 2020

@marianopela yes.

tiger511 on 30 May 2020

@marianopela yes.

@tiger511 Don't worry about it. I just took official VoodooI2C 2.4.2 and mixed it with the VoodooGPIO.kext from your kexts. It it very laggy but seems to be finally working!

Here is the working log.txt

You're definitely doing some magic in your code

marianopela on 30 May 2020

@marianopela yes.

@tiger511 Don't worry about it. I just took official VoodooI2C 2.4.2 and mixed it with the VoodooGPIO.kext from your kexts. It it very laggy but seems to be finally working!

Here is the working log.txt

You're definitely doing some magic in your code

To redue lag,open VoodooGPIO.kext/info.plist add a need key name "ResponseLatencyMicroSecond" under "VoodooGPIOCannonLakeLP" and set the value to 0.

tiger511 on 30 May 2020

To redue lag,open VoodooGPIO.kext/info.plist add a need key name "ResponseLatencyMicroSecond" under "VoodooGPIOCannonLakeLP" and set the value to 0.

Did it. Still laggy

I really look forward to seeing your code

marianopela on 30 May 2020

Is there any update for this in the release build? Both Touchscreen and Touchpad remains disabled. But sometimes randomly after reboot touchscreen works. I can share the logs if required. The last build that worked properly was the 2.4 build.

(Sorry that I cannot work directly on the repo, and I have some other discoveries as well but too offtopic to write here)

writzx on 6 Jun 2020

Is there any update for this in the release build? Both Touchscreen and Touchpad remains disabled. But sometimes randomly after reboot touchscreen works. I can share the logs if required. The last build that worked properly was the 2.4 build.

(Sorry that I cannot work directly on the repo, and I have some other discoveries as well but too offtopic to write here)

Try this
MultiGPIO_patch.zip

tiger511 on 7 Jun 2020

Hey @fewtarius can you please attach an up-to-date troubleshooting archive (OC-gen-debug/RunMe.app), using latest release? :)
For full logs you'll need to add the msgbuf=1048576 boot arg and use the dmesg command. An alternative to the boot arg might be DebugEnhancer.kext.

@tiger511 I couldn't find the source code of your GPIO change. Can you push those to somewhere please?

ben9923 on 27 Dec 2020

Hey @fewtarius can you please attach an up-to-date troubleshooting archive (OC-gen-debug/RunMe.app), using latest release? :)
For full logs you'll need to add the msgbuf=1048576 boot arg and use the dmesg command. An alternative to the boot arg might be DebugEnhancer.kext.

@tiger511 I couldn't find the source code of your GPIO change. Can you push those to somewhere please?

In May, sure. In December, no. I disabled the touch display and moved on a long time ago.

fewtarius on 27 Dec 2020

👍1

Voodooi2c: Touch display works for a few seconds then stops with GPIO pinning.

All 93 comments

Related issues
