Virtualc64: Commodore Mouse 1351 on VirtualC64

[Alessandro1970]

Hi,

is there the way to use a Commodore Mouse 1351 emulation or something else to move the arrow under Geos with the Mac Mouse else than emulated joystick with keyboard?

Bye

[dirkwhoffmann]

It's not supported right now, but it shouldn't be too difficult. I'll tag this issue as "enhancement".

[Alessandro1970]

👍🏻

[parecibo]

Hello
It is a very formidable thing if it works the emulation of the magic mouse (WIFI) on the VirtualC64 and made the Mouse 1531 Commodore works.
When could we try?
Bye

[Alessandro1970]

Hi parecibo,
I do not think there are any problems with the wifi mouse.
The emulator will work independently if your mac has the wifi mouse or the cabled one and the 1351 will be emulated independently of this. ...I think

[parecibo]

Ok, thank you

[rummeyer]

If you want to emulate the 1531 mouse in proportional mode you have to map the X and Y positions of the Mac mouse to the POTX and POTY register of SID.

...and yeah I would really appreciate that feature as well ;)

(I am a VirtualC64 noop here but I just made a quick look and it seems like FastSID and ReSID do not implement this as the according functions to read from POT registers always return 0xFF)

[Alessandro1970]

I have read that the 1351 mouse is like the 1350 expect that instead of a 4 bit micro, a
custom gate array has been added. The mouse has two modes of operation.
The mode of operation is selected when the mouse is powered up. When
powered up, the mouse will default to the primary mode of operation,
unless the right button is depressed in which case, the mouse will
power up in the secondary mode of operation.
The secondary mode of operation is like that of 1350, i.e. the mouse
acts like a joystick.
The primary mode of operation allows the mouse to act like a true
proportional mouse ad is better than other. It uses the SID pot registers to pass digital
position information from the mouse directly into the c64/c128 memory
map without processor intervention. This is because the SID A/D
conversion cycle is performed automatically every 512 CPU cycles.

[parecibo]

1531 mouse in proportional mode is the right choice for painting or geos

[rummeyer]

Sure - and a proper 1351 emulation would also fix issues #321, #312 and #316

[dirkwhoffmann]

Most of the mouse implementation is already done. The next version will support the Commodore 1530 mouse (joystick mouse), the Commodore 1531 mouse (analog) and the Neos mouse (analog). The code for implementing the two analog mouses is already checked in in branch "mouse". The 1530 mouse remains to be implemented, but the implementation will be straight forward, because the logic is much simpler.

[dirkwhoffmann]

VirtualC64 1.11 will support three mice models (C1350, C1351, and Neos):

http://www.dirkwhoffmann.de/virtualc64/VirtualC64_1_11_beta.zip

Any feedback on the beta version is highly appreciated.

[Alessandro1970]

Hi Dirk,

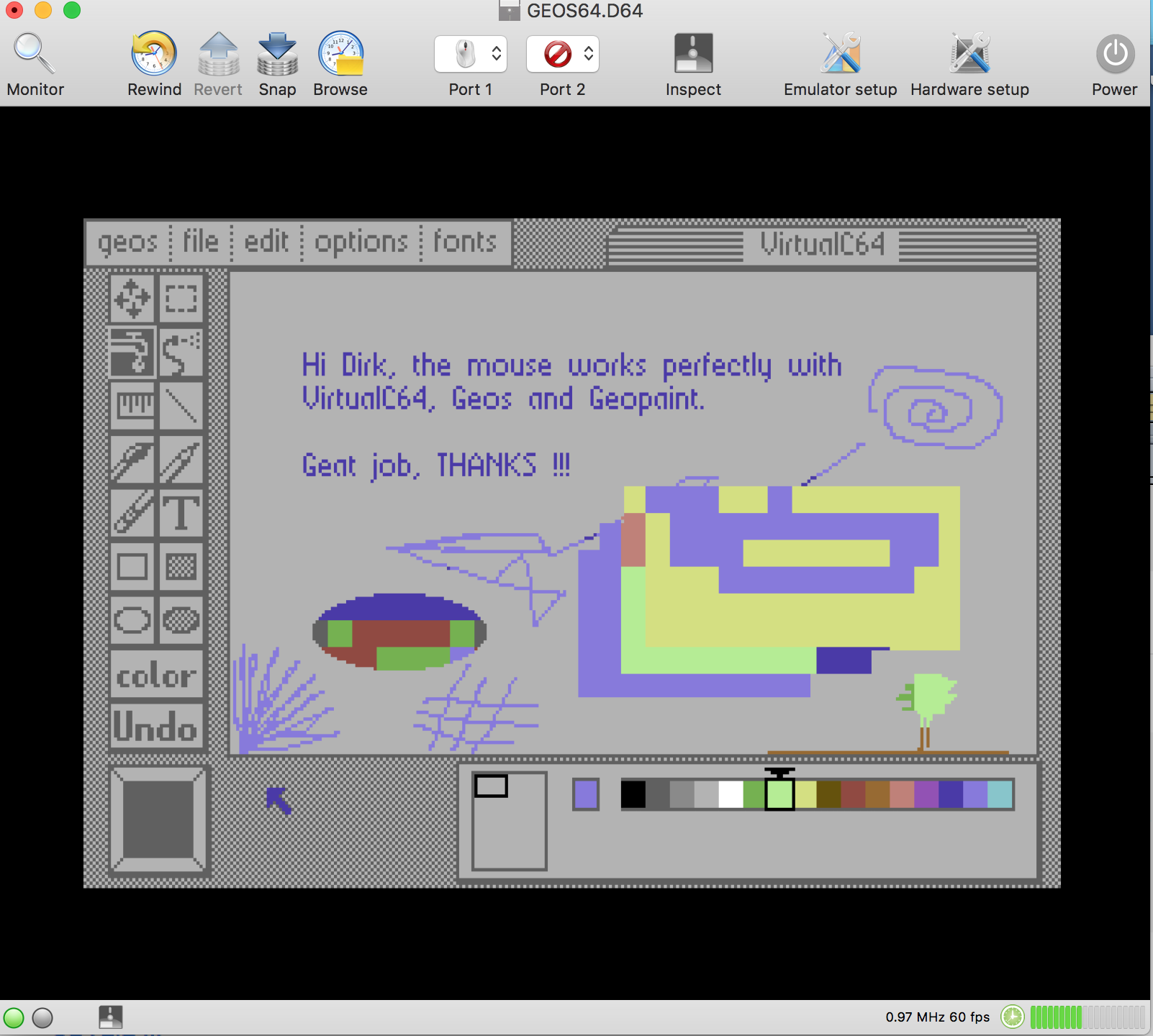

The mouse works perfectly with VirtualC64, Geos and GeoPaint.
The combination of "CMD I" keys was tested by me several times with Geowrite and it works very well, no problem encountered at the moment with the 1351 emulation.

Great job, THANKS !!!

[rummeyer]

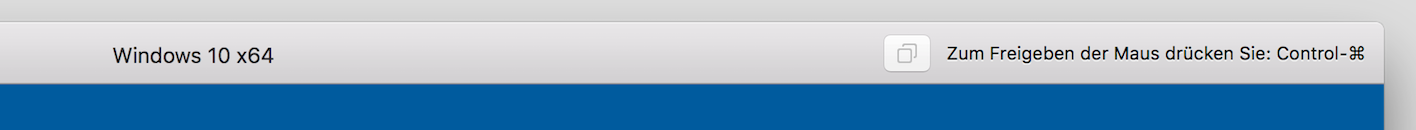

It worked fine here as well. The only thing I don't like is the Cmd+I thing. I use VMware Fusion a lot and the logic there is the other way around. The mouse is claimed as soon as you start VMware and you have to press Ctrl+Cmd to "free" the mouse it for Mac (and it is displayed in the window title so the user knows exactly what to do).

Anyway I am very happy that VirtualC64 finally got mouse support! Thank you Dirk!

[Alessandro1970]

Anyway thanks, but...
if it was possible to implement the pointer "capture and release system" used also in VMWare Fusion it would be better for me too.

[rummeyer]

VMware Fusion probably has a special handling for Windows (for most people the most important use case). If you move the pointer to the border of the native Mac OS window, the mouse is transitioning from Windows to Mac OS by magic.

I think it doesn't make any sense to do that for GEOS or any other special case in the C64 world.

[Alessandro1970]

You are right, better to select the mouse manually as it is now and do not change anything.
Surely the incompatibilities with the keyboard are eliminated, the automatic detection could create inconveniences.

[Ottavius]

I do not have the geos but the cmd + i system works very well for me and I have not had any problems even with arkanoid

[rummeyer]

It's probably just a matter of taste. I think the main difference is that in VMware its more about attaching and detaching the mouse inputs (no events are triggered if the mouse is focused on Mac OS and vice versa). In VirtualC64 it's just about showing and hiding the Mac mouse pointer. It got me a little confused to have two pointers when using GEOS but I am good with it now as it works perfectly how it is.

[dirkwhoffmann]

One could of course change cmd + i to a different key combination. Unfortunately, cmd + ctrl is not a valid key combination in macOS (cmd + ctrl + i would be possible which does not help).

[Alessandro1970]

To think well about it, the system works well for me too.
Also I would not change anything, for me the issue is closed!
CMD+I works fine !
Thanks

[dirkwhoffmann]

Hiding the mouse (cmd + i) in VirtualC64 does another important thing. Besides hiding the mouse pointer, it disconnects it from the cursor. Otherwise, the mouse events stop when the Mac mouse has reached the screen border. In addition, active corner events would be triggered when reaching a corner. Disconnecting the cursor makes sure that mouse events come in continously and do not cause side effects in macOS.

[dirkwhoffmann]

Fixed in V1.11
