Vega: Needs brush to resizes to the closest domain value

[mo0om]

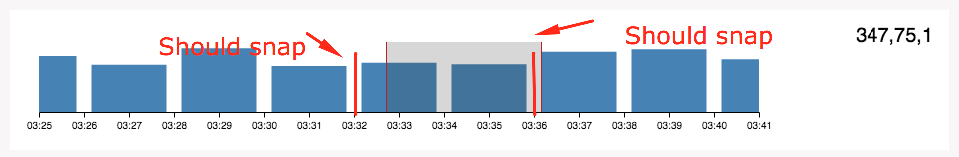

I'm trying to make the brush snaps to the closest domain value like on this example...
https://bl.ocks.org/mbostock/6232537

I believe I need to change the delta value onmouseup but I can't figure out how to pass the mouse x() value to the scale...

"scales": [
    {
      "name": "xband",
      "type": "band",
      "domain": {"data": "graph", "field": "x"},
      "range": "width",
      "padding": 0.05,
      "round": true
    }
  ],

 "signals": [
        {
          "name": "brush", "value": 0,
          "on": [
            {
              "events": "@overview:mousedown",
              "update": "[x(), x()]"
            },
            {
              "events": "[@overview:mousedown, window:mouseup] > window:mousemove!",
              "update": "[brush[0], clamp(x(), 0, width)]"
            },
            {
              "events": {"signal": "delta"},
              "update": "clampRange([anchor[0] + delta, anchor[1] + delta], 0, width)"
            }
          ]
        },
        {
          "name": "anchor", "value": null,
          "on": [{"events": "@brush:mousedown", "update": "slice(brush)"}]
        },
        {
          "name": "xdown", "value": 0,
          "on": [{"events": "@brush:mousedown", "update": "x()"}]
        },
        {
          "name": "delta", "value": 0,
          "on": [
            {
              "events": "[@brush:mousedown, window:mouseup] > window:mousemove!",
              "update": "x() - xdown"
            }
          ]
        },
        {
          "name": "detailDomain",
          "push": "outer",
          "on": [
            {
              "events": {"signal": "brush"},
              "update": "span(brush) ? invert('xOverview', brush) : null"
            }
          ]
        }
      ],

[jheer]

The linked D3 example uses the following strategy:

1. Get the x-coordinate value.
2. Run it through a scale inversion (x.invert) to map from pixel domain to data domain.
3. Perform "snapping" by rounding / truncating values in the data domain.
4. Re-apply the x scale to get the snapped pixel coordinate.

You can use the same strategy in Vega within signal expressions.

• To invert the scale, you can use the invert expression function. For example invert('scaleName', x()).
• Then perform whatever "rounding" you want to perform in the data domain. To snap to time values, you can apply one of the various datetime expression functions. For example to create a datetime value truncated to the previous day boundary: datetime(year(d), month(d), date(d)).
• To map data values back to the pixel domain, use the scale expression function. For example scale('scaleName', value).

[mo0om]

Thanks Jeffrey, I got it to work. I've pasted the code in case someone would need something similar.

{
  "$schema": "https://vega.github.io/schema/vega/v3.0.json",
  "width": 720,
  "height": 70,
  "padding": 5,

  "data": [
     {
      "name": "graph",
      "values":[
        {
          "label": "traffic-statistics.output-bytes",
          "x": 1500492300000,
          "y": 63.87579568625058
        },
        {
          "label": "traffic-statistics.output-bytes",
          "x": 1500492420000,
          "y": 54.14065294117647
        },
        {
          "label": "traffic-statistics.output-bytes",
          "x": 1500492540000,
          "y": 72.7588843137255
        },
        {
          "label": "traffic-statistics.output-bytes",
          "x": 1500492660000,
          "y": 52.708751372572955
        },
        {
          "label": "traffic-statistics.output-bytes",
          "x": 1500492780000,
          "y": 56.16350784313726
        },
        {
          "label": "traffic-statistics.output-bytes",
          "x": 1500492900000,
          "y": 54.5772635293998
        },
        {
          "label": "traffic-statistics.output-bytes",
          "x": 1500493020000,
          "y": 68.9301290195839
        },
        {
          "label": "traffic-statistics.output-bytes",
          "x": 1500493140000,
          "y": 71.75086470588235
        },
        {
          "label": "traffic-statistics.output-bytes",
          "x": 1500493260000,
          "y": 60.39008392160453
        }
      ]
    }
  ],
  "scales": [
    {
      "name": "xband",
      "type": "band",
      "domain": {"data": "graph", "field": "x"},
      "range": "width",
      "padding": 0.05,
      "round": true
    },
    {
      "name": "xOverview",
      "type": "time",
      "range": "width",
      "domain": {"data": "graph", "field": "x"}
    },
    {
      "name": "yOverview",
      "type": "linear",
      "range": [70, 0],
      "domain": {"data": "graph", "field": "y"},
      "nice": true, "zero": true
    }
  ],
  "signals": [
    {
      "name": "detailDomain"
    }
  ],

  "marks": [
    {
      "type": "group",
      "name": "overview",
      "encode": {
        "enter": {
          "x": {"value": 0},
          "y": {"value": 0},
          "height": {"value": 70},
          "width": {"value": 720},
          "fill": {"value": "transparent"}
        }
      },
      "signals": [
        {
          "name": "brush", "value": 0,
          "on": [
            {
              "events": "@overview:mousedown",
              "update": "[scale('xOverview', invert('xband', x()) ) - 8, scale('xOverview', invert('xband', x())) - 8]"
            },
            {
              "events": "[@overview:mousedown, window:mouseup] > window:mousemove!",
              "update": "[brush[0], clamp(scale('xOverview', invert('xband', x())) - 8, -8, width)]"
            },
            {
              "events": {"signal": "delta"},
              "update": "clampRange([anchor[0] + delta, anchor[1] + delta], 0, width)"
            }
          ]
        },
        {
          "name": "anchor", "value": null,
          "on": [{"events": "@brush:mousedown", "update": "slice(brush)"}]
        },
        {
          "name": "xdown", "value": 0,
          "on": [{"events": "@brush:mousedown", "update": "x()"}]
        },
        {
          "name": "delta", "value": 0,
          "on": [
            {
              "events": "[@brush:mousedown, window:mouseup] > window:mousemove!",
              "update": "x() - xdown"
            }
          ]
        },
        {
          "name": "detailDomain",
          "push": "outer",
          "on": [
            {
              "events": {"signal": "brush"},
              "update": "span(brush) ? invert('xOverview', brush) : null"
            }
          ]
        }
      ],
      "axes": [
        {"orient": "bottom", "scale": "xOverview", "position": -8}
      ],
      "marks": [
         {"type": "group",
          "encode": {
            "enter": {
              "height": {"field": {"group": "height"}},
              "width": {"field": {"group": "width"}},
              "clip": {"value": true}
            }
          },
        "marks": [{
          "type": "rect",
          "from": {"data": "graph"},
          "interactive": false,
          "encode": {
            "update": {
              "x": {"scale": "xOverview", "field": "x"},
              "y": {"scale": "yOverview", "field": "y"},
              "y2": {"scale": "yOverview", "value": 0},
              "width": {"scale": "xband", "band": 1},
              "fill": {"value": "steelblue"}
            }
          }
        }]},
        {
          "type": "rect",
          "name": "brush",
          "interactive": false,
          "encode": {
            "enter": {
              "y": {"value": 0},
              "height": {"value": 70},
              "fill": {"value": "#333"},
              "fillOpacity": {"value": 0.2}
            },
            "update": {
              "x": {"signal": "brush[0]"},
              "x2": {"signal": "brush[1]"}
            }
          }
        },
        {
          "type": "rect",
          "interactive": false,
          "encode": {
            "enter": {
              "y": {"value": 0},
              "height": {"value": 70},
              "width": {"value": 1},
              "fill": {"value": "firebrick"}
            },
            "update": {
              "x": {"signal": "brush[0]"}
            }
          }
        },
        {
          "type": "rect",
          "interactive": false,
          "encode": {
            "enter": {
              "y": {"value": 0},
              "height": {"value": 70},
              "width": {"value": 1},
              "fill": {"value": "firebrick"}
            },
            "update": {
              "x": {"signal": "brush[1]"}
            }
          }
        }
      ]
    }
  ]
}

[jheer]

Glad it worked out. Thanks for sharing!
