Two.js: Working with external SVG

Created on 8 Feb 2018 · 7Comments · Source: jonobr1/two.js

This may be just me having a messy head, but I really can't find how to import an external SVG onto my two scene.

The url of my SVG file is https://s3.eu-central-1.amazonaws.com/besports-files/images/platform/pixels/Chest.svg.

I'm looking to integrate this with React, so any extra help that way would be worth a ton!

bug question

Source

Neglexis

Most helpful comment

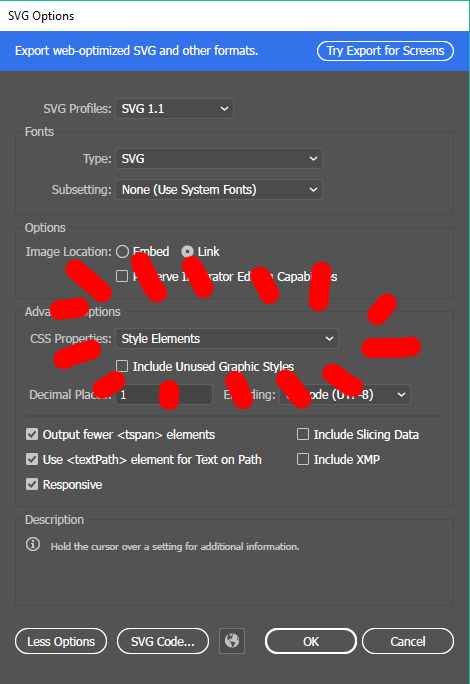

Are you exporting from Adobe Illustrator? If so you need to change your settings so that your SVG outputs "Presentation Attributes" instead of "Style Elements" here:

capture

This will ensure the fill, stroke, etc. styles are interpretted correctly.

I need to update Two.js to handle the rx and ry properties for rounded corners. I'll add that right now.

jonobr1 on 8 Feb 2018

🎉1 👍1

All 7 comments

If you wanna have Two.js do the xhr request then:

two.load('https://s3.eu-central-1.amazonaws.com/besports-files/images/platform/pixels/Chest.svg', function(svg) {

  // svg is a Two.Group that has all the children
  svg.center(); // I center the object's shapes
  svg.translation.set(two.width / 2, two.height / 2); // move to the center of the canvas

});

If you already have the SVG as a DOM element. Then you ucan use:

var svg = two.interpret(domElement);

Hope this helps!

jonobr1 on 8 Feb 2018

👍1

Hmm, I tried both approaches, but none seem to really do the trick:

two.load gets me a fully black svg and doesn't take into account the svg's rx and ry values.
two.interpret also doesn't account for rx and ry values

For completeness' sake, I'm using a slightly different svg (https://s3.eu-central-1.amazonaws.com/besports-files/images/platform/pixels/asset.svg).

Any idea what's going wrong?

Neglexis on 8 Feb 2018

Are you exporting from Adobe Illustrator? If so you need to change your settings so that your SVG outputs "Presentation Attributes" instead of "Style Elements" here:

capture

This will ensure the fill, stroke, etc. styles are interpretted correctly.

I need to update Two.js to handle the rx and ry properties for rounded corners. I'll add that right now.

jonobr1 on 8 Feb 2018

🎉1 👍1

This commit enables the ability to read rx and ry properties from an SVG element in Two.load and Two.interpret: https://github.com/jonobr1/two.js/commit/10165d48b35c45c5e7fcdda86c5f4a31b389805c

If you use the latest builds on the dev branch it will correctly render the paths form. You'll still need to modify your SVG so that the colors aren't applied through a style attribute, but directly as fill, stroke, etc. as defined in the W3C spec. Thanks for reporting!

jonobr1 on 8 Feb 2018

Can confirm the dev branch works, thanks for the lightning fast fix @jonobr1!

Neglexis on 9 Feb 2018

I have this:

<script>
    window.onload = (event) => {
        var type = /(canvas|webgl)/.test(url.type) ? url.type : 'svg';
        var two = new Two({
            type: Two.Types[type],
            fullscreen: true,
            autostart: true
        }).appendTo(document.body);

        two.load('test011.svg', function (svg) {
            // svg is a Two.Group that has all the children
            svg.center(); // I center the object's shapes
            svg.translation.set(two.width / 2, two.height / 2); // move to the center of the canvas
        });
    };
</script>

and nothing was shown. There was no error on the console. Any idea?

Thanks,

txtl on 17 Sep 2020

This could be a number of issues unrelated to the actual loading of the SVG.

First, the way you've described this script tag is that you'll have to make sure it's in the <head /> otherwise the onload event may not get fired.

Second, you need Two.js as well as URL.js for this to run. You can circumvent the second dependency by simply setting var type = 'svg'; or var type = 'canvas';.

Third, you need to make sure that the SVG loaded. In the callback placing a console.log to confirm if loaded will work fine.

Fourth, you need to add the svg to the instance of Two. You can do that by adding the line two.add(svg);. This is a change in the current version of the code (that Two doesn't automatically add loaded svg's to itself), because I think it's better to let the developer decide what they want to do with it.

Hope this helps! In the future please post this as a new issue.

jonobr1 on 17 Sep 2020
