Three.js: THREE.ColladaLoader: Undefined sampler

Created on 30 Oct 2017 · 20Comments · Source: mrdoob/three.js

Description of the problem

Hi,
Sorry for ticketing so many issues lately :sweat_smile:

Some meshes started showing this error after upgrading to the new Collada, e.g. this mesh.

So after some debugging, in the loader at this line it is trying to find texture0 in the samplers, while the correct sampler is texture0-sampler .

This workaround solves it for me.

var sampler = effect.profile.samplers[ textureObject.id ] || effect.profile.samplers[ textureObject.id + '-sampler' ];

Three.js version

[x] Dev
[ ] r87
[ ] ...

Browser

[x] All of them
[ ] Chrome
[ ] Firefox
[ ] Internet Explorer

OS

[x] All of them
[ ] Windows
[ ] macOS
[ ] Linux
[ ] Android
[ ] iOS

Hardware Requirements (graphics card, VR Device, ...)

Source

MohmadAyman

👍1

Most helpful comment

I figured out a clean way that should solve the issue.

Mugen87 on 31 Dec 2017

❤1 👍1

All 20 comments

I'm confused why the usage of the sampler just fails in your case 🤔 . We tested with so many examples where this was no problem.

Your proposed fix might work in your case but it does not look like a generic solution to me. I need to debug this one...

Mugen87 on 30 Oct 2017

❤1

After having a look at the rest of our models, it seems like there are only a very few meshes that have this problem ... but was working fine with the old collada :confused: .

MohmadAyman on 30 Oct 2017

Is it possible to provide the entire model as a zip file again? 😊 Makes it easier to see if the texture is actually applied.

Mugen87 on 1 Nov 2017

❤1

Having the same issue with Maya 2017 here. Is the loader expecting a specific shading network to be set before exportation with the DAE_FBX exporter from Maya ? I am asking because it seems, among a couple of secondary disparities, that the surface and sampler2D newparams are not created in the dae file, nor the sampler passed as the texture in the texture tag of the desired channel. The texture is fed with the image id directly instead.
Correcting the issue manually in the file solves the problem, but are we supposed to export a specific material network or is the collada exporter supposed to properly convert various Maya materials directly suitable to threejs's collada loader ?
Thx for the support !

Edit : Mmmmh, the problem does not show up at all with the latest OpenCollada plugin for Maya 2017 (v1.6.60).
https://github.com/KhronosGroup/OpenCOLLADA/releases
Problem solved at least for me..

KavehR on 2 Nov 2017

Sure, here is the model zipped .

MohmadAyman on 2 Nov 2017

In your files, it looks like the blender exporter is properly giving the sampler's id to the channel's texture, whereas meshlab's present kind of the same problem as Maya 2017's here, giving the image id instead of the sampler id to the channel's texture. Feels like a collada exportation plugin problem..

KavehR on 2 Nov 2017

👍2

Sketchfab is actually able to load the file correctly. I'm still not sure about the correct handling of this case. Unfortunately, i did not find something useful in the spec. It only refers to the workflow via samplers.

https://www.khronos.org/files/collada_spec_1_5.pdf

Mugen87 on 2 Nov 2017

Run into the same problem with every object I downloaded from clara.io which uses textures.

BUT! Found following ;)
https://github.com/KhronosGroup/OpenCOLLADA/issues/92#issuecomment-13135708

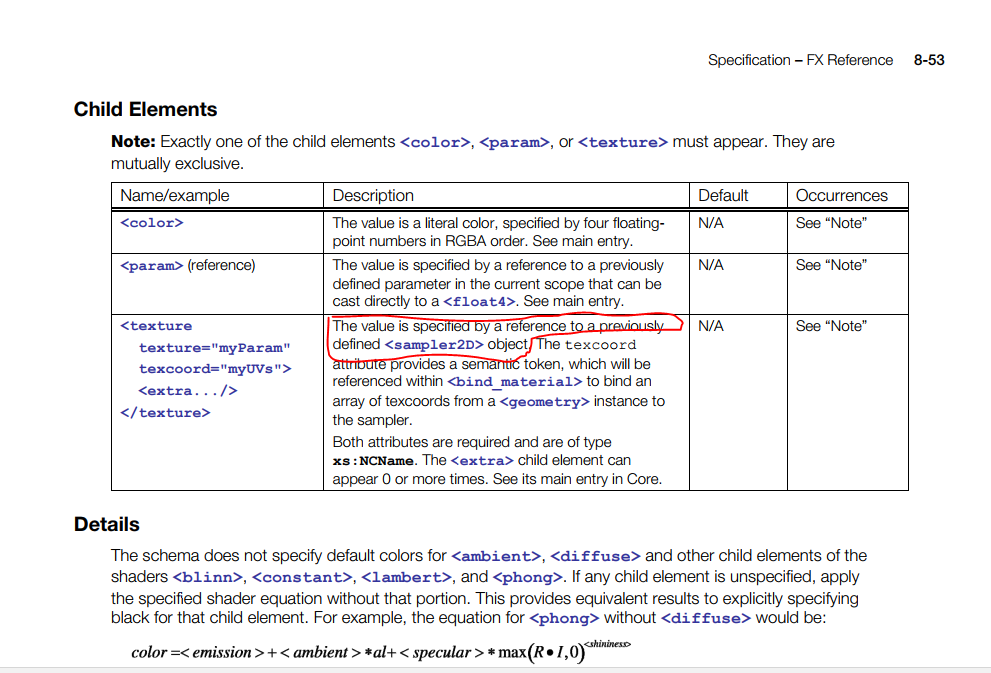

Also in the collada spec 1.5 ( @Mugen87 )
texture="myParam" => The value is specified by a reference to a previously defined object.

So the implementation of the Collada Loader seems fine according to the specification...
=> the issue itself is invalid since it rather seems like a bug in the exporter

Models from clara.io, with textures, works fine when uploaded again on clara.io so I don't know what clara.io does in perticular but probably they check for the sampler and if it is not available they create one... hacky but seems to work on their site.

Here is a thread on clara.io regarding .dae files downloaded there don't work with three.js
exporting-models-with-materials-not-working-in-three-js

cnspaha on 10 Nov 2017

@bhouston Can you recommend an approach for handle this issue inside ColladaLoader?

tl;dr: The problem is that some Collada files have texture tags that refer directly to an image and not to a sampler. ColladaLoader is currently unable to load such files because it expects a reference to a sampler.

Mugen87 on 10 Nov 2017

I figured out a clean way that should solve the issue.

Mugen87 on 31 Dec 2017

❤1 👍1

I can help trying it out when ready 👍

MohmadAyman on 1 Jan 2018

BTW just to be clear, because I missed this originally, we use the Autodesk FBX SDK export to create the Collada files exported from Clara.io. It has proven to be buggy.
