Three.js: GLTFLoader.js:2145 TypeError: Cannot read property 'children' of undefined

[densetsughem]

Description of the problem

Please help. I got below error when I tried to load a .gltf file. I used the sample code: https://threejs.org/examples/#webgl_loader_gltf2

Also, here is the link of the files I used:
http://densetsughem.com/Dog.zip

THREE.Object3D.add: object not an instance of THREE.Object3D. undefined
GLTFLoader.js:2145 Uncaught (in promise) TypeError: Cannot read property 'children' of undefined
    at buildNodeHierachy (GLTFLoader.js:2145)
    at buildNodeHierachy (GLTFLoader.js:2152)
    at GLTFLoader.js:2178
    at _each (GLTFLoader.js:604)
    at GLTFLoader.js:2166
    at <anonymous>
buildNodeHierachy @ GLTFLoader.js:2145
buildNodeHierachy @ GLTFLoader.js:2152
(anonymous) @ GLTFLoader.js:2178
_each @ GLTFLoader.js:u
(anonymous) @ GLTFLoader.js:2166

Thank you in advance.

Three.js version

• [ ] Dev
• [ ] r85
• [ ] ...

Browser

• [x] All of them
• [ ] Chrome
• [ ] Firefox
• [ ] Internet Explorer

OS

• [x] All of them
• [ ] Windows
• [ ] macOS
• [ ] Linux
• [ ] Android
• [ ] iOS

Hardware Requirements (graphics card, VR Device, ...)

[donmccurdy]

Hi @densetsughem — thanks for the details! You have a glTF1.0 model here, and we're not supporting that much longer. Rather than try to debug what might be wrong with GLTFLoader or with the model, could you try making a glTF2.0 version?

There is a new glTF Blender exporter that should help: https://github.com/KhronosGroup/glTF-Blender-Exporter

To test glTF2.0 files in THREE.GLTF2Loader, you can drag-and-drop them here: https://gltf-viewer.donmccurdy.com/

[densetsughem]

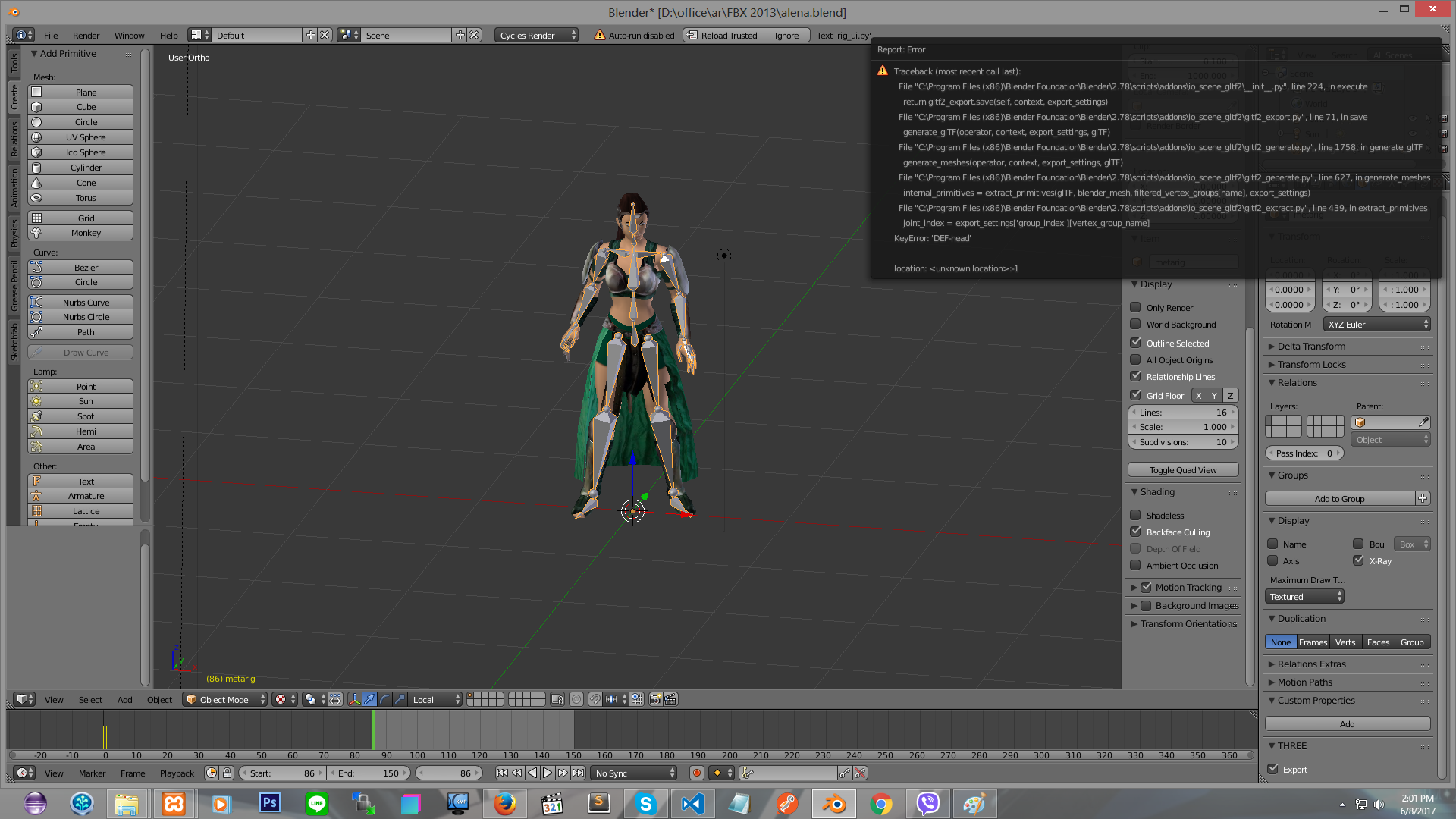

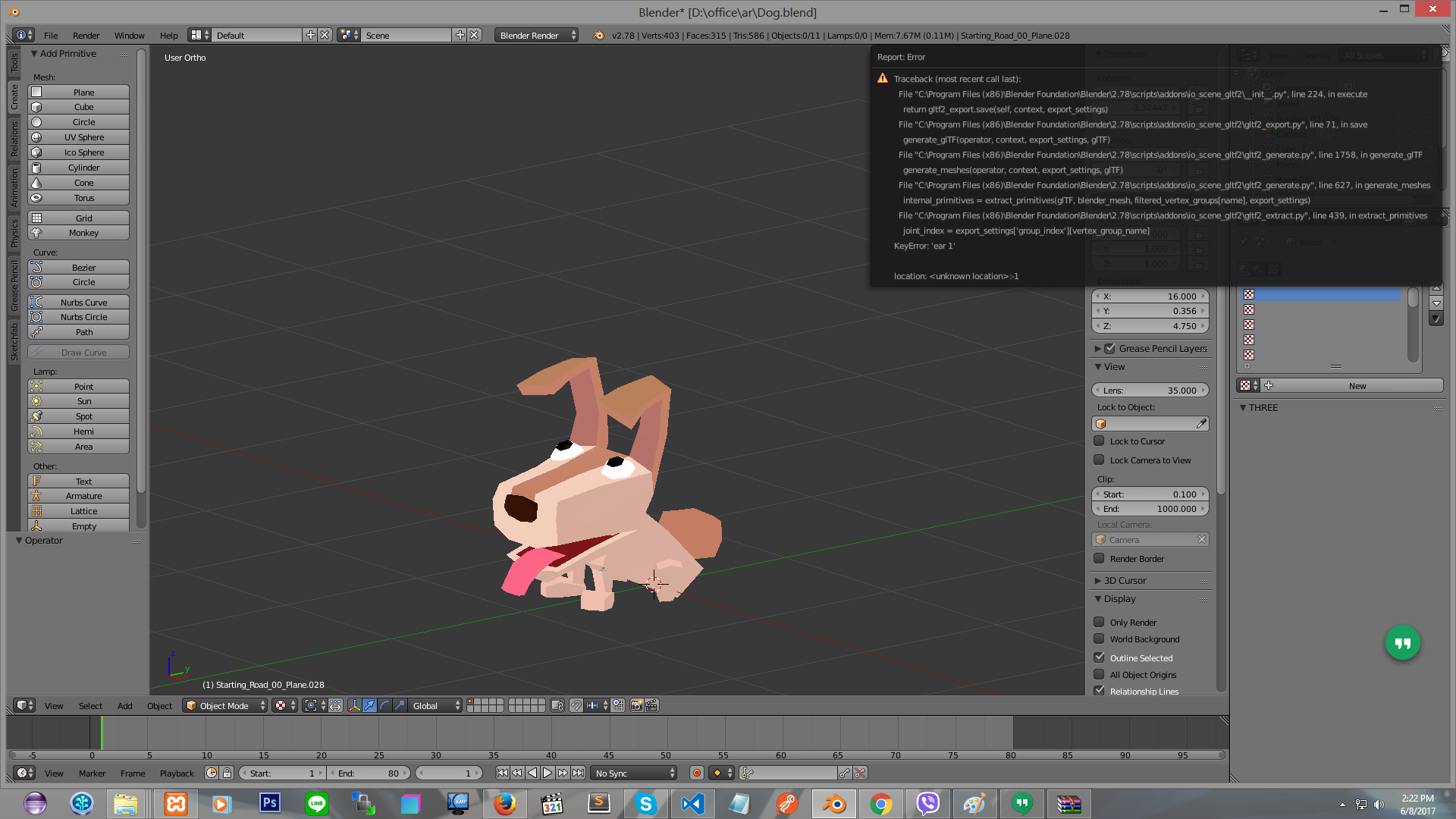

Still having problem. When I update to gltf2 when I tried to export it from blender -> gltf2 i encountered following errors:

But when I tried to uncheck skinning I successfully exported the file to .gltf But animation failed to be exported even though I checked it.

Models:
densetsughem.com/GLTF2-Blend-fIle.rar

Thank You. :)

[donmccurdy]

Most likely there is a bug with skinning, either with the Blender exporter or with THREE.GLTF2Loader. I'll look into that more in the next few days.

If you're in a hurry, you may also want to try an alternative workflow here. Depending on which version of COLLADA2GLTF you use, that might give you a glTF1.0 or glTF2.0 model.

[donmccurdy]

@densetsughem it looks like there are some issues in the Blender exporter (it is a work in progress), so I've opened a new issue here: https://github.com/KhronosGroup/glTF-Blender-Exporter/issues/8

I briefly tried the other workflow suggested, and didn't have much luck with that, so getting the issue fixed in the blender exporter may be the best option for now.

[donmccurdy]

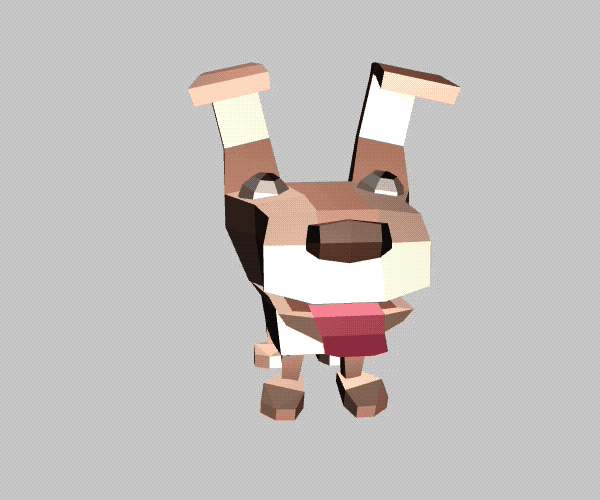

With the changes in #11485, and fixes already made to the Blender exporter, we're getting close. There will be a couple more small fixes needed for animation, but here's the result in three.js:

[donmccurdy]

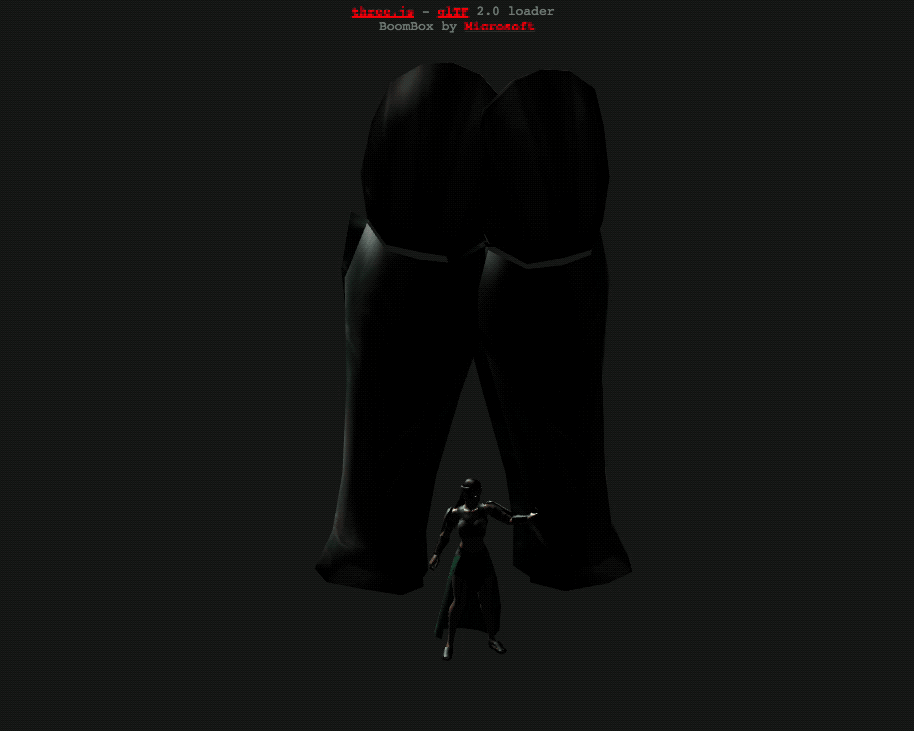

There's still an issue with the Alena model:

I'm not sure what to make of that; I can't tell if the .gltf asset is correct or not.

[densetsughem]

@donmccurdy hi. Can i get a running dog script? So that I can study how it works? when I update my copy of threejs I encountered a KH_material error.

thanks.

[donmccurdy]

Hi @densetsughem — you can find the working Dog.gltf model, and the changes needed to create it (after updating your version of the blender exporter) here: https://github.com/KhronosGroup/glTF-Blender-Exporter/issues/8#issuecomment-307628061

Usage is the same as this sample: https://threejs.org/examples/#webgl_loader_gltf2

You'll also be able to test models in a drag-and-drop viewer (https://gltf-viewer.donmccurdy.com/), although I haven't yet updated it with these fixes.

[WestLangley]

@donmccurdy Any chance you can help some more on SO? :)

[donmccurdy]

Will do!
