Tf-pose-estimation: 3d human pose from tf-pose-estimation

[ArashHosseini]

@ildoonet thanks for the great work, there is now the possibility to estimating 3d human poses by using the 2d estimated output from forked _tf-pose-estimation_ in 3d-pose-basline, check simple change diff for more information
thx

[highway007]

@ArashHosseini
hi, i had changed those .py follow yours, and there is still no json file. can you tell me what i should do?

[ArashHosseini]

@highway007 what is the your command?

[highway007]

@ArashHosseini
thx for reply...my mistake was that i didn't use the absolute path(output_json)
now i got json file recording 'pose_keypoints_2d' not 'pose_keypoints_3d', like:
{"people": [{"pose_keypoints_2d": [812, 176, 806, 278, 723, 270, 723, 395, 841, 290, 889, 278, 907, 387, 919, 462, 741, 571, 0.0, 0.0, 0.0, 0.0, 812, 575, 0.0, 0.0, 0.0, 0.0, 788, 160, 830, 160, 759, 172, 859, 168]}]}
is there any ways to get the 'pose_keypoints_3d' json file?

[ArashHosseini]

@highway007 you have to forward the json to 3d-pose-basline

[Sindreedelange]

Can I piggyback on this issue and ask how you got the 2D .json output, what those values represent, and if they can be 'translated' to "Caffe Openpose's" keypoints .json file?

[ArashHosseini]

@Sindreedelange check the changes in diff, the output is already matching the Openpose output....you can feed this as input json for 3d-pose-baseline

[Sindreedelange]

@ArashHosseini, that is great!

I get the *_keypoints.json files, however they are empty:
{"people": []}

I believe I have copied everything from your link (and the ones for run_video.py) - do you know where I might have misstepped?

Here is my command

python run_video.py --video=./videos/jumping_jacks_2.mp4 --resolution=432x368 --model=mobilenet_thin --output_json tmp/

[ArashHosseini]

@Sindreedelange Did you also followed this commit ?

[Sindreedelange]

@ArashHosseini Yes.

Edit: Or else I probably would not have gotten the keypoints files, at all.

[ArashHosseini]

@Sindreedelange can you See the joints in the retured Image from TfPoseEstimator.draw_humans func ?

[Sindreedelange]

@ArashHosseini No. When --showBG = True it plays the video with no skeleton (and the FPS information), and --showBG = False gives just a black video player, with the FPS information.

[ArashHosseini]

@Sindreedelange Can you change line 403 and 411 in drawHumans func to be similar to line 411 # npimg = cv2.line(npimg, centers[pair[0]], centers[pair[1]], common.CocoColors[pair_order], 3) ,lets debug the Image Issue first.....we collecting the keypoints during the drawing

line403
npimg=cv2.circle(npimg, center, 8, common.CocoColors[i], thickness=3, lineType=8, shift=0)
line411
npimg=cv2.line(npimg, centers[pair[0]], centers[pair[1]], common.CocoColors[pair_order], 3)

[Sindreedelange]

@ArashHosseini Copied line 411 = cv2.line(npimg, centers[pair[0]], centers[pair[1]], common.CocoColors[pair_order], 3) and replaced line 403 = cv2.circle(npimg, center, 8, common.CocoColors[i], thickness=3, lineType=8, shift=0) with 411. There is no change in behaviour when running.

[Sindreedelange]

@ArashHosseini I believe I have found the problem:
humans = e.inference(image) gives an empty array - I assume this is not intended?

Such that it never actually enters the for-loop: for n, human in enumerate(humans): in draw_humans()

Which means the problem most likely lies in estimator.inference(), no?

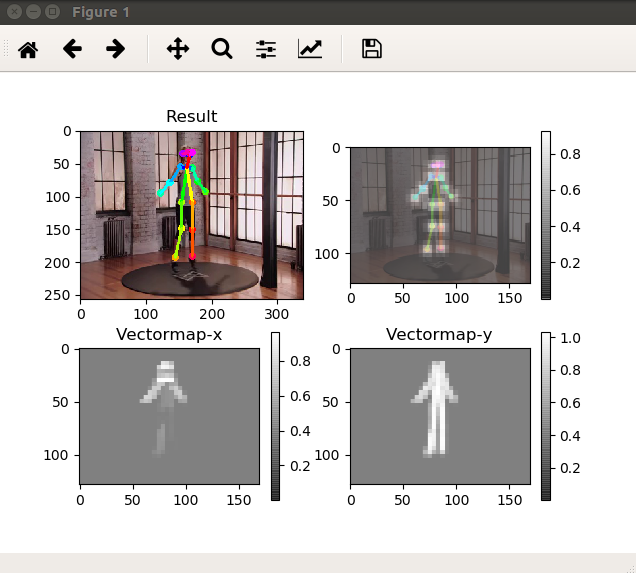

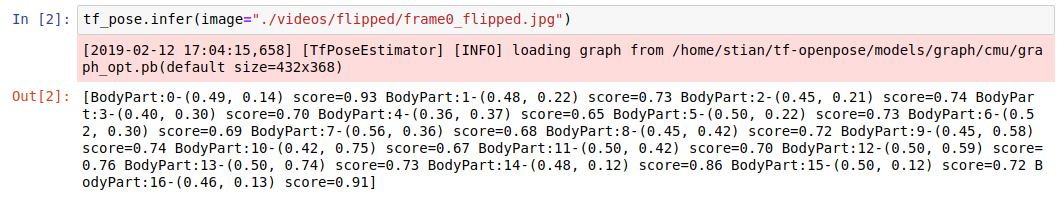

However, this is also quite strange, because when trying their "demo" in jupyter notebook:

It seems to work perfectly?
Note: I flip and store each frame from inputed video, so this is basically one of the frames it was not able to locate the human in.

[ArashHosseini]

@Sindreedelange can you change the Logger Level to debug in estimator.py....

[Sindreedelange]

@ArashHosseini

[2019-02-12 17:28:22,464] [TfPoseEstimator-Video] [DEBUG] initialization mobilenet_thin : /home/user/tf-openpose/models/graph/mobilenet_thin/graph_opt.pb
[2019-02-12 17:27:01,835] [TfPoseEstimator] [DEBUG] inference+ original shape=340x256
[2019-02-12 17:27:01,898] [TfPoseEstimator] [DEBUG] inference- heatMat=54x46 pafMat=54x46
[2019-02-12 17:27:01,898] [TfPoseEstimator] [DEBUG] estimate time=0.00013

[Sindreedelange]

@ArashHosseini I get (seemingly) correct output when running:
python run.py --image=./videos/flipped/frame0_flipped.jpg --output_json=tmp/, which I guess is just restating the point made above from the Notebook, however I find it quite weird that the program is able to find the human in a frame, inputed by a path, but not by an array?

[ArashHosseini]

@Sindreedelange, thx can you please make a fresh fork from Upstream or redo the Changes from the commits , then lets run run_video.py so we See the Image included joibts, assume there are People in Image........

[Sindreedelange]

@ArashHosseini
git reset --hard, so that the only "new" file is tf_pose/pafprocess/pafprocess_wrap.cxx, which I understood from the README that was necessary.

The program is still __not__ able to recognize humans when running run_video.py, but still able when running run.py:

[ArashHosseini]

https://github.com/ildoonet/tf-pose-estimation/blob/dbc89c7c7efdf5aaf56b3bb0f53ef32ea3eaff76/run_video.py#L48 , so you See the Image without drawing but with fps Label on it?

[Sindreedelange]

@ArashHosseini That is correct.

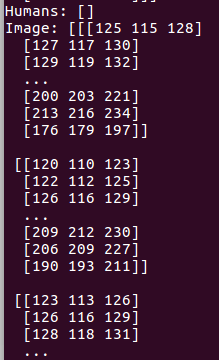

So
humans = e.inference(image) gives humans = empty array.
ret_val, image = cap.read() gives image = not empty array.
Example:

[Sindreedelange]

@ArashHosseini It seems to be working now:
run_video.py
humans = e.inference(image)
-->
humans = e.inference(image, resize_to_default=(w > 0 and h > 0), upsample_size=args.resize_out_ratio) (copied from run.py)
and added
parser.add_argument('--resize-out-ratio', type=float, default=4.0, help='if provided, resize heatmaps before they are post-processed. default=1.0') (also copied from run.py)

[ArashHosseini]

What is den lenght of pafprocess.get_num_humans() in
https://github.com/ildoonet/tf-pose-estimation/blob/dbc89c7c7efdf5aaf56b3bb0f53ef32ea3eaff76/tf_pose/estimator.py#L272 ...inference is calling it

[ArashHosseini]

@Sindreedelange so its work now? Can you provide a diff...?

[Sindreedelange]

@ArashHosseini Seems so.

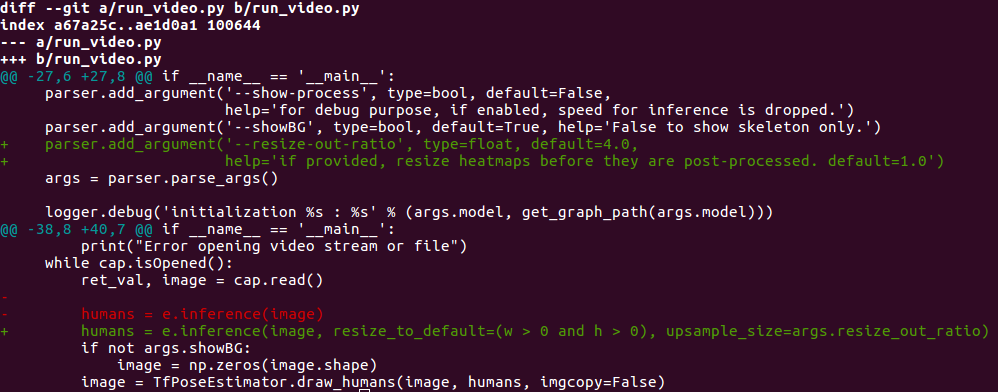

Not sure what is the best way of providing a diff, but here is at least something:

Please do let me know if there is a better way of doing this.

[ArashHosseini]

@Sindreedelange its great, thx.......i guess now you can Start modify and write the frame-keypoints.json file.......

[Sindreedelange]

@ArashHosseini Already done, and it works great! I think Openpose normalizes their values, so on to this now. Thank you so much!

Ps. Have you considered adding indent=4 when dumping the .json file, for improved readability?

[ArashHosseini]

@Sindreedelange I'm glad that it works, I wish I could help you more, I'm on a 6 hour train ride, the only thing I had was my smartphone ....

[Sindreedelange]

@ArashHosseini No worries, I truly appreciate your effort! Maybe you could explain to me why it works now, when you get to your computer, because I have no clue as to why it works - total shot in the dark.

[vishnu41]

@ArashHosseini
Hey,
when i am trying to pass the json to the real time code by the following command
python3.5 src/openpose_3dpose_sandbox_realtime.py --camera_frame --residual --batch_norm --dropout 0.5 --max_norm --evaluateActionWise --use_sh --epochs 200 --load 4874200 --pose_estimation_json /home/drive/tf-pose-estimation-master/json

Can you help me here ASAP.
Thanks

[ArashHosseini]

Hey @vishnu41, please replace “xy“ by “_data“ in line 86, let it me know if its working, thx

[vishnu41]

Yea, i changed
But not working . same error

[ArashHosseini]

@vishnu41, and you Start your Pose-estimator and 3D-baseline on the same Time?

[vishnu41]

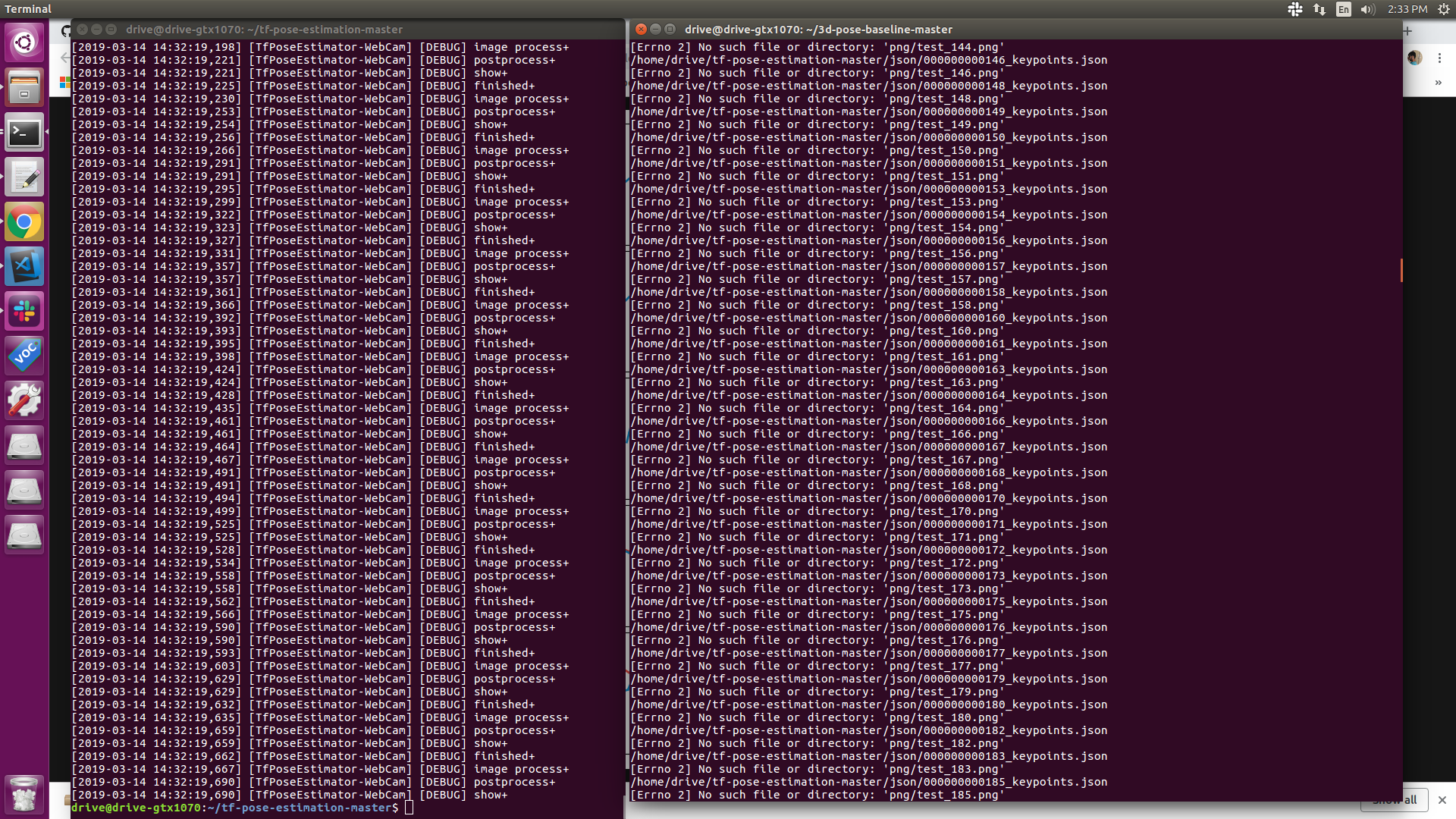

Yes, i did and i am getting this error
same time in the sense parallely in two terminals no?

[ArashHosseini]

@vishnu41 Yes tf-Pose-estimator is Writing and 3d-baseline is Reading and showing in parallel. The error has Changed.....you know why?

[vishnu41]

@ArashHosseini Yea i understood that,But still it shows no image error, what should i do?
I thought program will automatically saves the image

[vishnu41]

@ArashHosseini and i am getting only the tf openpose output in the window and not the 3d baseline

[ArashHosseini]

@vishnu41,
Is the code writing any png?
Is the plt.show() in line 211 showing something?
Is the „not-realtime“ Version working correct with the same json‘s? (the First Frame Should Contain all joints?

[vishnu41]

It writes png, but there is nothing in there,
And plt.show() shows images
sometimes its getting terminated automatically.
help me here and i need that interpolation thing also, thats not generating

[madhuvaani]

@ArashHosseini i was using your code to get the 3d coordinates , but the coordinates i am getting looks like 24 4d points, Tell me what change i should make to get the 3d points
My goal is to create bvh file , so i need the 3d coordinates, can you tell the steps

[ArashHosseini]

@vishnu41, @madhuvanni, i can‘t touch the code until next week Tuesday, hope you forgive me...

[ArashHosseini]

@vishnu41 can you please upload one of the json files? thanks

[madhuvaani]

@ArashHosseini not an issue

[vishnu41]

000000000000_keypoints.txt

[ArashHosseini]

@vishnu41. i have to ask for more, can you please upload the sequence as zip file?, thanks

[vishnu41]

json.zip
these are the jsons only for the upper part , since i placed the camera in such a way.And what is that 4D points? Those are theta? , I am not getting 3d points

[ArashHosseini]

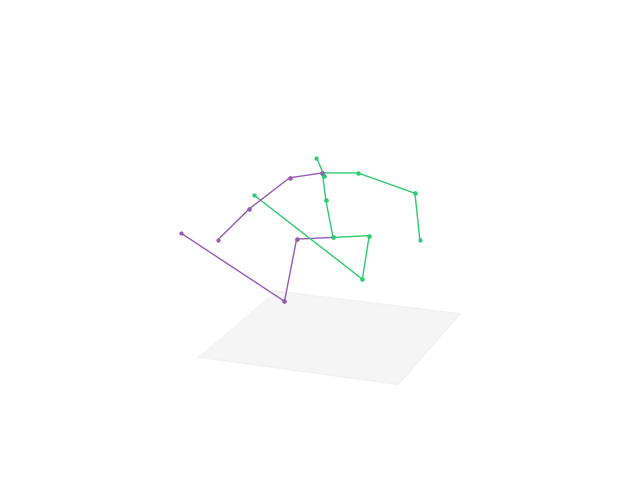

@vishnu41, here the upper body output, is the assumption correct that no lower body parts are in the picture?, (you already mentioned it)

[ArashHosseini]

@madhuvaani this question is often asked #108 I'm going to explain it a bit clearer, but it will take some time. thanks

[ironllamagirl]

@madhuvaani this question is often asked #108 I'm going to explain it a bit clearer, but it will take some time. thanks

How do I extract the 3D coordinates in a json file?

[ironllamagirl]

@Sindreedelange check the changes in diff, the output is already matching the Openpose output....you can feed this as input json for 3d-pose-baseline

What is this code used for? why multiply the x and y coordinates by the width and heigh and add 0.5?

body_part = human.body_parts[i] center = (int(body_part.x * image_w + 0.5), int(body_part.y * image_h + 0.5)) centers[i] = center

[ironllamagirl]

@Sindreedelange check the changes in diff, the output is already matching the Openpose output....you can feed this as input json for 3d-pose-baseline

@ArashHosseini Hi!
I have followed your code and it seems to work, however I do not understand fully where exactly in the pipeline of the network did we feed the 2D coordinate estimations to the 3d pose baseline?

3d pose baseline seems to use predictions from stacked hourglass.. it gets the 2d predictions from 3d ground truth data? In this case we will use our own predictions. Where is that intervention happening in the code?

I used the json files from openpose, but in the terminal I still get log info referring to stacked hourglass and human 3.6M dataset, in h5 files. A little lost and confused in the pipeline here. Any indication or explanation would be much appreciated!

[igorgbs]

@ArashHosseini
thx for reply...my mistake was that i didn't use the absolute path(output_json)
now i got json file recording 'pose_keypoints_2d' not 'pose_keypoints_3d', like:
{"people": [{"pose_keypoints_2d": [812, 176, 806, 278, 723, 270, 723, 395, 841, 290, 889, 278, 907, 387, 919, 462, 741, 571, 0.0, 0.0, 0.0, 0.0, 812, 575, 0.0, 0.0, 0.0, 0.0, 788, 160, 830, 160, 759, 172, 859, 168]}]}
is there any ways to get the 'pose_keypoints_3d' json file?

where did you find the function to get output from image?

[ArashHosseini]

@igorgbs what you mean exactly

get output from image?

[PrashantSaikia]

@Sindreedelange check the changes in diff, the output is already matching the Openpose output....you can feed this as input json for 3d-pose-baseline

Hi @ArashHosseini, thanks for the commit in your repo where you modified tf_pose/estimator.py to give it the option of converting the video to a JSON file. However, when I copied the relevant parts into the function, and tried to save the JSONs, it only saved the JSON of the first frame (000000000000_keypoints.json). In the original OpenPose (using Caffe), a JSON is saved for each frame of the video. So, we get multiple JSONs saved, one for each frame. Do you know how to go about recreating that functionality here? Many thanks in advance!

[ArashHosseini]

Hi @PrashantSaikia,
check this line

    frame = 0
    while True:
        ret_val, image = cam.read()

        logger.debug('image process+')
        humans = e.inference(image, resize_to_default=(w > 0 and h > 0), upsample_size=args.resize_out_ratio)

        logger.debug('postprocess+')


        -->     image = TfPoseEstimator.draw_humans(image, humans, imgcopy=False, frame=frame, output_json_dir=args.output_json)

inside the while loop, we are calling tf_pose/estimator.draw_humans() with the frame and we are increasing the json here based on frame. check if you have all parts after copying

[PrashantSaikia]

Hi @ArashHosseini Yes, my bad, I had not copied the frame += 1 line, oops.

I have another (not related to this) issue that I am trying to resolve. I am not able to access/run the run_webcam.py function from outside the tf_pose_estimation directory. Any idea on how to get it working from outside this directory? I have detailed the issue here. I had faced the same issue with the original openpose as well, where I was not able to get OpenPoseDemo.exe running from outside the home directory, which I have detailed here.

If you could give some suggestions, that would be awesome! Thanks!
