Test-infra: presubmits and postsubmits jobs are not triggered

[morvencao]

What happened:

I'm following getting_started_deploy.md to setup prow with manual steps in my GKE cluster in web UI.

All the prow components are running and prow status web UI is working normally, because I can see the periodic echo-test job is completed successfully:

root@mcdev1:~/go/src/k8s.io/test-infra# kc get deploy
NAME               READY   UP-TO-DATE   AVAILABLE   AGE
deck               2/2     2            2           20h
hook               2/2     2            2           20h
horologium         1/1     1            1           20h
plank              1/1     1            1           20h
sinker             1/1     1            1           20h
statusreconciler   1/1     1            1           20h
tide               1/1     1            1           20h

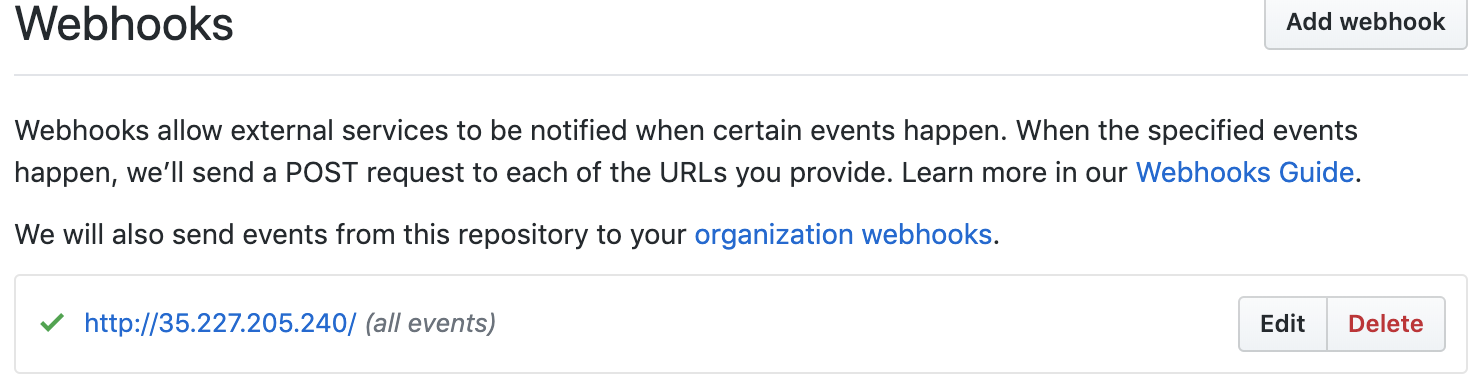

Also webhook is successfully added because I can see a green check mark in repo webhook settings.

Then I tried to add more plugins to plugins.yaml and more jobs to config.yaml.

plugins.yaml:

root@mcdev1:~/go/src/k8s.io/test-infra# cat /root/go/src/k8s.io/test-infra/prow/plugins.yaml
triggers:
- repos:
  - oasis
  trusted_org: multicloudlab
  elide_skipped_contexts: true

plugins:
  multicloudlab/oasis:
  - size
  - trigger

config.yaml:

root@mcdev1:~/go/src/k8s.io/test-infra# cat /root/go/src/k8s.io/test-infra/prow/config.yaml
plank:
  default_decoration_config:
    utility_images: # using the tag we identified above
      clonerefs: "gcr.io/k8s-prow/clonerefs:v20190917-395658c48"
      initupload: "gcr.io/k8s-prow/initupload:v20190917-395658c48"
      entrypoint: "gcr.io/k8s-prow/entrypoint:v20190917-395658c48"
      sidecar: "gcr.io/k8s-prow/sidecar:v20190917-395658c48"
    gcs_configuration:
      bucket: prow_job_bucket # the bucket we just made
      path_strategy: explicit
    gcs_credentials_secret: gcs-credentials # the secret we just made

prowjob_namespace: default
pod_namespace: test-pods

periodics:
- interval: 10m
  name: echo-test
  decorate: true
  spec:
    containers:
    - image: alpine
      command: ["/bin/date"]
postsubmits:
  multicloudlab/oasis:
  - name: test-postsubmit
    decorate: true
    spec:
      containers:
      - image: alpine
        command: ["/bin/printenv"]
presubmits:
  multicloudlab/oasis:
  - name: test-presubmit
    decorate: true
    always_run: true
    skip_report: true
    spec:
      containers:
      - image: alpine
        command: ["/bin/printenv"]

Also the preconfig check is passed:

root@mcdev1:~/go/src/k8s.io/test-infra# bazel run //prow/cmd/checkconfig -- --plugin-config=/root/go/src/k8s.io/test-infra/prow/plugins.yaml --config-path=/root/go/src/k8s.io/test-infra/prow/config.yaml
...
INFO: Analyzed target //prow/cmd/checkconfig:checkconfig (0 packages loaded, 0 targets configured).
INFO: Found 1 target...
Target //prow/cmd/checkconfig:checkconfig up-to-date:
  bazel-bin/prow/cmd/checkconfig/linux_amd64_pure_stripped/checkconfig
INFO: Elapsed time: 0.747s, Critical Path: 0.27s
INFO: 0 processes.
INFO: Build completed successfully, 1 total action
INFO: Build completed successfully, 1 total action
{"component":"checkconfig","file":"prow/cmd/checkconfig/main.go:288","func":"main.main","level":"info","msg":"checkconfig passes without any error!","time":"2019-09-19T04:00:46-07:00"}

However, when I raise PR in the targeted repo, I did't see size/* label is automatically added, also the presubmits and postsubmits jobs were never triggered, because I can't find them in prow status web UI.
Am I missing anything? anyone helps me on this?

BTW, the GCS bucket in plank setting was created successfully.

What you expected to happen:

When a new PR is filed in the targeted repo, I should see size/* label is automatically added, also the presubmits and postsubmits jobs should be triggered and found in prow status web UI.

How to reproduce it (as minimally and precisely as possible):

Follow getting_started_deploy.md to setup prow with manual steps in GKE cluster

/cc @gyliu513

[gyliu513]

/sig testing

/cc @kubernetes/sig-testing

[cjwagner]

First thing I notice is that the trigger config looks wrong. This config applies to https://github.com/oasis not https://github.com/multicloudlab/oasis

triggers:
- repos:
  - oasis
  trusted_org: multicloudlab
  elide_skipped_contexts: true

Can you please provide a link to your Prow instance's front end so I can confirm that the configs you are sharing are what is actually applied in the cluster?
Please also check hooks logs and share the logs related to a webhook that should trigger a job (e.g. a new PR or a /test all comment). The size plugin not working makes me think either webhooks aren't being delivered correctly or the plugin config you shared isn't applied.

[morvencao]

@cjwagner Thanks for quick reply, if you're asking for prow status UI, you can assess it: http://35.227.205.240

I can't see anything from the hook logs, is it possible that github didn't see anything to hook, but I can see a green check mark in repo webhook settings.

root@mcdev1:~/go/src/k8s.io/test-infra# kc logs -f hook-7bdcdd9d64-kw62q
{"component":"hook","file":"prow/flagutil/bugzilla.go:45","func":"k8s.io/test-infra/prow/flagutil.(*BugzillaOptions).Validate","level":"info","msg":"empty -bugzilla-endpoint, will not create Bugzilla client","time":"2019-09-20T02:14:40Z"}
{"client":"github","component":"hook","file":"prow/github/client.go:523","func":"k8s.io/test-infra/prow/github.(*client).log","level":"info","msg":"User()","time":"2019-09-20T02:14:40Z"}
{"component":"hook","file":"prow/kube/config.go:143","func":"k8s.io/test-infra/prow/kube.LoadClusterConfigs","level":"info","msg":"Loading cluster contexts...","time":"2019-09-20T02:14:41Z"}
{"component":"hook","file":"prow/cmd/hook/main.go:165","func":"main.main","level":"info","msg":"Using fake slack client.","time":"2019-09-20T02:14:41Z"}

I have updated trigger config to:

triggers:
- repos:
  - multicloudlab
  trusted_org: multicloudlab
  elide_skipped_contexts: true

And the follow are the configmaps config and plugins from k8s cluster:

root@mcdev1:~/go/src/k8s.io/test-infra# kc get cm config -o yaml
apiVersion: v1
data:
  config.yaml: |
    plank:
      default_decoration_config:
        utility_images: # using the tag we identified above
          clonerefs: "gcr.io/k8s-prow/clonerefs:v20190917-395658c48"
          initupload: "gcr.io/k8s-prow/initupload:v20190917-395658c48"
          entrypoint: "gcr.io/k8s-prow/entrypoint:v20190917-395658c48"
          sidecar: "gcr.io/k8s-prow/sidecar:v20190917-395658c48"
        gcs_configuration:
          bucket: prow_job_bucket # the bucket we just made
          path_strategy: explicit
        gcs_credentials_secret: gcs-credentials # the secret we just made

    prowjob_namespace: default
    pod_namespace: test-pods

    periodics:
    - interval: 10m
      name: echo-test
      decorate: true
      spec:
        containers:
        - image: alpine
          command: ["/bin/date"]
    postsubmits:
      multicloudlab/oasis:
      - name: test-postsubmit
        decorate: true
        spec:
          containers:
          - image: alpine
            command: ["/bin/printenv"]
    presubmits:
      multicloudlab/oasis:
      - name: test-presubmit
        decorate: true
        always_run: true
        skip_report: true
        spec:
          containers:
          - image: alpine
            command: ["/bin/printenv"]
kind: ConfigMap
metadata:
  creationTimestamp: "2019-09-18T14:31:25Z"
  name: config
  namespace: default
  resourceVersion: "571089"
  selfLink: /api/v1/namespaces/default/configmaps/config
  uid: fe65eed7-da20-11e9-a352-42010a8a01c9

root@mcdev1:~/go/src/k8s.io/test-infra# kc get cm plugins -o yaml
apiVersion: v1
data:
  plugins.yaml: |
    triggers:
    - repos:
      - multicloudlab
      trusted_org: multicloudlab
      elide_skipped_contexts: true

    plugins:
      multicloudlab/oasis:
      - size
      - trigger
kind: ConfigMap
metadata:
  creationTimestamp: "2019-09-18T14:31:25Z"
  name: plugins
  namespace: default
  resourceVersion: "571000"
  selfLink: /api/v1/namespaces/default/configmaps/plugins
  uid: fe531c7e-da20-11e9-a352-42010a8a01c9

[morvencao]

I found some error logs in sinker:

root@mcdev1:~/go/src/k8s.io/test-infra# kc logs sinker-54c4fb95cf-vhsnn | head -n 20
{"component":"sinker","file":"prow/cmd/sinker/main.go:103","func":"main.main","level":"warning","msg":"Sinker requires --dry-run=false to function correctly in production.","time":"2019-09-20T02:14:42Z"}
{"component":"sinker","file":"prow/cmd/sinker/main.go:104","func":"main.main","level":"warning","msg":"--dry-run will soon default to true. Set --dry-run=false by March 15.","time":"2019-09-20T02:14:42Z"}
{"component":"sinker","file":"prow/kube/config.go:143","func":"k8s.io/test-infra/prow/kube.LoadClusterConfigs","level":"info","msg":"Loading cluster contexts...","time":"2019-09-20T02:14:42Z"}
E0920 02:15:00.474476       1 reflector.go:270] external/io_k8s_client_go/tools/cache/reflector.go:94: Failed to watch *v1.ProwJob: unknown (get prowjobs.prow.k8s.io)
{"component":"sinker","file":"prow/cmd/sinker/main.go:396","func":"main.(*controller).clean","level":"info","msg":"Deleted old completed pod.","pod":"60f42a91-da82-11e9-8d64-22164b095e1c","time":"2019-09-20T02:15:00Z"}
{"component":"sinker","file":"prow/cmd/sinker/main.go:396","func":"main.(*controller).clean","level":"info","msg":"Deleted old completed pod.","pod":"fb531c69-da80-11e9-8d64-22164b095e1c","time":"2019-09-20T02:15:00Z"}
{"component":"sinker","file":"prow/cmd/sinker/main.go:421","func":"main.(*controller).clean","level":"info","msg":"Sinker reconciliation complete.","time":"2019-09-20T02:15:00Z"}
{"component":"sinker","file":"prow/cmd/sinker/main.go:195","func":"main.(*controller).Start","level":"info","msg":"Sync time: 311.169619ms","time":"2019-09-20T02:15:00Z"}
E0920 02:15:01.504611       1 reflector.go:270] external/io_k8s_client_go/tools/cache/reflector.go:94: Failed to watch *v1.ProwJob: unknown (get prowjobs.prow.k8s.io)
E0920 02:15:02.534047       1 reflector.go:270] external/io_k8s_client_go/tools/cache/reflector.go:94: Failed to watch *v1.ProwJob: unknown (get prowjobs.prow.k8s.io)
E0920 02:15:03.566081       1 reflector.go:270] external/io_k8s_client_go/tools/cache/reflector.go:94: Failed to watch *v1.ProwJob: unknown (get prowjobs.prow.k8s.io)
E0920 02:15:04.597893       1 reflector.go:270] external/io_k8s_client_go/tools/cache/reflector.go:94: Failed to watch *v1.ProwJob: unknown (get prowjobs.prow.k8s.io)
E0920 02:15:05.632929       1 reflector.go:270] external/io_k8s_client_go/tools/cache/reflector.go:94: Failed to watch *v1.ProwJob: unknown (get prowjobs.prow.k8s.io)
E0920 02:15:06.673346       1 reflector.go:270] external/io_k8s_client_go/tools/cache/reflector.go:94: Failed to watch *v1.ProwJob: unknown (get prowjobs.prow.k8s.io)
E0920 02:15:07.703010       1 reflector.go:270] external/io_k8s_client_go/tools/cache/reflector.go:94: Failed to watch *v1.ProwJob: unknown (get prowjobs.prow.k8s.io)
E0920 02:15:08.732514       1 reflector.go:270] external/io_k8s_client_go/tools/cache/reflector.go:94: Failed to watch *v1.ProwJob: unknown (get prowjobs.prow.k8s.io)
E0920 02:15:09.761235       1 reflector.go:270] external/io_k8s_client_go/tools/cache/reflector.go:94: Failed to watch *v1.ProwJob: unknown (get prowjobs.prow.k8s.io)
E0920 02:15:10.790045       1 reflector.go:270] external/io_k8s_client_go/tools/cache/reflector.go:94: Failed to watch *v1.ProwJob: unknown (get prowjobs.prow.k8s.io)
E0920 02:15:11.818946       1 reflector.go:270] external/io_k8s_client_go/tools/cache/reflector.go:94: Failed to watch *v1.ProwJob: unknown (get prowjobs.prow.k8s.io)
E0920 02:15:12.847939       1 reflector.go:270] external/io_k8s_client_go/tools/cache/reflector.go:94: Failed to watch *v1.ProwJob: unknown (get prowjobs.prow.k8s.io)

It's weird because I did't make any update to prow/cluster/starter.yaml, and it looks like the permission issue, but the serviceaccount, role and rolebinding were configured properly:

root@mcdev1:~/go/src/k8s.io/test-infra# kc get sa sinker -o yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  annotations:
    kubectl.kubernetes.io/last-applied-configuration: |
      {"apiVersion":"v1","kind":"ServiceAccount","metadata":{"annotations":{},"name":"sinker","namespace":"default"}}
  creationTimestamp: "2019-09-18T14:31:30Z"
  name: sinker
  namespace: default
  resourceVersion: "79103"
  selfLink: /api/v1/namespaces/default/serviceaccounts/sinker
  uid: 012fc919-da21-11e9-a352-42010a8a01c9
secrets:
- name: sinker-token-8n69j
root@mcdev1:~/go/src/k8s.io/test-infra# kc get role sinker -o yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  annotations:
    kubectl.kubernetes.io/last-applied-configuration: |
      {"apiVersion":"rbac.authorization.k8s.io/v1beta1","kind":"Role","metadata":{"annotations":{},"name":"sinker","namespace":"default"},"rules":[{"apiGroups":["prow.k8s.io"],"resources":["prowjobs"],"verbs":["delete","list"]},{"apiGroups":[""],"resourceNames":["prow-sinker-leaderlock"],"resources":["configmaps"],"verbs":["get","update"]},{"apiGroups":[""],"resources":["configmaps","events"],"verbs":["create"]}]}
  creationTimestamp: "2019-09-18T14:48:32Z"
  name: sinker
  namespace: default
  resourceVersion: "82605"
  selfLink: /apis/rbac.authorization.k8s.io/v1/namespaces/default/roles/sinker
  uid: 6265c8f9-da23-11e9-a352-42010a8a01c9
rules:
- apiGroups:
  - prow.k8s.io
  resources:
  - prowjobs
  verbs:
  - delete
  - list
- apiGroups:
  - ""
  resourceNames:
  - prow-sinker-leaderlock
  resources:
  - configmaps
  verbs:
  - get
  - update
- apiGroups:
  - ""
  resources:
  - configmaps
  - events
  verbs:
  - create
root@mcdev1:~/go/src/k8s.io/test-infra# kc get rolebinding sinker -o yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  annotations:
    kubectl.kubernetes.io/last-applied-configuration: |
      {"apiVersion":"rbac.authorization.k8s.io/v1beta1","kind":"RoleBinding","metadata":{"annotations":{},"name":"sinker","namespace":"default"},"roleRef":{"apiGroup":"rbac.authorization.k8s.io","kind":"Role","name":"sinker"},"subjects":[{"kind":"ServiceAccount","name":"sinker"}]}
  creationTimestamp: "2019-09-18T14:48:32Z"
  name: sinker
  namespace: default
  resourceVersion: "82607"
  selfLink: /apis/rbac.authorization.k8s.io/v1/namespaces/default/rolebindings/sinker
  uid: 6285e006-da23-11e9-a352-42010a8a01c9
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: sinker
subjects:
- kind: ServiceAccount
  name: sinker

[clarketm]

The auth errors in sinker are most likely a result of the recent sinker changes #13647 to use a lister combined with the fact that the starter.yaml was not fully updated (i.e. the update is missing the watch and get verbs).

https://github.com/kubernetes/test-infra/blob/79a4a73daceda2373ae50a7417d7715fc0410132/prow/cluster/sinker_rbac.yaml#L17-L21

https://github.com/kubernetes/test-infra/blob/79a4a73daceda2373ae50a7417d7715fc0410132/prow/cluster/starter.yaml#L695-L697

---

@morvencao - I ~will~ did create a PR for this (#14418). You can try making this update to the sinker Role with the aforementioned verbs and apply to your cluster. Although, I am not convinced this is the underlying problem with presubmits and postsubmits jobs not being triggered.

[morvencao]

@clarketm Thanks, it fix the error logs in sinker. And you're right, it's not the root cause of presubmits and postsubmits jobs not being triggered.

[cjwagner]

If you aren't seeing any logs related to webhooks from hook then it is likely the case that hook is not receiving any. We log every webhook we handle e.g. https://github.com/kubernetes/test-infra/blob/5a67b1fcfaee09833e722df91c98841409f40165/prow/hook/events.go#L65

Before we even check to see if it is a webhook type that we handle, we increment a webhook counter. So you could also check the hook pod's /metrics endpoint to confirm that prow_webhook_counter and prow_webhook_response_codes are not being incremented when you do things that should trigger webhooks.
https://github.com/kubernetes/test-infra/blob/5a67b1fcfaee09833e722df91c98841409f40165/prow/hook/server.go#L82-L85

Make sure your webhook in GitHub is configured to send to http://35.227.205.240/hook

Did you set up the webhook using the add-hook tool described in the docs or did you set it up manually in the GitHub UI?

[morvencao]

Yes, I was following the doc to set up the webhook. It's weird that the webhook url is http://35.227.205.240 instead of http://35.227.205.240/hook

[morvencao]

@cjwagner I manually updated my webhook url from http://35.227.205.240 to http://35.227.205.240/hook, and the presubmits and postsubmits jobs are triggered, will test more cases.

[cjwagner]

Glad its working! The docs do specify that the webhook endpoint is /hook, but we could make that clearer. I don't think you're the first person to have this problem.

It is interesting that GitHub was showing hooks successfully delivered to /... Maybe we need to explicitly reject POST requests for these kind of endpoints? @Katharine would it make sense for handleSimpleTemplate to return a 405 for anything besides a GET request?

[cjwagner]

/close

[k8s-ci-robot]

@cjwagner: Closing this issue.

In response to this:

/close

Instructions for interacting with me using PR comments are available here. If you have questions or suggestions related to my behavior, please file an issue against the kubernetes/test-infra repository.
