Tasmota: Independent PWM channels (more than one light) via HA automatic discovery

[ThomDietrich]

Have you looked for this feature in other issues and in the docs?
Yes, didn't find one

Is your feature request related to a problem? Please describe.

This request addresses a limitation of the current Home Assistant MQTT discovery support.

The scenario: A device with more than one independent LED strips, configured via SetOption68 1 as described in https://tasmota.github.io/docs/#/Lights?id=independent-pwm-channels

The result:

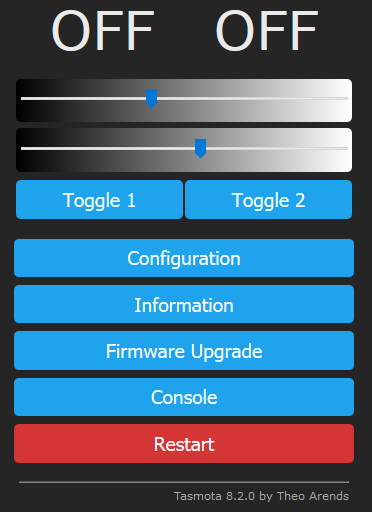

UI and control works as expected, however,

"homeassistant/light/B6DB61_LI_1/config":
{"name":"Küche Bar-LEDs","stat_t":"B6DB61/tele/STATE","avty_t":"B6DB61/tele/LWT","pl_avail":"Online","pl_not_avail":"Offline","cmd_t":"B6DB61/cmnd/POWER1","val_tpl":"{{value_json.POWER1}}","pl_off":"OFF","pl_on":"ON","uniq_id":"B6DB61_LI_1","dev":{"ids":["B6DB61"]}}

"homeassistant/light/B6DB61_LI_2/config":
{"name":"Küche Unterschrank-LEDs","stat_t":"B6DB61/tele/STATE","avty_t":"B6DB61/tele/LWT","pl_avail":"Online","pl_not_avail":"Offline","cmd_t":"B6DB61/cmnd/POWER2","val_tpl":"{{value_json.POWER2}}","pl_off":"OFF","pl_on":"ON","uniq_id":"B6DB61_LI_2","dev":{"ids":["B6DB61"]},"bri_cmd_t":"B6DB61/cmnd/Dimmer","bri_stat_t":"B6DB61/tele/STATE","bri_scl":100,"on_cmd_type":"brightness","bri_val_tpl":"{{value_json.Dimmer}}","clr_temp_cmd_t":"B6DB61/cmnd/CT","clr_temp_stat_t":"B6DB61/tele/STATE","clr_temp_val_tpl":"{{value_json.CT}}"}

discovery messages are still sent as if the device was configured with SetOption68 0

Describe the solution you'd like

"homeassistant/light/B6DB61_LI_1/config":
{"name":"Küche Bar-LEDs","stat_t":"B6DB61/tele/STATE","avty_t":"B6DB61/tele/LWT","pl_avail":"Online","pl_not_avail":"Offline","cmd_t":"B6DB61/cmnd/POWER1","val_tpl":"{{value_json.POWER1}}","pl_off":"OFF","pl_on":"ON","uniq_id":"B6DB61_LI_1","dev":{"ids":["B6DB61"]},"bri_cmd_t":"B6DB61/cmnd/Dimmer1","bri_stat_t":"B6DB61/tele/STATE","bri_scl":100,"on_cmd_type":"brightness","bri_val_tpl":"{{value_json.Dimmer1}}"}

"homeassistant/light/B6DB61_LI_2/config":
{"name":"Küche Unterschrank-LEDs","stat_t":"B6DB61/tele/STATE","avty_t":"B6DB61/tele/LWT","pl_avail":"Online","pl_not_avail":"Offline","cmd_t":"B6DB61/cmnd/POWER2","val_tpl":"{{value_json.POWER2}}","pl_off":"OFF","pl_on":"ON","uniq_id":"B6DB61_LI_2","dev":{"ids":["B6DB61"]},"bri_cmd_t":"B6DB61/cmnd/Dimmer2","bri_stat_t":"B6DB61/tele/STATE","bri_scl":100,"on_cmd_type":"brightness","bri_val_tpl":"{{value_json.Dimmer2}}"}

"homeassistant/light/B6DB61_LI_3/config": ...

Describe alternatives you've considered

Documentation could capture this limitation

Additional context
Happy to provide more details.

(Please, remember to close the issue when the problem has been addressed)

[arendst]

It's a know issue related to more than one light devices. A solution will take some time.

[ThomDietrich]

"Good" to know. Thanks for the answer. You wanna reference and close this issue or keep it for tracking?

[arendst]

Let's keep it for tracking

[effelle]

On my todo list.
