Tasmota: UI change: configuration buttons smaller than toggle/control buttons

[dry-tt]

Requesting a slight UI change to make the more often used function more prominent on the embedded web server. Did a small change that others might also find more appealing (make the configuration buttons smaller):

Just some slight additions to the stylesheet and configuration button class.

[reloxx13]

we have to save flash size, so advanced styling should be avoided.

[dry-tt]

Agreed, but the style code in my example weighs in at less than 150 bytes (even less if just the sizing elements are included)

xdrv_02_webserver.ino:
".sm{background-color:#1fa3ec;color:#fff;line-height:1.6rem;font-size:0.8rem;width:100%;}" ".sm:hover{background-color:#0e70a4;}"

<button class=sm>" D_CONSOLE "</button>

[stale[bot]]

This issue has been automatically marked as stale because it has not had recent activity. It will be closed if no further activity occurs. Thank you for your contributions.

[stale[bot]]

This issue will be auto-closed because there hasn't been any activity for a few months. Feel free to open a new one if you still experience this problem.

[Markkyboy]

Agreed, but the style code in my example weighs in at less than 150 bytes (even less if just the sizing elements are included)

xdrv_02_webserver.ino:
".sm{background-color:#1fa3ec;color:#fff;line-height:1.6rem;font-size:0.8rem;width:100%;}" ".sm:hover{background-color:#0e70a4;}"

<button class=sm>" D_CONSOLE "</button>

I've been playing with this code and managed to reduce the size of the buttons while producing a 520kb file. I've made repeated attempts to change certain things and each time I have been successful in flashing my firmware.bin file to my sonoff basic.
I reduced the buttons to 60% width but would like to centre the buttons, as for the moment, they are all positioned to the left side of the screen - anyone know how to centre the buttons. I don't fully understand CSS, I've tried numerous times with numerous bits of code, but have only succeeded in resizing buttons but not centering them...?

[dry-tt]

I put the buttons in a 2 column table and used the style just to control the size and colour.

The table should start just before the D_CONFIGURE button (line 287 in the latest release 6.4.1.17) and end after the D_CONSOLE button.

[Markkyboy]

Thanks for your reply @dry-tt

I'm using a sonoff basic, so there is no such file xrdv_01_webserver.ino - my system has xrdv_02_webserver.ino instead.

Also, my understanding (for now) of css is very, very limited. Any and all input appreciated though :)

[Markkyboy]

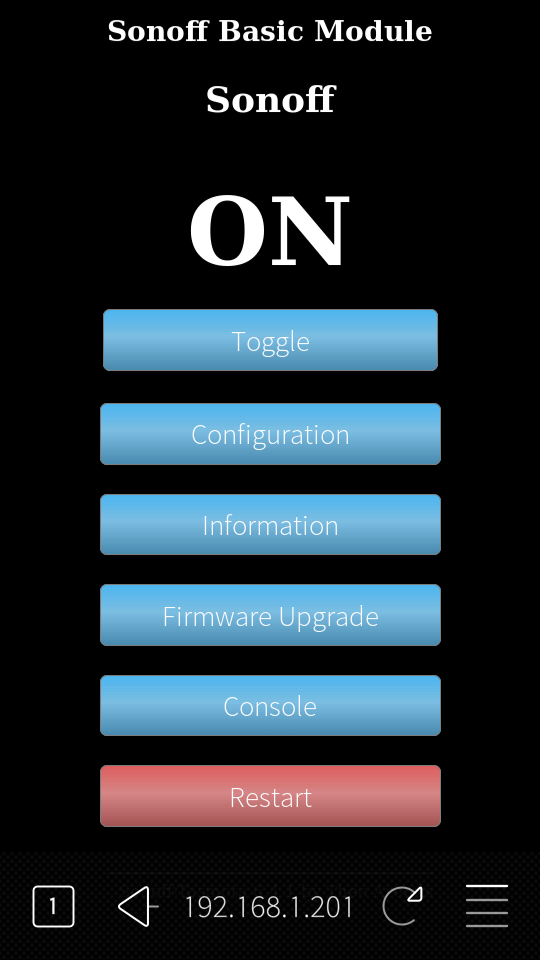

Okay, after a little crash course in CSS (I'm still no expert) I finally have what I was after and my file size is still only 520kb., still well within the limit with regard to flashing the file, which works just fine @reloxx13

Initially, I just wanted narrower buttons, then I decided on a dark background as well.

The required changes were all contained in (xrdv_01_webserver.ino) one line, for me, the line number: 207 originally looked like this; "<div style='text-align:left;display:inline-block;min-width:340px;'>"

after editing, it looks like this;
"<div style='text-align:left;display:inline-block;min-width:200px;color:#fff;'>"

Then, on line 192 which originally looked like this;

"body{text-align:center;font-family:verdana;}"

after editing, looks like this;
"body{text-align:center;font-family:verdana;background-color:#000;}"

[joba-1]

somehow dark always looks good :)

How does it look like if one button text requires more than 200px?

iphone so i typo

[Markkyboy]

somehow dark always looks good :) How does it look like if one button text requires more than 200px? -- iphone so i typo

Yep :)
I don't know how to change only one button, they appear to be in a block, so changing parameters to the buttons, affects all buttons globally. I only get to see the changes once I've compiled the firmware and flashed it - I need to find a way to view my changes using Atom without having to compile/flash and hope for the best each time.

[reloxx13]

heya,

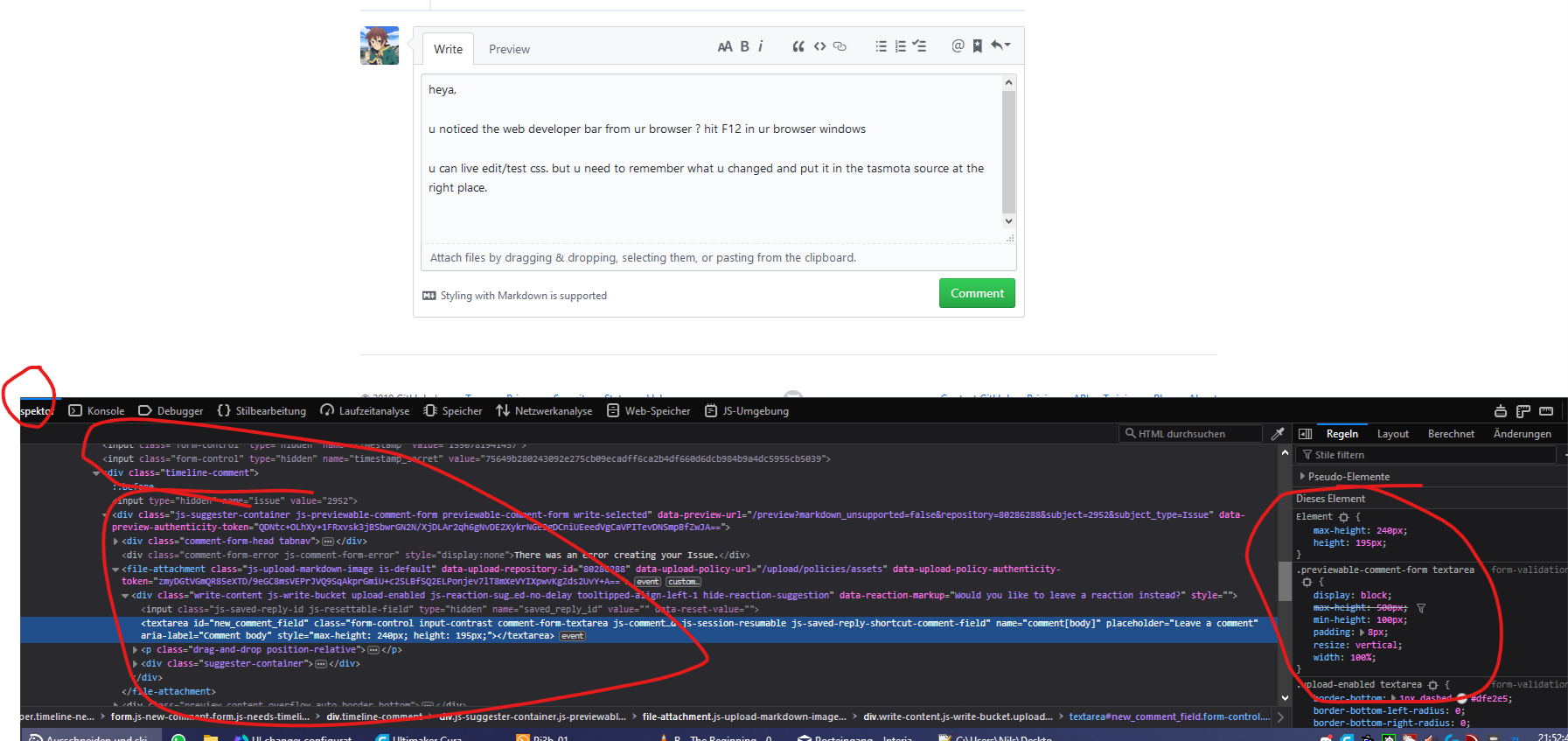

u noticed the web developer bar from ur browser ? hit F12 in ur browser windows

u can live edit/test css. but u need to remember what u changed and put it in the tasmota source at the right place.

[Markkyboy]

Excellent hint reloxx13 - much appreciated, albeit, I did suss that after posting my last comment, thanks :)
