Survey-library: There is some sort of media break causing the questions (those on same line) to wrap at window browser width < 1556px.

[dmitrykurmanov]

created from the https://github.com/surveyjs/survey-library/issues/2649#issuecomment-773778925

Tested page URL: https://plnkr.co/edit/7xNd7W1vNeuvg80s

Ex.
Questions - City, State, Zip. Same line
Panels A/B - Widths set 80/20 %. Same line

Open the plunker preview in full screen to see difference.

Happy to open a separate Issue

[dmitrykurmanov]

@mikekidder we have "min-width: 300px". So I think that it is "by design".

Could you describe your scenario in greater details? It will help us understand you issue better.

[mikekidder]

@dmitrykurmanov Yes! It was the default setting of "min-width:300px" that I was observing on Questions.

Seems to be a bit wide as putting more than two questions on a row, they will wrap.
Now that I know the behavior, I can work around that.

Survey Creator does show the 300px in "Layout | Min width" value as placeholder if not set.

However, there is not an option to set minWidth on Panel
Verified its getting the same "min-width:300px".

My workaround for that ---

.sv_p_container {
    min-width: unset !important;
}

[mikekidder]

Even with workaround above, the "min-width:300px" is also set at the Panel's child row(s).
When Width % is set, this would allow the child Question to bleed outside Panel container

Here is a plunker with all workarounds -- https://plnkr.co/edit/0fmoFelrPovqGvgE

See comments in CSS.

[dmitrykurmanov]

@mikekidder the last plunker example you've provided looks ok for me. Do you still have any other issues with it? Or you just shared the working example?

[mikekidder]

Dmitry, yes sorry. The CSS had all my workarounds.

Using now the latest SurveyJS 1.8.31.

Here is a better example https://plnkr.co/edit/qtcxNiVvHJRzoQib
Panels will display side-by-side, but only if your browser width > 1550px range.

Disable CSS min-width for .sv_p_container

• panels will be on same row at smaller browser widths (or in Plunker preview window)

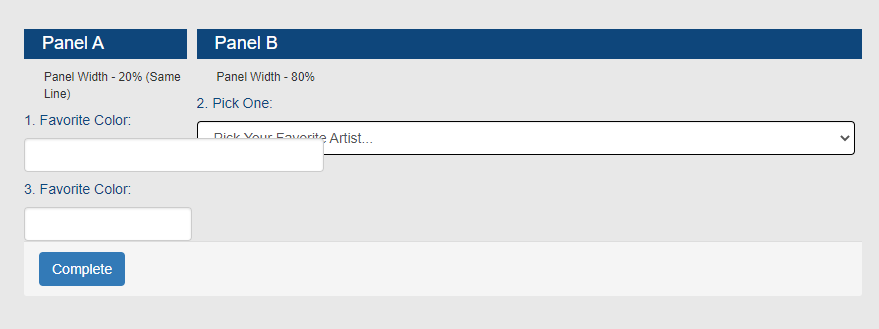

• questions can still overlap (like my screenshot)

Disable CSS min-width for .sv_row

• questions don't overlap

After testing a few times, if the min-width were set to 100px

• browser width can go down ~570px before questions re-align top down (mobile)

Again, I have workarounds especially where SurveyJS forms display in a smaller viewport, such as in an iframe.
