Skiasharp: SKWidget for GTK# (on Linux) is rendering kind of slow

[define-private-public]

Description

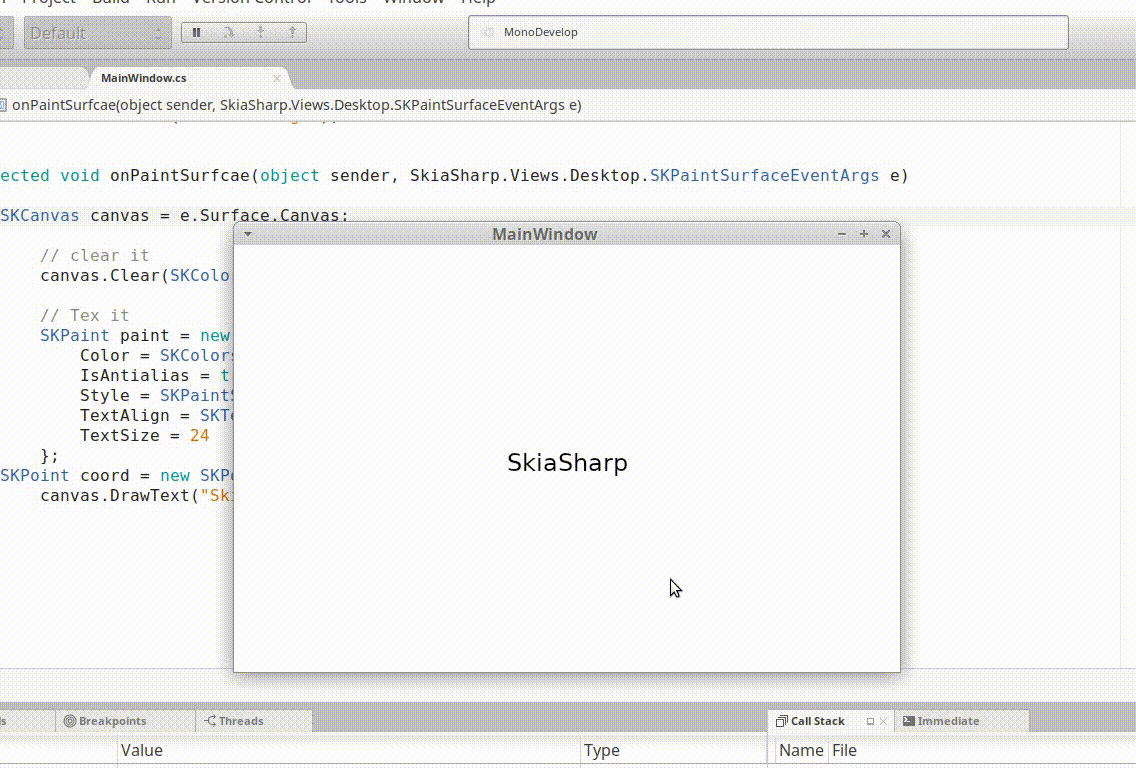

This is a continuation of #462 . That ticket's main issue has been solved, but it's been reported that the rendering of the SKWidget, on such events such as a window/widget resize are slow and produce flickering. See for example:

(This is using SkiaSharp 1.60.1 off of NuGet, and the linux .so files from this project's release page).

Code

The code used is the same one as here: https://github.com/mono/SkiaSharp/blob/master/samples/Basic/Gtk/SkiaSharpSample/MainWindow.cs

The only different that I applied to (in that widget) is in the GUI designer, I set the Box Layout child properties of the SKWidget to auto fill=false, expanding=true, fill=true.

Expected Behavior

Should be MUCH smoother, such as when using Cairo for rendering. In fact, Skia typically renders faster than Cairo.

Actual Behavior

[see above GIF]

[define-private-public]

@mattleibow

[mattleibow]

Thanks for this, I will have a look and see what can be done.

[define-private-public]

Okay, did a little other testing. It's something with the PaintSurface event, or whatever it connected in the pipeline. I wrote a program that used a StopWatch and a Timer object to try to queue up a bunch of draws for an animation (~60 FPS). The flickering is still happening.

The Skia drawing code itself is rendering in under a millisecond (very, very fast), but it's all of that update/event logic around it that makes it slow.

I was looking into creating an OpenGL context, have Skia render to it (or have it render to a texture and display that), but I'm not sure how easy that might be. Mono's GtkGLArea bindings seem to be a tad old: https://github.com/mono/gtkglarea-sharp

[define-private-public]

While this article is more Cairo focused, it might provide some insights:

https://cairographics.org/threaded_animation_with_cairo/

Smooth animation should be possible:
https://www.youtube.com/watch?v=Ri5R5eozUC8

[define-private-public]

Hey, I'd like to report a bit of an update: I have been able to get some smooth animation working with SkiaSharp, and the SKWidget, but it still has some issues. Here is my code:

// Author:       Benjamin N. Summerton <https://16bpp.net>
// Description:  X
using System.Threading;
using Gtk;
using SkiaSharp;

public partial class MainWindow : Gtk.Window
{
    public int Value = 75;

    public MainWindow() : base(Gtk.WindowType.Toplevel)
    {
        Build();

        // Half a second from bootup, run an animation at 60 FPS
        Timer timer = new Timer((object state) => timerExe() ,null, 500, (1000 / 60));
    }

    protected void OnDeleteEvent(object sender, DeleteEventArgs a)
    {
        Application.Quit();
        a.RetVal = true;
    }

    protected void timerExe()
    {
        Value += 1;
        Value = Value % 100;
        this.skwidget1.QueueDraw();
    }

    protected void onPaint(object sender, SkiaSharp.Views.Desktop.SKPaintSurfaceEventArgs e)
    {
        SKCanvas canvas = e.Surface.Canvas;

        // Clear the canvas
        canvas.Clear(SKColors.White);

        // Setup paint
        SKPaint paint = new SKPaint
        {
            Color = SKColors.Black,
            IsAntialias = true,
            Style = SKPaintStyle.Fill,
        };

        double value = (Value / 100.0) * 360;
        using (SKPath path = new SKPath())
        {
            path.AddArc(new SKRect(50, 50, 300, 300), 0, (float)value);
            canvas.DrawPath(path, paint);
        }
    }
}

This is probably not the 100% best way to do animation with SkiaSharp & GTK#, but it at least works a little and is a good place to start off of. Though, I do want to note I have the equivalent code w/ Cairo based rendering though.

This still suffers from some flicker, but not as much. Also, sometimes the animation will just cut out, and you're left with a still frame. Dragging the window around will also produce flicker. I have not noticed these problems with the Cairo version.

[define-private-public]

If you can, please take a look at this: https://github.com/mono/SkiaSharp/pull/550

If it's good to you, I'd really appreciate a minor release on NuGet, as I have a project that's using this library, and needs this smooth animation ability.

[define-private-public]

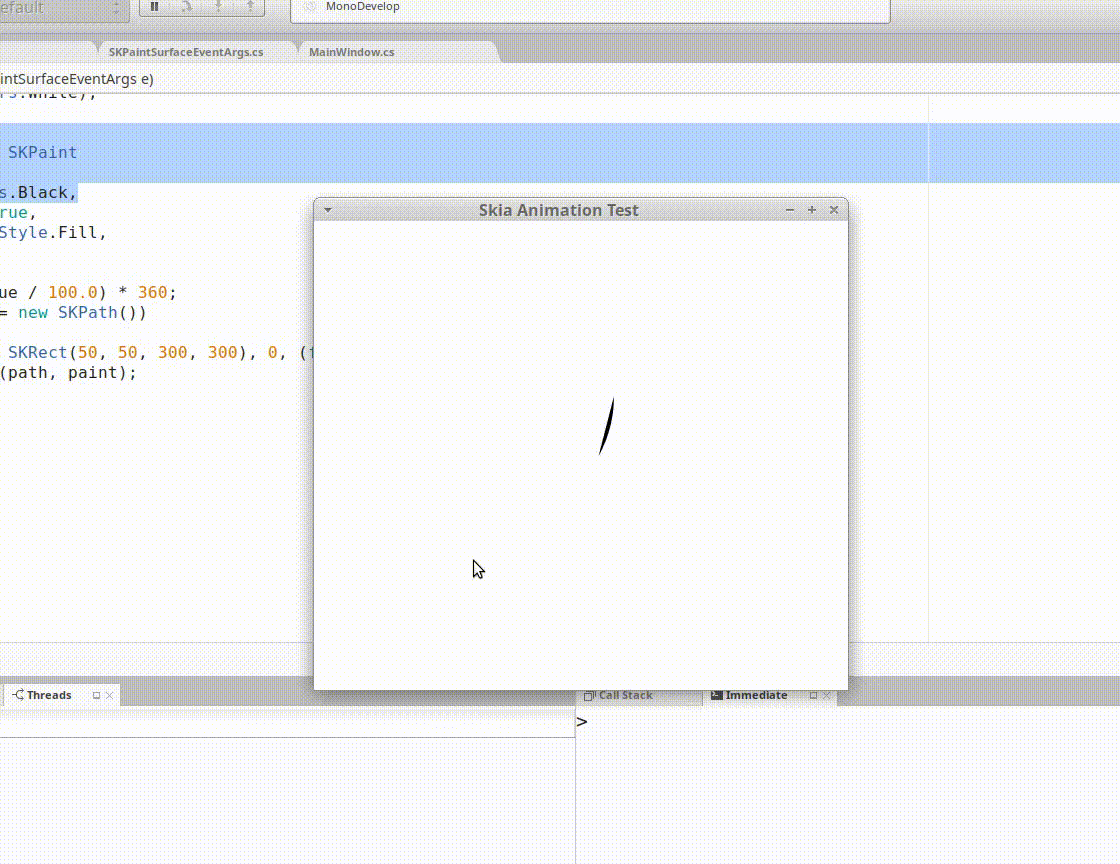

Here's what it looks like now. This is on par with the equivalent drawing in Cairo:

[mattleibow]

@define-private-public It is building now and I will try and get it into the v1.60.2 release this week.

[define-private-public]

As a side note, I've noticed that you have this "create image/drawing objects in the drawing function" going on in the other platforms as well. e.g.:

https://github.com/mono/SkiaSharp/blob/master/source/SkiaSharp.Views/SkiaSharp.Views.Android/SKCanvasView.cs#L84

You're probably going to want to go through all of the platform specific Views and make adjustments like in the PR I posted. This is probably going to be a tedious pain in the butt, but it's going to be well worth it and make rendering stuff with SkiaSharp much nicer (and desirable) for your end users.

[mattleibow]

Thanks. I created an issue so we don't loose this.

[define-private-public]

Would it be possible to get the v1.60.2 release out soon? I'm working on a part of my software right now which needs these improvements.

[mattleibow]

@define-private-public I have just pushed out the release and should be available on NuGet. Here are the release notes and all the links: https://github.com/mono/SkiaSharp/releases/tag/v1.60.2
