Sitespeed.io: Visual metrics not captured in SPA application

[deena9291]

I am executing a script with few user actions after login, the script is able to capture all the metrics in the application while there a change in the URL for every user action. It stops capturing the metrics when there is an user action on a modal popup with angular interface without the URL change. Scripts works fine from the bowser and it does all the scripted actions inside the modal pop-up, but its missing the metrics with the error message "Could not add meta data to the HAR, miss page " also gives me a warning " has been tested before within the same run, it will get an extra query parameter named browsertime_run. Make sure to use alias to keep track of the URLs"

I tried various options such as using --spa & --useHash, no luck :(

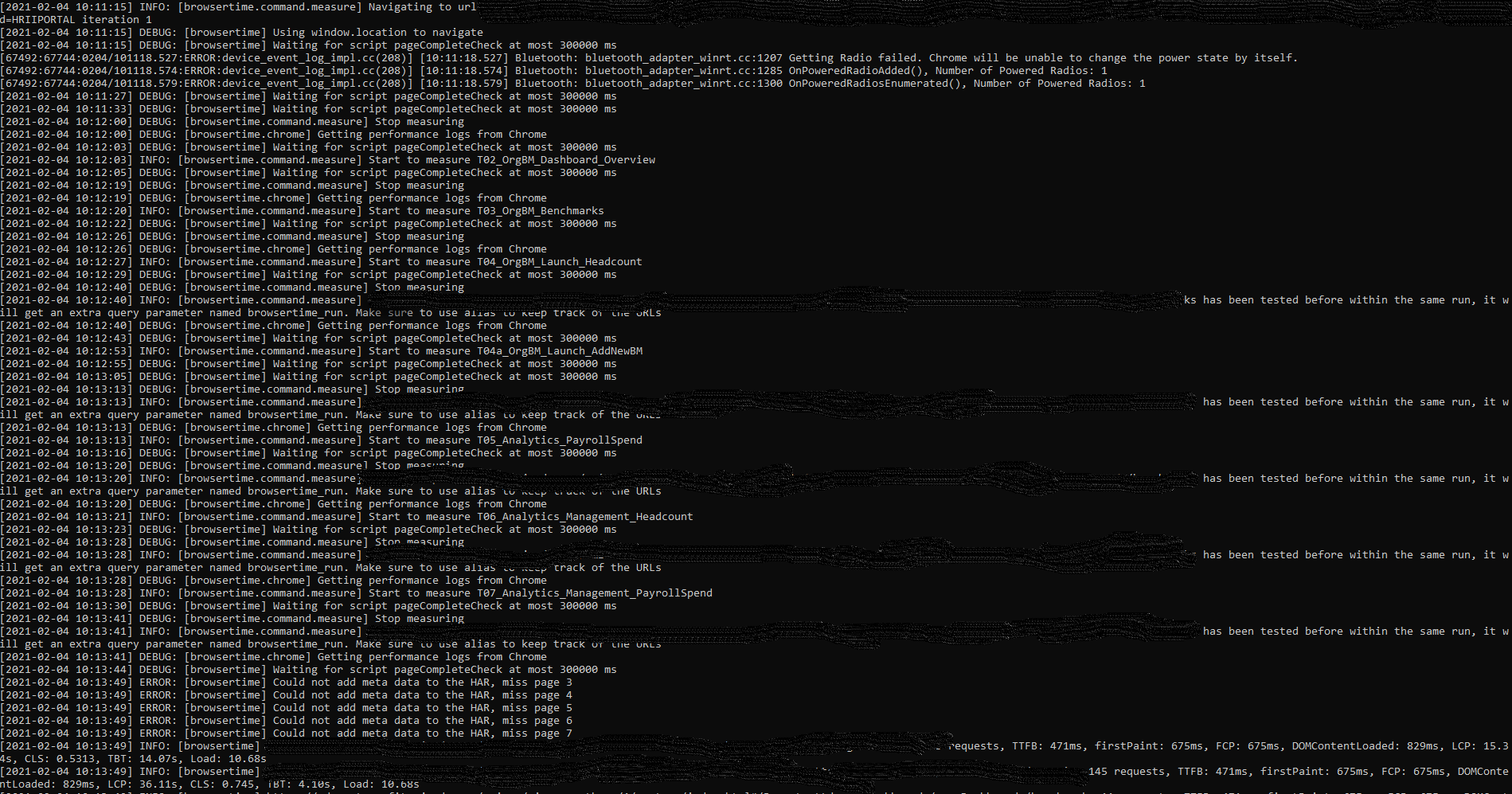

Here is screen shot from the verbose log, I see the metrics are captured in the last few lines form the browsertime, but its not there as a transaction in the html report;

I also tried using URL alias in the transaction name like this, but no use :(

Please let me know if there is a workaround to capture metrics in a SPA application when there no change in the URL's while performing user actions !

Your help is much appreciated, stuck with this issue for 2 days now !

Thanks,
Deena.

[deena9291]

@soulgalore , Please have a look at this when you get a chance !

[Icecold777]

I'm also joining to this issue. I've faced such errors multiple time recently. And for me it crashes whole HTML report.

[soulgalore]

Hi @deena9291 in your case, what do you want to measure, what metrics are looking for?

Do your actions generates requests? For example, for each user action you do, does something load in the browser? If it does, it should work, so if you can help me with a reproducible test case https://www.sitespeed.io/documentation/sitespeed.io/bug-report/#explain-how-to-reproduce-your-issue that would be great!

For actions that do not generate requests, people been using the User Timing API to measure how long time things take. Maybe that can help you?

Best
Peter

[soulgalore]

@Icecold777 even though some logs look the same, the underlaying issue could be something else, so if you can create an issue for your case, that would be great, thanks. Usually new errors that happens come from that the HTML page changes on the page.

[deena9291]

Hi @soulgalore,
Unfortunately I will not be able to share the logs or the video of the site which I am testing. The application I test is an SPA, it uses angular modal pop up and all the user action I do on the pop up will send requests to back end API's but there is no change in the main URL reflected in the browser.

I am trying to capture all the visual metrics like TTFB, TTLB, Page size etc.., I get all these metrics for the pages which will trigger a URL change in the browser, but these metrics are not being captured when the application doesn't change the URL for every user action and a pop up is opened.

This issue is almost same as this one;
https://github.com/sitespeedio/sitespeed.io/issues/3196

Do we have any options explicitly make a call to start and stop the measure even without the URL change?

Thanks,
Deena.

[deena9291]

I believe User Timing API, will give us the timings for only java script execution in the page., but my use case to record the timing including API calls and its rendering.

[deena9291]

I fixed the issue with the below code, essentially updating the URL history with empty values to force browsertime to start measuring metrics even though there is no change in the URL;

Insert the below code after each start transaction;
var currentURL = await driver.getCurrentUrl(); var script = 'history.pushState({}, "", "' + currentURL + '")' console.log('script is : ' + script); await driver.executeScript(script);

[Icecold777]

@deena9291, cool! it works for me too. The only thing I add logical page name eg. currentURL + /checkout. Now it creates folder with clear name at filesystem instead of 'query-6bc054f4'
@soulgalore is it possible to implement such behavior? smth like commands.setURL?

[soulgalore]

So I think the code should fix it it, else it is a bug. If someone can help me by sharing a reproducible example I'm happy to take look and try to fix it. I think it would be better if it just works, instead of that you as a developer needs to add something in your script.

[Icecold777]

@soulgalore, unfortunately I can't share the link I'm testing against and can't find any SPA app with similar behavior in public access. The key feature is no changing page URL during navigation from one "page" to another.

[Vout]

I fixed the issue with the below code, essentially updating the URL history with empty values to force browsertime to start measuring metrics even though there is no change in the URL;

Insert the below code after each start transaction;
var currentURL = await driver.getCurrentUrl(); var script = 'history.pushState({}, "", "' + currentURL + '")' console.log('script is : ' + script); await driver.executeScript(script);

I'm trying to use your solution but i'm getting the following error, [2021-03-03 09:59:30] ERROR: ReferenceError: driver is not defined

Do you have a more detailed example on how you did this?

[Icecold777]

Hi @Vout,
First of all you should initiate webdriver instance as we use its API directly

const webdriver = context.selenium.webdriver;
const driver = context.selenium.driver;

Please refer to https://www.sitespeed.io/documentation/sitespeed.io/scripting/#use-selenium-directly
