React-pdf: Issue with flexbox under page with wrap

Created on 1 Mar 2018  路  35Comments  路  Source: diegomura/react-pdf

Hi React PDF,

I am noticing some issues with flexbox after applying the wrap flag to the parent page. For example, I cannot get a component to wrap in a flex row. What happens visually is the second nested component (in this case the red box) simply disappears. The component below is a simple example:

const styles = StyleSheet.create({
  main: {
    flexDirection: 'row',
    justifyContent: 'space-between',
    backgroundColor: 'green',
  },
  blue: {
    width: 200,
    height: 200,
    backgroundColor: 'blue',
  },
  red: {
    width: 200,
    height: 200,
    backgroundColor: 'red',
  },
});

const Info: React.StatelessComponent = () => {
  return (
    <View>
      <View style={styles.main}>
        <View style={styles.blue} />
        <View style={styles.red} />
      </View>
    </View>
  );
};

And I try to render it like so:

  return (
    <Document title={copy.documentTitle}>
      <Page size="A4" style={styles.page} wrap>
        <View style={styles.container}>
          <Info  />
        </View>
      </Page>
    </Document>
  );

Please let me know how to fix this? Thanks!

Sincerely,
Laura

picture flaurida
👍5

Most helpful comment

Hi, thanks for the good work, however this bug (which you are talking about on top of this page) is totally blocking us !

We want to display some kind of tables using flexbox, but we are seeing wildly incorrect results, it's so bad it's even fun !

Example

The goal of the example is to display a table with 4 columns, and a varying number of rows... However:

  • The number of columns that actually gets displayed varies depending on the number of rows !?!
  • For each additional row, an additional empty page is appended after the current page

We use these styles:

export default StyleSheet.create({
  page: { flexDirection: "column", padding: 25 },
  table: {
    fontSize: 10,
    width: 550,
    display: "flex",
    flexDirection: "column",
    justifyContent: "flex-start",
    alignContent: "stretch",
    flexWrap: "nowrap",
    alignItems: "stretch"
  },
  row: {
    display: "flex",
    flexDirection: "row",
    justifyContent: "space-around",
    alignContent: "stretch",
    flexWrap: "nowrap",
    alignItems: "stretch",
    flexGrow: 0,
    flexShrink: 0,
    flexBasis: 35
  },
  cell: {
    borderColor: "#cc0000",
    borderStyle: "solid",
    borderWidth: 2,
    flexGrow: 1,
    flexShrink: 1,
    flexBasis: "auto",
    alignSelf: "stretch"
  },
  header: {
    backgroundColor: "#eee"
  },
  headerText: {
    fontSize: 11,
    fontWeight: 1200,
    color: "#1a245c",
    margin: 8
  },
  tableText: {
    margin: 10,
    fontSize: 10,
    color: neutralDark
  }
});

Case 1 (empty table)

Now here is an example of an empty table:

<Page style={styles.page} size="A4" wrap>
    <View style={styles.table}>
          <View style={[styles.row, styles.header]}>
              <Text style={[styles.headerText, styles.cell]}>Column 1 Header</Text>
              <Text style={[styles.headerText, styles.cell]}>Column 2 Header</Text>
              <Text style={[styles.headerText, styles.cell]}>Column 3 Header</Text>
              <Text style={[styles.headerText, styles.cell]}>Column 4 Header</Text>
          </View>
    </View>
</Page>

The result is the following:

screen shot 2018-03-12 at 18 02 47

Case 2 (1 row in table)

<Page style={styles.page} size="A4" wrap>
    <View style={styles.table}>
          <View style={[styles.row, styles.header]}>
              <Text style={[styles.headerText, styles.cell]}>Column 1 Header</Text>
              <Text style={[styles.headerText, styles.cell]}>Column 2 Header</Text>
              <Text style={[styles.headerText, styles.cell]}>Column 3 Header</Text>
              <Text style={[styles.headerText, styles.cell]}>Column 4 Header</Text>
          </View>
          <View style={[styles.row]}>
            <Text style={[styles.cell]}>Column 1 Row 1</Text>
            <Text style={[styles.cell]}>Column 2 Row 1</Text>
            <Text style={[styles.cell]}>Column 3 Row 1</Text>
            <Text style={[styles.cell]}>Column 4 Row 1</Text>
          </View>
    </View>
</Page>

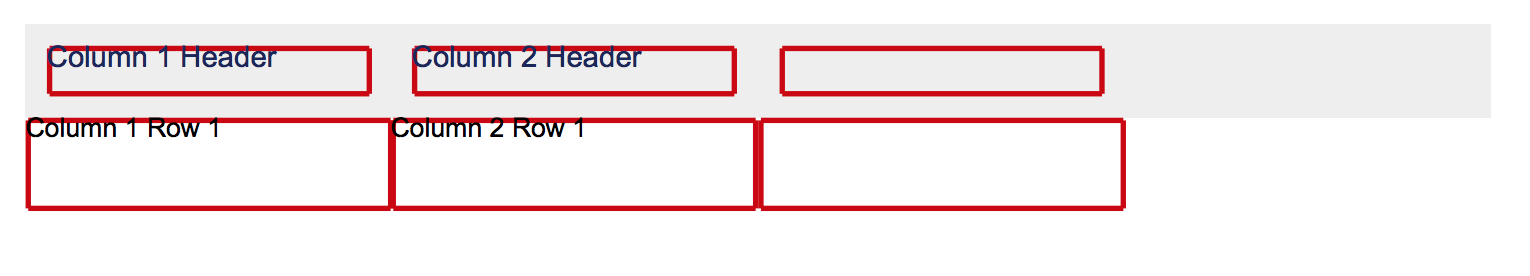

The result is the following:

screen shot 2018-03-12 at 18 08 23

Case 3 (2 rows in table)

<Page style={styles.page} size="A4" wrap>
    <View style={styles.table}>
          <View style={[styles.row, styles.header]}>
              <Text style={[styles.headerText, styles.cell]}>Column 1 Header</Text>
              <Text style={[styles.headerText, styles.cell]}>Column 2 Header</Text>
              <Text style={[styles.headerText, styles.cell]}>Column 3 Header</Text>
              <Text style={[styles.headerText, styles.cell]}>Column 4 Header</Text>
          </View>
          <View style={[styles.row]}>
            <Text style={[styles.cell]}>Column 1 Row 1</Text>
            <Text style={[styles.cell]}>Column 2 Row 1</Text>
            <Text style={[styles.cell]}>Column 3 Row 1</Text>
            <Text style={[styles.cell]}>Column 4 Row 1</Text>
          </View>
          <View style={[styles.row]}>
            <Text style={[styles.cell]}>Column 1 Row 2</Text>
            <Text style={[styles.cell]}>Column 2 Row 2</Text>
            <Text style={[styles.cell]}>Column 3 Row 2</Text>
            <Text style={[styles.cell]}>Column 4 Row 2</Text>
          </View>
    </View>
</Page>

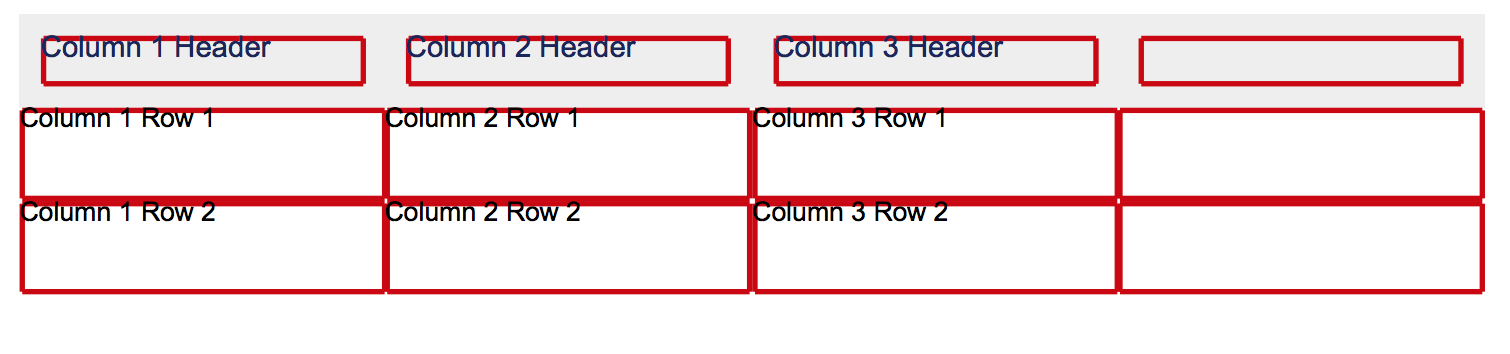

Result:

screen shot 2018-03-12 at 18 07 37

Case 4 (3+ rows in table)

<Page style={styles.page} size="A4" wrap>
    <View style={styles.table}>
          <View style={[styles.row, styles.header]}>
              <Text style={[styles.headerText, styles.cell]}>Column 1 Header</Text>
              <Text style={[styles.headerText, styles.cell]}>Column 2 Header</Text>
              <Text style={[styles.headerText, styles.cell]}>Column 3 Header</Text>
              <Text style={[styles.headerText, styles.cell]}>Column 4 Header</Text>
          </View>
          <View style={[styles.row]}>
            <Text style={[styles.cell]}>Column 1 Row 1</Text>
            <Text style={[styles.cell]}>Column 2 Row 1</Text>
            <Text style={[styles.cell]}>Column 3 Row 1</Text>
            <Text style={[styles.cell]}>Column 4 Row 1</Text>
          </View>
          <View style={[styles.row]}>
            <Text style={[styles.cell]}>Column 1 Row 2</Text>
            <Text style={[styles.cell]}>Column 2 Row 2</Text>
            <Text style={[styles.cell]}>Column 3 Row 2</Text>
            <Text style={[styles.cell]}>Column 4 Row 2</Text>
          </View>
          <View style={[styles.row]}>
            <Text style={[styles.cell]}>Column 1 Row 3</Text>
            <Text style={[styles.cell]}>Column 2 Row 3</Text>
            <Text style={[styles.cell]}>Column 3 Row 3</Text>
            <Text style={[styles.cell]}>Column 4 Row 3</Text>
          </View>
    </View>
</Page>

Result:

screen shot 2018-03-12 at 18 17 10

Other cases

You get the idea, the bug shows when there are less rows than columns...

TL;DR:

Basically for a table of n rows and m columns,

  • when n<m :

    • n columns are displayed correctly (text + border),

    • n+1 columns have a correct border

    • m-n-1 columns are NOT displayed at all.

    • n-1 empty pages are appended after the current page

  • when n>=m :

    • it's all good !

picture crubier on 12 Mar 2018
❤6

All 35 comments

Note that I am also happy to pursue an alternate solution, as long as I can get two columns. Please let me know!

flaurida picture flaurida on 1 Mar 2018

Isolating this issue, it is generally when there are nested elements with flex display.

flaurida picture flaurida on 1 Mar 2018
👍1

I am also having issues where the content is overflowing the page a bit, even after adding padding to the container View. Thanks again for all the help!

flaurida picture flaurida on 1 Mar 2018

Update - I realized I needed to add the padding to the page itself. My last major issues are nested flex and the fact that extra pages are rendered at the end. Thanks so much for the help!

flaurida picture flaurida on 1 Mar 2018

Unrelated, but does the lineHeight property work on Text elements?

flaurida picture flaurida on 1 Mar 2018

No. It's not supported yet

diegomura picture diegomura on 1 Mar 2018

OK, no worries. My biggest question now is how to remove the extra 1-2 pages I am seeing. Thanks so much again Diego. The flex stuff works OK so long as I use percentage widths and don't use more than two children elements.

flaurida picture flaurida on 2 Mar 2018

Currently I don鈥檛 think there is any way of removing those while using the wrap feature with 2 columns. It鈥檚 just not the way it鈥檚 working right now. Sorry.
There is an ongoing effort of changin the text layout algorithm, which will have impact on the wrapping feature as well

diegomura picture diegomura on 2 Mar 2018

No worries - I really appreciate all you've done, and if I can help with some stuff please let me know. Will keep updating the library as well :) Thanks again and have a great weekend 馃帀

flaurida picture flaurida on 2 Mar 2018

Quick question - when do you think will be possible to do page numbers, even if it is just Page 1 not Page 1 of 4? Thanks again so much, this is looking awesome 馃敟 馃挴

flaurida picture flaurida on 6 Mar 2018

Yes. It would. Here I shared with you the API I would like to see, but not sure if it's possible. Would you like to tackle this?

diegomura picture diegomura on 6 Mar 2018

Hi, thanks for the good work, however this bug (which you are talking about on top of this page) is totally blocking us !

We want to display some kind of tables using flexbox, but we are seeing wildly incorrect results, it's so bad it's even fun !

Example

The goal of the example is to display a table with 4 columns, and a varying number of rows... However:

  • The number of columns that actually gets displayed varies depending on the number of rows !?!
  • For each additional row, an additional empty page is appended after the current page

We use these styles:

export default StyleSheet.create({
  page: { flexDirection: "column", padding: 25 },
  table: {
    fontSize: 10,
    width: 550,
    display: "flex",
    flexDirection: "column",
    justifyContent: "flex-start",
    alignContent: "stretch",
    flexWrap: "nowrap",
    alignItems: "stretch"
  },
  row: {
    display: "flex",
    flexDirection: "row",
    justifyContent: "space-around",
    alignContent: "stretch",
    flexWrap: "nowrap",
    alignItems: "stretch",
    flexGrow: 0,
    flexShrink: 0,
    flexBasis: 35
  },
  cell: {
    borderColor: "#cc0000",
    borderStyle: "solid",
    borderWidth: 2,
    flexGrow: 1,
    flexShrink: 1,
    flexBasis: "auto",
    alignSelf: "stretch"
  },
  header: {
    backgroundColor: "#eee"
  },
  headerText: {
    fontSize: 11,
    fontWeight: 1200,
    color: "#1a245c",
    margin: 8
  },
  tableText: {
    margin: 10,
    fontSize: 10,
    color: neutralDark
  }
});

Case 1 (empty table)

Now here is an example of an empty table:

<Page style={styles.page} size="A4" wrap>
    <View style={styles.table}>
          <View style={[styles.row, styles.header]}>
              <Text style={[styles.headerText, styles.cell]}>Column 1 Header</Text>
              <Text style={[styles.headerText, styles.cell]}>Column 2 Header</Text>
              <Text style={[styles.headerText, styles.cell]}>Column 3 Header</Text>
              <Text style={[styles.headerText, styles.cell]}>Column 4 Header</Text>
          </View>
    </View>
</Page>

The result is the following:

screen shot 2018-03-12 at 18 02 47

Case 2 (1 row in table)

<Page style={styles.page} size="A4" wrap>
    <View style={styles.table}>
          <View style={[styles.row, styles.header]}>
              <Text style={[styles.headerText, styles.cell]}>Column 1 Header</Text>
              <Text style={[styles.headerText, styles.cell]}>Column 2 Header</Text>
              <Text style={[styles.headerText, styles.cell]}>Column 3 Header</Text>
              <Text style={[styles.headerText, styles.cell]}>Column 4 Header</Text>
          </View>
          <View style={[styles.row]}>
            <Text style={[styles.cell]}>Column 1 Row 1</Text>
            <Text style={[styles.cell]}>Column 2 Row 1</Text>
            <Text style={[styles.cell]}>Column 3 Row 1</Text>
            <Text style={[styles.cell]}>Column 4 Row 1</Text>
          </View>
    </View>
</Page>

The result is the following:

screen shot 2018-03-12 at 18 08 23

Case 3 (2 rows in table)

<Page style={styles.page} size="A4" wrap>
    <View style={styles.table}>
          <View style={[styles.row, styles.header]}>
              <Text style={[styles.headerText, styles.cell]}>Column 1 Header</Text>
              <Text style={[styles.headerText, styles.cell]}>Column 2 Header</Text>
              <Text style={[styles.headerText, styles.cell]}>Column 3 Header</Text>
              <Text style={[styles.headerText, styles.cell]}>Column 4 Header</Text>
          </View>
          <View style={[styles.row]}>
            <Text style={[styles.cell]}>Column 1 Row 1</Text>
            <Text style={[styles.cell]}>Column 2 Row 1</Text>
            <Text style={[styles.cell]}>Column 3 Row 1</Text>
            <Text style={[styles.cell]}>Column 4 Row 1</Text>
          </View>
          <View style={[styles.row]}>
            <Text style={[styles.cell]}>Column 1 Row 2</Text>
            <Text style={[styles.cell]}>Column 2 Row 2</Text>
            <Text style={[styles.cell]}>Column 3 Row 2</Text>
            <Text style={[styles.cell]}>Column 4 Row 2</Text>
          </View>
    </View>
</Page>

Result:

screen shot 2018-03-12 at 18 07 37

Case 4 (3+ rows in table)

<Page style={styles.page} size="A4" wrap>
    <View style={styles.table}>
          <View style={[styles.row, styles.header]}>
              <Text style={[styles.headerText, styles.cell]}>Column 1 Header</Text>
              <Text style={[styles.headerText, styles.cell]}>Column 2 Header</Text>
              <Text style={[styles.headerText, styles.cell]}>Column 3 Header</Text>
              <Text style={[styles.headerText, styles.cell]}>Column 4 Header</Text>
          </View>
          <View style={[styles.row]}>
            <Text style={[styles.cell]}>Column 1 Row 1</Text>
            <Text style={[styles.cell]}>Column 2 Row 1</Text>
            <Text style={[styles.cell]}>Column 3 Row 1</Text>
            <Text style={[styles.cell]}>Column 4 Row 1</Text>
          </View>
          <View style={[styles.row]}>
            <Text style={[styles.cell]}>Column 1 Row 2</Text>
            <Text style={[styles.cell]}>Column 2 Row 2</Text>
            <Text style={[styles.cell]}>Column 3 Row 2</Text>
            <Text style={[styles.cell]}>Column 4 Row 2</Text>
          </View>
          <View style={[styles.row]}>
            <Text style={[styles.cell]}>Column 1 Row 3</Text>
            <Text style={[styles.cell]}>Column 2 Row 3</Text>
            <Text style={[styles.cell]}>Column 3 Row 3</Text>
            <Text style={[styles.cell]}>Column 4 Row 3</Text>
          </View>
    </View>
</Page>

Result:

screen shot 2018-03-12 at 18 17 10

Other cases

You get the idea, the bug shows when there are less rows than columns...

TL;DR:

Basically for a table of n rows and m columns,

  • when n<m :

    • n columns are displayed correctly (text + border),

    • n+1 columns have a correct border

    • m-n-1 columns are NOT displayed at all.

    • n-1 empty pages are appended after the current page

  • when n>=m :

    • it's all good !

crubier picture crubier on 12 Mar 2018
❤6

Thanks for reporting it and for the extensive research @crubier !
I was looking at your snippets and you are right, this error seems to be with the wrap prop. You can see how it shows up when that prop is gone in here.

wrap is a really an unstable feature right now, and only works for just vertical layouts, such as the one in the page-wrap example. I'm in the middle of changing the text-layouting algorithm, which is a first step of having a more advanced wrapping. However, there is no precise solution I can provide right now other than not using the wrap feature

diegomura picture diegomura on 12 Mar 2018

Yeah, I've been noticing that there are a bunch of pages being appended at the end and my layout has a bunch of columns with rows with columns and so forth.

rclai picture rclai on 28 Mar 2018

I've been working on improving the current wapping algorithm, which is quite poor and as you said here you were having problems with. Also this involves changes and improvements in the way flexbox work. Just wanted to give a heads up. I hope to be able to release this soon as a beta version, so you can try it. Spoiler on how its currently working (just with very ugly Views for the moment, but the concept is the same for other elements, such as Texts):

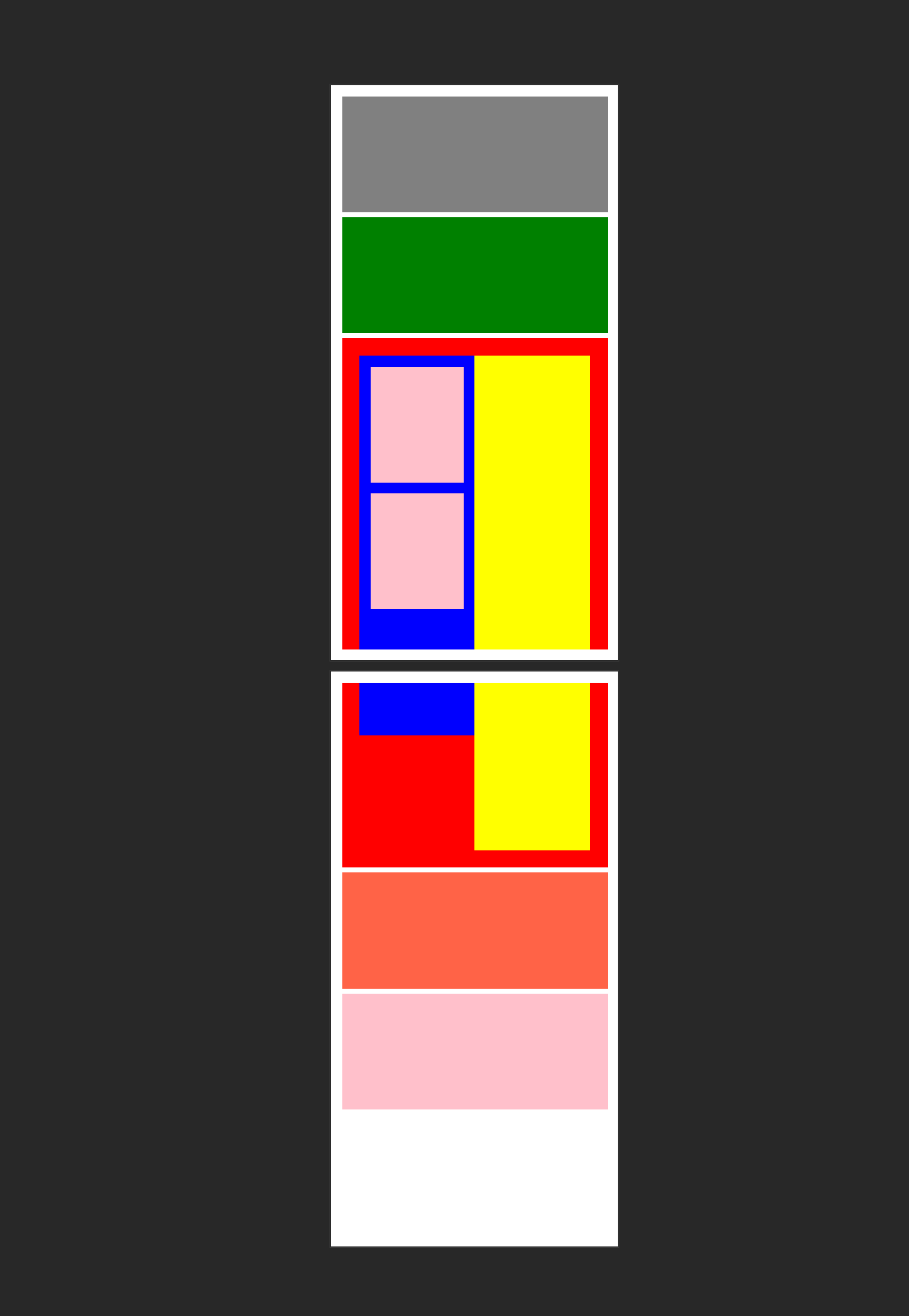

screen shot 2018-04-05 at 11 25 38 pm

As you can see, now every element that does not fit the page, get's splited and resumed on the next page. Any inputs of feedback about what you see so far? It would be much appreciated!

@flaurida @crubier @rclai

diegomura picture diegomura on 6 Apr 2018
👍1

Another cool feature about this: if a wrapped element suddenly gets alone in his container (imagine the blue box being a bit shorter and ending before the page break), with the correct flexbox properties, it can dynamically adjust, enabling very complex layouts:

screen shot 2018-04-05 at 11 38 49 pm

The "two" yellow boxes aren't two Views. It's the same one that adjusts based on the page (or pages) that he is being rendered into

diegomura picture diegomura on 6 Apr 2018
👍1

That is great progress.

Will you be supporting the CSS page-break-after/before/inside properties? I feel like being able to achieve those functionalities will get page wrapping in good standing.

rclai picture rclai on 6 Apr 2018

I didn鈥檛 though about that. That鈥檚 actually a very good idea. It would be great for a second iteration. And you are more than welcome to contribute!. I don鈥檛 want to be that ambitious on this one because it鈥檚 already a very complex issue to solve. Thanks!!

diegomura picture diegomura on 6 Apr 2018

Looks impressive!

pedroteixeira picture pedroteixeira on 6 Apr 2018

Yes this looks very good @diegomura, I think this is what I would expect from the layout algorithm.

Only one thing worries me, it is that some views might get split. It is ok to split a list between elements. But as I understand it, the user will have to take care himself to not split list elements themselves, especially text lines.

So good congrats on these advances, and let us know about this potential problem.

crubier picture crubier on 6 Apr 2018

Thanks for your feedbacks!
@crubier I get what you say. To solve that I thought about being able to pass a prop to an element that disables wrapping for that element. If that element happens to be at the end of a page, it's going to be rendered completely on the next page. If not present, I think it would be ok to expect the text to break if it's at the end of a page. Otherwise you will have that text outside the page boundaries, which shouldn't be allowed. right?

diegomura picture diegomura on 6 Apr 2018

@diegomura Amazing way the library has matured! kudos
I have been using it for the similar case with pages having dynamic breaks and columns in rows which makes things break.
I saw you actively working on the textkit branch, right?
just wanted to know if its stable to use?

VrajSolanki picture VrajSolanki on 20 Apr 2018

Hi @VrajSolanki . Thanks!
Yes. I've been working extensively there lately, and the results so far have been quite good for the use case I need to cover. But it's experimental yet. If you want, you can give this version a shot by installing 0.7.7-1 version of react-pdf packages. Just bare in mind that execution time is a bit slower now (much things going on: page wrapping, line-breaking, hyphenation, inline styling, among others). But I plan to do a performance test eventually and see where I can improve it.
If you do test it, I would really appreciate you sharing your experiences!

diegomura picture diegomura on 20 Apr 2018

Hello @diegomura, sorry got caught up in something. To give you a heads up I am facing this error

{"level":"error","message":"Error occurred while rendering: "TypeError: Cannot read property 'slice' of undefined""}

at GlyphRun.slice (path_to/node_modules/@react-pdf/textkit/dist/models/GlyphRun.js:102:44) at GlyphString.get glyphRuns [as glyphRuns] (path_to/node_modules/@react-pdf/textkit/dist/models/GlyphString.js:83:24) at GlyphString.get height [as height] (path_to/node_modules/@react-pdf/textkit/dist/models/GlyphString.js:61:17) at LayoutEngine.layoutParagraph (path_to/node_modules/@react-pdf/textkit/dist/layout/LayoutEngine.js:109:139) at LayoutEngine.layoutColumn (path_to/node_modules/@react-pdf/textkit/dist/layout/LayoutEngine.js:82:26) at LayoutEngine.layout (path_to/node_modules/@react-pdf/textkit/dist/layout/LayoutEngine.js:68:22) at TextEngine.layout (path_to/node_modules/@react-pdf/core/lib/elements/TextEngine.js:117:25) at Text.measureText (path_to/node_modules/@react-pdf/core/lib/elements/Text.js:75:21) at path_to/node_modules/yoga-layout/dist/entry-common.js:221:40 at Node.<anonymous> (path_to/node_modules/yoga-layout/dist/entry-common.js:234:21) at Node.prototype.(anonymous function) [as calculateLayout] (path_to/node_modules/yoga-layout/dist/entry-common.js:133:22) at SubPage.wrap (path_to/node_modules/@react-pdf/core/lib/elements/SubPage.js:89:19) at Page._callee$ (path_to/node_modules/@react-pdf/core/lib/elements/Page.js:133:56) at tryCatch (path_to/node_modules/babel-polyfill/node_modules/regenerator-runtime/runtime.js:65:40) at Generator.invoke [as _invoke] (path_to/node_modules/babel-polyfill/node_modules/regenerator-runtime/runtime.js:303:22) at Generator.prototype.(anonymous function) [as next] (path_to/node_modules/babel-polyfill/node_modules/regenerator-runtime/runtime.js:117:21) at step (path_to/node_modules/@react-pdf/core/lib/elements/Page.js:27:191) at path_to/node_modules/@react-pdf/core/lib/elements/Page.js:27:437 at new Promise (<anonymous>) at Page.<anonymous> (path_to/node_modules/@react-pdf/core/lib/elements/Page.js:27:99) at Page.wrapPage (path_to/node_modules/@react-pdf/core/lib/elements/Page.js:150:21) at Document._callee4$ (path_to/node_modules/@react-pdf/core/lib/elements/Document.js:212:41)

maybe I am missing a settings here, I will dig deeper while you can have a look at it.

VrajSolanki picture VrajSolanki on 23 Apr 2018

Thanks for the report. Can you upload the snippet that is throwing that error?

diegomura picture diegomura on 23 Apr 2018

@diegomura
so I believe the issue is with the the fonts. If I do not add any fonts I get the error

{"level":"error","message":"Error occurred while rendering: "TypeError: this.ctx._addGlyphs is not a function"","datetime":"2018-04-23T15:19:41.681Z"}

If I add my custom fonts by registering I get the error

{"level":"error","message":"Error occurred while rendering: "TypeError: Cannot read property 'slice' of undefined""}

and the code Snippet is:

let renderItems = [];

  _.map(itemsList,(item, index)=>{
    renderItems.push(
      <View style={{display: "flex", flexDirection: "row"}} break>
        <View><Text style={{fontFamily: 'Avenir Bold',fontSize: 11,color:'#5F5F69'}}>hello world</Text></View>
        <View><Text style={{fontFamily: 'Avenir Bold',fontSize: 11,color:'#5F5F69'}}>hello world</Text></View>
      </View>
    );
  });

   return <Page size="A4" wrap>{renderItems}</Page>;

I have registered the font Avenir Bold.

VrajSolanki picture VrajSolanki on 23 Apr 2018

The first error is because (for some reason I can figure out) you are not using the correct pdfkit version, which now should be https://github.com/react-pdf/pdfkit. Are you using yarn or npm? It may be related to that because currrently that react-pdf version relies on the resolutions feature here which I didn't try with npm. Also, try uploading to 0.7.7-2, but that's not where the issue is

diegomura picture diegomura on 23 Apr 2018

I am using npm. yes there can be issue with this I can check that if with yarn.
Fair enough will upgrade to 7-2.
I do not have any dependencies for pdfkit in my package.json, I believe it was react-pdf dependency so should be taken care by the library, currently I have 0.8.1 version of pdfkit.
Shall I update that as well??

VrajSolanki picture VrajSolanki on 23 Apr 2018

Thanks! This is definitely an issue (hate when this happens). Please tell me if it works with yarn

diegomura picture diegomura on 23 Apr 2018

Yup atleast got it built with yarn and currently on version 0.7.7-2
@diegomura lets do one thing add yarn in the build setup until the npm stuff with pdfkit is figured out, it would be helpful. I have seen some issues are already there regarding this.
Seems interesting to work on the layouts now!!
Also currently I am able to see the rows, columns in the flexbox will work drill more on the layout and page-break and keep you posted.
Thanks.

VrajSolanki picture VrajSolanki on 23 Apr 2018

It's great you could make it work. And glad to hear it's you find the new layout and page wrapping feature interesting. Probably it has things to improve yet, but test it and report anything you see.
The yarn thing is definitely something I should fix soon. I can't expect to all the users to use yarn. It's a shame npm does not support this

diegomura picture diegomura on 23 Apr 2018

Hi, I'm also seeing a problem with columns inside a row cutting off some of the column content. I think it is a similar issue with nested flexboxes. Is this something that might get fixed soon or should I change my pdf design to be more flat perhaps? thanks!

cml391 picture cml391 on 29 May 2018

This is fixed on the 1.0.0 branch, which is the ongoing effort in releasing a more stable version, with tons of new features. However, I didn't have enough time to wrap it and deploy a release candidate yet. You can temporarily try that version, or as you said, flat the document design 馃槃

diegomura picture diegomura on 29 May 2018
👍1

Some more flex weirdness, you can copy/paste the code below directly into the repl to see what I'm talking about.

The page layout works as expected with only _one_ <TwoColumnLayout />. With every _additional_ <TwoColumnLayout />, two blank pages get added to the document, plus the last word in each <Text /> gets chopped.

capture
capture

const TwoColumnLayout = () => (
  <View style={{ flexDirection: 'row', justifyContent: 'space-around' }} >
    <View style={{ flexDirection: 'column' }} >
      <Text>Left Column</Text>
    </View>

    <View style={{ flexDirection: 'column' }} >
      <Text>Right Column</Text>
    </View>
  </View>
);

const doc = (
  <Document>
    <Page style={{ padding: 30 }} wrap>
      <TwoColumnLayout />
      <TwoColumnLayout />
      <TwoColumnLayout />
      <TwoColumnLayout />
      <TwoColumnLayout />
    </Page>
  </Document>
);

ReactPDF.render(doc);

Edit: remove the wrap and everything goes back to normal

Edit 2: Just tried this same component on the 1.0.0 branch the issue appears to have been fixed!
although I get Emoji source not registered several times in the console

tim-soft picture tim-soft on 6 Jun 2018

New v1.0.0-alpha.7 implements the new wrapping algorithm. REPL is already running that version.
I'm closing this, and if anything else pops up, submit a new issue with proper example

diegomura picture diegomura on 23 Jul 2018
👍3
Was this page helpful?
0 / 5 - 0 ratings

Related issues

cheald picture cheald  路  3Comments
redcranesolutions picture redcranesolutions  路  4Comments
theobat picture theobat  路  3Comments
UsefulHunter picture UsefulHunter  路  3Comments
yellowBanano picture yellowBanano  路  3Comments
