React-native-svg: Text translating/rendering x/y incorrectly when rotate > 0 from release 5.0.2+

Created on 26 Jan 2017 · 58Comments · Source: react-native-svg/react-native-svg

Using react-native-svg 4.6.1:

Using react-native-svg 5.0.2:

Both using react-native 0.40.0.

Using this code snippet:

export default class rnsvgtest extends Component {
  render() {
    return (
      <View style={styles.container}>
        <ReactText style={styles.welcome}>
          react-native-svg testing
        </ReactText>
        <Svg
          height="300"
          width="300"
        >
          <Text
            fontSize="10"
            x="100"
            y="20"
            rotate="45"
            textAnchor="middle"
          >[100,20]</Text>
          <Text
            fontSize="10"
            x="150"
            y="20"
            rotate="45"
            textAnchor="middle"
          >[150,20]</Text>
          <Text
            fontSize="10"
            x="200"
            y="20"
            rotate="0"
            textAnchor="middle"
          >[200,20]</Text>
          <Text
            fontSize="10"
            x="250"
            y="20"
            rotate="0"
            textAnchor="middle"
          >[250,20]</Text>
        </Svg>
      </View>
    );
  }
}

Source

marzolfb

👍8

All 58 comments

ElieMyIdea on 31 Aug 2017

@marzolfb @ElieMyIdea Have you tried this? https://github.com/react-native-community/react-native-svg/pull/430

msand on 3 Sep 2017

Unfortunatly,

I'm on RN 0.39.2 with react-native-svg 4.4.1 but same problem appear..

ElieMyIdea on 4 Sep 2017

@ElieMyIdea Are you unable to upgrade RN? If you're able to get up to at least
"peerDependencies": {
"prop-types": "^15.5.10",
"react": ">=15.4.0",
"react-native": ">=0.40.0"
},

then you can use my "version": "5.1.7.3" from

https://github.com/msand/react-native-svg/tree/5.1.7.1
https://github.com/msand/react-native-svg/blob/5.1.7.1/package.json

by running one of:
npm install --save react-native-svg@https://github.com/msand/react-native-svg.git#2181798
yarn add react-native-svg@https://github.com/msand/react-native-svg.git#2181798

If you can get up to
"peerDependencies": {
"react-native": ">=0.46.0",
"react": "16.0.0-alpha.12",
"prop-types": "^15.5.8"
},

Then use my 5.4.1 or 6.0.0 by running one of:
npm install --save react-native-svg@https://github.com/msand/react-native-svg.git#5a01d67
yarn add react-native-svg@https://github.com/msand/react-native-svg.git#5a01d67

msand on 14 Sep 2017

otherwise, if you get it to a version below 0.46 but not compatible with 5.1.7.3, then use 5.2.0 or 5.3.0 from my fork

msand on 14 Sep 2017

@msand I see #403 got merged. Why is the problem still persisting?

{labels.map(({ x, y, text }, i) => (
    <G
        key={`label-${i}`}
        rotate={5}
        origin={`0,0`}
    >
        <SVGText
            x={x}
            y={y + 5}
            fontSize={fontSize}
            fontWeight={fontWeight}
            textAnchor={`middle`}
        >
            {text.toUpperCase()}
        </SVGText>
    </G>
))}

packge.json

"react": "16.0.0-beta.5",
"react-native": "0.49.3",
"react-native-svg": "^5.4.2",

dwilt on 23 Oct 2017

@dwilt have you tried [email protected] ? The changes are merged into the 6.0.0 branch https://github.com/react-native-community/react-native-svg/tree/6.0.0

msand on 23 Oct 2017

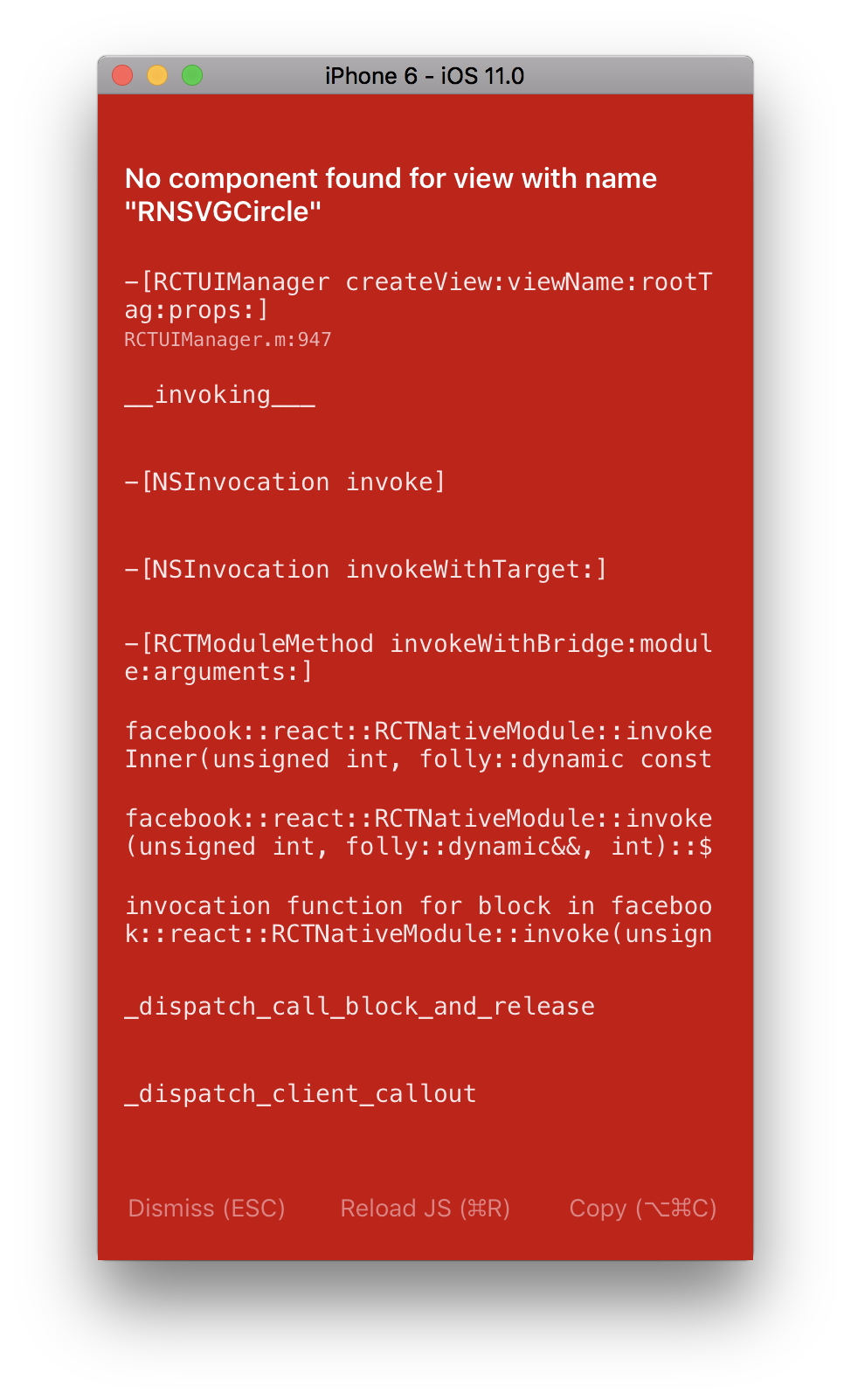

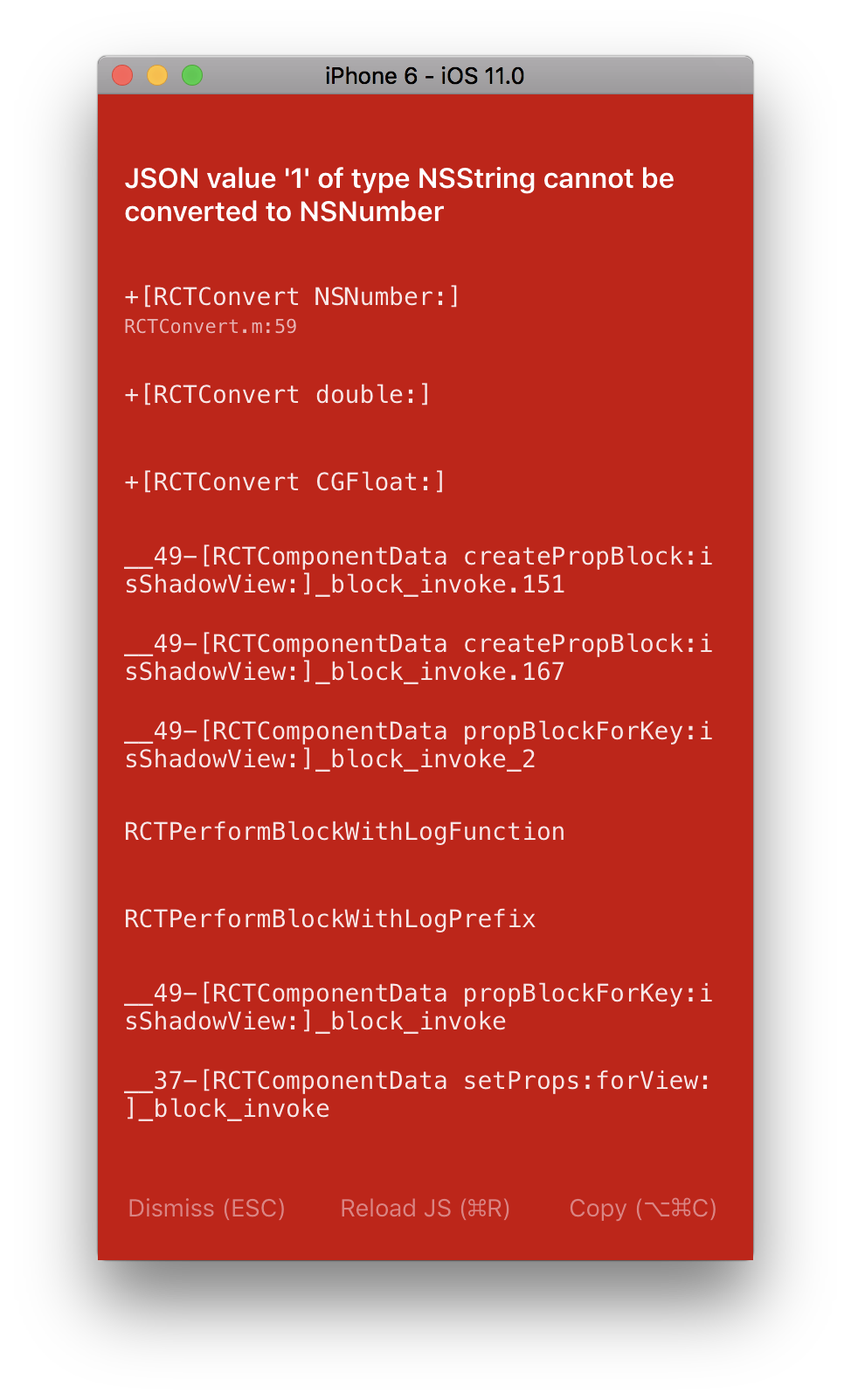

@msand Updated to 6.0.0-rc1 and now getting this:

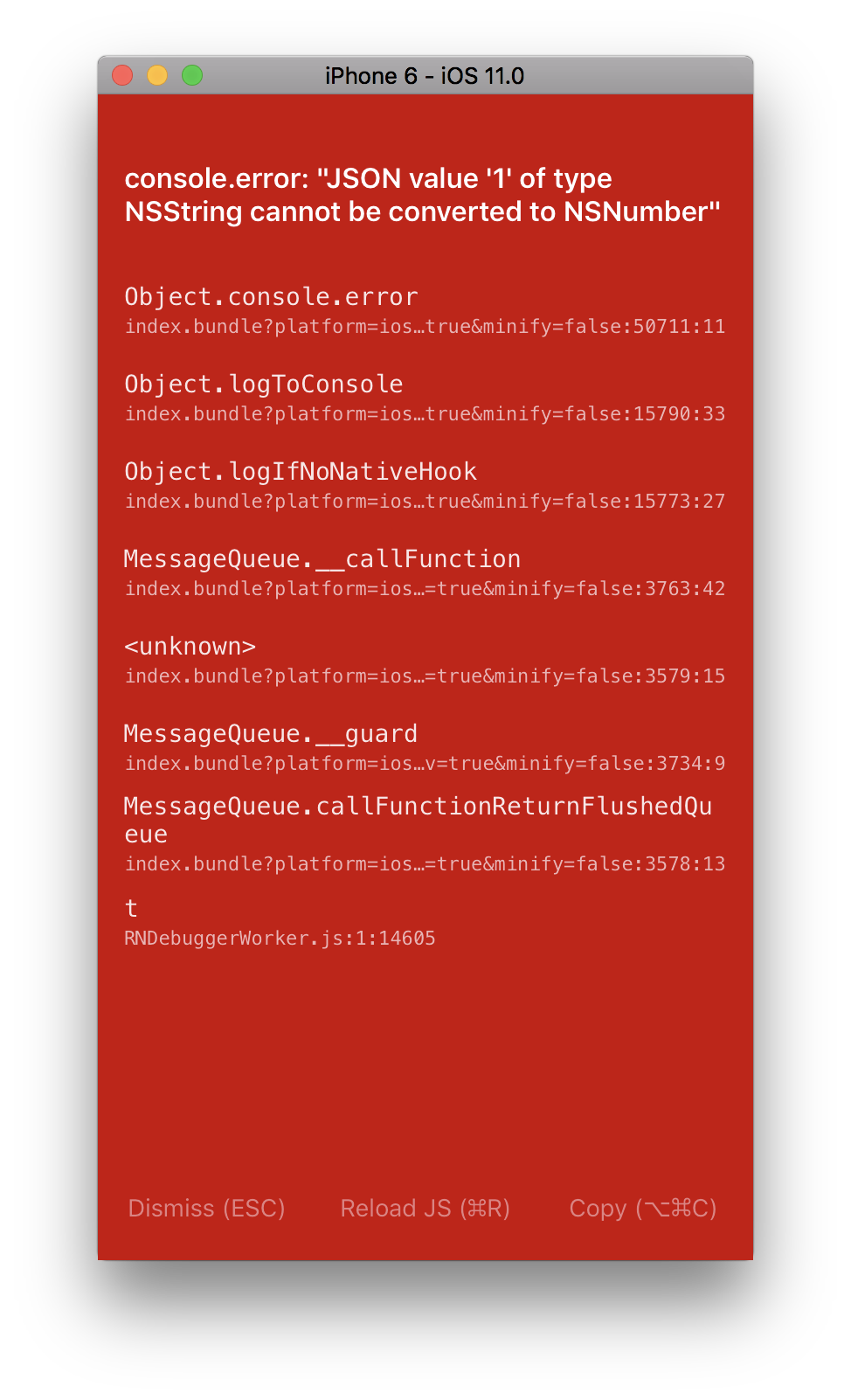

dwilt on 23 Oct 2017

Interesting, could you try to find some value which is set / calculated to the string '1' and change it to the number {1} instead?

msand on 23 Oct 2017

@msand working on it..

dwilt on 23 Oct 2017

@msand I think we have a bug here. As a sanity check, cause I couldn't find my problem, I just updated my render method to this:

Note the strokeWidth="2.5"

render() {
    return (
        <Svg
            height={300}
            width={200}
        >
            <Circle
                cx="50"
                cy="50"
                r="45"
                stroke="blue"
                strokeWidth="2.5"
                fill="green"
            />
        </Svg>
    );
}

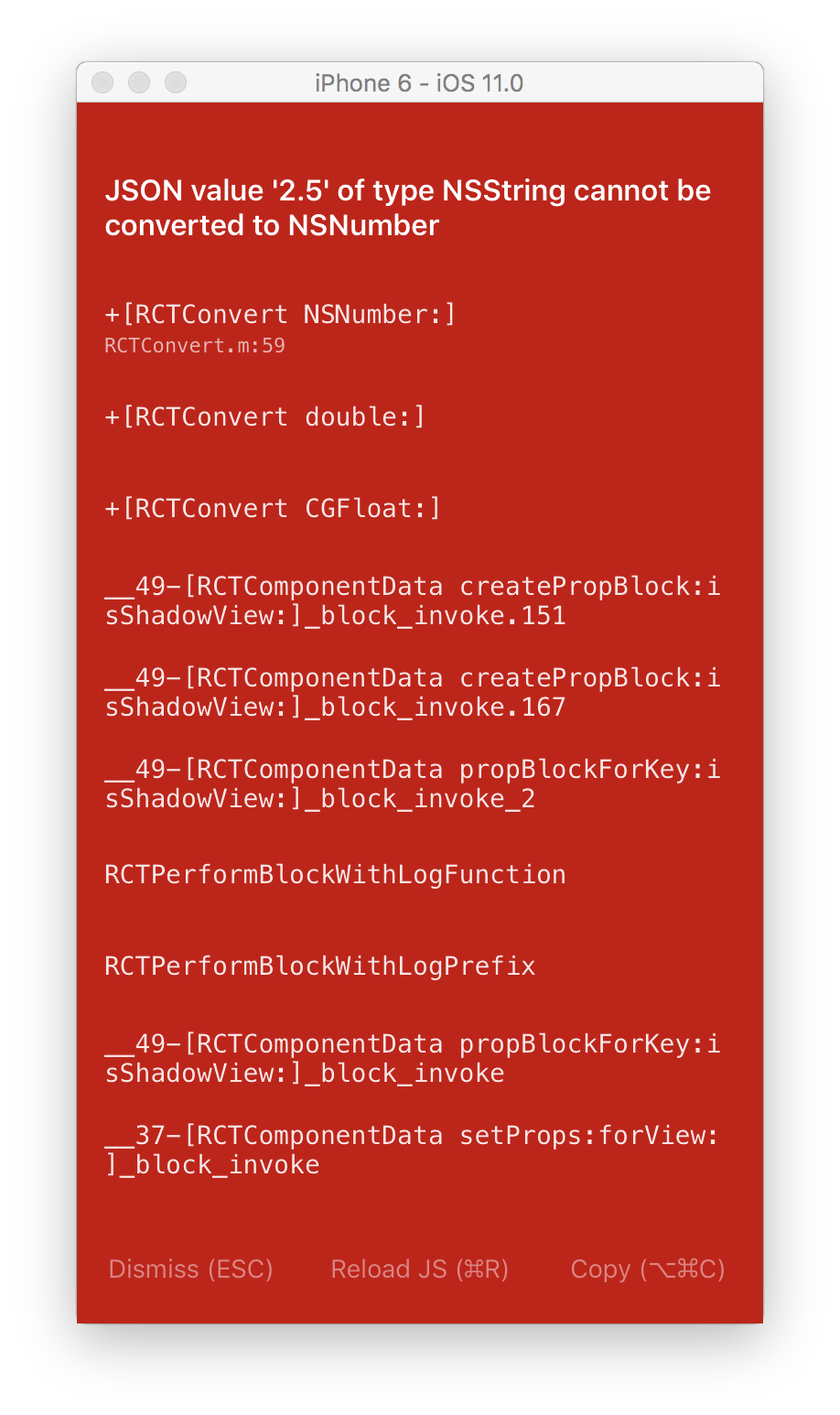

which gives me this:

So I tried making it a number..
Note the strokeWidth={2.5}

render() {
    return (
        <Svg
            height={300}
            width={200}
        >
            <Circle
                cx="50"
                cy="50"
                r="45"
                stroke="blue"
                strokeWidth={2.5}
                fill="green"
            />
        </Svg>
    );
}

Same thing:

dwilt on 23 Oct 2017

Kind of crazy:

render() {
    return (
        <Svg
            height={300}
            width={200}
        >
            <G></G>
        </Svg>
    );

}

dwilt on 23 Oct 2017

Can you try cleaning your project in xcode,
shut down any react bundler
rm -rf node_modules
npm i
react-native run-ios

msand on 23 Oct 2017

Cleaned in Xcode. Deleted node_modules, ran yarn and same thing. Also restarted the bundler

dwilt on 23 Oct 2017

The latest commit in the 6.0.0 branch doesn't work with yarn, only with npm, because of a git submodule dependency which yarn doesn't install, try removing node_modules and install using npm instead of yarn

msand on 23 Oct 2017

Otherwise, try to react-native init newproject and install [email protected] there

msand on 23 Oct 2017

Or try cloning and testing using this https://github.com/msand/newproject/

msand on 23 Oct 2017

I just tried npm i and still not working. Damn. Also, noticed this error on sim launch:

CompileC /Users/dwilt/Documents/GitHub/dropcountr-react-native/ios/build/Build/Intermediates.noindex/RNSVG.build/Debug-iphonesimulator/RNSVG.build/Objects-normal/x86_64/TextPathSpacing.o Text/TextPathSpacing.m normal x86_64 objective-c com.apple.compilers.llvm.clang.1_0.compiler
    cd /Users/dwilt/Documents/GitHub/dropcountr-react-native/node_modules/react-native-svg/ios
    export LANG=en_US.US-ASCII
    export PATH="/Applications/Xcode.app/Contents/Developer/Platforms/iPhoneSimulator.platform/Developer/usr/bin:/Applications/Xcode.app/Contents/Developer/usr/bin:/Users/dwilt/.nvm/versions/node/v8.2.1/lib/node_modules/npm/bin/node-gyp-bin:/Users/dwilt/Documents/GitHub/dropcountr-react-native/node_modules/.bin:/Users/dwilt/Library/Android/sdk/platform-tools:/Users/dwilt/Library/Android/sdk/tools:/Users/dwilt/.nvm/versions/node/v8.2.1/bin:/usr/local/bin:/usr/bin:/bin:/usr/sbin:/sbin"
    /Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/clang -x objective-c -arch x86_64 -fmessage-length=0 -fdiagnostics-show-note-include-stack -fmacro-backtrace-limit=0 -std=gnu99 -fobjc-arc -fmodules -gmodules -fmodules-cache-path=/Users/dwilt/Documents/GitHub/dropcountr-react-native/ios/build/ModuleCache -fmodules-prune-interval=86400 -fmodules-prune-after=345600 -fbuild-session-file=/Users/dwilt/Documents/GitHub/dropcountr-react-native/ios/build/ModuleCache/Session.modulevalidation -fmodules-validate-once-per-build-session -Wnon-modular-include-in-framework-module -Werror=non-modular-include-in-framework-module -Wno-trigraphs -fpascal-strings -O0 -Wno-missing-field-initializers -Wno-missing-prototypes -Werror=return-type -Wunreachable-code -Wno-implicit-atomic-properties -Werror=deprecated-objc-isa-usage -Werror=objc-root-class -Wno-arc-repeated-use-of-weak -Wduplicate-method-match -Wno-missing-braces -Wparentheses -Wswitch -Wunused-function -Wno-unused-label -Wno-unused-parameter -Wunused-variable -Wunused-value -Wempty-body -Wuninitialized -Wconditional-uninitialized -Wno-unknown-pragmas -Wno-shadow -Wno-four-char-constants -Wno-conversion -Wconstant-conversion -Wint-conversion -Wbool-conversion -Wenum-conversion -Wno-float-conversion -Wno-non-literal-null-conversion -Wno-objc-literal-conversion -Wshorten-64-to-32 -Wpointer-sign -Wno-newline-eof -Wno-selector -Wno-strict-selector-match -Wundeclared-selector -Wno-deprecated-implementations -DDEBUG=1 -DOBJC_OLD_DISPATCH_PROTOTYPES=0 -isysroot /Applications/Xcode.app/Contents/Developer/Platforms/iPhoneSimulator.platform/Developer/SDKs/iPhoneSimulator11.0.sdk -fasm-blocks -fstrict-aliasing -Wprotocol -Wdeprecated-declarations -mios-simulator-version-min=7.0 -g -Wno-sign-conversion -Wno-infinite-recursion -Wno-comma -Wno-block-capture-autoreleasing -Wno-strict-prototypes -fobjc-abi-version=2 -fobjc-legacy-dispatch -index-store-path /Users/dw
ilt/Documents/GitHub/dropcountr-react-native/ios/build/Index/DataStore -iquote /Users/dwilt/Documents/GitHub/dropcountr-react-native/ios/build/Build/Intermediates.noindex/RNSVG.build/Debug-iphonesimulator/RNSVG.build/RNSVG-generated-files.hmap -I/Users/dwilt/Documents/GitHub/dropcountr-react-native/ios/build/Build/Intermediates.noindex/RNSVG.build/Debug-iphonesimulator/RNSVG.build/RNSVG-own-target-headers.hmap -I/Users/dwilt/Documents/GitHub/dropcountr-react-native/ios/build/Build/Intermediates.noindex/RNSVG.build/Debug-iphonesimulator/RNSVG.build/RNSVG-all-target-headers.hmap -iquote /Users/dwilt/Documents/GitHub/dropcountr-react-native/ios/build/Build/Intermediates.noindex/RNSVG.build/Debug-iphonesimulator/RNSVG.build/RNSVG-project-headers.hmap -I/Users/dwilt/Documents/GitHub/dropcountr-react-native/ios/build/Build/Products/Debug-iphonesimulator/include -I/Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/include -I../../React -I../../React/cjs -I../../React/umd -I/Users/dwilt/Documents/GitHub/dropcountr-react-native/ios/build/Build/Products/Debug-iphonesimulator/usr/local/include -IPerformanceBezier -IQuartzBookPack -IQuartzBookPack/Bezier -IQuartzBookPack/Drawing -IQuartzBookPack/Geometry -IQuartzBookPack/Image -IQuartzBookPack/TextDrawing -IQuartzBookPack/Utility -I/Users/dwilt/Documents/GitHub/dropcountr-react-native/ios/build/Build/Intermediates.noindex/RNSVG.build/Debug-iphonesimulator/RNSVG.build/DerivedSources/x86_64 -I/Users/dwilt/Documents/GitHub/dropcountr-react-native/ios/build/Build/Intermediates.noindex/RNSVG.build/Debug-iphonesimulator/RNSVG.build/DerivedSources -F/Users/dwilt/Documents/GitHub/dropcountr-react-native/ios/build/Build/Products/Debug-iphonesimulator -MMD -MT dependencies -MF /Users/dwilt/Documents/GitHub/dropcountr-react-native/ios/build/Build/Intermediates.noindex/RNSVG.build/Debug-iphonesimulator/RNSVG.build/Objects-normal/x86_64/TextPathSpacing.d --serialize-diagnostics /Users/dwilt/Documents/GitHub/dropcountr-react-native/ios/build/Build/Intermediates.noindex/RNSVG.build/Debug-iphonesimulator/RNSVG.build/Objects-normal/x86_64/TextPathSpacing.dia -c /Users/dwilt/Documents/GitHub/dropcountr-react-native/node_modules/react-native-svg/ios/Text/TextPathSpacing.m -o /Users/dwilt/Documents/GitHub/dropcountr-react-native/ios/build/Build/Intermediates.noindex/RNSVG.build/Debug-iphonesimulator/RNSVG.build/Objects-normal/x86_64/TextPathSpacing.o


** BUILD FAILED **


The following build commands failed:

    CompileC /Users/dwilt/Documents/GitHub/dropcountr-react-native/ios/build/Build/Intermediates.noindex/RNSVG.build/Debug-iphonesimulator/RNSVG.build/Objects-normal/x86_64/RNSVGTSpan.o Text/RNSVGTSpan.m normal x86_64 objective-c com.apple.compilers.llvm.clang.1_0.compiler
(1 failure)

Installing build/Build/Products/Debug-iphonesimulator/DropcountrReactNative.app
Launching com.dropcountr.dev
com.dropcountr.dev: 27505

Process finished with exit code 0

Which is odd cause the app still fired up.

dwilt on 23 Oct 2017

Just a thought.. a react-native init installs with yarn. So wouldn't that theoretically not work then?

dwilt on 23 Oct 2017

Just tried a react-native init and then added [email protected] and it built succesfully. Add this markup:

import Svg, {
    G,
    Circle,
    Text as SVGText
} from 'react-native-svg';

export default class App extends Component<{}> {
    render() {
        return (
            <View style={styles.container}>
                <Text style={styles.welcome}>
                    Welcome to React Native!
                </Text>
                <Svg
                    height={300}
                    width={200}
                >
                    <Circle
                        cx="50"
                        cy="50"
                        r="45"
                        stroke="blue"
                        strokeWidth="2.5"
                        fill="green"
                    />
                    <G
                        rotate={45}
                    >
                        <SVGText>
                            Hey
                        </SVGText>
                    </G>
                    <G
                        rotate={45}
                    >
                        <SVGText>
                            You
                        </SVGText>
                    </G>
                </Svg>
            </View>
        );
    }
}

And I'm getting this:

dwilt on 24 Oct 2017

@dwilt what version of react-native is that? is it a 0.50-rc? can you try this:
npm install --save react-native-svg@https://github.com/msand/react-native-svg.git#ec35a1e

msand on 24 Oct 2017

Did you try running

git clone https://github.com/msand/newproject/
cd newproject
npm i
npm run start
npm run next

?
(next runs the web version of the universal setup)

msand on 24 Oct 2017

@msand Here's the package.json after react-native init test:

{
    "name": "test",
    "version": "0.0.1",
    "private": true,
    "scripts": {
        "start": "node node_modules/react-native/local-cli/cli.js start",
        "test": "jest"
    },
    "dependencies": {
        "react": "16.0.0-beta.5",
        "react-native": "0.49.3",
        "react-native-svg": "6.0.0-rc1"
    },
    "devDependencies": {
        "babel-jest": "21.2.0",
        "babel-preset-react-native": "4.0.0",
        "jest": "21.2.1",
        "react-test-renderer": "16.0.0-beta.5"
    },
    "jest": {
        "preset": "react-native"
    }
}

dwilt on 24 Oct 2017

I did not try cloning your newproject. I will try that now.

dwilt on 24 Oct 2017

I'm wondering, did you run react-native link after installing react-native-svg?

msand on 24 Oct 2017

@msand newproject worked for me:

dwilt on 24 Oct 2017

👍1

@msand shit, no I forgot that. Will redo that now. Didn't think of it cause we already had it installed.

dwilt on 24 Oct 2017

Not sure if this matters...

rnpm-install info Android module react-native-svg is already linked
rnpm-install info iOS module react-native-svg is already linked

Going to give it a shot now

dwilt on 24 Oct 2017

Otherwise, verify that libRNSVG.a is in the list of linked libraries in the xcode project

msand on 24 Oct 2017

And, as you already got the newproject building and starting, you can test your use case there at least.

msand on 24 Oct 2017

Still getting this after the react-native link:

** BUILD FAILED **



The following build commands failed:
    CompileC /Users/dwilt/Documents/GitHub/dropcountr-react-native/ios/build/Build/Intermediates.noindex/RNSVG.build/Debug-iphonesimulator/RNSVG.build/Objects-normal/x86_64/RNSVGTSpan.o Text/RNSVGTSpan.m normal x86_64 objective-c com.apple.compilers.llvm.clang.1_0.compiler
(1 failure)

Installing build/Build/Products/Debug-iphonesimulator/DropcountrReactNative.app
Launching com.dropcountr.dev
com.dropcountr.dev: 48923

dwilt on 24 Oct 2017

Can you try with this instead (should also work with yarn):
npm install --save react-native-svg@https://github.com/msand/react-native-svg.git#5a01d67

msand on 24 Oct 2017

Still same error:

dwilt on 25 Oct 2017

Try with the latest commit from the 6.0.0 branch:
npm i -S react-native-svg@https://github.com/react-native-community/react-native-svg.git#6.0.0
or
npm i -S react-native-svg@https://github.com/react-native-community/react-native-svg.git#be8797b
As I have in my fork of the git submodule example repo:
https://github.com/msand/react-native-svg-example/blob/6.0.0/package.json

msand on 26 Oct 2017

At some point I had a similar issue, but can't remember specific reason, either changing commit or clearing packager cache, or cleaning the native build. I think some old code was used by xcode or the ios js side at least, can remember which one. Do you have the same issue in android?

msand on 26 Oct 2017

Might have to restart xcode after installing using npm as well, the project might not be correctly loaded otherwise.

msand on 26 Oct 2017

With [email protected] rotated text is in the correct position relative to its anchor, but is rotated incorrectly. Rather than the entire string being rotated as expected, rotations seem to be applied to each individual character:

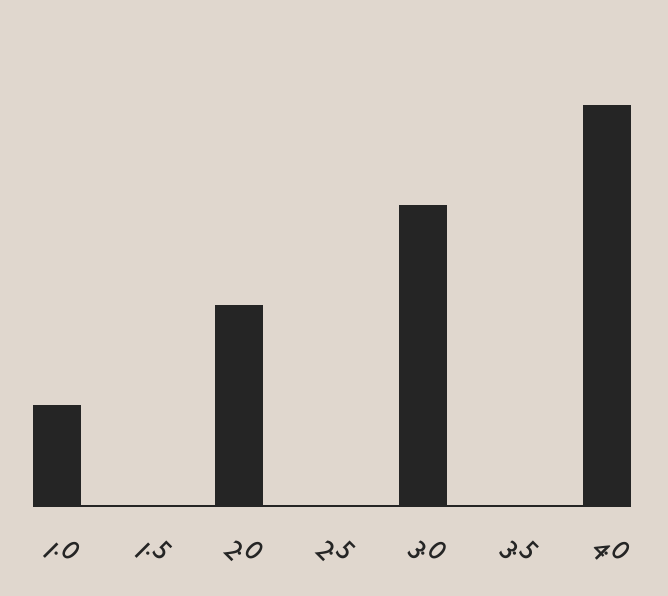

screen shot 2017-11-08 at 4 18 50 pm

I'm rendering like so:

<Text {...props} (...transform}>
  <TSpan {...moreProps}>
    {content}
  </TSpan>
</Text>

Still impacting https://github.com/FormidableLabs/victory-native/issues/103

boygirl on 9 Nov 2017

@boygirl It seems you might be mixing up the rotate attribute on text elements (per glyph list of rotation angles) https://www.w3.org/TR/SVG11/text.html#TSpanElementRotateAttribute
and the transform attribute (a list of transform definitions) https://www.w3.org/TR/SVG/coords.html#TransformAttribute
try changing to something like:

<Text {...props} transform={transform}>
  <TSpan {...moreProps}>
    {content}
  </TSpan>
</Text>

msand on 9 Nov 2017

@msand Thanks for your help! Unfortunately, that change puts me back in the previous situation, where a translation seems to also be applied. In this case it moves the elements off the screen.
screen shot 2017-11-08 at 5 06 13 pm

that is with hardcoded transform="rotate(45)". Is that the correct usage? I've also tried with explicit cx and cy values like transform={rotate(45, ${x}, ${y})}

boygirl on 9 Nov 2017

Easier to see what's going on with a 5 degree rotation:

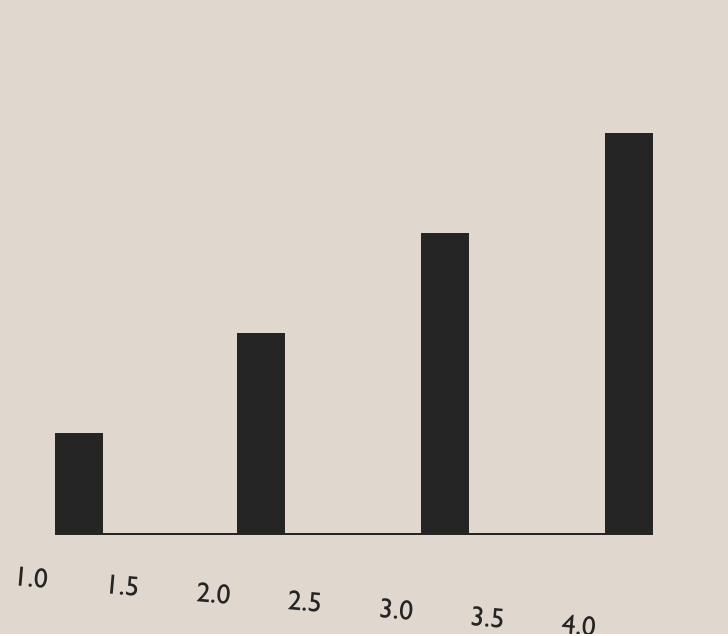

screen shot 2017-11-08 at 5 27 33 pm

boygirl on 9 Nov 2017

@boygirl You probably want a text/tspan element per label, rotate them while in the correct position relative to the origin, and then translate them into the correct positions / set their final origin.

msand on 9 Nov 2017

@boygirl https://developer.mozilla.org/en-US/docs/Web/SVG/Attribute/transform

msand on 9 Nov 2017

@msand Yes, I already have a one text/tspan element per label which is positioned using x, y, dx and dy attributes. The props provided to the text and tspan elements are identical to those I am using to position labels in web version of the charting library I'm working on. Unfortunately, in the native version, adding a rotation to the text is also causing an unwanted translation. The situation is as described in the original issue, I was just under the impression that it was fixed in v6.0.0.

boygirl on 9 Nov 2017

@boygirl At least in my tests it seems to be spec conformant, can you try making the same in a jsfiddle, git repo, Expo or something? https://jsfiddle.net/m126Lrqu/
In my RNSvgTests I have three examples of rotation:
https://github.com/msand/RNSvgTests/blob/master/src/components/Nested.js
https://github.com/msand/RNSvgTests/blob/master/src/components/baseline.js
https://github.com/msand/RNSvgTests/blob/master/src/components/RotateScale.js
They're implemented as cross-platform svg, using the svgs library, (server-side) rendering using next.js for the web and react-native for ios and android. So it's easy to ensure that the same svg structure and attribute values create the expected output in the evergreens.

msand on 9 Nov 2017

@msand I notice that none of your examples have a rotation and an x and y greater than zero. I think that may be the failure case.

boygirl on 9 Nov 2017

@msand here's a reproduction in a fiddle: https://jsfiddle.net/onm20qp2/

boygirl on 9 Nov 2017

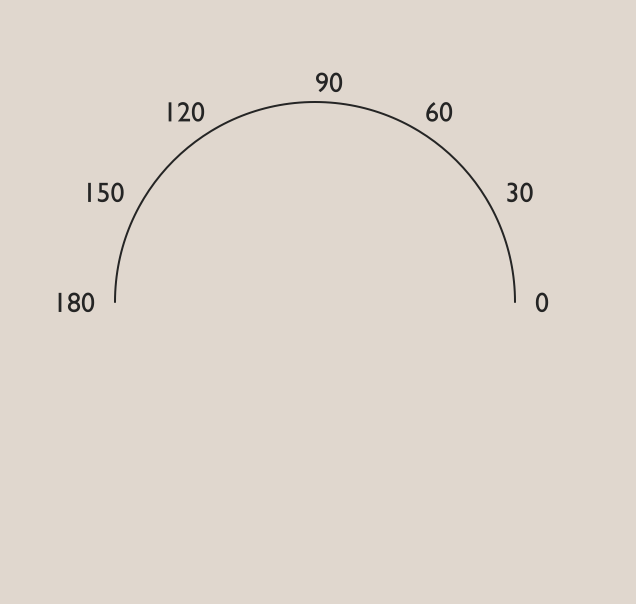

This might help demonstrate what I think it going wrong... For polar charts I'm translating everything to the origin of the chart. You can see how all the label rotations end up being rotations around that center point, even when I explicitly provide cx and cy to my rotations. Here are 0, 45, and 90 degree rotations _applied to each individual label, not the group_

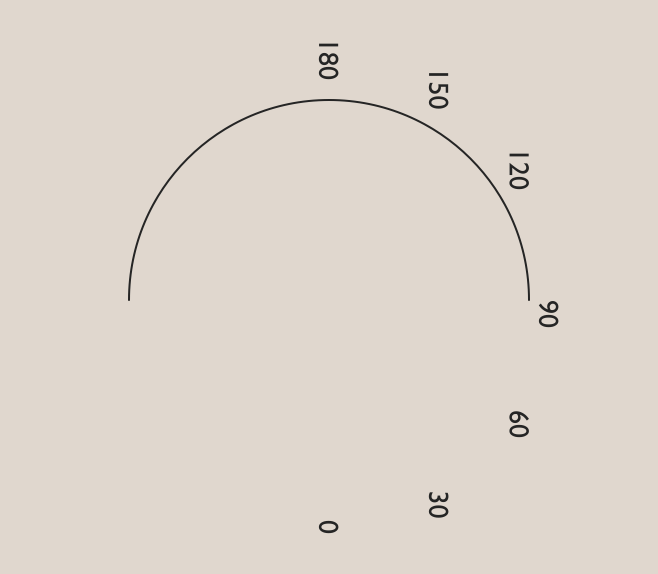

zero degrees
screen shot 2017-11-09 at 10 42 12 am
45 degrees

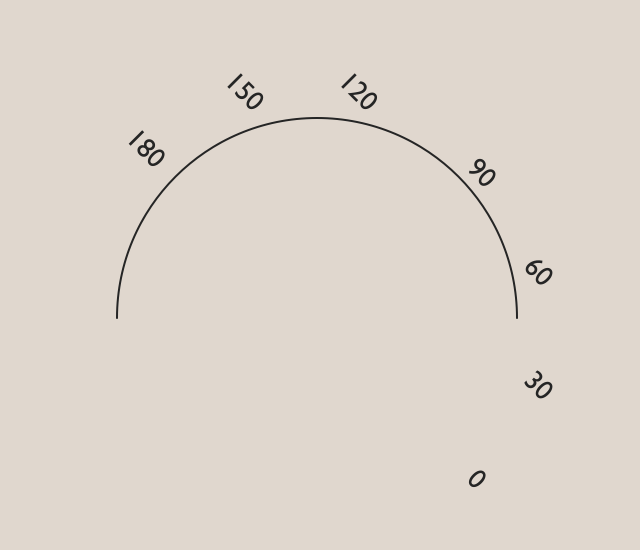

screen shot 2017-11-09 at 10 30 49 am
90 degrees

boygirl on 9 Nov 2017

Ah, I think the optional parameters for rotate aren't supported yet, so you will have to use this manual pattern replacement rotate(a x y) = translate(x, y) rotate(a) translate(-x, -y). And I think support for several instances of one type of transform definition in one transform attribute value string might be sketchy as well, so best to put that in three different nested elements / transform attribute. Or simply implement support for it in the javascript transform parser: https://github.com/react-native-community/react-native-svg/blob/master/lib/extract/extractTransform.js
Alternatively, set x and y for the labels to 0, rotate them while at the origin using a transform rotate, and use a wrapping G element with a transform translate to put it into place.

msand on 9 Nov 2017

The TransformParser needs to be rewritten https://github.com/react-native-community/react-native-svg/blob/master/lib/extract/extractTransform.js#L18-L63
It should split the string per definition, reduce over them with an initial value of the identity matrix, and for each transform definition, multiply the accumulated matrix with a matrix corresponding to the transform, and warn if any definitions cannot be parsed.

msand on 9 Nov 2017

At least the images correspond to rotate without the optional parameters, so, rotating about the (centered) origin 0, 45 and 90 degrees.

msand on 9 Nov 2017

Is this the effect you're looking for?
https://jsfiddle.net/onm20qp2/1/

msand on 9 Nov 2017

Same with one transform definition per element: https://jsfiddle.net/onm20qp2/2/

msand on 9 Nov 2017

Phew, okay thanks! I thought I was going nuts. I'll use an explicit matrix transform for now. Thanks!

boygirl on 9 Nov 2017

🎉1

Great! Happy I could help. nested & combined transforms can be a bit tricky at first, but, once you think of them as affine transforms in 3d using matrices and what order they're multiplied, it suddenly becomes almost trivial. Just have to get the order right ;)

msand on 9 Nov 2017

@msand Thanks again for your help. This difference between rnsvg and the web svg spec really should be documented, IMO.

boygirl on 9 Nov 2017

@boygirl I've made a pull request with a new transform parser, could you try it out, I haven't tested it properly yet. https://github.com/react-native-community/react-native-svg/pull/507

msand on 14 Nov 2017

@msand yes, I'll try right now. Thank you so much!

boygirl on 14 Nov 2017

@msand Yes, the new parser works correctly for me with rotations in the form rotate(angle, x, y) 🎉

boygirl on 14 Nov 2017

🎉1

Was this page helpful?

0 / 5 - 0 ratings
