Rawtherapee: Locallab: Improvements of GUI

[Pandagrapher]

Hello All,

Lately I have started a new session of improvements for Locallab GUI. The main objectives are:

• Rewrite some part of Locallab GUI to make it more generic: this will improve robustness, maintainability and simplify further evolution
• Remove Batch Mode support for Locallab: local treatments cannot really be managed in Batch Mode...

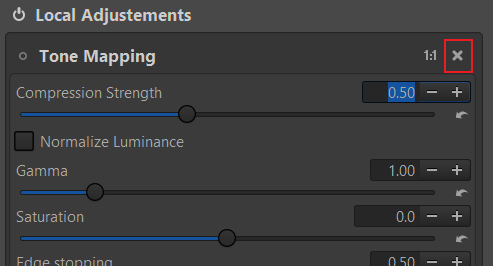

• By default, a spot won't have linked Locallab tool. New GUI will allow to add/remove Locallab tool for each tool (only linked tool parameters will be saved in .pp3 file, will fix #5255). Preview:

• Improve copy/paste mechanism for Locallab spot
• Add more mouse/keyboard controls on spot (to reduce number of widgets to manage), maybe add new spot shapes...
• Bugfixes...

Here a detailed schedule I will edit regularly:

• [x] Locallab tools management
•

  • [x] Creation of generic class to manage Locallab tool individually


•

  • [x] Conversion to all Locallab tool to this new generic class


•

  • [x] Adaptation of actual GUI


•

  • [x] Remove Batch Mode support for Locallab


•

  • [x] Add possibility add/remove Locallab tool


•

  • [x] Fix #5255


•

  • [x] Improve copy/paste of spot


• [ ] Locallab spot management
•

  • [ ] Creation of generic class to manage several type of spot (rectangle, ellipse, others?)


•

  • [ ] Adaptation of actual GUI


•

  • [x] Avoid reprocessing when switching between spots when not necessary (fix #5268)


•

  • [ ] Add more mouse/keyboard controls


•

  • [ ] Add possibility to deactivate a specific spot to see its effects on image


•

  • [x] Fix #5354 (thanks to Hombre57)



For the moment, modifications are managed in my fork (I have started from commit afd5d5d of newlocallab branch):
https://github.com/Pandagrapher/RawTherapee

List to be completed with your suggestions ;)
Pierre

@Desmis

[Desmis]

@Pandagrapher
It's ok for me.
When you say "Creation of generic class to manage several type of spot (rectangle, ellipse, others?)", does this incorporate the drawing of curves, polygons .. ?

jacques

[Pandagrapher]

@Desmis

When you say "Creation of generic class to manage several type of spot (rectangle, ellipse, others?)", does this incorporate the drawing of curves, polygons .. ?

For the moment, it doesn't but I think it will simplify further type addition. I just noted the idea of adding full-frame spot. When ready for, we will have to synchronize each other to update code.

I was wondering: when a spot is an excluded one, Locallab tools parameters are ignored? If yes, I will create a dedicated excluded spot type which cannot have linked Locallab tools.

Pierre

[Desmis]

@Pandagrapher
For "excluding spot", they used the same "Locallab tools parameters", but it's "only" the raw datas (in Lab*) which are differents

• Excluding = original datas
• Normal = recursives datas

Am I clear ? For me no differences for GUI part.

For synchronisation no problem at all.
Actually I am not at home, I get internet with a Smartphone....until August 27th I would be little available (holidays with my family)

jacques

[Desmis]

@Pandagrapher

Have you seen this message in Pixls.us

https://discuss.pixls.us/t/local-lab-build/1430/785

[Pandagrapher]

@Pandagrapher

Have you seen this message in Pixls.us

https://discuss.pixls.us/t/local-lab-build/1430/785

@Desmis
Yes, this crash is similar to issue #5221 so fixed :)

[Pandagrapher]

For "excluding spot", they used the same "Locallab tools parameters", but it's "only" the raw datas (in L_a_b*) which are differents

• Excluding = original datas
• Normal = recursives datas

Am I clear ? For me no differences for GUI part.

@Desmis
Thanks for the explanation, it's clear now :) (so no specific modification for GUI for excluded spot :p)
Pierre

[Hombre57]

@Desmis

does this incorporate the drawing of curves, polygons .. ?

Does your algorithm work with [any shape + origin] ? If not, why ?

[Desmis]

@Hombre57

I have speak of that

• here in GitHub https://github.com/Beep6581/RawTherapee/issues/5409#issuecomment-520308559
• here in Rawpedia (in french) http://rawpedia.rawtherapee.com/Local_Adjustments/fr#Principes_g.C3.A9n.C3.A9raux

You can also read the code in iplocallab.cc

• static void calcTransition
• static void calcTransitionrect
• float calcLocalFactor
• float calcLocalFactorrect
  and for example to take into account deltaE and mask
  void ImProcFunctions::transit_shapedetect

*etc

[Pandagrapher]

@Desmis
Hello Jacques,

I have added the possibility to add/remove a Locallab tool to the currently selected spot (refer to my last commit in my fork). What do you think about this improvement ?

Note: For the moment, the Locallab tools state (added/removed) isn't saved in .pp3 file (will be managed in next commit).

Pierre

[Desmis]

@Pandagrapher

Hello Pierre
I just tested your new commit.

Nice improvment :)

With that the interface is much clearer, very good job.

Thank you

Jacques

[Pandagrapher]

Hello All,

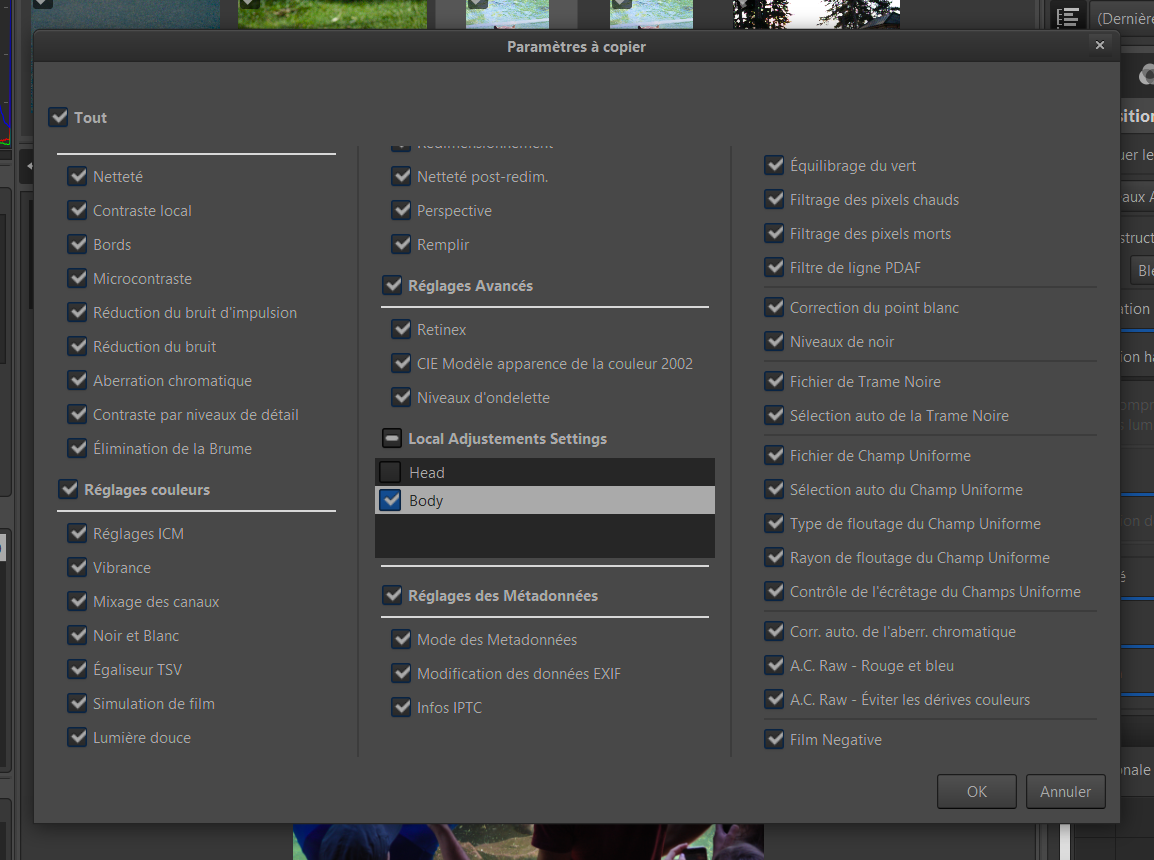

Some preview of the improved copy/paste (or save/load) for Locallab spots :

When using partial dialog, spot to be kept can now be chosen in a list!!

@Desmis
I gonna start a (huge) merge. Please do not impact GUI (or noticed me the diff from now).

Pierre

[Desmis]

No problem, i have no computer :)
But thank you for your job.
Jacques

[Pandagrapher]

@Desmis @Thanatomanic @heckflosse @Floessie @Beep6581
Hello All,

I have started working on a TreeView upgrade. My purpose is to make it more intuitive and reduce the number of buttons/sliders in "Settings" panel.

Here a proposal:

Does this seem to you more intuitive? Do not hesitate if you have any suggestion.

In a second step, I will add more mouse control when manipulating spot.

Pierre

[Beep6581]

Sounds good. I can help with the icons if you like.

[Pandagrapher]

@Beep6581

I can help with the icons if you like.

Sure :) I am not really skilled with Inkscape

The list of icons for the TreeView:

• 1st column:



  • "Add" -> I used the "add-small" one


  • "Duplicate" -> I have created a "copy-small" from "copy" icon


• 3rd column (shape):



  • "Rectangle"


  • "Ellipse"


• 4th column (type): This column is definitely not the easy one to be intuitive with such a small icon. I was thinking like maybe a filled rectangle with a circle part across it. For the excluded version, the rectangle part inside circle is less visible. If you have a better idea, do not hesitate.



  • "Normal spot"


  • "Excluded spot"


• 5th column:



  • "Visible" -> Eye icon ?


  • "Not visible" -> Barred eye icon ?



From my tests, the small icon size (16x16px without hidpi) seems to be a good one for TreeView icons.

Thanks a lot :)

Pierre

[Desmis]

@Pandagrapher

After thinking about it, I think that when you are going to simplify the GUI of "settings" in a few days (expanders to decrease the size of settings), you should remove the checkbox "Mask laplacian solve PDE".
Indeed in 99% of cases, the use is "enabled"
You should not make this variable disappear, but make it inaccessible to the user, by ensuring through the GUI that it is "enabled"

Thank you

Jacques
