Powertoys: [FZ Editor] System.ComponentModel.Win32Exception

Created on 1 Oct 2020  路  12Comments  路  Source: microsoft/PowerToys

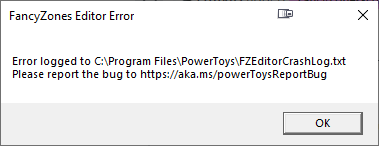

I got also an error. Trying to edit the custom FancyZones. FZEditorCrashLog.txt contains:

Exception

System.ComponentModel.Win32Exception: Das System kann die angegebene Datei nicht finden
   Source: MahApps.Metro
   TargetAssembly: MahApps.Metro, Version=2.0.0.0, Culture=neutral, PublicKeyToken=51482d6f650b2b3f
   TargetModule: MahApps.Metro.dll
   TargetSite: System.String GetWindowText(System.Windows.Window)
   bei MahApps.Metro.Controls.WinApiHelper.GetWindowText(Window window)
   bei MahApps.Metro.Automation.Peers.MetroWindowAutomationPeer.GetNameCore()
   bei System.Windows.Automation.Peers.AutomationPeer.UpdateSubtree()
   bei System.Windows.ContextLayoutManager.fireAutomationEvents()
   bei System.Windows.ContextLayoutManager.UpdateLayout()
   bei System.Windows.Interop.HwndSource.SetLayoutSize()
   bei System.Windows.Interop.HwndSource.set_RootVisualInternal(Visual value)
   bei System.Windows.Window.SetRootVisual()
   bei System.Windows.Window.SetRootVisualAndUpdateSTC()
   bei System.Windows.Window.SetupInitialState(Double requestedTop, Double requestedLeft, Double requestedWidth, Double requestedHeight)
   bei System.Windows.Window.CreateSourceWindow(Boolean duringShow)
   bei System.Windows.Window.ShowHelper(Object booleanBox)
   bei FancyZonesEditor.MainWindow.EditLayout_Click(Object sender, RoutedEventArgs e)
   bei System.Windows.EventRoute.InvokeHandlersImpl(Object source, RoutedEventArgs args, Boolean reRaised)
   bei System.Windows.UIElement.RaiseEventImpl(DependencyObject sender, RoutedEventArgs args)
   bei System.Windows.Controls.Primitives.ButtonBase.OnClick()
   bei System.Windows.Controls.Button.OnClick()
   bei System.Windows.Controls.Primitives.ButtonBase.OnMouseLeftButtonUp(MouseButtonEventArgs e)
   bei System.Windows.RoutedEventArgs.InvokeHandler(Delegate handler, Object target)
   bei System.Windows.RoutedEventHandlerInfo.InvokeHandler(Object target, RoutedEventArgs routedEventArgs)
   bei System.Windows.EventRoute.InvokeHandlersImpl(Object source, RoutedEventArgs args, Boolean reRaised)
   bei System.Windows.UIElement.ReRaiseEventAs(DependencyObject sender, RoutedEventArgs args, RoutedEvent newEvent)
   bei System.Windows.UIElement.OnMouseUpThunk(Object sender, MouseButtonEventArgs e)
   bei System.Windows.RoutedEventArgs.InvokeHandler(Delegate handler, Object target)
   bei System.Windows.RoutedEventHandlerInfo.InvokeHandler(Object target, RoutedEventArgs routedEventArgs)
   bei System.Windows.EventRoute.InvokeHandlersImpl(Object source, RoutedEventArgs args, Boolean reRaised)
   bei System.Windows.UIElement.RaiseEventImpl(DependencyObject sender, RoutedEventArgs args)
   bei System.Windows.UIElement.RaiseTrustedEvent(RoutedEventArgs args)
   bei System.Windows.Input.InputManager.ProcessStagingArea()
   bei System.Windows.Input.InputManager.ProcessInput(InputEventArgs input)
   bei System.Windows.Input.InputProviderSite.ReportInput(InputReport inputReport)
   bei System.Windows.Interop.HwndMouseInputProvider.ReportInput(IntPtr hwnd, InputMode mode, Int32 timestamp, RawMouseActions actions, Int32 x, Int32 y, Int32 wheel)
   bei System.Windows.Interop.HwndMouseInputProvider.FilterMessage(IntPtr hwnd, WindowMessage msg, IntPtr wParam, IntPtr lParam, Boolean& handled)
   bei System.Windows.Interop.HwndSource.InputFilterMessage(IntPtr hwnd, Int32 msg, IntPtr wParam, IntPtr lParam, Boolean& handled)
   bei MS.Win32.HwndWrapper.WndProc(IntPtr hwnd, Int32 msg, IntPtr wParam, IntPtr lParam, Boolean& handled)
   bei MS.Win32.HwndSubclass.DispatcherCallbackOperation(Object o)
   bei System.Windows.Threading.ExceptionWrapper.InternalRealCall(Delegate callback, Object args, Int32 numArgs)
   bei System.Windows.Threading.ExceptionWrapper.TryCatchWhen(Object source, Delegate callback, Object args, Int32 numArgs, Delegate catchHandler)
   bei System.Windows.Threading.Dispatcher.LegacyInvokeImpl(DispatcherPriority priority, TimeSpan timeout, Delegate method, Object args, Int32 numArgs)
   bei MS.Win32.HwndSubclass.SubclassWndProc(IntPtr hwnd, Int32 msg, IntPtr wParam, IntPtr lParam)
   bei MS.Win32.UnsafeNativeMethods.DispatchMessage(MSG& msg)
   bei System.Windows.Threading.Dispatcher.PushFrameImpl(DispatcherFrame frame)
   bei System.Windows.Application.RunDispatcher(Object ignore)
   bei System.Windows.Application.RunInternal(Window window)
   bei FancyZonesEditor.App.Main()

Environment

  • Command Line: "C:Program FilesPowerToysmodulesFancyZonesFancyZonesEditor.exe" 0_0_3840_1560 "15216"
  • Timestamp: 10/01/2020 07:26:54
  • OS Version: Microsoft Windows NT 6.2.9200.0
  • IntPtr Length: 8
  • x64: True

  • CLR Version: 4.0.30319.42000

    Assemblies - FancyZonesEditor.exe

  • FancyZonesEditor, Version=0.23.0.0, Culture=neutral, PublicKeyToken=null (C:Program FilesPowerToysmodulesFancyZonesFancyZonesEditor.exe)

  • System.Text.Json, Version=4.0.1.2, Culture=neutral, PublicKeyToken=cc7b13ffcd2ddd51 (C:Program FilesPowerToysmodulesFancyZonesSystem.Text.Json.dll)
  • System.Memory, Version=4.0.1.1, Culture=neutral, PublicKeyToken=cc7b13ffcd2ddd51 (C:Program FilesPowerToysmodulesFancyZonesSystem.Memory.dll)
  • System.Runtime.CompilerServices.Unsafe, Version=4.0.6.0, Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a (C:Program FilesPowerToysmodulesFancyZonesSystem.Runtime.CompilerServices.Unsafe.dll)
  • System.Buffers, Version=4.0.3.0, Culture=neutral, PublicKeyToken=cc7b13ffcd2ddd51 (C:Program FilesPowerToysmodulesFancyZonesSystem.Buffers.dll)
  • System.Numerics.Vectors, Version=4.1.4.0, Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a (C:Program FilesPowerToysmodulesFancyZonesSystem.Numerics.Vectors.dll)
  • System.ValueTuple, Version=4.0.3.0, Culture=neutral, PublicKeyToken=cc7b13ffcd2ddd51 (C:Program FilesPowerToysmodulesFancyZonesSystem.ValueTuple.dll)
  • MahApps.Metro, Version=2.0.0.0, Culture=neutral, PublicKeyToken=51482d6f650b2b3f (C:Program FilesPowerToysmodulesFancyZonesMahApps.Metro.dll)
  • ControlzEx, Version=4.0.0.0, Culture=neutral, PublicKeyToken=69f1c32f803d307e (C:Program FilesPowerToysmodulesFancyZonesControlzEx.dll)
  • ManagedCommon, Version=0.23.0.0, Culture=neutral, PublicKeyToken=null (C:Program FilesPowerToysmodulesFancyZonesManagedCommon.dll)
  • Telemetry, Version=0.23.0.0, Culture=neutral, PublicKeyToken=null (C:Program FilesPowerToysmodulesFancyZonesTelemetry.dll)
  • Microsoft.Xaml.Behaviors, Version=1.1.0.0, Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a (C:Program FilesPowerToysmodulesFancyZonesMicrosoft.Xaml.Behaviors.dll)
  • mscorlib, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089 (C:WindowsMicrosoft.NETFramework64v4.0.30319mscorlib.dll)
  • System, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089 (C:WINDOWSMicrosoft.NetassemblyGAC_MSILSystemv4.0_4.0.0.0__b77a5c561934e089System.dll)
  • System.Core, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089 (C:WINDOWSMicrosoft.NetassemblyGAC_MSILSystem.Corev4.0_4.0.0.0__b77a5c561934e089System.Core.dll)
  • PresentationFramework, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35 (C:WINDOWSMicrosoft.NetassemblyGAC_MSILPresentationFrameworkv4.0_4.0.0.0__31bf3856ad364e35PresentationFramework.dll)
  • WindowsBase, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35 (C:WINDOWSMicrosoft.NetassemblyGAC_MSILWindowsBasev4.0_4.0.0.0__31bf3856ad364e35WindowsBase.dll)
  • PresentationCore, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35 (C:WINDOWSMicrosoft.NetassemblyGAC_64PresentationCorev4.0_4.0.0.0__31bf3856ad364e35PresentationCore.dll)
  • System.Xaml, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089 (C:WINDOWSMicrosoft.NetassemblyGAC_MSILSystem.Xamlv4.0_4.0.0.0__b77a5c561934e089System.Xaml.dll)
  • System.Configuration, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a (C:WINDOWSMicrosoft.NetassemblyGAC_MSILSystem.Configurationv4.0_4.0.0.0__b03f5f7f11d50a3aSystem.Configuration.dll)
  • System.Xml, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089 (C:WINDOWSMicrosoft.NetassemblyGAC_MSILSystem.Xmlv4.0_4.0.0.0__b77a5c561934e089System.Xml.dll)
  • PresentationFramework.Aero2, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35 (C:WINDOWSMicrosoft.NetassemblyGAC_MSILPresentationFramework.Aero2v4.0_4.0.0.0__31bf3856ad364e35PresentationFramework.Aero2.dll)
  • PresentationFramework-SystemXml, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089 (C:WINDOWSMicrosoft.NetassemblyGAC_MSILPresentationFramework-SystemXmlv4.0_4.0.0.0__b77a5c561934e089PresentationFramework-SystemXml.dll)
  • System.Windows.Controls.Ribbon, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089 (C:WINDOWSMicrosoft.NetassemblyGAC_MSILSystem.Windows.Controls.Ribbonv4.0_4.0.0.0__b77a5c561934e089System.Windows.Controls.Ribbon.dll)
  • netstandard, Version=2.0.0.0, Culture=neutral, PublicKeyToken=cc7b13ffcd2ddd51 (C:WINDOWSMicrosoft.NetassemblyGAC_MSILnetstandardv4.0_2.0.0.0__cc7b13ffcd2ddd51netstandard.dll)
  • mscorlib.resources, Version=4.0.0.0, Culture=de, PublicKeyToken=b77a5c561934e089 (C:WINDO

_Originally posted by @rgisler in https://github.com/microsoft/PowerToys/issues/6877#issuecomment-701895391_

FancyZones-Editor Issue-Bug Product-FancyZones Resolution-Fix-Committed Severity-Crash Tracking-External
Source
picture crutkas

Most helpful comment

Ok, it鈥檚 related to latest MahApps release. I鈥檒l fix this as soon as possible.

picture punker76 on 19 Oct 2020
👍3 ❤1

All 12 comments

Look's as this is the same error. Steps to reproduce:

  • Choose FancyZones
  • Launch zones editor
  • Select the "custom" tab.
  • Select "Create new custom"
  • Edit selected layout ==>

The zones-settings.json:
zones-settings.json.txt

rgisler picture rgisler on 1 Oct 2020

@rgisler

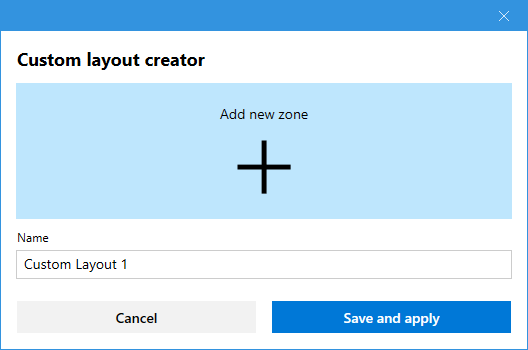

just to make sure, the crash happens as soon as you click edit and so you don't see this dialog, correct?


enricogior picture enricogior on 1 Oct 2020

Yes, that's right.

rgisler picture rgisler on 1 Oct 2020
👍1

Das System kann die angegebene Datei nicht finden -> The system can not find the stated file

enricogior picture enricogior on 1 Oct 2020
👍1

@rgisler, can you do some screenshots of
C:Program FilesPowerToys
C:Program FilesPowerToysmodulesFancyZones

crutkas picture crutkas on 2 Oct 2020

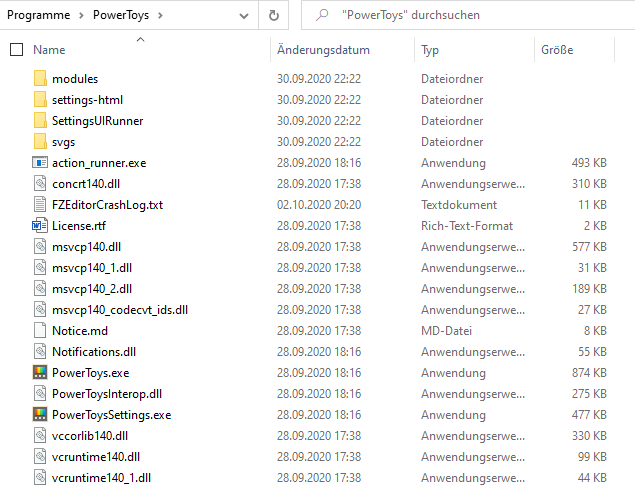

PowerToys:

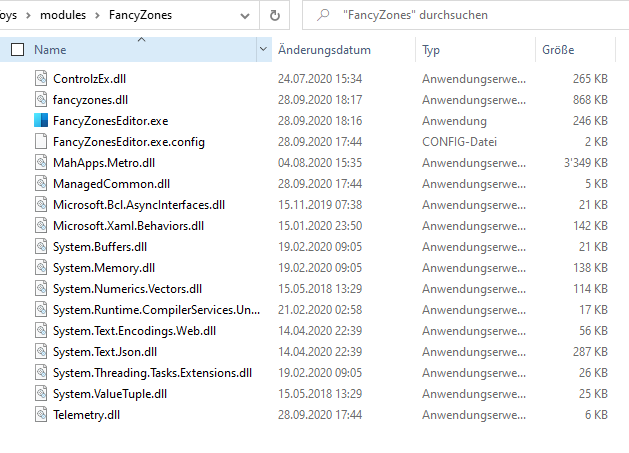

FancyZones:

rgisler picture rgisler on 2 Oct 2020

Info: Updated to version 0.23.2, same behavior, same error.

rgisler picture rgisler on 11 Oct 2020

The problem seems a widespread issue with the MahApp.Metro lib https://github.com/MahApps/MahApps.Metro/issues/3922

enricogior picture enricogior on 19 Oct 2020

Ok, it鈥檚 related to latest MahApps release. I鈥檒l fix this as soon as possible.

punker76 picture punker76 on 19 Oct 2020
👍3 ❤1

@crutkas So, I fixed this by using the WindowAutomationPeer instead implementing my own one. Hopefully this will fix all issues with this, because I got the first issue with this implementation, which IMO is then not a problem by MahApps.

This fix will be available with MahApps v2.3.0 and will be released in the next 2 days.

punker76 picture punker76 on 20 Oct 2020
❤1 👍1

@punker76
when 2.3.0 will be available I'll prepare a private build for the users that reported the problem with the FZ Editor to verify it.
Thank you!

enricogior picture enricogior on 20 Oct 2020
👍1

Added in 0.25. https://github.com/microsoft/PowerToys/releases/tag/v0.25.0

crutkas picture crutkas on 29 Oct 2020
