Powerlevel10k: VCS state for conflicts to apply a different BG color?

[lucascosti]

Thanks for a really powerful theme, especially the fast git functionality! 🥇

Is it possible to have a dedicated vcs state for a git repository containing conflicts, so the background can be colored differently?

According to https://github.com/romkatv/powerlevel10k/blob/master/EXTENDED_CONFIGURATION.md:

When using gitstatus, components of vcs segment can be colored individually by setting POWERLEVEL9K_VCS_${STATE}_${COMPONENT}FORMAT_FOREGROUND. ${STATE} should be one of CLEAN, UNTRACKED, MODIFIED or LOADING.

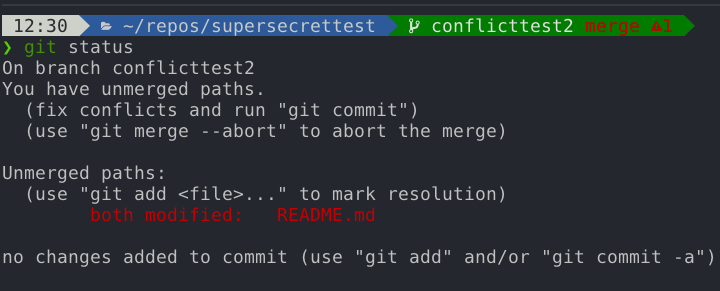

So, IIUC, a repository in a merge state with conflicts is considered 'clean', and the clean background color is applied. (at least that is the behavior I am seeing)

Is it possible to have an extra state for conflicts, so that a different background color can be applied? Or alternatively, when there are conflicts have the 'dirty' background applied?

You can see my config here: https://github.com/lucascosti/zshrc/blob/420d53a0f884079f2f29617b6941977f03883b71/zshscripts/themes/p10k-lucas.zsh

[romkatv]

This is done. From https://github.com/romkatv/powerlevel10k/commit/80d9df711707c827e50a7f6f85924f3ddf2407b8:

add CONFLICTING state to vcs

The new state is used whenever there is at least one conflicting change. It is disabled by default. It can be enabled by defining POWERLEVEL9K_VCS_CONFLICTING_STATE=true.

POWERLEVEL9K_VCS_CONFLICTING_STATE=true
POWERLEVEL9K_VCS_CONFLICTING_BACKGROUND=magenta

[lucascosti]

@romkatv Thanks a lot for looking into this, but after rebasing and adding these settings, for repos with conflicts, the git segment of the prompt now fails to appear (non-conflicting repos are fine).

Any suggestions for me to troubleshoot?

❯ echo $VCS_STATUS_HAS_CONFLICTED
1

❯ echo $_POWERLEVEL9K_VCS_CONFLICTING_STATE
1

[romkatv]

This is because you have POWERLEVEL9K_VCS_DISABLE_GITSTATUS_FORMATTING=true and empty POWERLEVEL9K_VCS_CONFLICTING_CONTENT_EXPANSION. The easiest fix is to replace this line:

typeset -g POWERLEVEL9K_VCS_{CLEAN,UNTRACKED,MODIFIED}_CONTENT_EXPANSION=$vcs

With this:

typeset -g POWERLEVEL9K_VCS_CONTENT_EXPANSION=$vcs

By the way, your config contains a lot of redundant and confusing options. Also, most comments are now misleading. As far as I can tell, your config is equivalent to this (much shorter) config:

() {
  typeset -g POWERLEVEL9K_LEFT_PROMPT_ELEMENTS=(status time dir vcs newline prompt_char)
  typeset -g POWERLEVEL9K_RIGHT_PROMPT_ELEMENTS=()

  typeset -g POWERLEVEL9K_MODE=nerdfont-complete

  typeset -g POWERLEVEL9K_VISUAL_IDENTIFIER_EXPANSION=

  typeset -g POWERLEVEL9K_PROMPT_ADD_NEWLINE=true

  typeset -g POWERLEVEL9K_SHOW_RULER=true
  typeset -g POWERLEVEL9K_RULER_CHAR='─'
  typeset -g POWERLEVEL9K_RULER_FOREGROUND=240

  typeset -g POWERLEVEL9K_TIME_FOREGROUND=0
  typeset -g POWERLEVEL9K_TIME_BACKGROUND=7
  typeset -g POWERLEVEL9K_TIME_FORMAT='%D{%H:%M}'
  typeset -g POWERLEVEL9K_TIME_UPDATE_ON_COMMAND=true

  typeset -g POWERLEVEL9K_PROMPT_CHAR_FOREGROUND=76
  typeset -g POWERLEVEL9K_PROMPT_CHAR_BACKGROUND=
  typeset -g POWERLEVEL9K_PROMPT_CHAR_LEFT_{LEFT,RIGHT}_WHITESPACE=''
  typeset -g POWERLEVEL9K_PROMPT_CHAR_{OK,ERROR}_VIINS_CONTENT_EXPANSION='❯'
  typeset -g POWERLEVEL9K_PROMPT_CHAR_{OK,ERROR}_VICMD_CONTENT_EXPANSION='❮'
  typeset -g POWERLEVEL9K_PROMPT_CHAR_{OK,ERROR}_VIVIS_CONTENT_EXPANSION='Ⅴ'
  typeset -g POWERLEVEL9K_PROMPT_CHAR_LEFT_SEGMENT_SEPARATOR=''

  typeset -g POWERLEVEL9K_DIR_FOREGROUND=247
  typeset -g POWERLEVEL9K_DIR_BACKGROUND=4
  typeset -g POWERLEVEL9K_DIR_SHOW_WRITABLE=true
  typeset -g POWERLEVEL9K_DIR_VISUAL_IDENTIFIER_EXPANSION='${P9K_VISUAL_IDENTIFIER// }'
  typeset -g POWERLEVEL9K_SHORTEN_STRATEGY=truncate_absolute_chars
  typeset -g POWERLEVEL9K_SHORTEN_DIR_LENGTH=40

  typeset -g POWERLEVEL9K_VCS_LOADING_FOREGROUND=254
  typeset -g POWERLEVEL9K_VCS_LOADING_BACKGROUND=8
  typeset -g POWERLEVEL9K_VCS_CLEAN_FOREGROUND=254
  typeset -g POWERLEVEL9K_VCS_CLEAN_BACKGROUND=28
  typeset -g POWERLEVEL9K_VCS_{MODIFIED,UNTRACKED}_FOREGROUND=0
  typeset -g POWERLEVEL9K_VCS_{MODIFIED,UNTRACKED}_BACKGROUND=3

  typeset -g POWERLEVEL9K_VCS_BRANCH_ICON=' '
  typeset -g POWERLEVEL9K_VCS_UNTRACKED_ICON=''
  typeset -g POWERLEVEL9K_VCS_MODIFIED_ICON=''
  typeset -g POWERLEVEL9K_VCS_STASH_ICON=''
  typeset -g POWERLEVEL9K_VCS_CONFLICT_ICON=''
  typeset -g POWERLEVEL9K_VCS_STAGED_ICON=''

  local vcs=''
  vcs+='${${VCS_STATUS_LOCAL_BRANCH:+${POWERLEVEL9K_VCS_BRANCH_ICON}${VCS_STATUS_LOCAL_BRANCH//\%/%%}}'
  vcs+=':-@${VCS_STATUS_COMMIT[1,8]}}'
  vcs+='${${VCS_STATUS_REMOTE_BRANCH:#($VCS_STATUS_LOCAL_BRANCH|master)}:+:${VCS_STATUS_REMOTE_BRANCH//\%/%%}}'
  vcs+='${VCS_STATUS_TAG:+%f#${VCS_STATUS_TAG//\%/%%}}'
  vcs+=' '
  vcs+='${${VCS_STATUS_COMMITS_BEHIND:#0}:+⇣${VCS_STATUS_COMMITS_BEHIND}${${VCS_STATUS_COMMITS_AHEAD:#<1->}:+ }}'
  vcs+='${${VCS_STATUS_COMMITS_AHEAD:#0}:+${${(M)VCS_STATUS_COMMITS_BEHIND:#0}:+}⇡${VCS_STATUS_COMMITS_AHEAD} }'
  vcs+='${${VCS_STATUS_STASHES:#0}:+%025F${POWERLEVEL9K_VCS_STASH_ICON}${VCS_STATUS_STASHES} }'
  vcs+='${VCS_STATUS_ACTION:+%001F${VCS_STATUS_ACTION//\%/%%} }'
  vcs+='${${VCS_STATUS_NUM_CONFLICTED:#0}:+%001F${POWERLEVEL9K_VCS_CONFLICT_ICON}${VCS_STATUS_NUM_CONFLICTED}}'
  vcs+='${${VCS_STATUS_NUM_STAGED:#0}:+%021F${POWERLEVEL9K_VCS_STAGED_ICON}${VCS_STATUS_NUM_STAGED}}'
  vcs+='${${VCS_STATUS_NUM_UNSTAGED:#0}:+%124F${POWERLEVEL9K_VCS_MODIFIED_ICON}${VCS_STATUS_NUM_UNSTAGED}}'
  vcs+='${${VCS_STATUS_NUM_UNTRACKED:#0}:+%008F${POWERLEVEL9K_VCS_UNTRACKED_ICON}${VCS_STATUS_NUM_UNTRACKED}}'
  vcs="\${P9K_CONTENT:-$vcs}"

  typeset -g POWERLEVEL9K_VCS_DISABLE_GITSTATUS_FORMATTING=true
  typeset -g POWERLEVEL9K_VCS_CONTENT_EXPANSION=$vcs
  typeset -g POWERLEVEL9K_VCS_LOADING_CONTENT_EXPANSION=${${${vcs//\%f}//\%<->F}//\%F\{(\#|)[[:xdigit:]]#(\\|)\}}
  typeset -g POWERLEVEL9K_VCS_{STAGED,UNSTAGED,UNTRACKED,CONFLICTED,COMMITS_AHEAD,COMMITS_BEHIND}_MAX_NUM=-1

  typeset -g POWERLEVEL9K_STATUS_OK=false
  typeset -g POWERLEVEL9K_STATUS_ERROR=true
  typeset -g POWERLEVEL9K_STATUS_ERROR_FOREGROUND=255
  typeset -g POWERLEVEL9K_STATUS_ERROR_BACKGROUND=1
  typeset -g POWERLEVEL9K_STATUS_ERROR_VISUAL_IDENTIFIER_EXPANSION='✘'
  typeset -g POWERLEVEL9K_STATUS_VERBOSE=false
}

Some of the things in vcs look odd. For example, ${${(M)VCS_STATUS_COMMITS_BEHIND:#0}:+} is always an empty string. I kept those as is.

P.S.

The default config (especially lean style) is very good. I understand that you are trying to recreate the prompt you had in bash, and it's fine, but if you find yourself in a position where you feel like trying something new, give it a try.

[lucascosti]

This is because you have POWERLEVEL9K_VCS_DISABLE_GITSTATUS_FORMATTING=true and empty POWERLEVEL9K_VCS_CONFLICTING_CONTENT_EXPANSION. The easiest fix is to replace this line:

Thank a bunch, that was it! (I missed that change in the earlier commit... 😕)

By the way, your config contains a lot of redundant and confusing options. Also, most comments are now misleading.

haha, yes, I definitely know. I started out just hacking away at the lean config, and I have been meaning to go through it and clean it. The vcs stuff was definitely me stabbing in the dark until I got something that worked 😊

As far as I can tell, your config is equivalent to this (much shorter) config:

You didn't need to do this for me, but thank you so much! 🚀

[romkatv]

@lucascosti Heads up: I've renamed CONFCLICTING to CONFCLITED both in the new parameter name and the state. This is for consistency with other states and parameters. Please update powerlevel10k and your config.
