Openshot-qt: Interlaced video import or export not supported (displayed/encoded as Progressive)

[lucaetere]

advanced tab property bug

export file 29.97 hd interlaced (59.94I),mpeg2
but the result file is Progressive!!!

even if I clicked on interlaced =YES on adavnced tab of the export file window

System Details

• OpenShot Version: 2.4.4

• Platform: Windows2016 std

Log Files
included and uploaded

[lucaetere]

moreover

it did not embed the CC eia-708 from the source file

[ferdnyc]

At least on the face of it, confirmed. Exporting a project set up with the "HD 1080i 25fps (1920x1080)" profile — set in both the project and the Export dialog's Simple tab — and using the "MP4 (h.264)" target, results in an output video with Progressive, non-interlaced frames, when checked with MediaInfo.

Caption embedding, I don't believe we support, sorry. But the field order thing is most definitely a bug.

[ferdnyc]

Tried switching to "AVI (mpeg4)" and "AVI (mpeg2)" as the target, no change. Still a Progressive-scan output video.

[ferdnyc]

Looping in @jonoomph and @eisneinechse, because after a quick grep through the libopenshot code, I am not finding _any_ code that would seem to handle interlaced output in FFmpegWriter.

Like, at _all_.

...Can that possibly be right?

[ferdnyc]

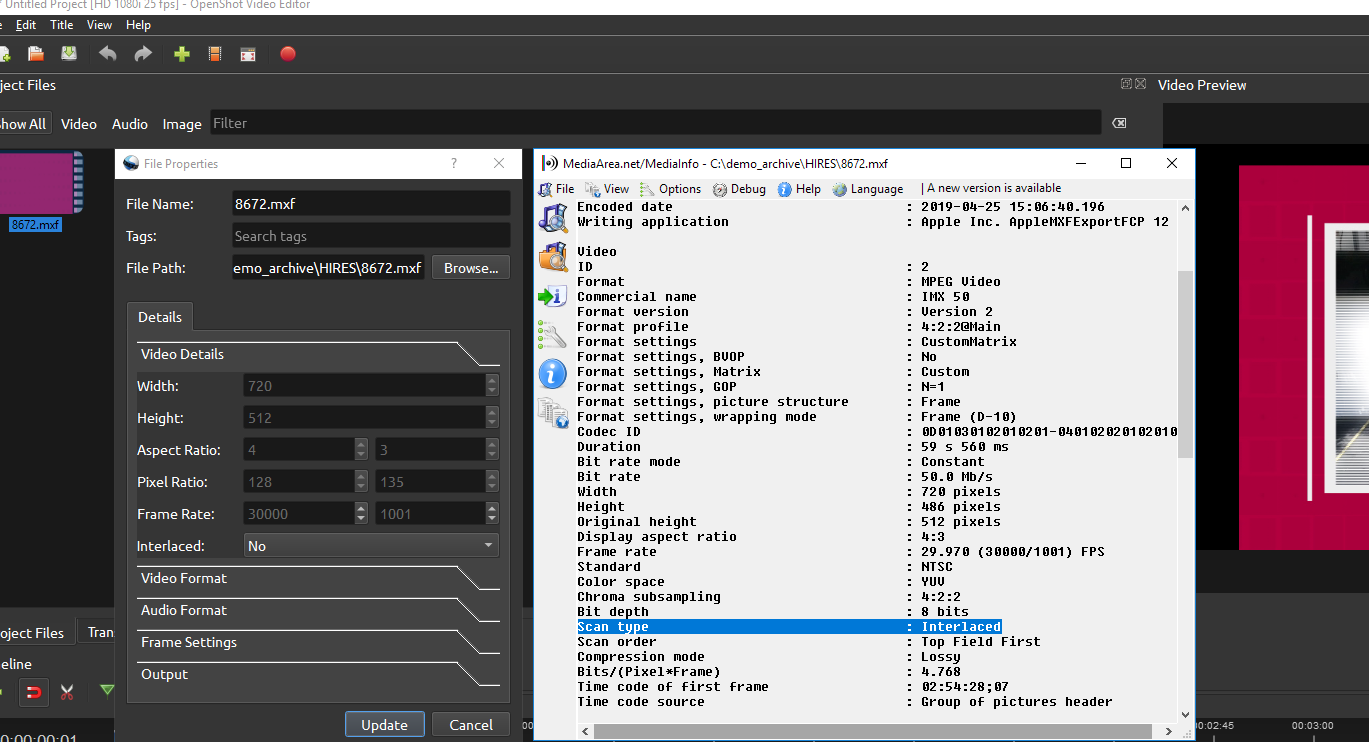

@lucaetere also provided this screenshot, showing an imported video with interlaced fields being interpreted as Progressive-scan by OpenShot.

[ferdnyc]

To be honest, @lucaetere , I suspect it's been so long since anyone's even tried to use interlaced video with OpenShot, that at some point support for it broke and you're just the first one to notice.

[lucaetere]

I see @ferdnyc , interlaced video are a standard in TV broadcast. and this is the usage I would do of this software.
Hope this may be fixed soon
Thanks

[ferdnyc]

I see @ferdnyc , interlaced video are a standard in TV broadcast.

In like the 1980s! :laughing: (No, I know it is still used, though it's much less common since full-HD broadcasts and digital streaming became commonplace.)

Hope this may be fixed soon

I wouldn't want to get your hopes up for "soon", to be perfectly honest. Especially since it's been broken for... well, a long time, anyway. I'm not sure interlaced export _ever_ worked. And so far it's only come up twice in three years.

(It looks like I was wrong about yours being the first report about it, looking at #482 — though I'm not sure the nature of the report was fully understood at the time, since the user kept referring to "deinterlaced" video when they wanted to output _interlaced_ video.)

[eisneinechse]

Unfortunately I am still not quite back to speed but that should be fixed and I will look into that.
Unlike North-America HD was not (is not?) fast established in Europe because the improvement in quality between PAL and HD is far less obvious as between NTSC and HD. (Well, I like the 30Hz or 30000/1001 Hz way better than 25 Hz because of the stress for the eyes). I am no longer living in Europe so I can't really say how common PAL still is but I wouldn't be surprised if it is still everywhere. Therefore, interlace might still be very important.

[ferdnyc]

I am happy to leave that in your capable hands, for whenever you're able! Certainly the best chance @lucaetere has of getting a timely resolution on this. Thanks.

[lucaetere]

Hello is this problem fixed?
thanks

[ferdnyc]

@lucaetere Nope, as you can see PR #312 is still open (un-merged). And that only addresses the import side of things, @eisneinechse has been unavailable lately and hasn't gotten to look at the export side.

[stale[bot]]

Thank you so much for submitting an issue to help improve OpenShot Video Editor. We are sorry about this, but this particular issue has gone unnoticed for quite some time. To help keep the OpenShot GitHub Issue Tracker organized and focused, we must ensure that every issue is correctly labelled and triaged, to get the proper attention.
This issue will be closed, as it meets the following criteria: - No activity in the past 180 days - No one is assigned to this issue
We'd like to ask you to help us out and determine whether this issue should be reopened. - If this issue is reporting a bug, please can you attempt to reproduce on the latest daily build to help us to understand whether the bug still needs our attention. - If this issue is proposing a new feature, please can you verify whether the feature proposal is still relevant.
Thanks again for your help!
