One: Profile multiple subgraphs and sessions

[hyunsik-yoon]

Currently profile writer for Chrome tracing, md table and snpe does not show a model with multiple subgraphs (executors).
We also need to profile when an app runs multiple sessions at the same time.

Let's ~make ChromeTracing handle~ profile cases with multiple subgraphs and multiple sessions.

[hyunsik-yoon]

Draft: #4903

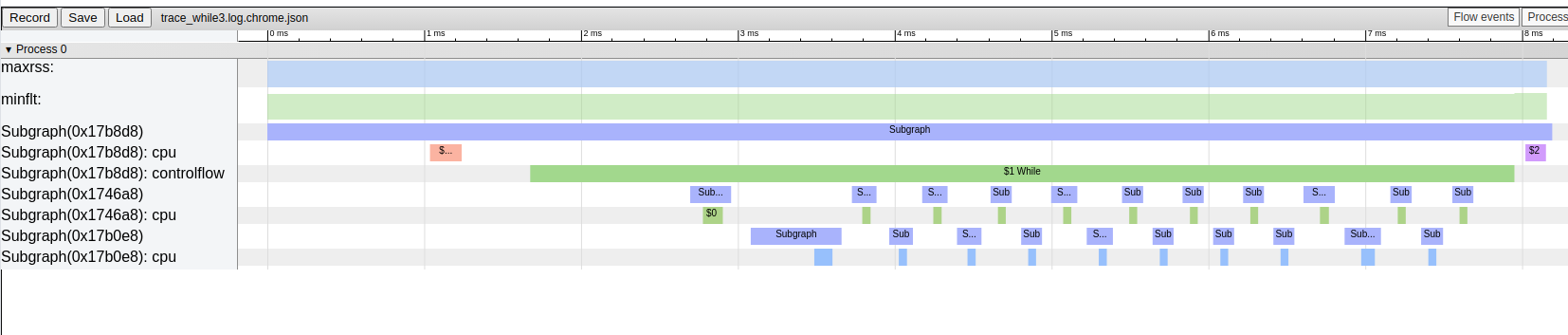

Sample screen with the following model:

y=neg(0)
while less ( y, 100 )
  y = add (y, 10)
z = cos(y)

You can see 3 subgraphs: primary, while_condition, while_body

• purple bars: labeled subgraph
• orange op: neg
• pink op: cos
• green op: comparison
• blue op: add

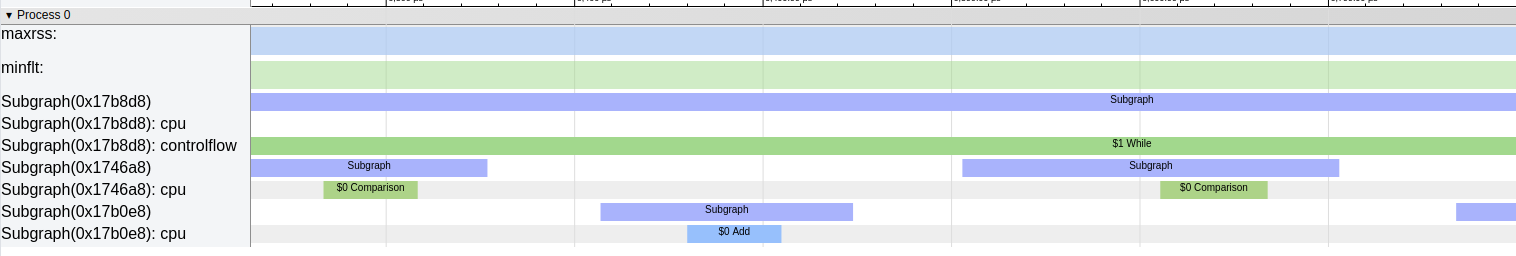

zoom in:

[wateret]

I hope we have a subgraph index rather than the object's pointer address, later on. I guess there is no way to get the subgraph index info for now.

[hyunsik-yoon]

Putting the exact subgraph index seems not easy

• We don't want to put tflite subgraph index into Graph object
• So we need to have some mapping info class of IR->IR' (e.g., tflite subgraph ->graph pointer)

Maybe what we need is to _distinguish_ subgraphs in human readable way?
For now we could use something like Subgraph A, Subgraph B, etc.

[seanshpark]

Maybe what we need is to distinguish subgraphs in human readable way?

FYI, Subgraphs in tflite and circle has human readable text name.

[hyunsik-yoon]

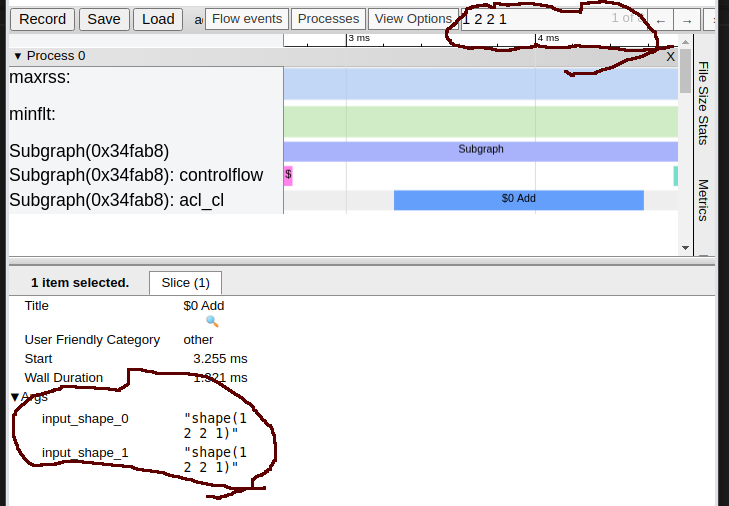

Now shape info was added.

When is this necessary?

• if you have a large model where there are lots of ops and you want to find an op whose input shape is [1, 2, 3], you can find it by typing "1 2 3" in _search bar_ now.
• Another format "[1, 2, 3]" would be better but Chrome browser's Json parser regards "[1, 2, 3]" as a list and it cannot be text-searchable.

[hyunsik-yoon]

All merged.

I'd like to leave how I have tested:

1. How to check the result (assuming that log name is m.log)



   • check manually m.log, m.log.table.md


   • check manyally m.log.chrome.json


2. typical case: 1 session, 1 subgraph
3. generate nnpackage from tests/scripts/models/cache/mobilenet_v1_0.25_128_float_2017_11_08/mobilenet_v1_0.25_128.tflite

$ TRACE_FILEPATH=../mobilenet.log OP_SEQ_MAX_NODE=1  ./Product/out/bin/nnpackage_run --nnpackage ../mobilenet_v1_0.25_128

1. 1 session, 1 subgraph, OP_SEQ_MAX_NODE=5

$ TRACE_FILEPATH=../mobilenet.log OP_SEQ_MAX_NODE=5  ./Product/out/bin/nnpackage_run --nnpackage ../mobilenet_v1_0.25_128

• In this case, op name in chrome tracer will have (5) as postfix
• 1 session, multiple subgraphs

$ TRACE_FILEPATH=../OneOp_While_github_4783.log OP_SEQ_MAX_NODE=1  ./Product/out/unittest_standalone/nnfw_api_gtest --gtest_filter=*.OneOp_While_github_4783

1. 2 sessions, multiple subgraphs

$ TRACE_FILEPATH=../two_sessions_run_simple_While_model.log OP_SEQ_MAX_NODE=1  ./Product/out/unittest_standalone/nnfw_api_gtest --gtest_filter=ValidationTestTwoSessionsCreated.two_sessions_run_simple_While_model
