Mixedrealitytoolkit-unity: Make the CompoundButtonSpeech.cs available and add CompoundButtonEventTrigger.cs to attach an event to the keyword recognized through speech.

[Pangels]

Overview

Make the CompoundButtonSpeech.cs available and add CompoundButtonEventTrigger.cs to attach an event to the keyword recognized through speech.
For the test, I did it in another scene ("SpeechButtonEvent"), but I think it's better to add that "button" to the scene "InteractiveButtonComponents".
It's my first time to submit an issue, please tell me if there are any change that have to be made.
I'm sorry for the poor quality of the scene, I hope it's not that difficult to understand.

Another upgrade possible is to retrieve automatically the keyword from all the compound button currently active on the scene in the "Keyword Dictionnary" of SpeechInputSource.

path: HoloToolkit-Examples/UX/Scenes/SpeechButtonEvent.unity
Project

Expected Behavior

1. The button recognize the keyword.
2. The button do the event action attach to it after the previous behavior.


   Actual Behavior

Nothing happens when the script is attached to a button.

Steps to reproduce

1. In a new scene, add the MixedRealityCameraParent, a DirectionalLight, an InputManager and a DefaultCursor.
2. Add a gameobject with the component SpeechInputSource.cs in the scene.
3. Add another gameobject with the components Collider, Mesh, CompoundButton.cs, CompoundButtonSpeech.cs, CompoundButtonText.cs, CompoundButtonMesh.cs and CompoundButtonEventTrigger.cs.
4. Make the button you want as long as you can see it. Then add an action for the Event Trigger and what it should do.
5. Add the keyword to be recognized in SpeechInputSource.cs.

Don't forget to apply MixedReality Project Setting!

Unity Editor Version

2018.1.0f2

Mixed Reality Toolkit Release Version

2017.4.0.0 (May 2018)

[cre8ivepark]

Thanks @Pangels ! I'll test out the scene.

[Pangels]

@cre8ivepark Hi ! Did you test the scene ? Any feedback would really help me =)

[cre8ivepark]

@Pangels I am trying to figure out why existing OnSpeechKeywordRecognized() in CompoundButtonSpeech.cs is not working. It seems like this code block in CompoundButtonSpeech is essentially doing the same thing as CompoundButtonEventTrigger.cs.

    public void OnSpeechKeywordRecognized(SpeechEventData eventData)
    {
        if (!gameObject.activeSelf || !enabled)
            return;

        if(eventData.RecognizedText.Equals(keyWord))
        {
            // Send a pressed message to the button through the InputManager
            m_button.TriggerClicked();
        }
    }

Maybe it is because InteractableObjectExample scene is missing InputSpeechSource. I'll test this out.

[StephenHodgson]

Be sure to register your object as a listener with the input system.

[cre8ivepark]

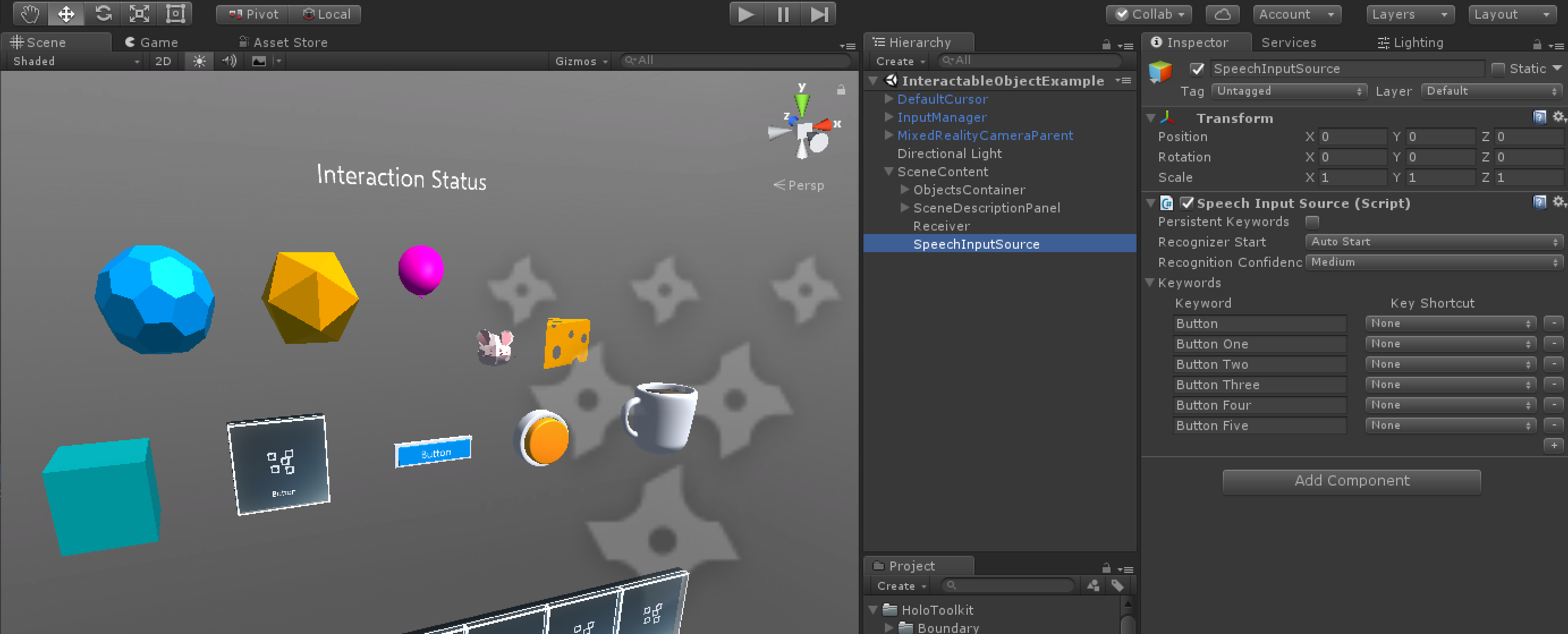

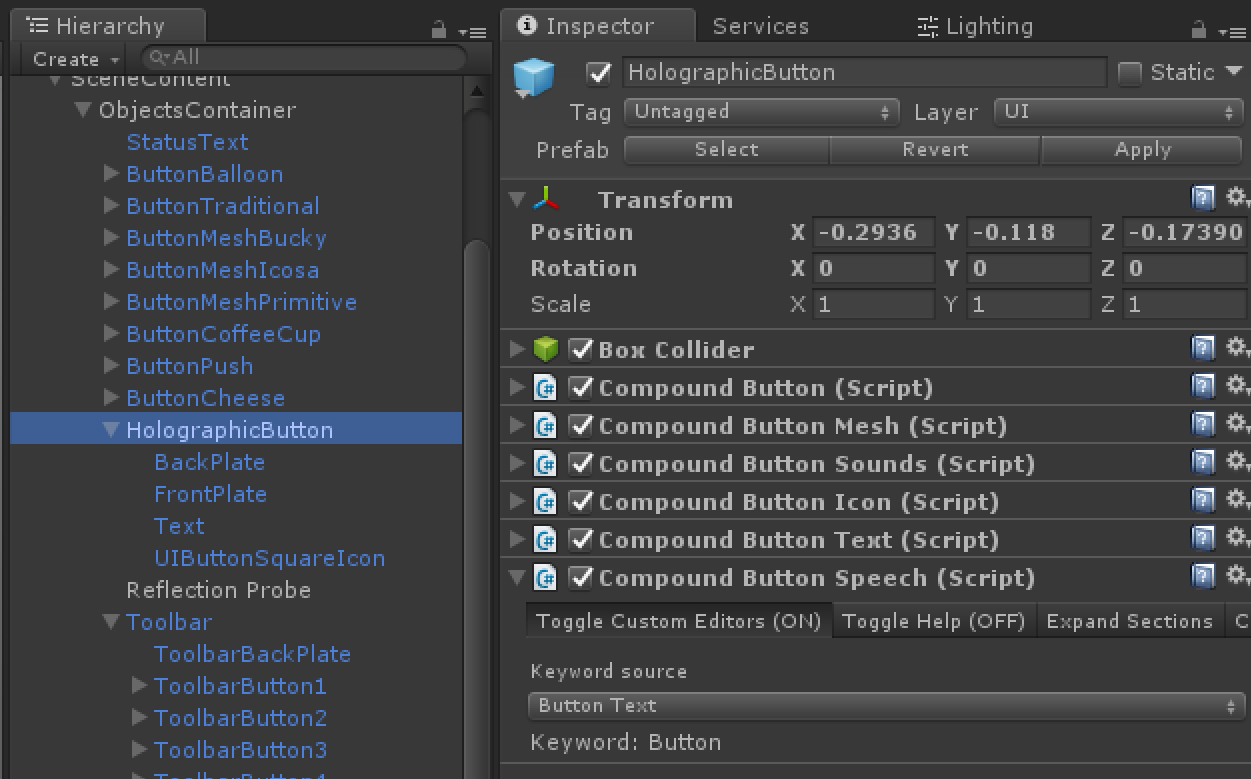

As expected, all you had to do is adding SpeechInputSource and define the keywords. When you add SpeechInputSource to the scene, Holographic Button prefabs works well. CompoundButtonSpeech already has ISpeechHandler and OnSpeechKeywordRecognized() that uses the button's text label as a keyword. I'll submit updated InteractableObjectExample scene. Thank you @Pangels for opening this issue!

[Pangels]

Be sure to register your object as a listener with the input system.

@StephenHodgson I don't understand what do you mean by registering my object as a listener ?

@Pangels I am trying to figure out why existing OnSpeechKeywordRecognized() in CompoundButtonSpeech.cs is not working. It seems like this code block in CompoundButtonSpeech is essentially doing the same thing as CompoundButtonEventTrigger.cs.

public void OnSpeechKeywordRecognized(SpeechEventData eventData)
{
    if (!gameObject.activeSelf || !enabled)
        return;

    if(eventData.RecognizedText.Equals(keyWord))
    {
        // Send a pressed message to the button through the InputManager
        m_button.TriggerClicked();
    }
}

For now, there is no event/action attach to the button, right? I am working on the CompoundButton to make it possible to add (by drag and drop) a script or a gameobject to a field to call an event / action.
As I don't see anything happens when I look at the button and say the keyword. The button just got an animation but I didn't see the InputDown or InputUp event to be triggered.

[Pangels]

For the event action on speech, my teammate found a solution #2408

[StephenHodgson]

I don't understand what do you mean by registering my object as a listener?

All objects in the scene that use the MRTK input manager needs to be registered as a global listener if you want to get input when you're not looking at the object.

[Pangels]

All objects in the scene that use the MRTK input manager needs to be registered as a global listener if you want to get input when you're not looking at the object.

@StephenHodgson Thanks, I'll try to do it that way to get better UX.

[StephenHodgson]

You should be able to just add the global listener script component

[lordlycastle]

All objects in the scene that use the MRTK input manager needs to be registered as a global listener if you want to get input when you're not looking at the object.

@StephenHodgson How do I create a global listener? Speech Input Source doesn't have an option. Only Speech Input Handler does.... do I need to add all the keywords and connect the events? If so what is the point of InteractionReceiver when it only fires on click actions?

Also I hate to be pedantic but can we please use official names of components. You may know what you're saying but it doesn't help over the internet when people call the same thing with various names. The docs are confusing as it is.

[lordlycastle]

@cre8ivepark Can you upload the scene somewhere and shoot me a link? Can't wait for next release for this.

[ghost]

@lordlycastle I created a system which get all your CompoundButtonSpeech and fill the SpeechInputSource keywords list automatically. I will make a pull request soon

[wiwei]

Closing issues older than 180 days. If this is still an issue, please reactivate with recent information.
