Mini-graph-card: [Feature request] Have label/name overlap with graph

[hajo62]

Feature Request:

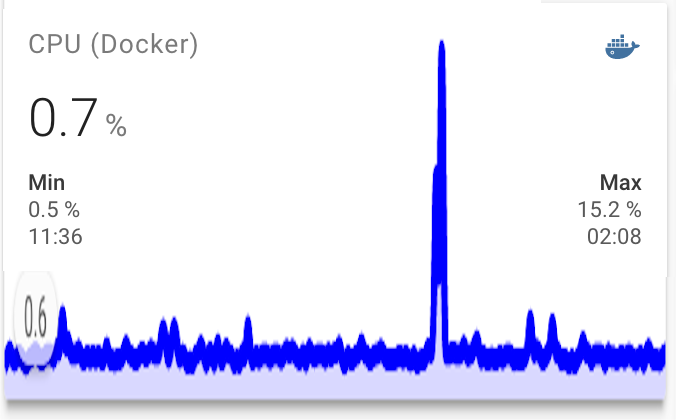

For graphs with some seldom peaks it might be a nice feature to let those use the full widget height, even when drawing though the text elements. One would see more details of the graph.

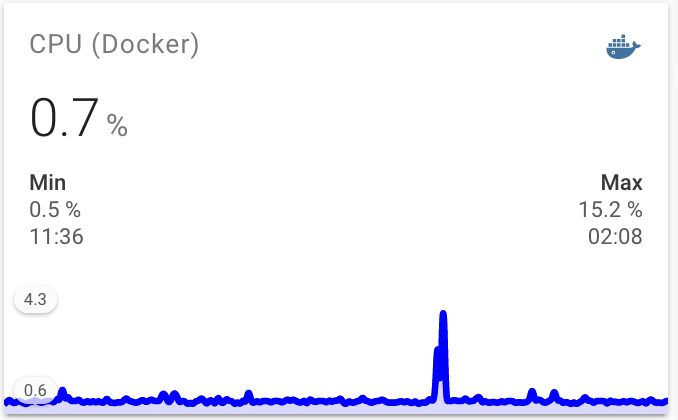

instead of

[kalkih]

I like the idea, thanks.

[sgvj]

Yes please. Would be such a visual improvement.

[cburkins]

New to Home Assistant, and loving mini-graph-card. I think this would be a neat feature

[MaxVRAM]

I'm trying to start digging into JS and wouldn't mind helping out if I can. @kalkih I haven't looked to heavily into the code, but any clues on where to start looking and what any major roadblocks might be in getting it implemented, off the top of your head?

[kalkih]

The tricky part here is probably mostly to get the layout working properly I think.
I guess we would have two ways of going about the layout, either by positioning the graph element absolute and have the rest of the content positioned relative, or the other way around, have the graph element relative and the rest of the content absolute.

The relative positioned content would be the deciding factor for the height of the card and the other content would basically be "floating" (position: absolute) on top or beneath the relative positioned content.

I would probably try the first suggestion, having the graph positioned absolute. What we would have to do then is to make sure the graph is rendered at the height of the card. And since the height of the card is based on the height of all of it's relative positioned content, the height is dynamic, so would be a good use-case for Javascript to figure out the total card height.

Thanks for your interest btw!

[MaxVRAM]

@kalkih - I'll start poking around in my spare time. Cheers for the info!
