Meshery: UI:run-local unable to load meshery ui

Created on 4 May 2020 · 20Comments · Source: layer5io/meshery

Description
After executing "make run-local" some times unable to load UI
getting below error in the terminal. no error in the browser console

INFO[0000] Using '/home/nitish/.meshery/config' to store user data
INFO[0000] Using '/home/nitish/.kube' as the folder to look for kubeconfig file
INFO[0000] Log level: debug
INFO[0000] Starting Server listening on :9081
ERRO[0041] error converting JSON response to map : json: cannot unmarshal string into Go value of type []map[string]string
ERRO[0041] error fetching JWK corresponding to token : json: cannot unmarshal string into Go value of type []map[string]string
INFO[0041] Token validation error : json: cannot unmarshal string into Go value of type []map[string]string
ERRO[0070] token extraction error : unexpected end of JSON input
FATA[0070] error decoding token : unexpected end of JSON input

Expected Behavior
Meshery UI should load properly

Screenshots
cookies in browser

Environment:

OS: Ubuntu 20.04
Browser: Chrome, Safari
Version: code from master
Device: desktop

[Optional] To Reproduce
Steps to reproduce the behavior:

Go to '...'
Click on '....'
Scroll down to '....'
See error

[Optional] Additional Context

kinbug

Source

nitishvu

Most helpful comment

There seems to be a dangling issue here when comparing results. If you select two results and compare them, a javascript issue occurs:

TypeError: undefined is not an object (evaluating 'this[this.axis.getId(t)].domain')

The error points to this function:

  getShapeYMin: function(t) {
                            var e = s(this[this.axis.getId(t)].domain(), 1)[0];
                            return !this.isGrouped(t) && e > 0 ? e : 0
                        },

@kushthedude @aayushdutt, will you have a look?

leecalcote on 4 May 2020

👍2

All 20 comments

Hey @nitishvu, when you say unable to load UI, do you mean that even provider UI doesn't show up? The provider UI being the page where you choose between meshery/None before you sign in.

kanishkarj on 4 May 2020

yes @kanishkarj even provider UI doesn't show up.

nitishvu on 4 May 2020

Oh.. Could you check once if it works on firefox? Because we came across this issue 2 days back. Also, could you verify if your master is up to date with the master on this repo?

kanishkarj on 4 May 2020

I also faced issue in opening Meshery GUI.
either using the Meshery Provide or "None", it gives me below error
esudbat@istio:~$ sudo mesheryctl logs
Starting Meshery logging...
Attaching to meshery_meshery-cpx_1, meshery_meshery_1, meshery_meshery-linkerd_1, meshery_watchtower_1, meshery_meshery-nsm_1, meshery_meshery-consul_1, meshery_meshery-octarine_1, meshery_meshery-istio_1
meshery-consul_1 | time="2020-05-04T16:39:56Z" level=info msg="Serving gRPC on :10002"
..
meshery_1 | time="2020-05-04T16:40:10Z" level=error msg="k8s config is nil"
meshery_1 | time="2020-05-04T16:40:10Z" level=error msg="k8s config is nil"

meshery_1 | time="2020-05-04T17:08:03Z" level=error msg="k8s config is nil"
meshery_1 | time="2020-05-04T17:08:03Z" level=error msg="k8s config is nil"
meshery-istio_1 | WARNING: 2020/05/04 17:41:43 grpc: Server.Serve failed to create ServerTransport: connection error: desc = "transport: http2Server.HandleStreams received bogus greeting from client: \"GET /admin/assets/js/vie\""
meshery-istio_1 | WARNING: 2020/05/04 17:41:43 grpc: Server.Serve failed to create ServerTransport: connection error: desc = "transport: http2Server.HandleStreams received bogus greeting from client: \"GET /admin/assets/js/vie\""

sb1975 on 4 May 2020

Gents, the latest Meshery Docker image the image id of 9773ffc8c9a9 fixes this issue. If you run a mesheryctl start, this will both update the Meshery container images and run Meshery. Alternatively, you could run mesheryctl update and then mesheryctl start to pull the latest images and run Meshery.

leecalcote on 4 May 2020

There seems to be a dangling issue here when comparing results. If you select two results and compare them, a javascript issue occurs:

TypeError: undefined is not an object (evaluating 'this[this.axis.getId(t)].domain')

The error points to this function:

  getShapeYMin: function(t) {
                            var e = s(this[this.axis.getId(t)].domain(), 1)[0];
                            return !this.isGrouped(t) && e > 0 ? e : 0
                        },

@kushthedude @aayushdutt, will you have a look?

leecalcote on 4 May 2020

👍2

@aayushdutt will you confirm this issue remains? Let's prioritize its fix, if so.

leecalcote on 7 May 2020

Looking into it.

aayushdutt on 7 May 2020

@leecalcote I am unable to reproduce the above issue. Maybe it is fixed?
I have tested on no mesh results and it worked perfectly.

aayushdutt on 7 May 2020

@kushthedude Could you please confirm if the issue persists?

aayushdutt on 7 May 2020

@aayushdutt the portion of the issue that I'm able to consistently reproduce is a failure to be able to compare test results (check two or more test result boxes and then click the two-way arrow icon at the top right corner of the results table).

leecalcote on 7 May 2020

@leecalcote Hmm... This is strange

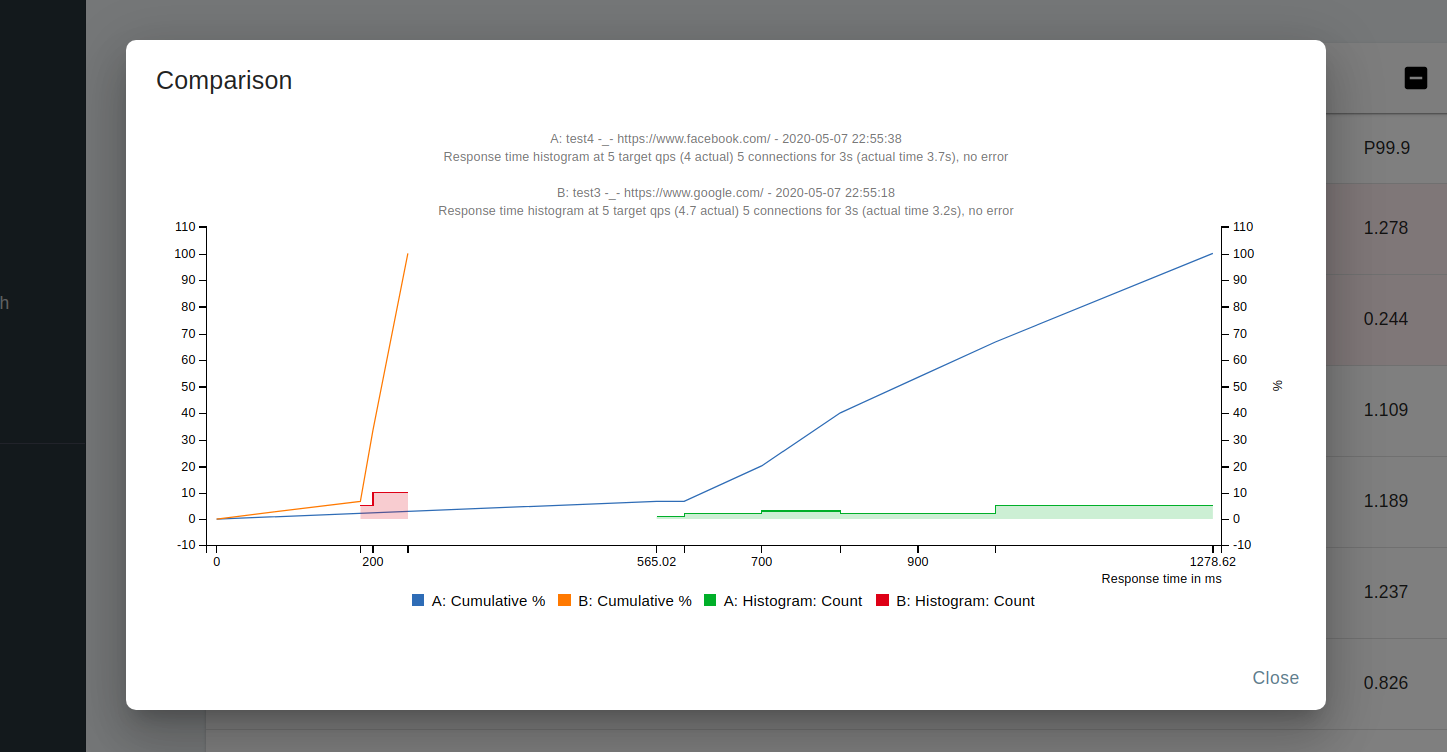

I did the same and it is working for me. This is what I see:

with no errors in the console.

I tested it again with two new tests.

I created two tests (both with no mesh selected)
Selected both of them and compared.
I made sure that the code has the latest changes from upstream.

Could you please show me what you see and/or the configuration you used for the tests?

I used Chrome v80 on Ubuntu
Edit: Tested on Firefox on Ubuntu, working fine

aayushdutt on 7 May 2020

Did you run make setup-ui-libs and make build-ui after pulling the latest
changes from upstream?

On Thu, 7 May, 2020, 22:58 Aayush Dutt, notifications@github.com wrote:

@leecalcote https://github.com/leecalcote Hmm... This is strange
I did the same and it is working for me. This is what I see:
[image: image]
https://user-images.githubusercontent.com/25280541/81325456-032dc400-90b6-11ea-8a16-0fcf42d68a50.png
with no errors in the console.

I tested it again with two new tests.

I created two tests (both with no mesh selected)

Selected both of them and compared.

I made sure that the code has the latest changes from upstream.

Could you please show me what you see and/or the configuration you used
for the tests?

—
You are receiving this because you were mentioned.
Reply to this email directly, view it on GitHub
https://github.com/layer5io/meshery/issues/958#issuecomment-625392905,
or unsubscribe
https://github.com/notifications/unsubscribe-auth/AKQMTLTTCAKXRLSEMZGWCD3RQLVUZANCNFSM4MY2ZOMQ
.

kushthedude on 8 May 2020

No, I'm running the prebuilt release as a user. (mesheryctl start)

leecalcote on 8 May 2020

I was asking @aayushdutt ,as I am also facing this issue.

On Fri, 8 May, 2020, 09:03 Lee Calcote, notifications@github.com wrote:

No, I'm running the prebuilt release as a user.

—
You are receiving this because you were mentioned.
Reply to this email directly, view it on GitHub
https://github.com/layer5io/meshery/issues/958#issuecomment-625611486,
or unsubscribe
https://github.com/notifications/unsubscribe-auth/AKQMTLW2UZXW3DUW4YJVOWTRQN4Q7ANCNFSM4MY2ZOMQ
.

kushthedude on 8 May 2020

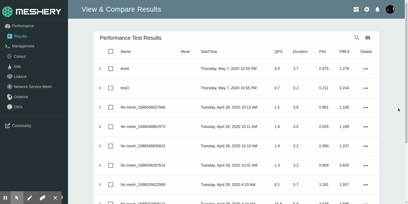

I was testing on make run-ui-dev, however after doing make build-ui and testing on port 9081, I still wasn't able to reproduce the error. Here was what I saw:
Meshery (1)

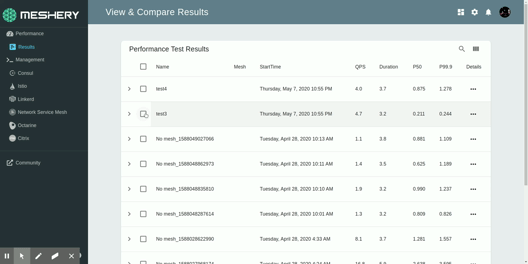

But after a few tries, I successfully reproduced the error, it is like this:
Meshery

The error is

TypeError: Cannot read property 'domain' of undefined
    at t.getShapeYMin (8326b37b.01d8b36072244d251170.js:1)
    at l (8326b37b.01d8b36072244d251170.js:1)
    at l (82cbf480985f34d90f95ca6942c78235035f9539.59718814718bedff45c0.js:1)
    at SVGPathElement.<anonymous> (8326b37b.01d8b36072244d251170.js:1)
    at SVGPathElement.<anonymous> (82cbf480985f34d90f95ca6942c78235035f9539.59718814718bedff45c0.js:1)
    at G.each (82cbf480985f34d90f95ca6942c78235035f9539.59718814718bedff45c0.js:1)
    at G.attr (82cbf480985f34d90f95ca6942c78235035f9539.59718814718bedff45c0.js:1)
    at t.redrawArea (8326b37b.01d8b36072244d251170.js:1)
    at t.value (8326b37b.01d8b36072244d251170.js:1)
    at t.value (8326b37b.01d8b36072244d251170.js:1)

Edit: I am unable to reproduce the error consistently every time.

aayushdutt on 8 May 2020

You have to use 3000 port with make run-ui-dev.
Using 9081 will supress most of the warning/error and also console will not
show anything.

On Fri, 8 May, 2020, 09:34 Aayush Dutt, notifications@github.com wrote:

I was testing on make run-ui-dev, however after doing make build-ui and
testing on port 9081, I still wasn't able to reproduce the error. Here was
what I saw:
[image: Meshery (1)]
https://user-images.githubusercontent.com/25280541/81368964-c641eb80-910e-11ea-9426-a244ea0ad70c.gif

But after a few tries, I successfully reproduced the error, it is like
this:
[image: Meshery]
https://user-images.githubusercontent.com/25280541/81368759-3b60f100-910e-11ea-990b-e7beb6b29260.gif

The error is

TypeError: Cannot read property 'domain' of undefined
at t.getShapeYMin (8326b37b.01d8b36072244d251170.js:1)
at l (8326b37b.01d8b36072244d251170.js:1)
at l (82cbf480985f34d90f95ca6942c78235035f9539.59718814718bedff45c0.js:1)
at SVGPathElement. (8326b37b.01d8b36072244d251170.js:1)
at SVGPathElement. (82cbf480985f34d90f95ca6942c78235035f9539.59718814718bedff45c0.js:1)
at G.each (82cbf480985f34d90f95ca6942c78235035f9539.59718814718bedff45c0.js:1)
at G.attr (82cbf480985f34d90f95ca6942c78235035f9539.59718814718bedff45c0.js:1)
at t.redrawArea (8326b37b.01d8b36072244d251170.js:1)
at t.value (8326b37b.01d8b36072244d251170.js:1)
at t.value (8326b37b.01d8b36072244d251170.js:1)

—
You are receiving this because you were mentioned.
Reply to this email directly, view it on GitHub
https://github.com/layer5io/meshery/issues/958#issuecomment-625617939,
or unsubscribe
https://github.com/notifications/unsubscribe-auth/AKQMTLT5WNNIW2KY7OL6ZGLRQOADLANCNFSM4MY2ZOMQ
.

kushthedude on 8 May 2020

@kushthedude Exactly, that's why I was testing on make run-ui-dev and on port 3000 earlier.

aayushdutt on 8 May 2020

Let's open a new issue and move the discussion over there!

kushthedude on 8 May 2020

All, just a follow up here - the final bug here is now fixed in #978. Thank you, @kushthedude @aayushdutt

leecalcote on 8 May 2020
