hello dear guys,

i want to use the edit function on a layer called problems in which i have 2 attributes (among others)

1. towns - varchar field
   (widget type:value relation in qgis project to a dictionary towns, relation based on key_column:id / value_column: name_town )
   dictionary towns has columns : id, name_town
2. streets - varchar field
   (widget type:value relation in qgis project to a dictinary street, relation based on key_column:id /value_column: street_name
3. filter expression
   "id_town" = current_value('town')
   )
   dictionary street has columns : id , street_name, id_town

i want in edition mode in form to select town first(combobox) and automatically filter streets field in street combobox based on town selected.
same like
value relation widget - drive down lists (filter expression)
https://github.com/3liz/lizmap-web-client/issues/1242

i read the forum that this problem was fixd in master, i installed the master branch(also i tried with the version 3.3.11) but nothing, i can select the towns from combobox,
but the street combobox is empty, and also errors.log not showing any error

using lizmap web client 3.3.11 i get the error in errors log:

2020-11-07 11:48:48 ::1 notice  2020-11-07 11:48:48 [8] Undefined variable: widgetv2configAttr  /var/www/lizmap-web-client-3.3.11/lizmap/modules/lizmap/classes/qgisFormControl.class.php   299

2020-11-07 11:48:48 ::1 warning 2020-11-07 11:48:48 [2] First parameter must either be an object or the name of an existing class   /var/www/lizmap-web-client-3.3.11/lizmap/modules/lizmap/classes/qgisFormControl.class.php   299

what am i doing wrong ?
thank you

Environment

Lizmap version: 3.3.11
QGIS Server FULL version:3.14.16-Pi
QGIS Desktop FULL version:3.12
OS (Windows, Linux, MacOS, Android…): Ubuntu 20
OS (Windows, Linux, MacOS, Android…): Ubuntu 20
Browser (Firefox, Chrome…): ALL
Lizmap admin information (users, logs…) Sqlite

[nboisteault]

Hi,
You have to use qgis desktop and server 3.10 as it is a LTR version. It will probably work with more recent versions but we have not tested yet.
Use lizmap master and not 3.3.11.
You also have to install lizmap plugin as a qgis server plugin for this feature to work.

[brebe]

Hi,
You have to use qgis desktop and server 3.10 as it is a LTR version. It will probably work with more recent versions but we have not tested yet.
Use lizmap master and not 3.3.11.
You also have to install lizmap plugin as a qgis server plugin for this feature to work.

Thank you,
i downgraded qgis-server to 3.10 and saved qgs project with desktop 3.10 but i cannot find any info about
how to install lizmap plugin as qgis-server. can you point me to some docs so i can figure it out?

[nboisteault]

You have to download master version of lizmap plugin and install it like any other qgis server plugin : https://docs.qgis.org/3.10/en/docs/user_manual/working_with_ogc/server/plugins.html#installation

[Gustry]

You have to download master version of lizmap plugin and install it like any other qgis server plugin : https://docs.qgis.org/3.10/en/docs/user_manual/working_with_ogc/server/plugins.html#installation

It's dev version, not master.
You can find the zip on https://packages.3liz.org/pub/lizmap-qgis-plugin/dev/
It's both server and desktop.

Side note, you shouldn't have trouble with higher version of QGIS.
3.16 is LTR soon so we accept feedbacks about the next LTR ;-)
The only advice is to use the same version between QGIS Desktop and Server.

[josemvm]

hi,

the same problem here:

```
2020-11-07 23:57:51 xxx.xxx.xxx.xxx warning 2020-11-07 23:57:51 [2] Invalid argument supplied for foreach() /var/www/html/lizmap-web-client-3.4.0-alpha.4/lizmap/modules/lizmap/classes/qgisFormValueRelationDynamicDatasource.class.php 40

[brebe]

i installed the zip file i downloaded from https://packages.3liz.org/pub/lizmap-qgis-plugin/dev/

i have configured /etc/apache2/mods-enabled/fcgid.conf with
FcgidInitialEnv QGIS_PLUGINPATH "/var/www/qgis-server/plugins"
i copied the content of lizmap archive into /var/www/qgis-server/plugins
but as a test i am doing the request
http://localhost/cgi-bin/qgis_mapserv.fcgi?SERVICE=LIZMAP&REQUEST=GETSERVERSETTINGS
and in response i get

status | "fail"
code | "Internal server error"
message | "Internal 'lizmap' service error"

and in qgis log i find

09:40:13 INFO Server[74992]: ******************** New request ***************
09:40:13 INFO Server[74992]: Request URL: http://localhost/cgi-bin/qgis_mapserv.fcgi?SERVICE=LIZMAP&REQUEST=GETSERVERSETTINGS
09:40:13 INFO Server[74992]: Environment:
09:40:13 INFO Server[74992]: ------------------------------------------------
09:40:13 INFO Server[74992]: SERVER_NAME: localhost
09:40:13 INFO Server[74992]: REQUEST_URI: /cgi-bin/qgis_mapserv.fcgi?SERVICE=LIZMAP&REQUEST=GETSERVERSETTINGS
09:40:13 INFO Server[74992]: SCRIPT_NAME: /cgi-bin/qgis_mapserv.fcgi
09:40:13 INFO Server[74992]: REMOTE_ADDR: 127.0.0.1
09:40:13 INFO Server[74992]: SERVER_PORT: 80
09:40:13 INFO Server[74992]: QUERY_STRING: SERVICE=LIZMAP&REQUEST=GETSERVERSETTINGS
09:40:13 INFO Server[74992]: REQUEST_METHOD: GET
09:40:13 INFO Server[74992]: HTTP_ACCEPT: text/html,application/xhtml+xml,application/xml;q=0.9,image/webp,*/*;q=0.8
09:40:13 INFO Server[74992]: HTTP_USER_AGENT: Mozilla/5.0 (X11; Ubuntu; Linux x86_64; rv:82.0) Gecko/20100101 Firefox/82.0
09:40:13 INFO Server[74992]: QGIS_PROJECT_FILE: /var/www/projects/proiect.qgs
09:40:13 INFO Server[74992]: Using configuration file path from environment: /var/www/projects/proiect.qgs
09:40:13 INFO lizmap[74992]: Request headers provided
09:40:13 INFO lizmap[74992]: No lizmap user groups in request headers
09:40:13 INFO wfsOutputExtension[74992]: WFSFilter.requestReady
09:40:13 WARNING [74992]: HelloFilter.requestReady
09:40:13 WARNING [74992]: HelloFilter.requestReady
09:40:13 INFO Server[74992]: REQUEST:GETSERVERSETTINGS
09:40:13 INFO Server[74992]: SERVICE:LIZMAP
09:40:13 INFO Server[74992]: TEST_NEW_PARAM:ParamsFilter
09:40:13 INFO Server[74992]: Using configuration file path from environment: /var/www/projects/proiect.qgs
09:40:13 WARNING [74992]: Service CADASTRE is not registered
09:40:13 CRITICAL lizmap[74992]: Unhandled exception:
Traceback (most recent call last):
  File "/var/www/qgis-server/plugins/lizmap/server/lizmap_service.py", line 84, in executeRequest
    self.getserversettings(params, response, project)
  File "/var/www/qgis-server/plugins/lizmap/server/lizmap_service.py", line 131, in getserversettings
    config.read(file_path)
  File "/usr/lib/python3.8/configparser.py", line 697, in read
    self._read(fp, filename)
  File "/usr/lib/python3.8/configparser.py", line 1017, in _read
    for lineno, line in enumerate(fp, start=1):
  File "/usr/lib/python3.8/encodings/ascii.py", line 26, in decode
    return codecs.ascii_decode(input, self.errors)[0]
UnicodeDecodeError: 'ascii' codec can't decode byte 0xe2 in position 687: ordinal not in range(128)

09:40:13 CRITICAL lizmap[74992]: Lizmap request error Internal server error: Internal 'lizmap' service error
09:40:13 INFO wfsOutputExtension[74992]: WFSFilter.responseComplete
09:40:13 WARNING [74992]: SUCCESS - ParamsFilter.responseComplete
09:40:13 WARNING [74992]: SUCCESS - ParamsFilter.responseComplete
09:40:13 WARNING [74992]: HelloFilter.responseComplete
09:40:13 WARNING [74992]: HelloFilter.responseComplete
09:40:13 INFO Server[74992]: Request finished in 2 ms

i regenerated the project with desktop 3.10 with the plugin setting the version of lizmap web client to 3.4 and
same thing is not functioning.
i am using lizmap web client master , but no logs appears...
what do i need to do more?

edit 1 11:20 :
i upgraded qgis server / desktop to 3.16 with lizmap plugin dev for server and:
edition of layers not working anymore and in lizmap log appeared this error now:

2020-11-08 10:17:49 127.0.0.1 error 2020-11-08 10:17:49 [0] dbtools, pgsql: unknown table /var/www/lizmap-web-client-master/lib/jelix/plugins/db/pgsql/pgsql.dbtools.php 242

also in qgis server log errors regardiing lizmap plugin showed up:

11:19:22 INFO Server[83500]: ******************** New request ***************
11:19:22 INFO Server[83500]: Request URL: http://localhost/cgi-bin/qgis_mapserv.fcgi?SERVICE=LIZMAP&REQUEST=GETSERVERSETTINGS
11:19:22 INFO Server[83500]: Environment:
11:19:22 INFO Server[83500]: ------------------------------------------------
11:19:22 INFO Server[83500]: SERVER_NAME: localhost
11:19:22 INFO Server[83500]: REQUEST_URI: /cgi-bin/qgis_mapserv.fcgi?SERVICE=LIZMAP&REQUEST=GETSERVERSETTINGS
11:19:22 INFO Server[83500]: SCRIPT_NAME: /cgi-bin/qgis_mapserv.fcgi
11:19:22 INFO Server[83500]: REMOTE_ADDR: 127.0.0.1
11:19:22 INFO Server[83500]: SERVER_PORT: 80
11:19:22 INFO Server[83500]: QUERY_STRING: SERVICE=LIZMAP&REQUEST=GETSERVERSETTINGS
11:19:22 INFO Server[83500]: REQUEST_METHOD: GET
11:19:22 INFO Server[83500]: HTTP_ACCEPT: text/html,application/xhtml+xml,application/xml;q=0.9,image/webp,*/*;q=0.8
11:19:22 INFO Server[83500]: HTTP_USER_AGENT: Mozilla/5.0 (X11; Ubuntu; Linux x86_64; rv:82.0) Gecko/20100101 Firefox/82.0
11:19:22 INFO Server[83500]: QGIS_PROJECT_FILE: /var/www/projects/proiect.qgs
11:19:22 INFO Server[83500]: Using configuration file path from environment: /var/www/projects/proiect.qgs
11:19:22 WARNING [83500]: HelloFilter.requestReady
11:19:22 INFO Server[83500]: REQUEST:GETSERVERSETTINGS
11:19:22 INFO Server[83500]: SERVICE:LIZMAP
11:19:22 INFO Server[83500]: TEST_NEW_PARAM:ParamsFilter
11:19:22 INFO Server[83500]: Using configuration file path from environment: /var/www/projects/proiect.qgs
11:19:22 WARNING [83500]: Service CADASTRE is not registered
11:19:22 CRITICAL lizmap[83500]: Unhandled exception:
Traceback (most recent call last):
  File "/var/www/qgis-server/plugins/lizmap/server/lizmap_service.py", line 85, in executeRequest
    else:
  File "/var/www/qgis-server/plugins/lizmap/server/lizmap_service.py", line 128, in getserversettings
    # Lizmap plugin metadata, do not use qgis_plugin_tools because of the packaging.
  File "/var/www/qgis-server/plugins/lizmap/qgis_plugin_tools/tools/resources.py", line 37, in plugin_name
    metadata = metadata_config()
  File "/var/www/qgis-server/plugins/lizmap/qgis_plugin_tools/tools/resources.py", line 50, in metadata_config
    config.read(path)
  File "/usr/lib/python3.8/configparser.py", line 697, in read
    self._read(fp, filename)
  File "/usr/lib/python3.8/configparser.py", line 1017, in _read
    for lineno, line in enumerate(fp, start=1):
  File "/usr/lib/python3.8/encodings/ascii.py", line 26, in decode
    return codecs.ascii_decode(input, self.errors)[0]
UnicodeDecodeError: 'ascii' codec can't decode byte 0xe2 in position 687: ordinal not in range(128)

11:19:22 CRITICAL lizmap[83500]: Lizmap request error Internal server error: Internal 'lizmap' service error
11:19:22 WARNING [83500]: SUCCESS - ParamsFilter.responseComplete
11:19:22 WARNING [83500]: HelloFilter.responseComplete
11:19:22 INFO Server[83500]: Request finished in 3 ms

thanks

[josemvm]

@brebe

from http://localhost/cgi-bin/qgis_mapserv.fcgi?SERVICE=LIZMAP&REQUEST=GETSERVERSETTINGS

you need to get something like this:

[brebe]

@brebe

from http://localhost/cgi-bin/qgis_mapserv.fcgi?SERVICE=LIZMAP&REQUEST=GETSERVERSETTINGS

you need to get something like this:

i dont know what am i doing wrong because i installed also the atlas plugin and for that the server response is ok, but for lizmap plugin maybe it needs something else installed , dont know what

[josemvm]

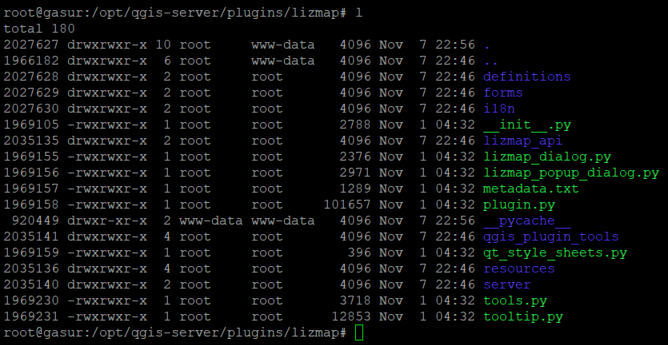

this is my qgis server plugin structure:

[Gustry]

It's not related to the plugin structure.

There is something wrong in the CFG file.
@brebe Can you share it ? Either here on this ticket, or on https://paste.sh/ or by email ?

[brebe]

It's not related to the plugin structure.

There is something wrong in the CFG file.
@brebe Can you share it ? Either here on this ticket, or on https://paste.sh/ or by email ?

yes i am sending by email now

[Gustry]

After some checks, can you try the latest zip available https://packages.3liz.org/pub/lizmap-qgis-plugin/dev/ ?
I think there is a server config issue about utf8, CF discussion by email.

[brebe]

Thank you, with the latest dev version it worked

[Gustry]

Ok, thanks for the feedback.

Let's keep the ticket open for the documentation.

[brebe]

ahaa, sorry

On Mon, Nov 9, 2020 at 3:36 PM Étienne Trimaille [e-mail]
wrote:

Ok, thanks for the feedback.

Let's keep the ticket open for the documentation.

—
You are receiving this because you modified the open/close state.
Reply to this email directly, view it on GitHub
https://github.com/3liz/lizmap-web-client/issues/1908#issuecomment-724017303,
or unsubscribe
https://github.com/notifications/unsubscribe-auth/ADXHIJ2HC3QNK62JDB7S4PLSO7V4VANCNFSM4TNSHUOA
.

[Gustry]

Thank you, with the latest dev version it worked

Just to confirm, can you tell us what is working ?

The lizmap server plugin AND the drilldown form ?

[brebe]

yeap everything now,

i am filtering in a edition form the streets by towns and ITS WORKING!!!
I am using qgis server /desktop 3.10 and lizmap webclient master.

On Mon, Nov 9, 2020 at 3:59 PM Étienne Trimaille [e-mail]
wrote:

Thank you, with the latest dev version it worked

Just to confirm, can you tell us what is working ?

The lizmap server plugin AND the drilldown form ?

—
You are receiving this because you modified the open/close state.
Reply to this email directly, view it on GitHub
https://github.com/3liz/lizmap-web-client/issues/1908#issuecomment-724030391,
or unsubscribe
https://github.com/notifications/unsubscribe-auth/ADXHIJ624LTIRLNVUV532XTSO7YUNANCNFSM4TNSHUOA
.

[Gustry]

Great !

Feel free to make a tweet with a GIF or screenshot showing off your new form ! We will happily retweet it ;-)
The drill down is one of the key feature of LWC 3.4.

[josemvm]

hi @brebe can you share your project with me? my project works fine on qgis desktop but not yet on lizmap...
thanks

[brebe]

hi @brebe can you share your project with me? my project works fine on qgis desktop but not yet on lizmap...
thanks

its not only the qgis project.....

i am using
qgis server and desktop 3.10
lizmap plugin 3.2.19-beta-
lizmap web client master(current one) 3.4.0-alpha.4
apache 2.4
postgres 12 / postgis

i described the relationship between towns and street (for street value relation with the filter "id_town" = current_value('town') on street layer and i use drag and drop designer)

1. download and install lizmap plugin from here
   https://packages.3liz.org/pub/lizmap-qgis-plugin/dev/ - zip file with timestamp TODAY (the latest zip available with utf8 problem solved) into qgis desktop manually (install from zip) , resave the project with the lizmap dev plugin.
   put the .qgs and .cfg into /var/www/projects and set ownerhship right
   chown -R www-data:www-data /var/ww/projects

2. the downloaded archieve from https://packages.3liz.org/pub/lizmap-qgis-plugin/dev/ unzip it.
   the lizmap folder from the archive put it into /var/www/qgis-server (i put there the qgis-server plugins).
   into /etc/apache2/mods-enabled/fcgid.conf set the most important

FcgidInitialEnv QGIS_PLUGINPATH "/var/www/qgis-server/plugins" # this is where you set the qgis-server plugin folder
SetEnv PGSERVICEFILE /home/brebex/.pg_service.conf  #connect to postgis
SetEnv PGSERVICE=mydb

and i put the pg_service.conf into /etc/postgresql-common - that was the first problem because i used the name .pg_service.conf

thats it

[josemvm]

finally, with qgis server plugin updated everything works like a charm 👍
thanks to lizmap team developpement for this great new feature!!! :-)

[brebe]

side subject question ,
in form filtering is it possible to have same drill down comboboxes ?

On Tue, Nov 10, 2020 at 10:45 PM José Macau [e-mail]
wrote:

finally, with qgis server plugin updated everything works like a charm 👍
thanks to lizmap team developpement for this great new feature!!! :-)

—
You are receiving this because you were mentioned.
Reply to this email directly, view it on GitHub
https://github.com/3liz/lizmap-web-client/issues/1908#issuecomment-724956367,
or unsubscribe
https://github.com/notifications/unsubscribe-auth/ADXHIJ77NDG7ZSTRT74QS33SPGRANANCNFSM4TNSHUOA
.

[nboisteault]

@brebe It has not been developed currently.

[sergiuspinheiro]

hi @brebe can you share your project with me? my project works fine on qgis desktop but not yet on lizmap...
thanks

its not only the qgis project.....

i am using
qgis server and desktop 3.10
lizmap plugin 3.2.19-beta-
lizmap web client master(current one) 3.4.0-alpha.4
apache 2.4
postgres 12 / postgis

i described the relationship between towns and street (for street value relation with the filter "id_town" = current_value('town') on street layer and i use drag and drop designer)

1. download and install lizmap plugin from here
   https://packages.3liz.org/pub/lizmap-qgis-plugin/dev/ - zip file with timestamp TODAY (the latest zip available with utf8 problem solved) into qgis desktop manually (install from zip) , resave the project with the lizmap dev plugin.
   put the .qgs and .cfg  into /var/www/projects and set ownerhship right
   `chown -R www-data:www-data /var/ww/projects  `

2. the downloaded archieve from https://packages.3liz.org/pub/lizmap-qgis-plugin/dev/ unzip it.
   the lizmap folder from the archive put it into /var/www/qgis-server (i put there the qgis-server plugins).
   into /etc/apache2/mods-enabled/fcgid.conf  set the most important

FcgidInitialEnv QGIS_PLUGINPATH "/var/www/qgis-server/plugins" # this is where you set the qgis-server plugin folder
SetEnv PGSERVICEFILE /home/brebex/.pg_service.conf  #connect to postgis
SetEnv PGSERVICE=mydb

and i put the pg_service.conf into /etc/postgresql-common - that was the first problem because i used the name .pg_service.conf

thats it

qgis server and desktop 3.16.1
lizmap plugin 3.4
lizmap web client 3.4

In windows environment the path is:
X:\OSGeo4W64\apps\qgis\python\plugins\

It works perfectly, congratulations to the whole team.

It would be possible to document the windows installation with the same information as the linux installation
https://docs.lizmap.com/current/pt/install/linux.html#qgis-server-plugins

Thank you very much.

[Gustry]

Thanks for your feedbacks about the drill-down ! Appreciated.

Can you create the ticket for the documentation ? https://github.com/3liz/lizmap-documentation

[sergiuspinheiro]

Thank you.

https://github.com/3liz/lizmap-documentation/issues/170#issue-788300375
