Kingfisher: Problem with Dynamic height image in tableview cell using URL Kingfisher

[FedericoSub]

Check List

Thanks for considering to open an issue. Before you submit your issue, please confirm these boxes are checked.

• [x] I have read the wiki page and cheat sheet, but there is no information I need.
• [x] I have searched in existing issues, but did not find a same one.
• [x] I want to reoprt a problem instead of asking a question. It'd better to use kingfisher tag in Stack Overflow to ask a question.

Issue Description
Problem with Dynamic height image in cell Tableview

What
In my app I download the image from Firebase and in TableViewCell.swift resize the image with current aspectRatio.
The first time tableView is populate correctly but sometime seems that some rows are display without the image .
If I scroll the tableview the image will be reloaded fine.

If I don't use Kingfisher but load image from array all works.

Reproduce

override func tableView(_ tableView: UITableView, cellForRowAt indexPath: IndexPath) -> UITableViewCell {
let cell = tableView.dequeueReusableCell(withIdentifier: "Cell") as! VetrinaTableViewCell

    let resource1 = ImageResource(downloadURL: URL.init(string: vetrina[indexPath.row].urlPhoto)!, cacheKey: vetrina[indexPath.row].urlPhoto)
    let p1 = Bundle.main.path(forResource: "loading", ofType: "gif")
    let data1 = try! Data(contentsOf: URL(fileURLWithPath: p1!))
    cell.immagineVetrina.kf.indicatorType = .image(imageData: data1)
    cell.immagineVetrina.kf.setImage(with: resource1)


    cell.setNeedsLayout()
    return cell
}

If I don't use Kingfisher works fine this is the code.

override func tableView(_ tableView: UITableView, cellForRowAt indexPath: IndexPath) -> UITableViewCell {
let cell = tableView.dequeueReusableCell(withIdentifier: "Cell") as! VetrinaTableViewCell

    cell.immagineVetrina.image = UIImage(named: imgMenu[indexPath.row])

    cell.setNeedsLayout()
    return cell
}

this is my VetrinaTableViewCell where I resize image:

class VetrinaTableViewCell: UITableViewCell {

@IBOutlet weak var ultimoLbl: UILabel!
@IBOutlet weak var immagineUltimo: UIImageView!
@IBOutlet weak var numeroCommenti: UILabel!

@IBOutlet weak var likeImg: UIImageView!
@IBOutlet weak var numeroLike: UILabel!
@IBOutlet weak var immagineVetrina: UIImageView!
@IBOutlet weak var nomeuid: UILabel!
@IBOutlet weak var uidImg: UIImageView!

override func awakeFromNib() {
    super.awakeFromNib()
    // Initialization code
}

override func setSelected(_ selected: Bool, animated: Bool) {
    super.setSelected(selected, animated: animated)

    // Configure the view for the selected state
}

internal var aspectConstraint : NSLayoutConstraint? {
    didSet {
        if oldValue != nil {
            immagineVetrina.removeConstraint(oldValue!)
        }
        if aspectConstraint != nil {
            immagineVetrina.addConstraint(aspectConstraint!)
        }
    }
}

override func prepareForReuse() {
    super.prepareForReuse()
    aspectConstraint = nil
}

func setCustomImage(image : UIImage) {

    let aspect = image.size.width / image.size.height

    let constraint = NSLayoutConstraint(item: immagineVetrina, attribute: NSLayoutAttribute.width, relatedBy: NSLayoutRelation.equal, toItem: immagineVetrina, attribute: NSLayoutAttribute.height, multiplier: aspect, constant: 0.0)
    constraint.priority = UILayoutPriority(rawValue: 999)

    aspectConstraint = constraint

    immagineVetrina.image = image
}

}

Other Comment

[Add anything else here]

[onevcat]

@FedericoSub Sorry for the late reply.

Kingfisher's setImage method is an async one, so your cell.setNeedsLayout() will not layout the cell according to the real image size. The original image view size will be used when layout happens.

A possible workaround would be calling cell.setNeedsLayout() inside the completion handler of setting image method, like this:

cell.immagineVetrina.kf.setImage(with: resource1) { _, _, _, _ in
    cell.layoutIfNeeded()
}

This will layout your cell with the constraint of your cell and the image view's intrinsic content size (as long as you are not setting the size constraint for the image view). So if you were using an auto sizing cell, it will work for you to resize the cell by downloaded image.

[pzmudzinski]

@onevcat I created custom UITableViewCell and for simplicity added just one UIImageView with leading/tailing/top/bottom constraints set to cell's margins.

This is how I am loading image into a cell:

class AttachmentCell: UITableViewCell {

    @IBOutlet weak var attachmentImageView: UIImageView!

    internal var aspectConstraint : NSLayoutConstraint? {
        didSet {
            if oldValue != nil {
                attachmentImageView.removeConstraint(oldValue!)
            }
            if aspectConstraint != nil {
                aspectConstraint?.priority = UILayoutPriority(999)
                attachmentImageView.addConstraint(aspectConstraint!)
            }
        }
    }

    var message: Message? {
        didSet {
            guard let message = message else { return }

            guard let attachment = message.info.attachment else {
                fatalError("Tried to bind non-attachment message to a cell!")
            }

            attachmentImageView.kf.indicatorType = .activity

            attachmentImageView.kf.setImage(with: attachment.downloadUrl, completionHandler: { [weak self]  (image, error, cacheType, imageUrl) in
                    guard let strongSelf = self, let image = image else { return }

                    let aspect = image.size.width / image.size.height

                    print("setting aspect \(aspect)")

                    strongSelf.aspectConstraint = NSLayoutConstraint(item: strongSelf.attachmentImageView, attribute: NSLayoutAttribute.width, relatedBy: NSLayoutRelation.equal, toItem: strongSelf.attachmentImageView, attribute: NSLayoutAttribute.height, multiplier: aspect, constant: 0.0)

                    strongSelf.setNeedsLayout()

                    strongSelf.layoutIfNeeded()
                })
        }
    }


    override func prepareForReuse() {
        super.prepareForReuse()
        aspectConstraint = nil
    }
}

It's displayed almost correctly, except for a first time. Cell does not resize itself and tried different combination of layoutIfNeeded / setNeedsLayout.

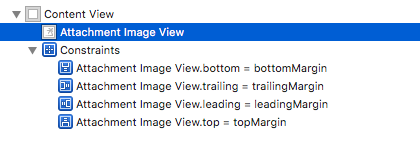

Those are my constraints:

Any idea how to set it up? Maybe you could spin up some example?

[chamitha]

I have this same issue too and would be interested in a solution.

[pzmudzinski]

@chamitha this is solution I've found:

                cell.setNeedsLayout()

                UIView.performWithoutAnimation {
                    tableView.beginUpdates()
                    tableView.endUpdates()
                }

You might remove that performWithoutAnimation block so images will resize in animated way, I just didn't like that effect.

[anhhtbk]

@pzmudzinski Did you find solution for

It's displayed almost correctly, except for a first time

?

[pzmudzinski]

Uhm yes. I posted my solution?

[anhhtbk]

@pixyzehn Sorry. I added it wrong position. Now I add it in cellForRowAt indexPath and it work correctly. Thanks!

[Dmurph24]

This doesn't solve the problem for me. The only way I can get it to auto layout the height properly is by adding the .forceRefresh option to setImage ... which defeats the whole purpose of using the cache.

[gorbat-o]

Hello,

I have the same problem.
An other point, sometimes I will have an image to load in the cell and sometimes not.
And it is the fiesta in the tableview, the cell are not sized correctly, I have to scroll down and scroll up to make appear some images.

Hope you find a solution :)

[bsarmiento-akurey]

Hello

Nothing yet? I have found some solutions, but all of them feel glitchy. When you are scrolling the tableview resizes and you lost track of were you where before. I don't like that

[gorbat-o]

Hey @bsarmiento-akurey
I found a solution for this, it is to know if i will load an image or not in the tableview before instantiate an uitableviewcell
If yes, uitableviewcellIMAGE
if not, i have an other uitableviewcellNOIMAGE
The recycler made some crazy things with my cells.
If you need I can provide some code here.

[masuhara]

Me, too. Any great ideas?

[antoinepemeja]

Maybee this can help some people, add this function in your tableviewcell class :

override func prepareForReuse() { super.prepareForReuse() fooImageView.kf.cancelDownloadTask() fooImageView.image = nil }

[RishabhTayal]

@chamitha this is solution I've found:

                cell.setNeedsLayout()

                UIView.performWithoutAnimation {
                    tableView.beginUpdates()
                    tableView.endUpdates()
                }

You might remove that performWithoutAnimation block so images will resize in animated way, I just didn't like that effect.

@pzmudzinski This is will cause the table to reload again hence going in the infinite loop of reloading.

I don't think is the right solution.

[jdavidbakr]

@antoinepemeja - thank you for that! I have been fighting this for a week trying to figure out why my cells were resizing on additional refreshes. In my case I'm using UICollectionViewCells, but overriding the prepareForReuse() function as you describe finally solved my issue.

[pzmudzinski]

@RishabhTayal My solution might be out dated by now, but at the time of writing I definitely wasn't getting infinite loop.

[jorgealegre]

I'm having multiple crashes only on iOS 13 regarding the infinite loop issue by calling begin/endUpdates when the image finishes loading. Everything works fine on iOS 9-12

Does anyone have any idea of how to solve this?

[chamitha]

I'm having multiple crashes only on iOS 13 regarding the infinite loop issue by calling begin/endUpdates when the image finishes loading. Everything works fine on iOS 9-12

Does anyone have any idea of how to solve this?

I noted a similar issue (nothing to do with Kingfisher) when calling performBatchUpdates too to resize in my case a UITableViewHeaderFooterView. It seemed to go away when I used a UITableViewCell instead.

[i-Varun]

cell.setNeedsLayout() // in cellForRowAt indexPath

and

override func prepareForReuse() {
super.prepareForReuse()
imageView.kf.cancelDownloadTask()
imageView.image = nil
}

fixes issue for me.
