Kibana: Snapshots not getting deleted through kibana UI (7.4.2)

[raulk89]

Kibana version: 7.4.2

Elasticsearch version: 7.4.2

Server OS version: CentOS Linux release 7.6.1810 (Core)

Browser version: Versioon 77.0.3865.120 64-bit

Browser OS version: Versioon 77.0.3865.120 64-bit

Original install method (e.g. download page, yum, from source, etc.): yum

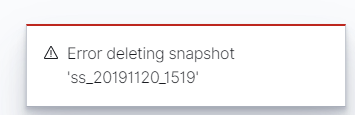

Describe the bug: Cannot delete snapshots through kibana UI. I get an error:
Error deleting snapshot 'ss_20191120_1519'

And I get this error with all the snapshots.

Steps to reproduce:

1. Navigate to "Snapshot and Restore"
2. You must have some snapshots present
3. Click "Delete snapshot"
4. And I get an error

Expected behavior: Snapshot should get deleted.

Screenshots (if relevant):

Errors in browser console (if relevant):
vendors.bundle.dll.js:417 DELETE https://hostname.domain/api/snapshot_restore/snapshots/dev-watsonelastic_idx_data%2Fss_20191120_1519 404 (Not Found)

Provide logs and/or server output (if relevant):
There are no log messages in elasticsearch or kibana logs.

Any additional context:
If I execute this delete command from linux server, eveyrthing works:

[root@dev-dc1-watsonelastic ~]# curl -XDELETE 'http://'hostname':9200/_snapshot/dev-watsonelastic_idx_data/ss_20191120_1519?pretty'; echo
{
"acknowledged" : true
}

[elasticmachine]

Pinging @elastic/es-ui (Team:Elasticsearch UI)

[alisonelizabeth]

Hi @raulk89! Thanks for reporting this. How was the snapshot originally created? I believe the issue is caused by the / in the snapshot name, which should be prevented.

[raulk89]

Hi

I do not have / in snapshot name.

There is:
/

There is slash between.
This is the problem.

This specific snapshot was created in linux commandline.
But I also tested with kibana snapshot policy, same problem.

Raul

Sent from my iPhone

On 20. Nov 2019, at 16:55, Alison Goryachev [e-mail] wrote:


Hi @raulk89! Thanks for reporting this. How was the snapshot originally created? I believe the issue is caused by the / in the snapshot name, which should be prevented.

—
You are receiving this because you were mentioned.
Reply to this email directly, view it on GitHub, or unsubscribe.

[raulk89]

So you can see from error message also, snapshot name is like this, there is no slash.

Error deleting snapshot 'ss_20191120_1519'

My repository name is "dev-watsonelastic_idx_data".
The required syntax is to use slash in between (repo_name and snapshot_name).

Raul

[pemontto]

Having the same issue, it appears the final "/" in the path of the snapshot repository is getting URL encoded incorrectly.

[pemontto]

A concrete example. All tested through the "Snapshot and Restore" interface in Kibana Management app. These are the requests my Chrome browsers makes on Kibana 7.4.2. This also occurs on 7.4.0 too.

Create a "test" repo - returns 200 OK {"acknowledged":true}

PUT https://test.com:5601/api/snapshot_restore/repositories
{"name":"test","type":"fs","settings":{"location":"/tmp/test","compress":true}}

Create a policy for that repo 200 OK {"acknowledged":true}

PUT https://test.com:5601/api/snapshot_restore/policies
{"name":"test","snapshotName":"test","schedule":"0 30 1 * * ?","repository":"test","config":{}}

Take a new snapshot - returns 200 OK {"snapshotName":"test-tt8jgs3lqogsa-kj0jke6g"}

POST https://test.com:5601/api/snapshot_restore/policy/test/run

Try to delete the new snapshot - returns a 404

DELETE https://test.com:5601/api/snapshot_restore/snapshots/test%2Ftest-tt8jgs3lqogsa-kj0jke6g

You can clearly see here the final / after the repo name test and before the snapshot name test-tt8jgs3lqogsa-kj0jke6g has been URL encoded as %2F - test%2Ftest-tt8jgs3lqogsa-kj0jke6g.

[alisonelizabeth]

Thanks @raulk89 and @pemontto for providing additional information. I misread the snapshot name in your initial comment. We will look into this and report back. In the meantime, if you can use Console to delete the snapshot as a workaround.

[saragri31]

+1

[alisonelizabeth]

Hi @pemontto! I've started looking into this issue again, but I am having a hard time reproducing. Do you think you could provide additional information to help troubleshoot?

• Can you provide the full request error using the network tab in your browser's dev tools?
• Can you confirm the same delete request is successful through Console in Dev Tools or calling the ES API directly (docs)?

If you need help with any of this, just let us know.

[cjcenizal]

Can you provide the full request error using the network tab in your browser's dev tools?

Here's a screenshot of the kind of information we're looking for. Hopefully the error response object will tell us that either the snapshot is missing or the repository is missing.

[pemontto]

Tested this locally and it worked OK on 7.4 and 7.5. Testing through a reverse proxy, this is the only functionality that doesn't work. There's no error response, I just get a 404 back with the very same URL path as when testing locally 😕

[alisonelizabeth]

@pemontto thanks for the additional details! That is helpful.

@saragri31 and @raulk89 can you confirm if you are also running kibana behind a reverse proxy?

[saragri31]

Hi @alisonelizabeth
We're also running Kibana behind an Apache Reverse Proxy.

[alisonelizabeth]

@saragri31 or @pemontto - would either of you be available sometime to walk me through your setup to help track down this issue?

[saragri31]

@alisonelizabeth Zoom is not working from my company and I won't be able to share my screen. We can still have a call if needed so I can show you our reverse proxy settings.

[uvenukadasula]

@alisonelizabeth, we use nginx as reverse proxy and I can see the same issue. Raised support ticket and waiting to hear from Elastic. From Kibana, snapshot not getting deleted on demand (404 error). Scheduled retention is also not working. Though I have defined policy to retain the snapshot for 1 day, nothing gets purged after 2 days. Deleting snapshot using API works fine. I can join a zoom meeting to show you the problem. Tested with ELK 7.6.2 running in docker.

[alisonelizabeth]

Hi @uvenukadasula! Thanks for the information. I am able to reproduce now, and
I am currently looking into a fix. I will update the issue once I have more details.

Regarding the scheduled retention, that sounds like a separate issue. Would you mind opening a new issue with more details, or continue to work with support on this? Thanks!

[uvenukadasula]

Sure thanks @alisonelizabeth I am working with Jonathan Wilson in Elastic @JWilsonElastic via support ticket. Can you please update him on this issue so that he can save time replicating.

If I cannot find scheduled retention related issue, I will submit a new one. Thanks.

[uvenukadasula]

Thanks @alisonelizabeth
