Ionic-framework: Misaligned navbar components in iOS 10

[CoDanny]

Ionic version: (check one with "x")
(For Ionic 1.x issues, please use https://github.com/ionic-team/ionic-v1)
[ ] 2.x
[x] 3.7.1
[ ] 4.x

I'm submitting a ... (check one with "x")
[x] bug report
[ ] feature request

Current behavior:
Navigation bar icons are vertically misaligned in iOS 10

Expected behavior:
The icons are vertically centered. Which happens in iOS 11

Steps to reproduce:

Related code:

  <ion-navbar>
    <ion-title (click)="scrollToTop()">{{'DASHBOARD.FILE_MANAGER' | translate }}</ion-title>
    <ion-buttons left>
      <button ion-button icon-only menuToggle>
        <ion-icon name="menu"></ion-icon>
      </button>
    </ion-buttons>
    <ion-buttons end>
      <button ion-button icon-only (click)="goToDashboard()">
        <ion-icon name="apps"></ion-icon>
      </button>
    </ion-buttons>
  </ion-navbar>

Other information:

Ionic info: (run ionic info from a terminal/cmd prompt and paste output below):

cli packages: (/Users/arroyo/3dagogo-repos/AstroPrint-Mobile/node_modules)

    @ionic/cli-utils  : 1.12.0
    ionic (Ionic CLI) : 3.12.0

global packages:

    cordova (Cordova CLI) : 7.0.1

local packages:

    @ionic/app-scripts : 3.0.0
    Cordova Platforms  : android 6.2.3 ios 4.5.1
    Ionic Framework    : ionic-angular 3.7.1

System:

    Android SDK Tools : 26.1.1
    ios-deploy        : 1.9.2
    ios-sim           : 5.0.8
    Node              : v8.1.4
    npm               : 5.4.2
    OS                : macOS Sierra
    Xcode             : Xcode 9.0 Build version 9A235

Misc:

    backend : legacy

[mhartington]

Hm, would you be able to try installing

npm i [email protected]

This has a few more fixes for ios11, and does not seem to be causing issues for ios10 in my tests.

[DavidRyu123]

I have tried to install the [email protected] and still have same issue in iOS 10.

@ionic/cli-utils  : 1.12.0
ionic (Ionic CLI) : 3.12.0

global packages:

cordova (Cordova CLI) : 7.0.1

local packages:

@ionic/app-scripts : 2.1.4
Cordova Platforms  : android 6.2.3 ios 4.4.0
Ionic Framework    : ionic-angular 3.7.1-201710032000

System:

ios-deploy : 1.9.2
ios-sim    : 5.0.6
Node       : v8.4.0
npm        : 5.5.1
OS         : macOS Sierra
Xcode      : Xcode 9.0 Build version 9A235

Misc:

backend : pro

[mattss]

I am seeing the same issue. Upgrading to [email protected] had no effect on the problem.

[mattss]

I can replicate this by just cloning the ionic conference app (https://github.com/ionic-team/ionic-conference-app), and deploying to an iOS 10 simulator using XCode 9. Switching the same app to a simulator on iOS 11 looks fine.

ionic info output

cli packages:

@ionic/cli-utils  : 1.12.0
ionic (Ionic CLI) : 3.12.0

global packages:

cordova (Cordova CLI) : 7.0.1

local packages:

@ionic/app-scripts : 3.0.0
Cordova Platforms  : ios 4.5.1
Ionic Framework    : ionic-angular 3.7.1

System:

Android SDK Tools : 25.2.3
ios-deploy        : 1.9.2
ios-sim           : 5.0.13
Node              : v8.1.3
npm               : 5.0.3
OS                : macOS Sierra
Xcode             : Xcode 9.0 Build version 9A235

Misc:

backend : legacy

[mattss]

@mhartington As far as I can tell, this is due to ionic's base styles using the new 'safe area' CSS constants to calculate the header padding values. These are not available prior to iOS 11, and there don't appear to be any fallback styles set in the ionic stylesheets.

[mattss]

@mhartington More specifically, some items have a fallback padding value (e.g. child elements of ion-navbar), which is why the title and ion-segment look correct. However, ion-navbar itself has no fallback padding, which is why the buttons are positioned incorrectly.

[mhartington]

@mattss I'm still not able to replicate this. Using

npm i [email protected]

This is iPhone 6 running ios10.2, which doesn't have constant or env functions in css, it has the fall back values.

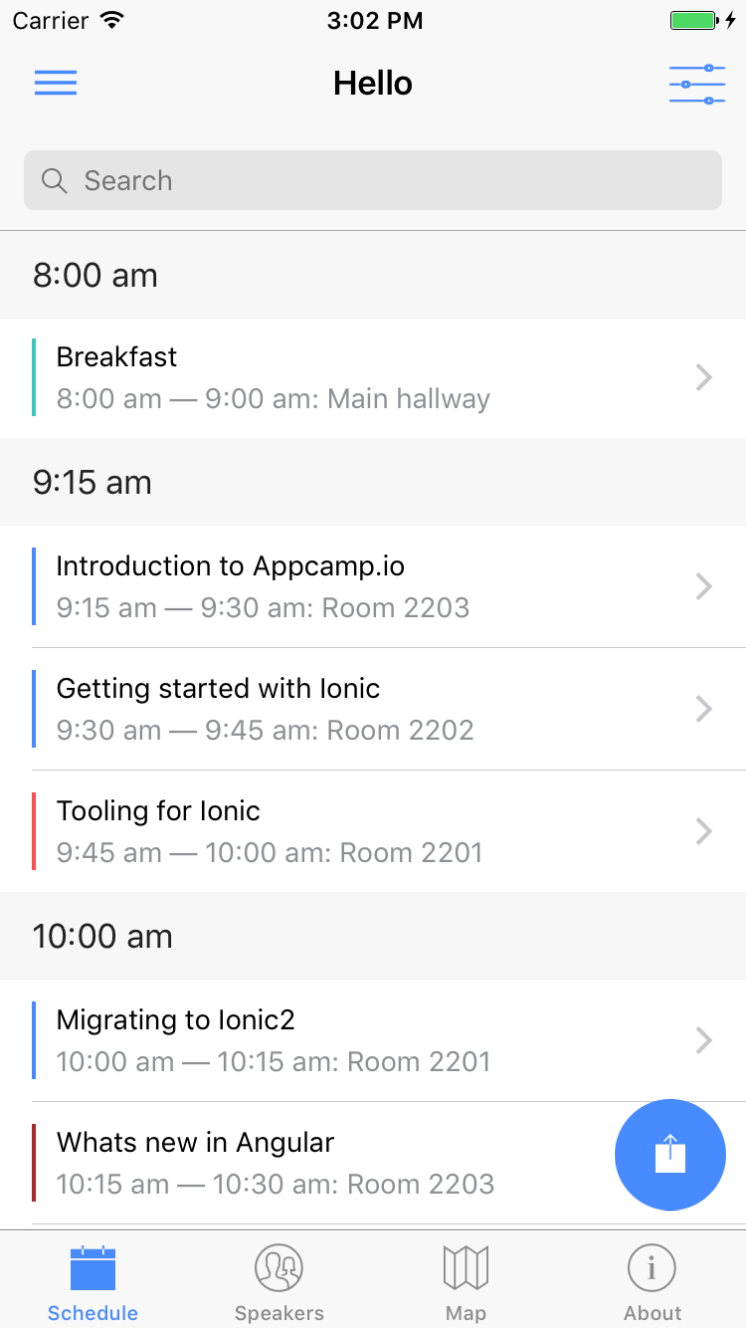

In the screen shot, you can see the correct css padding/positioning being applied.

[mattss]

@mhartington that's a different version to the one you suggested above - will try that one instead thanks.

[kensodemann]

I am unable to duplicate _this_ issue with npm i [email protected]. iOS 11 is on the left, iOS 10.3.1 on the right:

However, it appears that #13046 is still an issue. Note the slightly lower title on the iOS 11 device:

@mhartington - would you like me to reopen #13046? or would you like to just deal with that alignment issue here as well?

[mattss]

@mhartington I've just realised that this is only an issue if you build for production i.e with:

ionic cordova build ios --prod

If you build without '--prod', the issue goes away. As far as I can tell, some CSS rules are being evaluated differently in production mode.

[mhartington]

Hmm, interesting. Alright, thanks for the tip @mattss

[DavidRyu123]

Perhaps not a final solution but, put this CSS in each affected pages or in variables.scss solved issues for me

      @media only screen and (max-width: 767px) {
        .toolbar-ios.statusbar-padding:first-child {
            padding-top: calc(20px + 4px);
            min-height: calc(44px + 20px);
        }

        .toolbar-ios.statusbar-padding:first-child ion-title {
            padding-top: 20px;
            height: calc(44px + 20px);
            min-height: calc(44px + 20px);
        }
    }

[mhartington]

Hi, while this could work as a work around, it will be fixed in the framework.

@mattss I can replicate the issue with a prod build, thanks for helping me figure it out.

[mhartington]

Hey everyone, can you try to update app-scripts to the 3.0.0-201710091726

npm i @ionic/[email protected]

There was a bug in dep where css was getting removed, causing this issue

[kensodemann]

@mhartington - the update to app-scripts fixed the main issue for me (tested with and without --prod)

The title being slightly lower than the < Back button on iOS 11 is still an issue, but. didn't really expect an app-scripts update to fix that...

[mhartington]

Title is looking good now.

Just pushed a fix, will cut a nightly soon.

[mhartington]

New nightly is out!

npm i [email protected]

Please verify this fixes things for you.

[mattss]

Works for me! Thanks @mhartington 👍

[zaq962]

it Works for me! Thanks @mhartington

npm i @ionic/[email protected]

[ionitron-bot[bot]]

Thanks for the issue! This issue is being locked to prevent comments that are not relevant to the original issue. If this is still an issue with the latest version of Ionic, please create a new issue and ensure the template is fully filled out.
